6.2.4 The Blood System: Cardiac Cycle


Introduction to the Heart

Mammalian heart structure

  • The heart is a hollow, muscular organ located in the chest cavity
  • The heart is divided into four chambers
    • The two top chambers are atria
    • The bottom two chambers are ventricles
  • The left and right sides of the heart are separated by a wall of muscular tissue called the septum.
    • The septum is very important for ensuring blood doesn’t mix between the left and right sides of the heart

  • Valves are important for keeping blood flowing forward in the right direction and stopping it flowing backwards. They are also important for maintaining the correct pressure in the chambers of the heart
    • The atria and ventricles are separated by the atrioventricular valves
    • The ventricles and the arteries that leave the heart are separated by semi-lunar valves
      • The right ventricle and the pulmonary artery are separated by the pulmonary valve
      • The left ventricle and aorta are separated by the aortic valve
  • There are two blood vessels bringing blood to the heart; the vena cava and pulmonary vein
  • There are two blood vessels taking blood away from the heart; the pulmonary artery and aorta

The Human Heart, downloadable AS & A Level Biology revision notes

The human heart has four chambers and is separated into two halves by the septum

Sinoatrial Node

Contraction of the heart muscle

  • The contraction of the heart is called systole, while the relaxation of the heart is called diastole
  • Atrial systole is the period when the atria are contracting and ventricular systole is when the ventricles are contracting
  • Atrial systole happens around 0.13 seconds after ventricular systole
  • Atrial systole forces blood from the atria into the ventricles
  • During ventricular systole, blood is forced from the ventricles into the pulmonary artery and aorta
  • One systole and diastole makes a heartbeat and lasts around 0.8 seconds in humans.
  • This is the cardiac cycle

Initiation of the heartbeat by the sinoatrial node

  • The heart muscle is myogenic, meaning that the heart will beat without any external stimulus from other organs or the nervous system
    • This intrinsic control causes the heart to beat at around 60 beats per minute
  • The heart beat is initiated by a group of cells in the wall of the right atrium called the sinoatrial node (SAN)
  • The cells of the sinoatrial node depolarise, reversing the charge across their membranes
    • This triggers a wave of depolarisation that spreads across the rest of the heart
  • The sinoatrial node is considered to be the pacemaker of the heart because it initiates the heart beat and so controls the speed at which the heart beats
    • Note that artificial pacemakers are electronic devices implanted just underneath the skin. They can be used to replace or regulate the sinoatrial node if it becomes defective

Cardiac Cycle

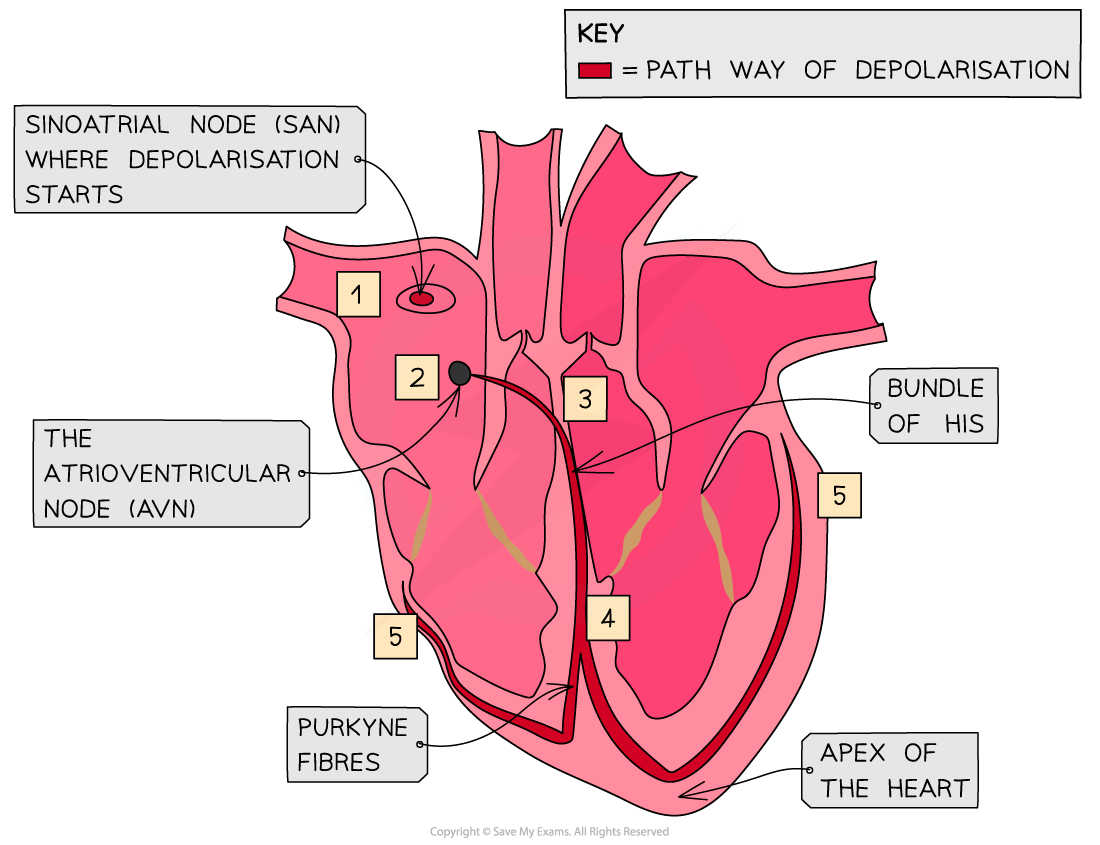

Electrical control of the cardiac cycle

  • The cardiac cycle is the series of events that take place in one heart beat, including atrial and ventricular systole
  • The cardiac cycle is controlled by electrical signals that are initiated in the sinoatrial node
    • Depolarisation of the cells in the sinoatrial node sends an electrical signal over the atria, causing them to contract in atrial systole
    • The electrical signal then reaches a region of non-conducting tissue which prevents it from spreading straight to the ventricles; this causes the signal to pause for around 0.1 s
      • This delay means that the atria can complete their contraction before the ventricles begin to contract

    • The electrical signal is carried to the ventricles via the atrioventricular node (AVN)
      • This is a region of conducting tissue between atria and ventricles

    • The signal then travels to the base of the heart via conductive fibres in the septum known as the bundle of His
    • The electrical signal is then carried through another set of conductive fibres called Purkyne fibres which spread around the sides of the ventricles, causing contraction of the ventricles from the apex, or base, of the heart upwards
      • This is called ventricular systole
      • Blood is forced out of the heart into the pulmonary artery and aorta

Electrical Control of the Cardiac Cycle Table

Stages in the Cardiac Cycle Table, downloadable AS & A Level Biology revision notes

Electrical Activity of the Heart_1, downloadable AS & A Level Biology revision notes

The wave of depolarisation spreads across the heart in a coordinated manner

Worked Example

Explain the roles of the sinoatrial node, the atrioventricular node and the conductive fibres in a heartbeat.

The cells of the sinoatrial node depolarise and send out an electrical signal which spreads across both atria, causing atrial systole. Non-conducting tissue between the atria and ventricles prevents depolarisation from spreading to the ventricles, ensuring that the atria finish contracting before the ventricles begin. The atrioventricular node then sends the electrical signal to the apex of the ventricles via conductive fibres in the septum known as the bundle of His. The electrical signal is then carried upwards around the walls of the ventricles by conductive tissues called Purkyne fibres. This means that during ventricular systole, the blood contracts from its base and blood is pushed upwards and outwards.

Cardiac Cycle Pressure Changes

  • Contraction of the heart muscle causes an increase in pressure in the corresponding chamber if the heart, which then decreases again when the muscle relaxes
  • Throughout the cardiac cycle, heart valves open and close as a result of pressure changes in different regions of the heart:
    • Valves open when the pressure of blood behind them is greater than the pressure in front of them
    • They close when the pressure of blood in front of them is greater than the pressure behind them

  • Valves are an important mechanism to stop blood flowing backwards
  • The pressure changes of the cardiac cycle can be represented in a graph

Pressure changes during diastole

  • During diastole, the heart muscle is relaxing
    • During this period, blood begins to flow into the atria from the veins, increasing the atrial pressure

  • Relaxed muscle in the heart walls recoils, increasing the volume of the chambers of the heart:
    • The atrioventricular valves open as the pressure in the atria is higher than the pressure in the ventricles
    • The semilunar valves close as the pressure in the pulmonary artery and aorta is higher than the pressure in the ventricles

Pressure changes during systole

  • During systole, the heart contracts and pushes blood out of the heart
  • The contraction of the muscles in the wall of the heart reduces the volume of the heart chambers and increases the pressure within that chamber
  • In atrial systole, the atria contract
    • The atrioventricular valves are open as the pressure in the atria exceeds the pressure in the ventricles
    • The semilunar valves are closed as the pressure in the ventricles is less than the pressure in the aorta and pulmonary artery

  • In ventricular systole, the ventricles contract
      • The atrioventricular valves are closed as the pressure in the ventricles exceeds the pressure in the atria
      • The semilunar valves are open as the pressure in the ventricles exceeds the pressure in the aorta and pulmonary artery

Cardiac Cycle Labelled, downloadable AS & A Level Biology revision notes

Graph showing the pressure changes within the aorta, left atrium and left ventricle during the cardiac cycle. The atrioventricular valves open at E and close at B, while the semilunar valves open at C and close at D.

Analysing the cardiac cycle

  • The lines on the graph represent the pressure of the left atrium, aorta, and the left ventricle
  • The points at which the lines cross each other are important because they indicate when valves open and close

Point A - the end of diastole

  • The atrium has filled with blood during the preceding diastole
  • Pressure is higher in the atrium than in the ventricle, so the AV valve is open

Between points A and B - atrial systole

  • Left atrium contracts, causing an increase in atrial pressure and forcing blood into the left ventricle
  • Ventricular pressure increases slightly as it fills with blood
  • Pressure is higher in the atrium than in the ventricle, so the AV valve is open

Point B - beginning of ventricular systole

  • Left ventricle contracts causing the ventricular pressure to increase
  • Pressure in the left atrium drops as the muscle relaxes
  • Pressure in the ventricle exceeds pressure in the atrium, so the AV valve shuts

Point C - ventricular systole

  • The ventricle continues to contract
  • Pressure in the left ventricle exceeds that in the aorta
  • Aortic valve opens and blood is forced into the aorta

Point D - beginning of diastole

  • Left ventricle has been emptied of blood
  • Muscles in the walls of the left ventricle relax and pressure falls below that in the newly filled aorta
  • Aortic valve closes

Between points D and E - early diastole

  • The ventricle remains relaxed and ventricular pressure continues to decrease
  • In the meantime, blood is flowing into the relaxed atrium from the pulmonary vein, causing an increase in pressure

Point E - diastole

  • The relaxed left atrium fills with blood, causing the pressure in the atrium to exceed that in the newly emptied ventricle
  • AV valve opens

After point E - late diastole

  • There is a short period of time during which the left ventricle expands due to relaxing muscles
  • This increases the internal volume of the left ventricle and decreases the ventricular pressure
  • At the same time, blood is flowing slowly through the newly opened AV valve into the left ventricle, causing a brief decrease in pressure in the left atrium
  • The pressure in both the atrium and ventricle then increases slowly as they continue to fill with blood

Exam Tip

When looking at the heart, remember the right side of the heart will appear on the page as being on the left. This is because the heart is labelled as if it were in your body and flipped around. Remember that the heart muscle is myogenic, which means that the heart will generate a heartbeat by itself and without any other stimulation. Instead, the electrical activity of the heart regulates the heart rate.The maximum pressure in the ventricles is substantially higher than in the atria. This is because there is much more muscle in the thick walls of the ventricles which can exert more force when they contract.



  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            Ruth Brindle

                                                                                                                                                                                                                                                                                            Author: Ruth

                                                                                                                                                                                                                                                                                            Ruth graduated from Sheffield University with a degree in Biology and went on to teach Science in London whilst also completing an MA in innovation in Education. With 10 years of teaching experience across the 3 key science disciplines, Ruth decided to set up a tutoring business to support students in her local area. Ruth has worked with several exam boards and loves to use her experience to produce educational materials which make the mark schemes accessible to all students.


                                                                                                                                                                                                                                                                                            Save My Exams Logo
                                                                                                                                                                                                                                                                                            Resources
                                                                                                                                                                                                                                                                                            Home Join Support

                                                                                                                                                                                                                                                                                            Members
                                                                                                                                                                                                                                                                                            Members Home Account Logout

                                                                                                                                                                                                                                                                                            Company
                                                                                                                                                                                                                                                                                            About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                            Quick Links
                                                                                                                                                                                                                                                                                            GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                            © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                            IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
