6.4.1 Ventilation: Function & Structures


Ventilation

  • Ventilation can be defined as
    • The replacement of older air in the lungs with fresh air from the body's external environment

  • Ventilation is essential for the effective exchange of gases in the lungs
  • The exchange of oxygen and carbon dioxide occurs between the alveoli and the capillaries in the lungs
  • Gases are exchanged by simple diffusion which requires a concentration gradient
  • This gradient is maintained by
    • Ventilation
    • The continuous flow of blood in the capillaries

The impact of ventilation

  • Ventilation maintains concentration gradients of oxygen and carbon dioxide between air in the alveoli and blood flowing in adjacent capillaries
    • Breathing in fresh air from the surrounding environment increases the concentration of oxygen in the air inside the alveoli
    • Breathing out removes carbon dioxide

  • This means that after ventilation, compared to the blood found in adjacent capillaries, the alveoli have
    • Higher oxygen levels
    • Lower carbon dioxide levels

  • This ensures that oxygen continues to diffuse from the alveoli into the capillaries, while carbon dioxide continues to diffuse from the capillaries into the alveoli
    • Both gases move down their concentration gradient

Single alveolus and adjacent capillary, downloadable IB Biology revision notes

Ventilation maintains a concentration gradient between the air in the alveolus and the blood in the adjacent capillary

Type I Pneumocytes

  • The alveoli are specifically adapted for gas exchange as they collectively have a very large surface area and the alveolar walls are only one cell thick which provides a short diffusion distance
    • The alveolar walls are also known as the alveolar epithelium

  • Type I pneumocytes are extremely thin alveolar cells which make up the majority of the alveolar epithelium
    • They are adapted to maximise the rate of gas exchange by providing a short diffusion distance
  • The capillary walls are also only one cell thick which means there is usually less than 0.5μm between the air in the alveoli and the blood, this maximises the rate of diffusion

Type I pneumocytes and diffusion distance, downloadable IB Biology revision notes

The thin type I pneumocyte cells and the thin capillary walls provide a short diffusion distance to maximise gas exchange

Type II Pneumocytes

  • Type II pneumocytes are rounded cells which secrete a solution that coats the epithelium of the alveoli
  • They occupy a much smaller proportion of the alveolar epithelium than the type I pneumocytes; around 5%
  • The solution released by type II pneumocytes contains pulmonary surfactant
    • Pulmonary surfactant has hydrophobic tails and hydrophilic heads
    • The molecules form a monolayer with the hydrophobic tails facing the alveolar air

  • Pulmonary surfactant reduces surface tension, maintaining alveolar shape and preventing the sacs sticking together
    • This prevents the alveoli, and therefore the lungs, from collapsing

  • The solution also aids gas exchange
    • The layer of moisture provided by the solution allows oxygen to dissolve before it diffuses into the blood
    • Carbon dioxide diffuses from the moist surface before it is removed in exhalation

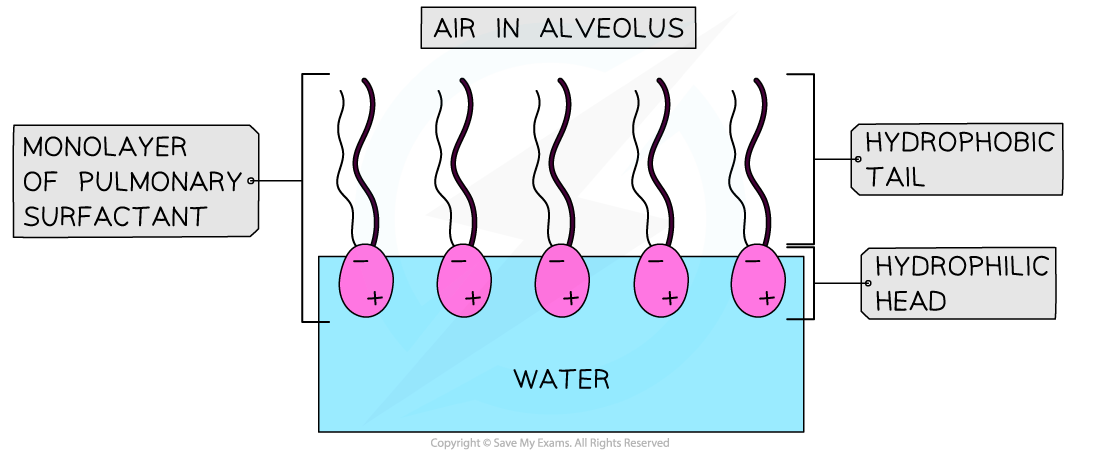

Pulmonary surfactant, downloadable IB Biology revision notes

The type II pneumocyte cells in the alveoli produce a solution containing pulmonary surfactant which reduces surface tension

Type I and Type II Pneumocytes, downloadable IB Biology revision notes

The alveolar epithelium is made up of type I and type II pneumocyte cells

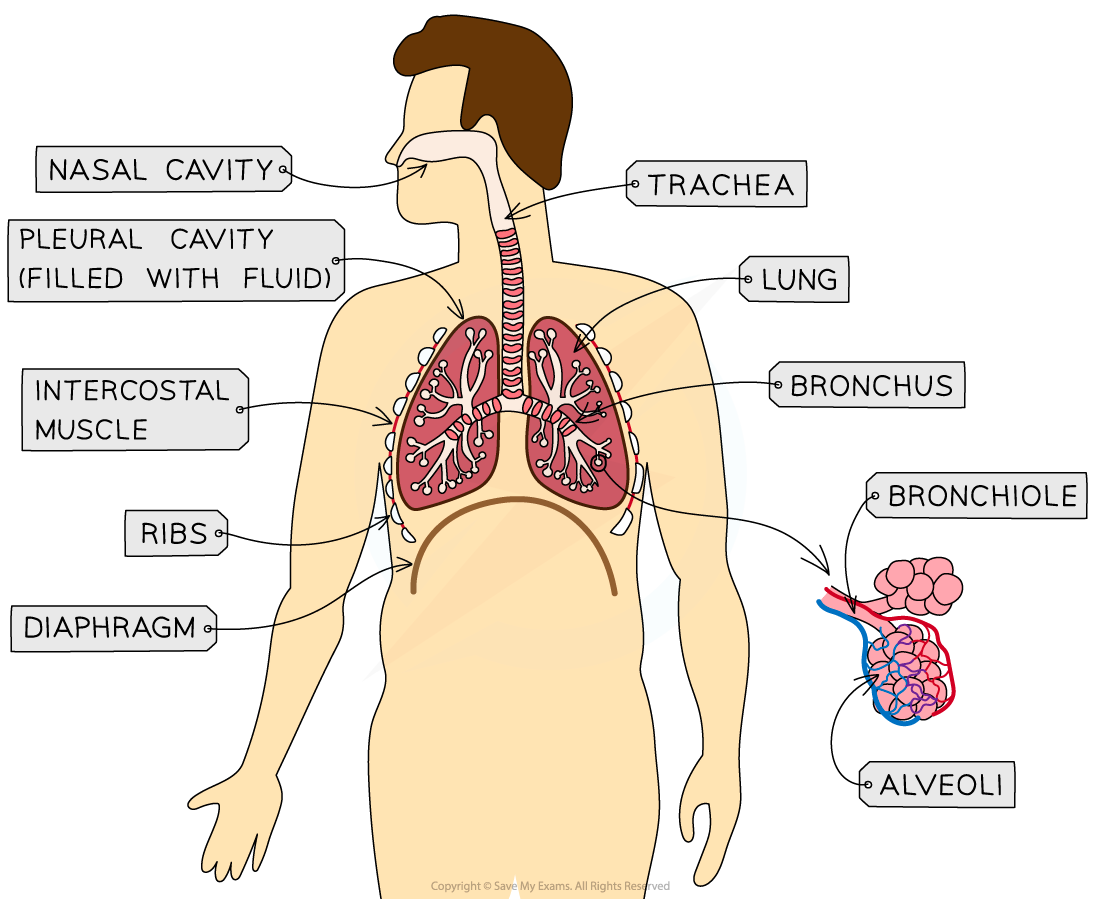

Air Pathway

  • Air moves in through the nose and mouth before it is carried to the lungs through the trachea
  • The trachea is a tube supported by rings of cartilage which help to support its shape and ensure it stays open, while allowing it to move and flex with the body
  • The trachea divides to form the two bronchi (singular bronchus) with walls also strengthened with cartilage and has a layer of smooth muscle which can contract or relax to change the diameter of the airways.
    • One bronchus leads to each lung
  • Bronchioles branch off the two bronchi to form a network of narrow tubes
    • The walls of the bronchioles are lined with a layer of smooth muscle to alter the diameter of the bronchiole tubes
    • This helps to regulate the flow of air into the lungs by dilating when more air is needed and constricting when e.g. an allergen is present
  • Groups of alveoli are found at the end of the bronchioles
  • Each alveolus is surrounded by an extensive network of capillaries to provide a good blood supply for maximum gas exchange

The Human Thorax, downloadable AS & A Level Biology revision notes

The main structures of the human gas exchange system



  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            Ruth Brindle

                                                                                                                                                                                                                                                                                            Author: Ruth

                                                                                                                                                                                                                                                                                            Ruth graduated from Sheffield University with a degree in Biology and went on to teach Science in London whilst also completing an MA in innovation in Education. With 10 years of teaching experience across the 3 key science disciplines, Ruth decided to set up a tutoring business to support students in her local area. Ruth has worked with several exam boards and loves to use her experience to produce educational materials which make the mark schemes accessible to all students.


                                                                                                                                                                                                                                                                                            Save My Exams Logo
                                                                                                                                                                                                                                                                                            Resources
                                                                                                                                                                                                                                                                                            Home Join Support

                                                                                                                                                                                                                                                                                            Members
                                                                                                                                                                                                                                                                                            Members Home Account Logout

                                                                                                                                                                                                                                                                                            Company
                                                                                                                                                                                                                                                                                            About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                            Quick Links
                                                                                                                                                                                                                                                                                            GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                            © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                            IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
