DP IB Maths: AA SL

Revision Notes

Home / IB / Maths: AA SL / DP / Revision Notes / 5. Calculus / 5.2 Further Differentiation / 5.2.5 Concavity & Points of Inflection


5.2.5 Concavity & Points of Inflection


Concavity of a Function

What is concavity?

  • Concavity is the way in which a curve (or surface) bends
  • Mathematically,
    • a curve is CONCAVE DOWN ifspace f apostrophe apostrophe left parenthesis x right parenthesis less or equal than 0 for all values ofspace x in an interval
    • a curve is CONCAVE UP ifspace f apostrophe apostrophe left parenthesis x right parenthesis greater or equal than 0 for all values ofspace x in an interval
  • CONCAVE DOWN is often called concave
  • CONCAVE UP is often called convex

ib-aa-sl-5-2-5-concave-diagram

Exam Tip

  • In an exam an easy way to remember the difference is:
    • Concave down is the shape of (the mouth of) a sad smiley ☹︎
    • Concave up is the shape of (the mouth of) a happy smiley ☺︎

Worked Example

 The functionspace f left parenthesis x right parenthesis is given byspace f left parenthesis x right parenthesis equals x cubed minus 3 x plus 2.

a)
Determine whether the curve of the graph ofspace y equals f left parenthesis x right parenthesis is concave down or concave up at the points wherespace x equals negative 2 andspace x equals 2.

5-2-5-ib-sl-aa-only-we1-soltn-a

b)
Find the values ofspace x for which the curve of the graphspace y equals f left parenthesis x right parenthesis of is concave up.

5-2-5-ib-sl-aa-only-we1-soltn-b

Points of Inflection

What is a point of inflection?

  • A point at which the curve of the graph ofspace y equals f left parenthesis x right parenthesis changes concavity is a point of inflection
  • The alternative spelling, inflexion, may sometimes be used

What are the conditions for a point of inflection?

  • A point of inflection requires BOTH of the following two conditions to hold

    • the second derivative is zero
      • space f apostrophe apostrophe left parenthesis x right parenthesis equals 0
AND

    • the graph ofspace y equals f left parenthesis x right parenthesis changes concavity
      • space f apostrophe apostrophe left parenthesis x right parenthesis changes sign through a point of inflection

ib-aa-sl-5-2-5-point-of-inflection-diagram

  • It is important to understand that the first condition is not sufficient on its own to locate a point of inflection
    • points wherespace f apostrophe apostrophe left parenthesis x right parenthesis equals 0 could be local minimum or maximum points
      • the first derivative test would be needed
    • However, if it is already knownspace f left parenthesis x right parenthesis has a point of inflection atspace x equals a, say, thenspace f apostrophe apostrophe left parenthesis a right parenthesis equals 0

What about the first derivative, like with turning points?

  • A point of inflection, unlike a turning point, does not necessarily have to have a first derivative value of 0 (space f apostrophe left parenthesis x right parenthesis equals 0 )
    • If it does, it is also a stationary point and is often called a horizontal point of inflection
      • the tangent to the curve at this point would be horizontal
    • The normal distribution is an example of a commonly used function that has a graph with two non-stationary points of inflection

How do I find the coordinates of a point of inflection?

  • For the functionspace f left parenthesis x right parenthesis
STEP 1

Differentiatespace f left parenthesis x right parenthesis twice to findspace f apostrophe apostrophe left parenthesis x right parenthesis and solvespace f apostrophe apostrophe left parenthesis x right parenthesis equals 0 to find the x-coordinates of possible points of inflection

STEP 2

Use the second derivative to test the concavity ofspace f left parenthesis x right parenthesis either side ofspace x equals a

  • Ifspace f apostrophe apostrophe left parenthesis x right parenthesis less than 0 thenspace f left parenthesis x right parenthesis is concave down
  • Ifspace f apostrophe apostrophe left parenthesis x right parenthesis greater than 0 thenspace f left parenthesis x right parenthesis is concave up

If concavity changes, x equals a is a point of inflection

STEP 3

If required, thespace y-coordinate of a point of inflection can be found by substituting thespace x-coordinate intospace f left parenthesis x right parenthesis

Exam Tip

  • You can find the x-coordinates of the point of inflections of space y equals f left parenthesis x right parenthesis by drawing the graph space y equals f apostrophe left parenthesis x right parenthesis and finding the x-coordinates of any local maximum or local minimum points
  • Another way is to draw the graph space y equals f apostrophe apostrophe left parenthesis x right parenthesis and find the x-coordinates of the points where the graph crosses (not just touches) the x-axis

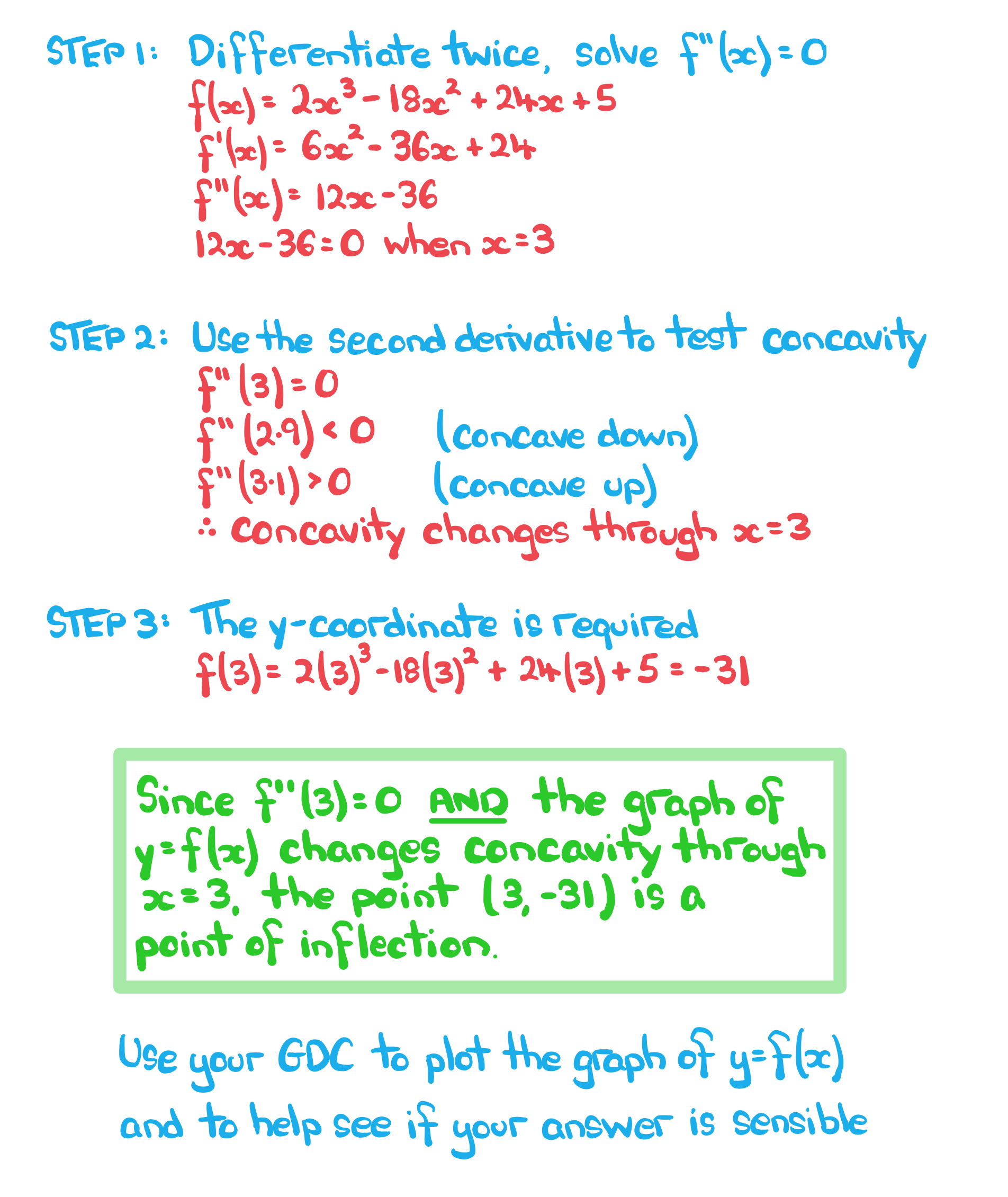

Worked Example

Find the coordinates of the point of inflection on the graph ofspace y equals 2 x cubed minus 18 x squared plus 24 x plus 5.
Fully justify that your answer is a point of inflection.

5-2-5-ib-sl-aa-only-we2-soltn



  • 1. Number & Algebra
    • 1.1 Number Toolkit
      • 1.1.1 Standard Form
        • 1.1.2 Laws of Indices
        • 1.2 Exponentials & Logs
          • 1.2.1 Introduction to Logarithms
            • 1.2.2 Laws of Logarithms
              • 1.2.3 Solving Exponential Equations
              • 1.3 Sequences & Series
                • 1.3.1 Language of Sequences & Series
                  • 1.3.2 Arithmetic Sequences & Series
                    • 1.3.3 Geometric Sequences & Series
                      • 1.3.4 Applications of Sequences & Series
                        • 1.3.5 Compound Interest & Depreciation
                        • 1.4 Proof & Reasoning
                          • 1.4.1 Proof
                          • 1.5 Binomial Theorem
                            • 1.5.1 Binomial Theorem
                          • 2. Functions
                            • 2.1 Linear Functions & Graphs
                              • 2.1.1 Equations of a Straight Line
                              • 2.2 Quadratic Functions & Graphs
                                • 2.2.1 Quadratic Functions
                                  • 2.2.2 Factorising & Completing the Square
                                    • 2.2.3 Solving Quadratics
                                      • 2.2.4 Quadratic Inequalities
                                        • 2.2.5 Discriminants
                                        • 2.3 Functions Toolkit
                                          • 2.3.1 Language of Functions
                                            • 2.3.2 Composite & Inverse Functions
                                              • 2.3.3 Graphing Functions
                                              • 2.4 Further Functions & Graphs
                                                • 2.4.1 Reciprocal & Rational Functions
                                                  • 2.4.2 Exponential & Logarithmic Functions
                                                    • 2.4.3 Solving Equations
                                                      • 2.4.4 Modelling with Functions
                                                      • 2.5 Transformations of Graphs
                                                        • 2.5.1 Translations of Graphs
                                                          • 2.5.2 Reflections of Graphs
                                                            • 2.5.3 Stretches of Graphs
                                                              • 2.5.4 Composite Transformations of Graphs
                                                            • 3. Geometry & Trigonometry
                                                              • 3.1 Geometry Toolkit
                                                                • 3.1.1 Coordinate Geometry
                                                                  • 3.1.2 Radian Measure
                                                                    • 3.1.3 Arcs & Sectors
                                                                    • 3.2 Geometry of 3D Shapes
                                                                      • 3.2.1 3D Coordinate Geometry
                                                                        • 3.2.2 Volume & Surface Area
                                                                        • 3.3 Trigonometry
                                                                          • 3.3.1 Pythagoras & Right-Angled Triganometry
                                                                            • 3.3.2 Non Right-Angled Trigonometry
                                                                              • 3.3.3 Applications of Trigonometry & Pythagoras
                                                                              • 3.4 Further Trigonometry
                                                                                • 3.4.1 The Unit Circle
                                                                                  • 3.4.2 Exact Values
                                                                                  • 3.5 Trigonometric Functions & Graphs
                                                                                    • 3.5.1 Graphs of Trigonometric Functions
                                                                                      • 3.5.2 Transformations of Trigonometric Functions
                                                                                        • 3.5.3 Modelling with Trigonometric Functions
                                                                                        • 3.6 Trigonometric Equations & Identities
                                                                                          • 3.6.1 Simple Identities
                                                                                            • 3.6.2 Double Angle Formulae
                                                                                              • 3.6.3 Relationship Between Trigonometric Ratios
                                                                                                • 3.6.4 Linear Trigonometric Equations
                                                                                                  • 3.6.5 Quadratic Trigonometric Equations
                                                                                                • 4. Statistics & Probability
                                                                                                  • 4.1 Statistics Toolkit
                                                                                                    • 4.1.1 Sampling & Data Collection
                                                                                                      • 4.1.2 Statistical Measures
                                                                                                        • 4.1.3 Frequency Tables
                                                                                                          • 4.1.4 Linear Tranformations of Data
                                                                                                            • 4.1.5 Outliers
                                                                                                              • 4.1.6 Univariate Data
                                                                                                                • 4.1.7 Interpreting Data
                                                                                                                • 4.2 Correlation & Regression
                                                                                                                  • 4.2.1 Bivariate Data
                                                                                                                    • 4.2.2 Correlation & Regression
                                                                                                                    • 4.3 Probability
                                                                                                                      • 4.3.1 Probability & Types of Events
                                                                                                                        • 4.3.2 Conditional Probability
                                                                                                                          • 4.3.3 Sample Space Diagrams
                                                                                                                          • 4.4 Probability Distributions
                                                                                                                            • 4.4.1 Discrete Probability Distributions
                                                                                                                              • 4.4.2 Expected Values
                                                                                                                              • 4.5 Binomial Distribution
                                                                                                                                • 4.5.1 The Binomial Distribution
                                                                                                                                  • 4.5.2 Calculating Binomial Probabilities
                                                                                                                                  • 4.6 Normal Distribution
                                                                                                                                    • 4.6.1 The Normal Distribution
                                                                                                                                      • 4.6.2 Calculations with Normal Distribution
                                                                                                                                        • 4.6.3 Standardisation of Normal Variables
                                                                                                                                      • 5. Calculus
                                                                                                                                        • 5.1 Differentiation
                                                                                                                                          • 5.1.1 Introduction to Differentiation
                                                                                                                                            • 5.1.2 Applications of Differentiation
                                                                                                                                            • 5.2 Further Differentiation
                                                                                                                                              • 5.2.1 Differentiating Special Functions
                                                                                                                                                • 5.2.2 Techniques of Differentiation
                                                                                                                                                  • 5.2.3 Second Order Derivatives
                                                                                                                                                    • 5.2.4 Further Applications of Differentiation
                                                                                                                                                      • 5.2.5 Concavity & Points of Inflection
                                                                                                                                                        • 5.2.6 Derivatives & Graphs
                                                                                                                                                        • 5.3 Integration
                                                                                                                                                          • 5.3.1 Introduction to Integration
                                                                                                                                                            • 5.3.2 Applications of Integration
                                                                                                                                                            • 5.4 Further Integration
                                                                                                                                                              • 5.4.1 Integrating Special Functions
                                                                                                                                                                • 5.4.2 Techniques of Integration
                                                                                                                                                                  • 5.4.3 Definite Integrals
                                                                                                                                                                    • 5.4.4 Further Applications of Integration
                                                                                                                                                                    • 5.5 Optimisation
                                                                                                                                                                      • 5.5.1 Modelling with Differentiation
                                                                                                                                                                      • 5.6 Kinematics
                                                                                                                                                                        • 5.6.1 Kinematics Toolkit
                                                                                                                                                                          • 5.6.2 Calculus for Kinematics
                                                                                                                                                                        Paul Freeman

                                                                                                                                                                        Author: Paul

                                                                                                                                                                        Paul has taught mathematics for 20 years and has been an examiner for Edexcel for over a decade. GCSE, A level, pure, mechanics, statistics, discrete – if it’s in a Maths exam, Paul will know about it. Paul is a passionate fan of clear and colourful notes with fascinating diagrams – one of the many reasons he is excited to be a member of the SME team.


                                                                                                                                                                        Save My Exams Logo
                                                                                                                                                                        Resources
                                                                                                                                                                        Home Join Support

                                                                                                                                                                        Members
                                                                                                                                                                        Members Home Account Logout

                                                                                                                                                                        Company
                                                                                                                                                                        About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                        Quick Links
                                                                                                                                                                        GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                        © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                        IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
