Home / IB / Maths: AA HL / DP / Revision Notes / 5. Calculus / 5.10 Differential Equations / 5.10.3 Modelling with Differential Equations


5.10.3 Modelling with Differential Equations


Modelling with Differential Equations

Why are differential equations used to model real-world situations?

  • A differential equation is an equation that contains one or more derivatives
  • Derivatives deal with rates of change, and with the way that variables change with respect to one another
  • Therefore differential equations are a natural way to model real-world situations involving change
    • Most frequently in real-world situations we are interested in how things change over time, so the derivatives used will usually be with respect to time t

How do I set up a differential equation to model a situation?

  • An exam question may require you to create a differential equation from information provided
  • The question will provide a context from which the differential equation is to be created
  • Most often this will involve the rate of change of a variable being proportional to some function of the variable
      • For example, the rate of change of a population of bacteria, P, at a particular time may be proportional to the size of the population at that time
  • The expression ‘rate of’ (‘rate of change of…’, ‘rate of growth of…’, etc.) in a modelling question is a strong hint that a differential equation is needed, involving derivatives with respect to time t
      • So with the bacteria example above, the equation will involve the derivative  fraction numerator d P over denominator d t end fraction
  • Recall the basic equation of proportionality
    • If y is proportional to x, then y = kx for some constant of proportionality k
      • So for the bacteria example above the differential equation needed would be fraction numerator d P over denominator d t end fraction equals k P
    • The precise value of k will generally not be known at the start, but will need to be found as part of the process of solving the differential equation
    • It can often be useful to assume that k > 0 when setting up your equation
      • In this case, -k will be used in the differential equation in situations where the rate of change is expected to be negative
      • So in the bacteria example, if it were known that the population of bacteria was decreasing, then the equation could instead be written fraction numerator d P over denominator d t end fraction equals negative k P

Worked Example

a)
In a particular pond, the rate of change of the area covered by algae, A, at any time t is directly proportional to the square root of the area covered by algae at that time.  Write down a differential equation to model this situation.

5-10-3-ib-aa-hl-modelling-with-diff-eqns-a-we-solution

b)
Newton’s Law of Cooling states that the rate of change of the temperature of an object, T, at any time t is proportional to the difference between the temperature of the object and the ambient temperature of its surroundings, Ta , at that time.  Assuming that the object starts off warmer than its surroundings, write down the differential equation implied by Newton’s Law of Cooling.

5-10-3-ib-aa-hl-modelling-with-diff-eqns-b-we-solution

The Logistic Equation

What is the logistic equation?

  • The differential equation  fraction numerator d N over denominator d t end fraction equals k N is a very simple example of a model in which the rate of change of a population at any moment in time is dependent on the size of the population (N) at that time
    • The solution is N equals A straight e to the power of k t end exponent (where A > 0 is a constant)
    • If k > 0, this represents unlimited exponential growth of the variable N
  • In many real-world contexts (for example when considering populations of living organisms), unlimited growth is not a realistic modelling assumption
    • For reproducing populations it is logical to assume that the rate of change of the population will be dependent on the size of the population (more rabbits means more production of baby rabbits!)
    • But there are generally limiting factors on populations that prevent them from growing without limits
      • For example, availability of food or other resources, or the presence of predators or other threats, may limit the population that can exist in a given area
  • A logistic equation incorporates such limiting factors into the model, and therefore can provide a more realistic model for real-world populations

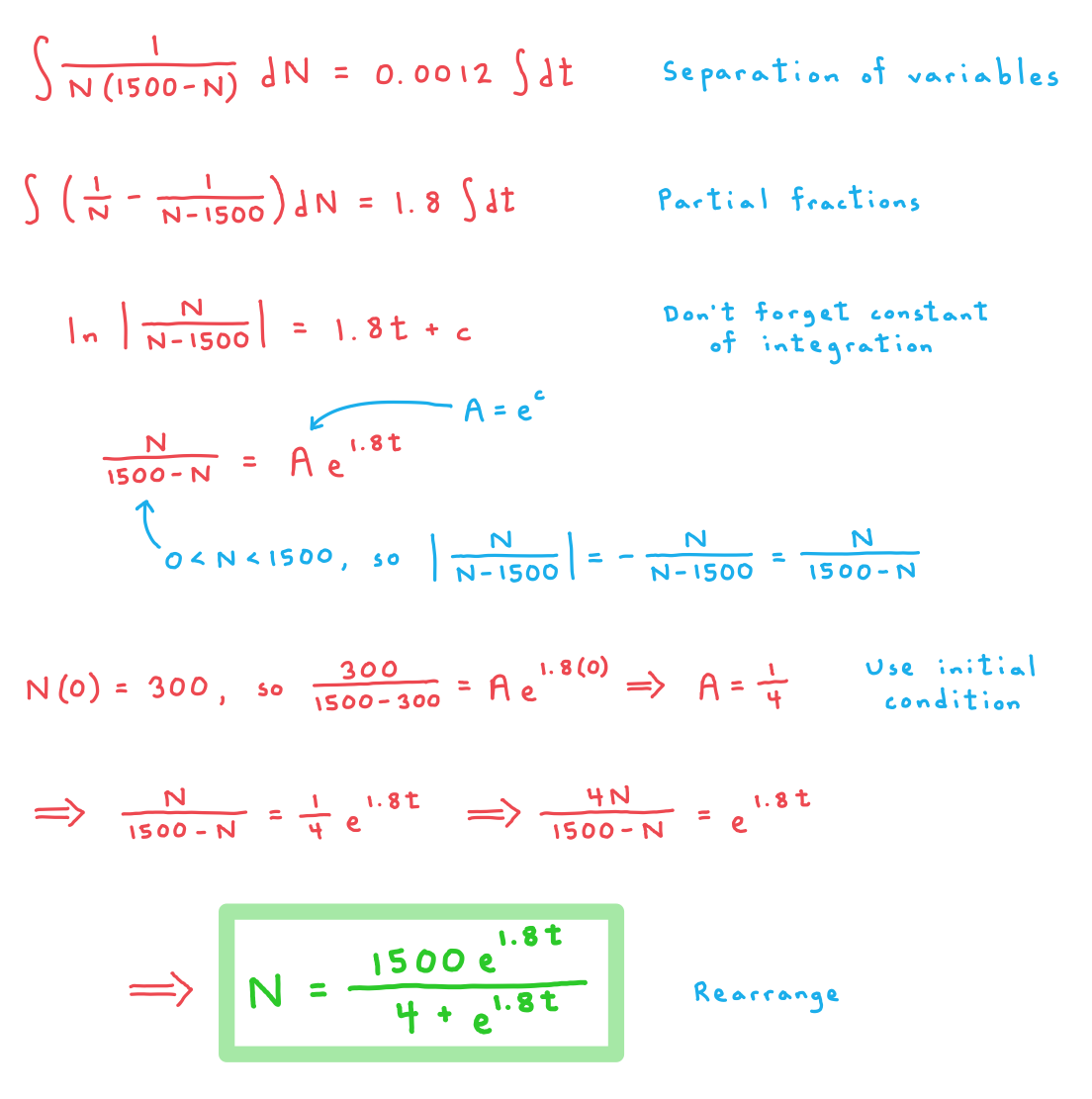

  • The standard logistic equation is of the form

fraction numerator d N over denominator d t end fraction equals k N left parenthesis a minus N right parenthesis

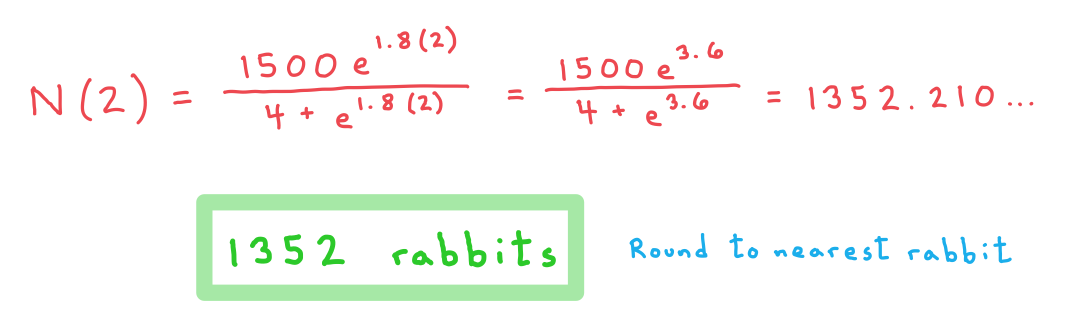

    • t represents the time (since the moment defined as t = 0) that the population has been growing
    • N represents the size of the population at time t
    • ​k element of straight real numbers is a constant determining the relative rate of population growth
      • For the models dealt with here it is most common to have k > 0, with a larger value of k representing a faster rate of change
    • a element of straight real numbers is a constant that places a limit on the maximum size to which the population N can grow
      • For a population model it can be assumed that a > 0

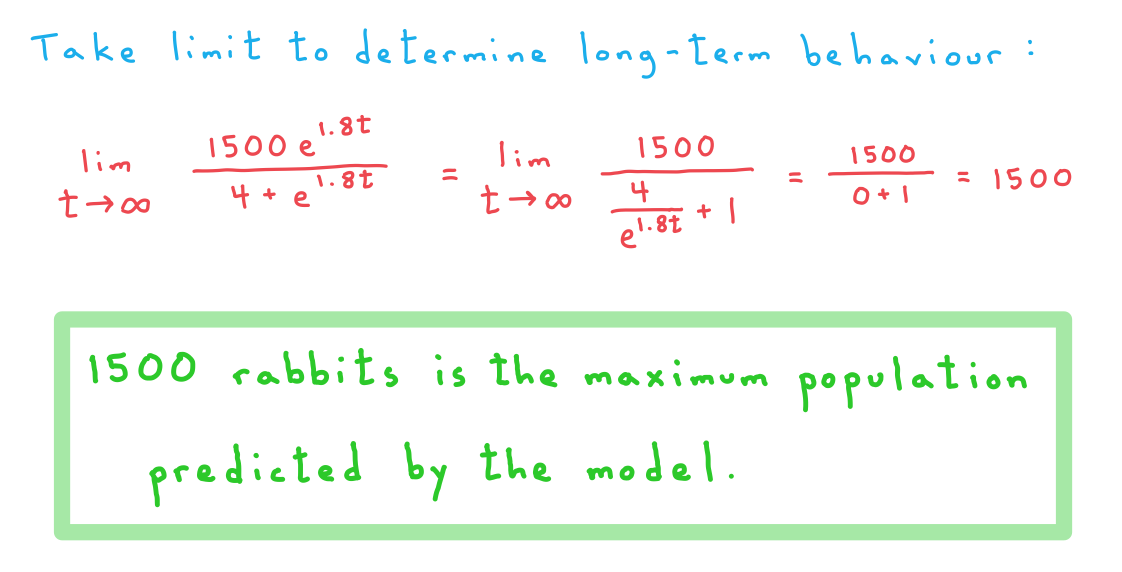

      • For k > 0 and an initial population N0 such that 0 < N0 < a, the population N will grow and will converge to the value a as time t increases
      • For k > 0 and an initial population N0 such that 0 < N0 < a, the population N will shrink and will converge to the value a as time t increases
  • There are other forms of logistic equation
    • The exact form of the logistic equation you are to use will always be given in an exam question

How do I solve problems that involve a logistic equation model?

  • Solving the differential equation will generally involve the technique of separation of variables
    • Usually this will also involve rearranging one of the integrals using partial fractions (see the worked example below for an example)
  • You will usually be given ‘boundary conditions’ specific to the context of the problem
    • For example, you may be told the initial population at time t = 0
    • These conditions will allow you to work out the exact value of any integrating constants that occur while solving the differential equation
  • You will need to take account of the context of the question in answering the question or in commenting on the model used

Worked Example

A group of ecologists are studying a population of rabbits on a particular island.  The population of rabbits, N, on the island is modelled by the logistic equation

fraction numerator d N over denominator d t end fraction equals 0.0012 N left parenthesis 1500 minus N right parenthesis

where t represents the time in years since the ecologists began their study.  At the time the study begins there are 300 rabbits on the island.

a)
Show that the population of rabbits at time t years is given by N equals fraction numerator 1500 straight e to the power of 1.8 t end exponent over denominator 4 plus straight e to the power of 1.8 t end exponent end fraction.

5-10-3-ib-aa-hl-logistic-equation-a-we-solution

b)
Find the population of rabbits that the model predicts will be on the island two years after the beginning of the study.

5-10-3-ib-aa-hl-logistic-equation-b-we-solution

c)
Determine the maximum size that the model predicts the population of rabbits can grow to.  Justify your answer by an appropriate analysis of the equation in part (a).

5-10-3-ib-aa-hl-logistic-equation-c-we-solution



  • 1. Number & Algebra
    • 1.1 Number & Algebra Toolkit
      • 1.1.1 Standard Form
        • 1.1.2 Laws of Indices
          • 1.1.3 Partial Fractions
          • 1.2 Exponentials & Logs
            • 1.2.1 Introduction to Logarithms
              • 1.2.2 Laws of Logarithms
                • 1.2.3 Solving Exponential Equations
                • 1.3 Sequences & Series
                  • 1.3.1 Language of Sequences & Series
                    • 1.3.2 Arithmetic Sequences & Series
                      • 1.3.3 Geometric Sequences & Series
                        • 1.3.4 Applications of Sequences & Series
                          • 1.3.5 Compound Interest & Depreciation
                          • 1.4 Simple Proof & Reasoning
                            • 1.4.1 Proof
                            • 1.5 Further Proof & Reasoning
                              • 1.5.1 Proof by Induction
                                • 1.5.2 Proof by Contradiction
                                • 1.6 Binomial Theorem
                                  • 1.6.1 Binomial Theorem
                                    • 1.6.2 Extension of The Binomial Theorem
                                    • 1.7 Permutations & Combinations
                                      • 1.7.1 Counting Principles
                                        • 1.7.2 Permutations & Combinations
                                        • 1.8 Complex Numbers
                                          • 1.8.1 Intro to Complex Numbers
                                            • 1.8.2 Modulus & Argument
                                              • 1.8.3 Introduction to Argand Diagrams
                                              • 1.9 Further Complex Numbers
                                                • 1.9.1 Geometry of Complex Numbers
                                                  • 1.9.2 Forms of Complex Numbers
                                                    • 1.9.3 Complex Roots of Polynomials
                                                      • 1.9.4 De Moivre's Theorem
                                                        • 1.9.5 Roots of Complex Numbers
                                                        • 1.10 Systems of Linear Equations
                                                          • 1.10.1 Systems of Linear Equations
                                                            • 1.10.2 Algebraic Solutions
                                                          • 2. Functions
                                                            • 2.1 Linear Functions & Graphs
                                                              • 2.1.1 Equations of a Straight Line
                                                              • 2.2 Quadratic Functions & Graphs
                                                                • 2.2.1 Quadratic Functions
                                                                  • 2.2.2 Factorising & Completing the Square
                                                                    • 2.2.3 Solving Quadratics
                                                                      • 2.2.4 Quadratic Inequalities
                                                                        • 2.2.5 Discriminants
                                                                        • 2.3 Functions Toolkit
                                                                          • 2.3.1 Language of Functions
                                                                            • 2.3.2 Composite & Inverse Functions
                                                                              • 2.3.3 Symmetry of Functions
                                                                                • 2.3.4 Graphing Functions
                                                                                • 2.4 Other Functions & Graphs
                                                                                  • 2.4.1 Exponential & Logarithmic Functions
                                                                                    • 2.4.2 Solving Equations
                                                                                      • 2.4.3 Modelling with Functions
                                                                                      • 2.5 Reciprocal & Rational Functions
                                                                                        • 2.5.1 Reciprocal & Rational Functions
                                                                                        • 2.6 Transformations of Graphs
                                                                                          • 2.6.1 Translations of Graphs
                                                                                            • 2.6.2 Reflections of Graphs
                                                                                              • 2.6.3 Stretches Graphs
                                                                                                • 2.6.4 Composite Transformations of Graphs
                                                                                                • 2.7 Polynomial Functions
                                                                                                  • 2.7.1 Factor & Remainder Theorem
                                                                                                    • 2.7.2 Polynomial Division
                                                                                                      • 2.7.3 Polynomial Functions
                                                                                                        • 2.7.4 Roots of Polynomials
                                                                                                        • 2.8 Inequalities
                                                                                                          • 2.8.1 Solving Inequalities Graphically
                                                                                                            • 2.8.2 Polynomial Inequalities
                                                                                                            • 2.9 Further Functions & Graphs
                                                                                                              • 2.9.1 Modulus Functions
                                                                                                                • 2.9.2 Modulus Transformations
                                                                                                                  • 2.9.3 Modulus Equations & Inequalities
                                                                                                                    • 2.9.4 Reciprocal & Square Transformations
                                                                                                                  • 3. Geometry & Trigonometry
                                                                                                                    • 3.1 Geometry Toolkit
                                                                                                                      • 3.1.1 Coordinate Geometry
                                                                                                                        • 3.1.2 Radian Measure
                                                                                                                          • 3.1.3 Arcs & Sectors
                                                                                                                          • 3.2 Geometry of 3D Shapes
                                                                                                                            • 3.2.1 3D Coordinate Geometry
                                                                                                                              • 3.2.2 Volume & Surface Area
                                                                                                                              • 3.3 Trigonometry Toolkit
                                                                                                                                • 3.3.1 Pythagoras & Right-Angled Triganometry
                                                                                                                                  • 3.3.2 Non Right-Angled Trigonometry
                                                                                                                                    • 3.3.3 Applications of Trigonometry & Pythagoras
                                                                                                                                    • 3.4 Trigonometry
                                                                                                                                      • 3.4.1 The Unit Circle
                                                                                                                                        • 3.4.2 Exact Values
                                                                                                                                        • 3.5 Trigonometric Functions & Graphs
                                                                                                                                          • 3.5.1 Graphs of Trigonometric Functions
                                                                                                                                            • 3.5.2 Transformations of Trigonometric Functions
                                                                                                                                              • 3.5.3 Modelling with Trigonometric Functions
                                                                                                                                              • 3.6 Trigonometric Equations & Identities
                                                                                                                                                • 3.6.1 Simple Identities
                                                                                                                                                  • 3.6.2 Compound Angle Formulae
                                                                                                                                                    • 3.6.3 Double Angle Formulae
                                                                                                                                                      • 3.6.4 Relationship Between Trigonometric Ratios
                                                                                                                                                        • 3.6.5 Linear Trigonometric Equations
                                                                                                                                                          • 3.6.6 Quadratic Trigonometric Equations
                                                                                                                                                          • 3.7 Inverse & Reciprocal Trig Functions
                                                                                                                                                            • 3.7.1 Reciprocal Trig Functions
                                                                                                                                                              • 3.7.2 Inverse Trig Functions
                                                                                                                                                              • 3.8 Further Trigonometry
                                                                                                                                                                • 3.8.1 Trigonometric Proof
                                                                                                                                                                  • 3.8.2 Strategy for Trigonometric Equations
                                                                                                                                                                  • 3.9 Vector Properties
                                                                                                                                                                    • 3.9.1 Introduction to Vectors
                                                                                                                                                                      • 3.9.2 Position & Displacement Vectors
                                                                                                                                                                        • 3.9.3 Magnitude of a Vector
                                                                                                                                                                          • 3.9.4 The Scalar Product
                                                                                                                                                                            • 3.9.5 Geometric Proof with Vectors
                                                                                                                                                                            • 3.10 Vector Equations of Lines
                                                                                                                                                                              • 3.10.1 Vector Equations of Lines
                                                                                                                                                                                • 3.10.2 Applications to Kinematics
                                                                                                                                                                                  • 3.10.3 Pairs of Lines in 3D
                                                                                                                                                                                    • 3.10.4 The Vector Product
                                                                                                                                                                                      • 3.10.5 Shortest Distances with Lines
                                                                                                                                                                                      • 3.11 Vector Planes
                                                                                                                                                                                        • 3.11.1 Vector Equations of Planes
                                                                                                                                                                                          • 3.11.2 Intersections of Lines & Planes
                                                                                                                                                                                            • 3.11.3 Angles Between Lines & Planes
                                                                                                                                                                                              • 3.11.4 Shortest Distances with Planes
                                                                                                                                                                                            • 4. Statistics & Probability
                                                                                                                                                                                              • 4.1 Statistics Toolkit
                                                                                                                                                                                                • 4.1.1 Sampling & Data Collection
                                                                                                                                                                                                  • 4.1.2 Statistical Measures
                                                                                                                                                                                                    • 4.1.3 Frequency Tables
                                                                                                                                                                                                      • 4.1.4 Linear Transformations of Data
                                                                                                                                                                                                        • 4.1.5 Outliers
                                                                                                                                                                                                          • 4.1.6 Univariate Data
                                                                                                                                                                                                            • 4.1.7 Interpreting Data
                                                                                                                                                                                                            • 4.2 Correlation & Regression
                                                                                                                                                                                                              • 4.2.1 Bivariate Data
                                                                                                                                                                                                                • 4.2.2 Correlation & Regression
                                                                                                                                                                                                                • 4.3 Probability
                                                                                                                                                                                                                  • 4.3.1 Probability & Types of Events
                                                                                                                                                                                                                    • 4.3.2 Conditional Probability
                                                                                                                                                                                                                      • 4.3.3 Bayes' Theorem
                                                                                                                                                                                                                        • 4.3.4 Sample Space Diagrams
                                                                                                                                                                                                                        • 4.4 Probability Distributions
                                                                                                                                                                                                                          • 4.4.1 Discrete Probability Distributions
                                                                                                                                                                                                                            • 4.4.2 Mean & Variance
                                                                                                                                                                                                                            • 4.5 Binomial Distribution
                                                                                                                                                                                                                              • 4.5.1 The Binomial Distribution
                                                                                                                                                                                                                                • 4.5.2 Calculating Binomial Probabilities
                                                                                                                                                                                                                                • 4.6 Normal Distribution
                                                                                                                                                                                                                                  • 4.6.1 The Normal Distribution
                                                                                                                                                                                                                                    • 4.6.2 Calculations with Normal Distribution
                                                                                                                                                                                                                                      • 4.6.3 Standardisation of Normal Variables
                                                                                                                                                                                                                                      • 4.7 Further Probability Distributions
                                                                                                                                                                                                                                        • 4.7.1 Probability Density Function
                                                                                                                                                                                                                                      • 5. Calculus
                                                                                                                                                                                                                                        • 5.1 Differentiation
                                                                                                                                                                                                                                          • 5.1.1 Introduction to Differentiation
                                                                                                                                                                                                                                            • 5.1.2 Applications of Differentiation
                                                                                                                                                                                                                                            • 5.2 Further Differentiation
                                                                                                                                                                                                                                              • 5.2.1 Differentiating Special Functions
                                                                                                                                                                                                                                                • 5.2.2 Techniques of Differentiation
                                                                                                                                                                                                                                                  • 5.2.3 Higher Order Derivatives
                                                                                                                                                                                                                                                    • 5.2.4 Further Applications of Differentiation
                                                                                                                                                                                                                                                      • 5.2.5 Concavity & Points of Inflection
                                                                                                                                                                                                                                                        • 5.2.6 Derivatives & Graphs
                                                                                                                                                                                                                                                        • 5.3 Integration
                                                                                                                                                                                                                                                          • 5.3.1 Introduction to Integration
                                                                                                                                                                                                                                                            • 5.3.2 Applications of Integration
                                                                                                                                                                                                                                                            • 5.4 Further Integration
                                                                                                                                                                                                                                                              • 5.4.1 Integrating Special Functions
                                                                                                                                                                                                                                                                • 5.4.2 Techniques of Integration
                                                                                                                                                                                                                                                                  • 5.4.3 Definite Integrals
                                                                                                                                                                                                                                                                    • 5.4.4 Further Applications of Integration
                                                                                                                                                                                                                                                                    • 5.5 Optimisation
                                                                                                                                                                                                                                                                      • 5.5.1 Modelling with Differentiation
                                                                                                                                                                                                                                                                      • 5.6 Kinematics
                                                                                                                                                                                                                                                                        • 5.6.1 Kinematics Toolkit
                                                                                                                                                                                                                                                                          • 5.6.2 Calculus for Kinematics
                                                                                                                                                                                                                                                                          • 5.7 Basic Limits & Continuity
                                                                                                                                                                                                                                                                            • 5.7.1 Basic Limits & Continuity
                                                                                                                                                                                                                                                                            • 5.8 Advanced Differentiation
                                                                                                                                                                                                                                                                              • 5.8.1 First Principles Differentiation
                                                                                                                                                                                                                                                                                • 5.8.2 Applications of Chain Rule
                                                                                                                                                                                                                                                                                  • 5.8.3 Implicit Differentiation
                                                                                                                                                                                                                                                                                    • 5.8.4 Differentiating Further Functions
                                                                                                                                                                                                                                                                                    • 5.9 Advanced Integration
                                                                                                                                                                                                                                                                                      • 5.9.1 Integrating Further Functions
                                                                                                                                                                                                                                                                                        • 5.9.2 Further Techniques of Integration
                                                                                                                                                                                                                                                                                          • 5.9.3 Integrating with Partial Fractions
                                                                                                                                                                                                                                                                                            • 5.9.4 Advanced Applications of Integration
                                                                                                                                                                                                                                                                                              • 5.9.5 Modelling with Volumes of Revolution
                                                                                                                                                                                                                                                                                              • 5.10 Differential Equations
                                                                                                                                                                                                                                                                                                • 5.10.1 Numerical Solutions to Differential Equations
                                                                                                                                                                                                                                                                                                  • 5.10.2 Analytical Solutions to Differential Equations
                                                                                                                                                                                                                                                                                                    • 5.10.3 Modelling with Differential Equations
                                                                                                                                                                                                                                                                                                    • 5.11 MacLaurin Series
                                                                                                                                                                                                                                                                                                      • 5.11.1 Maclaurin Series
                                                                                                                                                                                                                                                                                                        • 5.11.2 Maclaurin Series from Differential Equations
                                                                                                                                                                                                                                                                                                        • 5.12 Further Limits (inc l'Hôpital's Rule)
                                                                                                                                                                                                                                                                                                          • 5.12.1 Further Limits
                                                                                                                                                                                                                                                                                                        Roger Bliss

                                                                                                                                                                                                                                                                                                        Author: Roger

                                                                                                                                                                                                                                                                                                        Roger's teaching experience stretches all the way back to 1992, and in that time he has taught students at all levels between Year 7 and university undergraduate. Having conducted and published postgraduate research into the mathematical theory behind quantum computing, he is more than confident in dealing with mathematics at any level the exam boards might throw at you.


                                                                                                                                                                                                                                                                                                        Save My Exams Logo
                                                                                                                                                                                                                                                                                                        Resources
                                                                                                                                                                                                                                                                                                        Home Join Support

                                                                                                                                                                                                                                                                                                        Members
                                                                                                                                                                                                                                                                                                        Members Home Account Logout

                                                                                                                                                                                                                                                                                                        Company
                                                                                                                                                                                                                                                                                                        About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                        Quick Links
                                                                                                                                                                                                                                                                                                        GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                        © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                        IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
