DP IB Maths: AA HL

Revision Notes

Home / IB / Maths: AA HL / DP / Revision Notes / 5. Calculus / 5.9 Advanced Integration / 5.9.2 Further Techniques of Integration


5.9.2 Further Techniques of Integration


Integration by Substitution

What is integration by substitution?

  • Integration by substitution is used when an integrand where reverse chain rule is either not obvious or is not spotted
    • in the latter case it is like a “back-up” method for reverse chain rule

How do I use integration by substitution?

  • For instances where the substitution is not obvious it will be given in a question
    • e.g.  Find integral subscript blank superscript blank cot space x space d x using the substitution u equals sin space x
  • Substitutions are usually of the form u equals g left parenthesis x right parenthesis
    • in some cases u squared equals g left parenthesis x right parenthesis and other variations are more convenient
      • as these would not be obvious, they would be given in a question
    • if need be, this can be rearranged to find x in terms of u
  • Integration by substitution then involves rewriting the integral, including “straight d x” in terms of u

STEP 1
Name the integral to save rewriting it later
Identify the given substitution u equals g left parenthesis x right parenthesis

STEP 2
Find fraction numerator straight d u over denominator straight d x end fraction and rearrange into the form f left parenthesis u right parenthesis space straight d u equals g left parenthesis x right parenthesis space straight d x such that (some of) the integral can be rewritten in terms of u

STEP 3
If limits are involved, use u equals g left parenthesis x right parenthesis to change them from x values to u values

STEP 4
Rewrite the integral so everything is in terms of u rather than x
This is the step when it may become apparent that x is needed in terms of u

STEP 5
Integrate with respect to u and either rewrite in terms of x or apply the limits using their u values

  • For quotients the substitution usually involves the denominator
  • It may be necessary to use ‘adjust and compensate’ to deal with any coefficients in the integrand
  • Although fraction numerator straight d u over denominator straight d x end fraction can be treated like a fraction it should be appreciated that this is a ‘shortcut’ and the maths behind it is beyond the scope of the IB course

Exam Tip

  • If a substitution is not given in a question, it is usually because it is obvious
    • If you can't see anything obvious, or you find that your choice of substitution doesn't reduce the integrand to something easy to integrate, consider that it may not be a substitution question

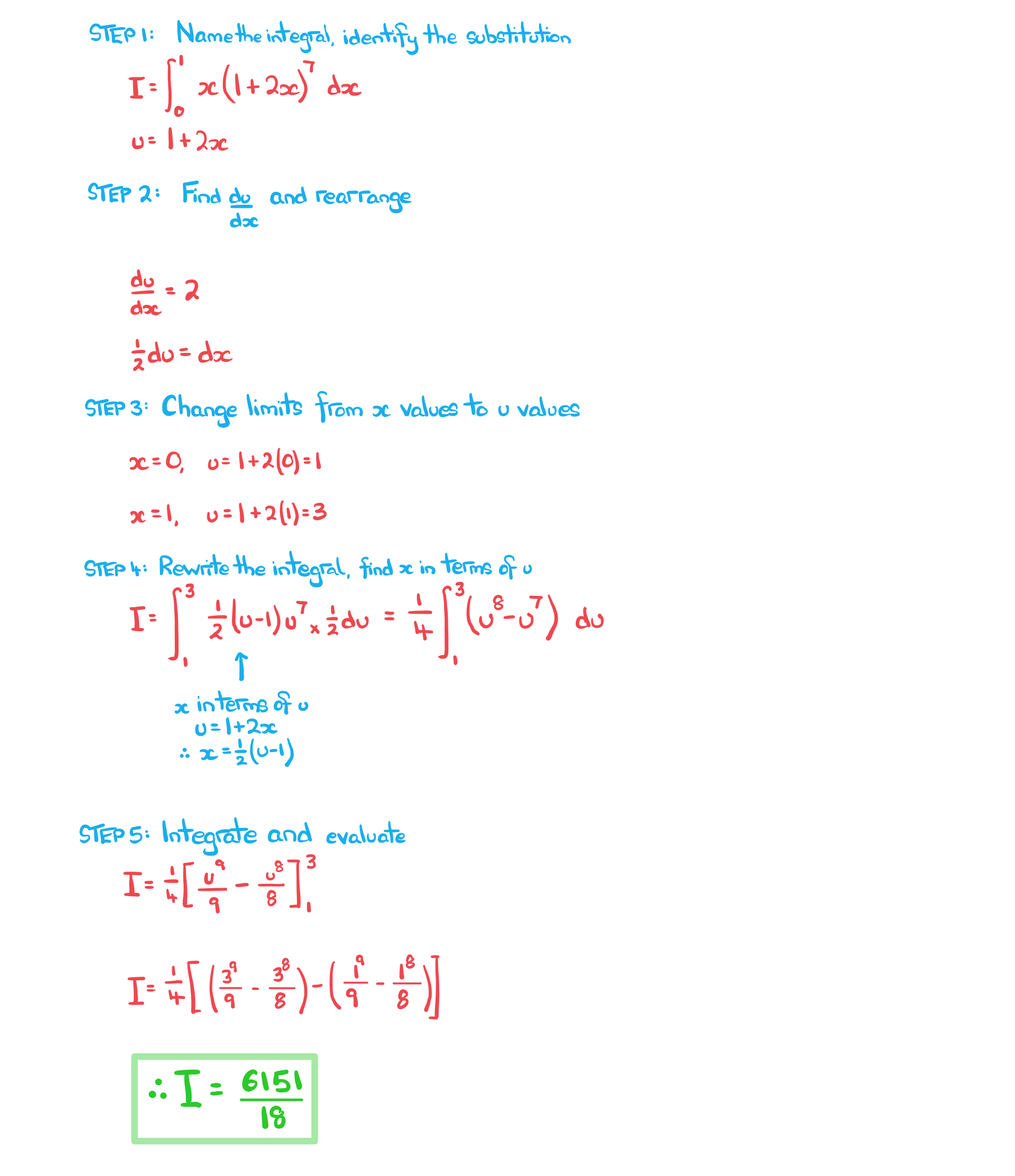

Worked Example

Use the substitution u equals open parentheses 1 plus 2 x close parentheses to evaluate integral subscript 0 superscript 1 x open parentheses 1 plus 2 x close parentheses to the power of 7 space end exponent d x.

5-9-2-ib-hl-aa-only-we1-soltn

Integration by Parts

What is integration by parts?

  • Integration by parts is generally used to integrate the product of two functions
    • however reverse chain rule and/or substitution should be considered first
      • e.g. integral subscript blank superscript blank 2 x cos open parentheses x squared close parentheses space d x can be solved using reverse chain rule or the substitution u equals x squared
    • Integration by parts is essentially ‘reverse product rule’
      • whilst every product can be differentiated, not every product can be integrated (analytically)

What is the formula for integration by parts?

  • integral subscript blank superscript blank u fraction numerator straight d v over denominator straight d x end fraction space d x equals u v minus integral subscript blank superscript blank v fraction numerator d u over denominator d x end fraction space d x
  • This is given in the formula booklet alongside its alternative form integral subscript blank superscript blank u space d v equals u v minus integral subscript blank superscript blank v space d u

How do I use integration by parts?

  • For a given integral u and fraction numerator d v over denominator d x end fraction (rather than u and v) are assigned functions of x
  • Generally, the function that becomes simpler when differentiated should be assigned to u
  • There are various stages of integrating in this method
    • only one overall constant of integration (“+c”) is required
    • put this in at the last stage of working
    • if it is a definite integral then “+c” is not required at all

STEP 1
Name the integral if it doesn’t have one already!
This saves having to rewrite it several times – I is often used for this purpose.
e.g. I equals integral subscript blank superscript blank x sin space x space d x

STEP 2
Assign u and fraction numerator d v over denominator d x end fraction.
Differentiate u to find fraction numerator d u over denominator d x end fraction and integrate fraction numerator d v over denominator d x end fraction to find v
e.g. table row cell u equals x space space space end cell cell space space space space space v equals negative cos space x end cell row cell fraction numerator d u over denominator d x end fraction equals 1 end cell cell space space space fraction numerator d v over denominator d x end fraction equals sin space x end cell end table


STEP 3
Apply the integration by parts formula
e.g. I equals negative x cos space x minus integral subscript blank superscript blank minus cos space x space d x

STEP 4
Work out the second integral, integral subscript blank superscript blank v fraction numerator d u over denominator d x end fraction space d x
Now include a “+c” (unless definite integration)
e.g. I equals negative x cos space x space plus sin space x plus c

STEP 5
Simplify the answer if possible or apply the limits for definite integration
e.g. I equals sin space x minus x cos space x plus c

  • In trickier problems other rules of differentiation and integration may be needed
    • chain, product or quotient rule
    • reverse chain rule, substitution

Can integration by parts be used when there is only a single function?

  • Some single functions (non-products) are awkward to integrate directly
    • e.g. y equals ln space x, y equals arcsin space x, y equals arccos space x, y equals arctan space x
  • These can be integrated using parts however
    • rewrite as the product ‘1 cross times f left parenthesis x right parenthesis’ and choose u equals f left parenthesis x right parenthesis and fraction numerator d v over denominator d x end fraction equals 1
    • 1 is easy to integrate and the functions above have standard derivatives listed in the formula booklet

Exam Tip

  • If  ln space x  or one of the inverse trig functions are one of the functions involved in the product then these should be assigned to "u" when applying parts
    • They are (realtively) easy to differentiate (to find u apostrophe) but are awkward to integrate

Worked Example

a)       Find integral subscript blank superscript blank 5 x straight e to the power of 3 x end exponent space d x.

5-9-2-ib-hl-aa-only-we2a-soltn

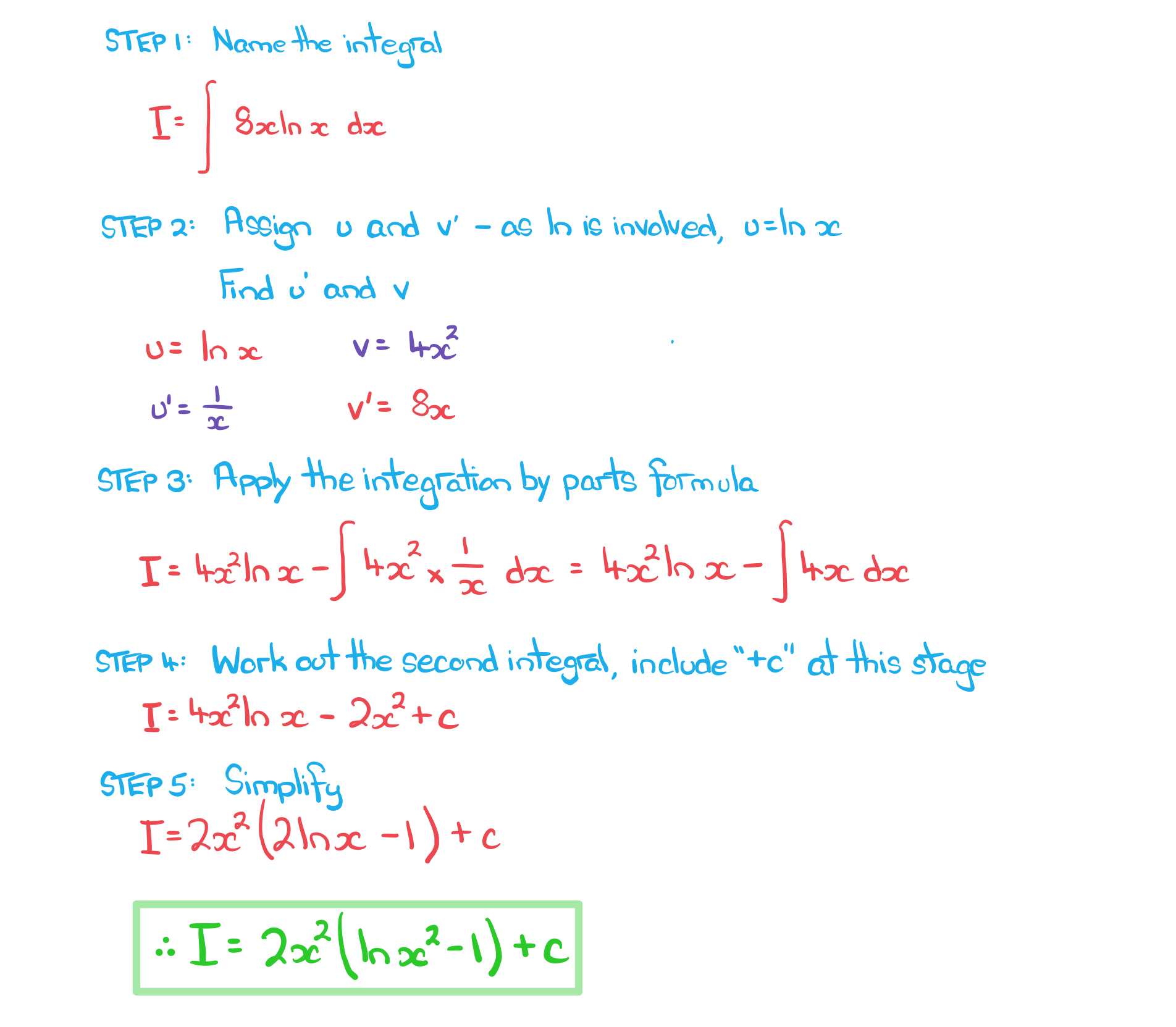

b)       Show that integral subscript blank superscript blank 8 x ln space x space d x equals 2 x squared open parentheses 1 plus ln space x squared close parentheses plus c.

5-9-2-ib-hl-aa-only-we2b-soltn

Repeated Integration by Parts

When will I have to repeat integration by parts?

  • In some problems, applying integration by parts still leaves the second integral as a product of two functions of x
    • integration by parts will need to be applied again to the second integral
  • This occurs when one of the functions takes more than one derivative to become simple enough to make the second integral straightforward
    • These functions usually have the form x squared g left parenthesis x right parenthesis

How do I apply integration by parts more than once?

STEP 1
Name the integral if it doesn’t have one already!

STEP 2
Assign u and fraction numerator d v over denominator d x end fraction.  Find fraction numerator d u over denominator d x end fraction and v

STEP 3
Apply the integration by parts formula

STEP 4
Repeat STEPS 2 and 3 for the second integral

STEP 5
Work out the second integral and include a “+c” if necessary

STEP 6
Simplify the answer or apply limits

What if neither function never becomes simpler when differentiating?

  • It is possible that integration by parts will end up in a seemingly endless loop
    • consider the product straight e to the power of x sin space x
    • the derivative of straight e to the power of x is straight e to the power of x
      • no matter how many times a function involving straight e to the power of x is differentiated, it will still involve straight e to the power of x
    • the derivative of sin space x is cos space x
      • cos space x would then have derivative negative sin space x, and so on
      • no matter how many times a function involving sin space x or cos space x is differentiated, it will still involve sin space x or cos space x
  • This loop can be trapped by spotting when the second integral becomes identical to (or a multiple of) the original integral
    • naming the original integral (I) at the start helps
    • I then appears twice in integration by parts
      • e.g. I equals g left parenthesis x right parenthesis minus I
        where g left parenthesis x right parenthesis are parts of the integral not requiring further work
    • It is then straightforward to rearrange and solve the problem
      • e.g. 2 I equals g left parenthesis x right parenthesis plus c
        I equals 1 half g left parenthesis x right parenthesis plus c



Worked Example

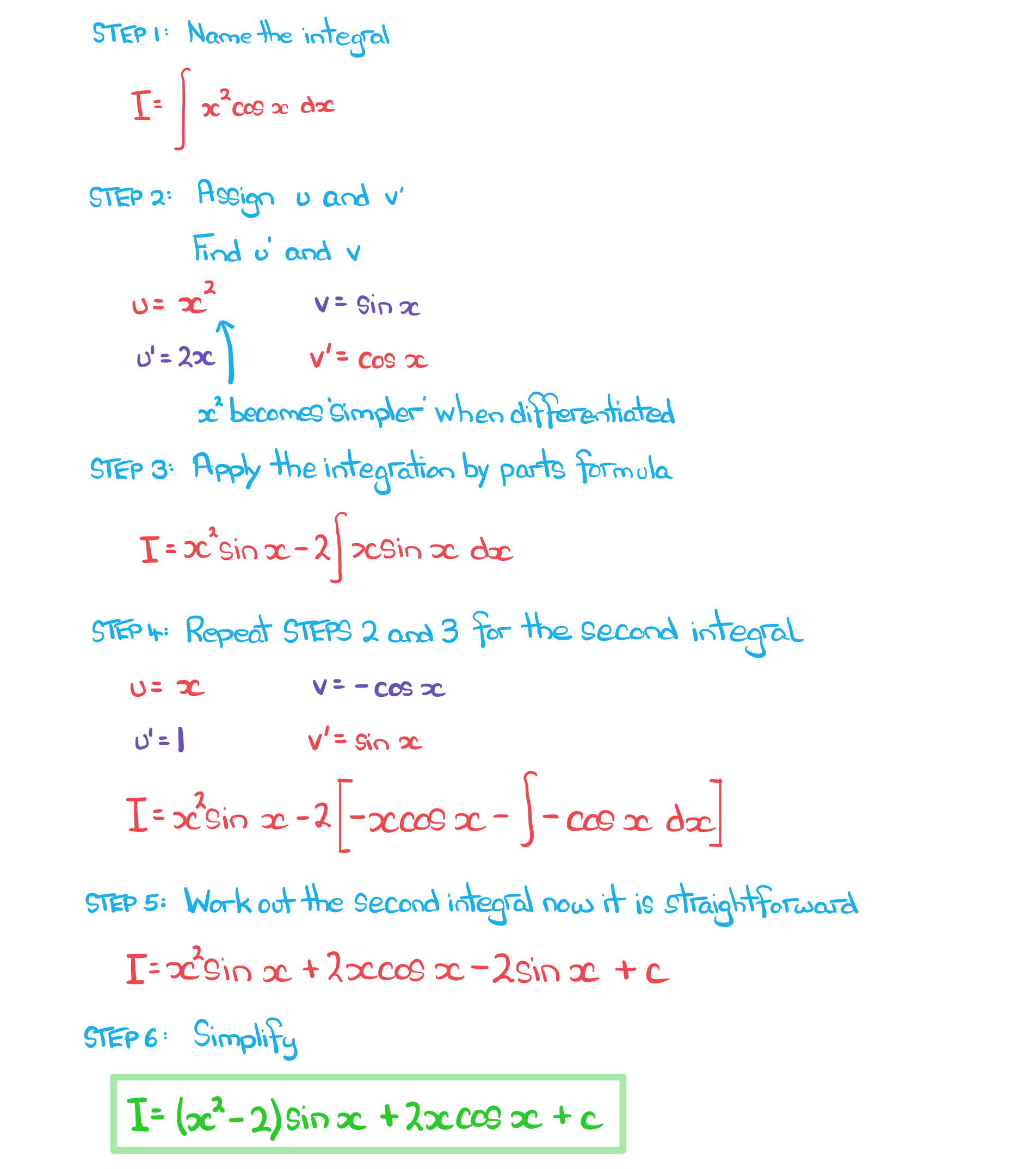

a)       Find integral subscript blank superscript blank x squared cos space x space d x.

5-9-2-ib-hl-aa-only-we3a-soltn

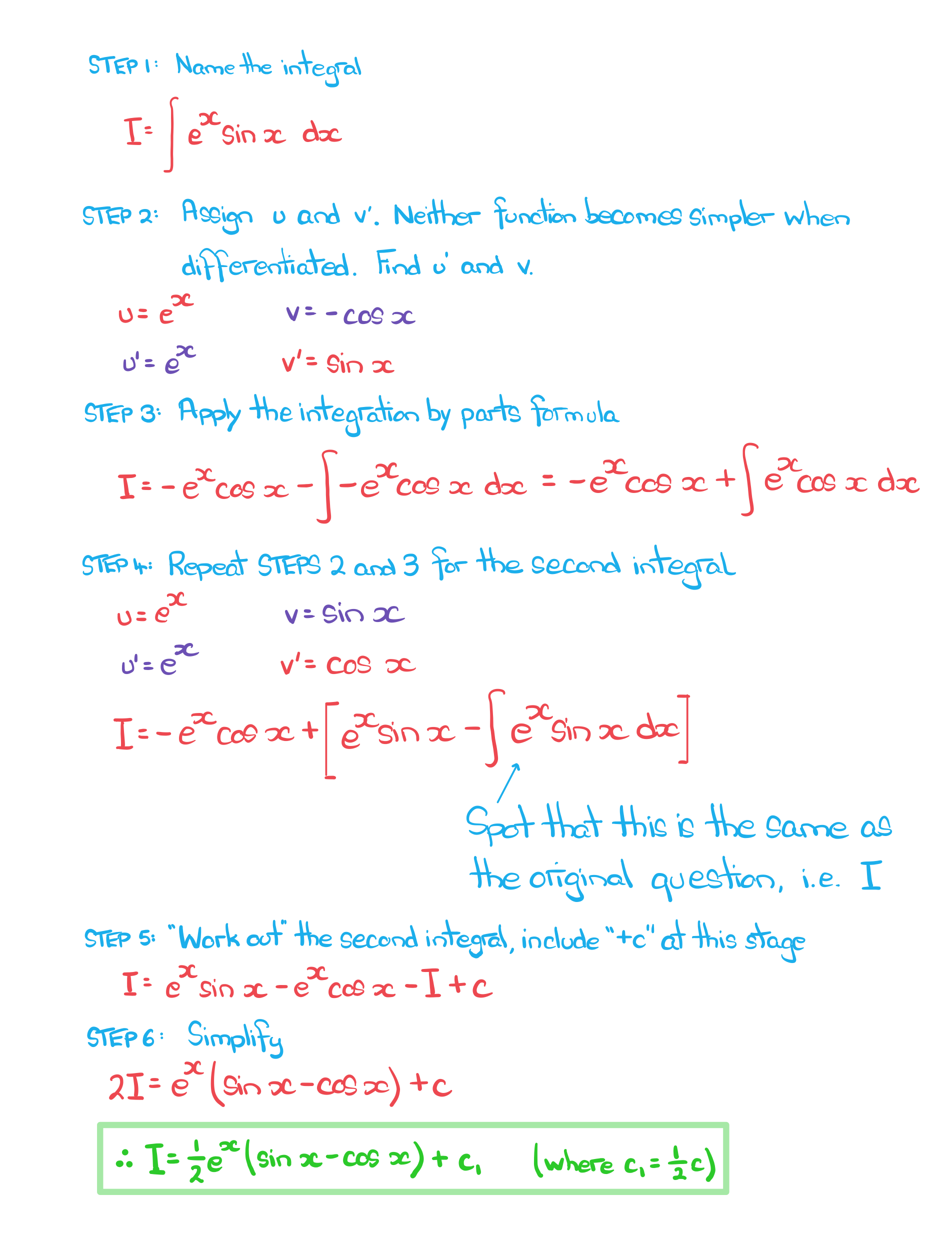

b)       Find integral subscript blank superscript blank straight e to the power of x sin space x space d x.

5-9-2-ib-hl-aa-only-we3b-soltn



  • 1. Number & Algebra
    • 1.1 Number & Algebra Toolkit
      • 1.1.1 Standard Form
        • 1.1.2 Laws of Indices
          • 1.1.3 Partial Fractions
          • 1.2 Exponentials & Logs
            • 1.2.1 Introduction to Logarithms
              • 1.2.2 Laws of Logarithms
                • 1.2.3 Solving Exponential Equations
                • 1.3 Sequences & Series
                  • 1.3.1 Language of Sequences & Series
                    • 1.3.2 Arithmetic Sequences & Series
                      • 1.3.3 Geometric Sequences & Series
                        • 1.3.4 Applications of Sequences & Series
                          • 1.3.5 Compound Interest & Depreciation
                          • 1.4 Simple Proof & Reasoning
                            • 1.4.1 Proof
                            • 1.5 Further Proof & Reasoning
                              • 1.5.1 Proof by Induction
                                • 1.5.2 Proof by Contradiction
                                • 1.6 Binomial Theorem
                                  • 1.6.1 Binomial Theorem
                                    • 1.6.2 Extension of The Binomial Theorem
                                    • 1.7 Permutations & Combinations
                                      • 1.7.1 Counting Principles
                                        • 1.7.2 Permutations & Combinations
                                        • 1.8 Complex Numbers
                                          • 1.8.1 Intro to Complex Numbers
                                            • 1.8.2 Modulus & Argument
                                              • 1.8.3 Introduction to Argand Diagrams
                                              • 1.9 Further Complex Numbers
                                                • 1.9.1 Geometry of Complex Numbers
                                                  • 1.9.2 Forms of Complex Numbers
                                                    • 1.9.3 Complex Roots of Polynomials
                                                      • 1.9.4 De Moivre's Theorem
                                                        • 1.9.5 Roots of Complex Numbers
                                                        • 1.10 Systems of Linear Equations
                                                          • 1.10.1 Systems of Linear Equations
                                                            • 1.10.2 Algebraic Solutions
                                                          • 2. Functions
                                                            • 2.1 Linear Functions & Graphs
                                                              • 2.1.1 Equations of a Straight Line
                                                              • 2.2 Quadratic Functions & Graphs
                                                                • 2.2.1 Quadratic Functions
                                                                  • 2.2.2 Factorising & Completing the Square
                                                                    • 2.2.3 Solving Quadratics
                                                                      • 2.2.4 Quadratic Inequalities
                                                                        • 2.2.5 Discriminants
                                                                        • 2.3 Functions Toolkit
                                                                          • 2.3.1 Language of Functions
                                                                            • 2.3.2 Composite & Inverse Functions
                                                                              • 2.3.3 Symmetry of Functions
                                                                                • 2.3.4 Graphing Functions
                                                                                • 2.4 Other Functions & Graphs
                                                                                  • 2.4.1 Exponential & Logarithmic Functions
                                                                                    • 2.4.2 Solving Equations
                                                                                      • 2.4.3 Modelling with Functions
                                                                                      • 2.5 Reciprocal & Rational Functions
                                                                                        • 2.5.1 Reciprocal & Rational Functions
                                                                                        • 2.6 Transformations of Graphs
                                                                                          • 2.6.1 Translations of Graphs
                                                                                            • 2.6.2 Reflections of Graphs
                                                                                              • 2.6.3 Stretches Graphs
                                                                                                • 2.6.4 Composite Transformations of Graphs
                                                                                                • 2.7 Polynomial Functions
                                                                                                  • 2.7.1 Factor & Remainder Theorem
                                                                                                    • 2.7.2 Polynomial Division
                                                                                                      • 2.7.3 Polynomial Functions
                                                                                                        • 2.7.4 Roots of Polynomials
                                                                                                        • 2.8 Inequalities
                                                                                                          • 2.8.1 Solving Inequalities Graphically
                                                                                                            • 2.8.2 Polynomial Inequalities
                                                                                                            • 2.9 Further Functions & Graphs
                                                                                                              • 2.9.1 Modulus Functions
                                                                                                                • 2.9.2 Modulus Transformations
                                                                                                                  • 2.9.3 Modulus Equations & Inequalities
                                                                                                                    • 2.9.4 Reciprocal & Square Transformations
                                                                                                                  • 3. Geometry & Trigonometry
                                                                                                                    • 3.1 Geometry Toolkit
                                                                                                                      • 3.1.1 Coordinate Geometry
                                                                                                                        • 3.1.2 Radian Measure
                                                                                                                          • 3.1.3 Arcs & Sectors
                                                                                                                          • 3.2 Geometry of 3D Shapes
                                                                                                                            • 3.2.1 3D Coordinate Geometry
                                                                                                                              • 3.2.2 Volume & Surface Area
                                                                                                                              • 3.3 Trigonometry Toolkit
                                                                                                                                • 3.3.1 Pythagoras & Right-Angled Triganometry
                                                                                                                                  • 3.3.2 Non Right-Angled Trigonometry
                                                                                                                                    • 3.3.3 Applications of Trigonometry & Pythagoras
                                                                                                                                    • 3.4 Trigonometry
                                                                                                                                      • 3.4.1 The Unit Circle
                                                                                                                                        • 3.4.2 Exact Values
                                                                                                                                        • 3.5 Trigonometric Functions & Graphs
                                                                                                                                          • 3.5.1 Graphs of Trigonometric Functions
                                                                                                                                            • 3.5.2 Transformations of Trigonometric Functions
                                                                                                                                              • 3.5.3 Modelling with Trigonometric Functions
                                                                                                                                              • 3.6 Trigonometric Equations & Identities
                                                                                                                                                • 3.6.1 Simple Identities
                                                                                                                                                  • 3.6.2 Compound Angle Formulae
                                                                                                                                                    • 3.6.3 Double Angle Formulae
                                                                                                                                                      • 3.6.4 Relationship Between Trigonometric Ratios
                                                                                                                                                        • 3.6.5 Linear Trigonometric Equations
                                                                                                                                                          • 3.6.6 Quadratic Trigonometric Equations
                                                                                                                                                          • 3.7 Inverse & Reciprocal Trig Functions
                                                                                                                                                            • 3.7.1 Reciprocal Trig Functions
                                                                                                                                                              • 3.7.2 Inverse Trig Functions
                                                                                                                                                              • 3.8 Further Trigonometry
                                                                                                                                                                • 3.8.1 Trigonometric Proof
                                                                                                                                                                  • 3.8.2 Strategy for Trigonometric Equations
                                                                                                                                                                  • 3.9 Vector Properties
                                                                                                                                                                    • 3.9.1 Introduction to Vectors
                                                                                                                                                                      • 3.9.2 Position & Displacement Vectors
                                                                                                                                                                        • 3.9.3 Magnitude of a Vector
                                                                                                                                                                          • 3.9.4 The Scalar Product
                                                                                                                                                                            • 3.9.5 Geometric Proof with Vectors
                                                                                                                                                                            • 3.10 Vector Equations of Lines
                                                                                                                                                                              • 3.10.1 Vector Equations of Lines
                                                                                                                                                                                • 3.10.2 Applications to Kinematics
                                                                                                                                                                                  • 3.10.3 Pairs of Lines in 3D
                                                                                                                                                                                    • 3.10.4 The Vector Product
                                                                                                                                                                                      • 3.10.5 Shortest Distances with Lines
                                                                                                                                                                                      • 3.11 Vector Planes
                                                                                                                                                                                        • 3.11.1 Vector Equations of Planes
                                                                                                                                                                                          • 3.11.2 Intersections of Lines & Planes
                                                                                                                                                                                            • 3.11.3 Angles Between Lines & Planes
                                                                                                                                                                                              • 3.11.4 Shortest Distances with Planes
                                                                                                                                                                                            • 4. Statistics & Probability
                                                                                                                                                                                              • 4.1 Statistics Toolkit
                                                                                                                                                                                                • 4.1.1 Sampling & Data Collection
                                                                                                                                                                                                  • 4.1.2 Statistical Measures
                                                                                                                                                                                                    • 4.1.3 Frequency Tables
                                                                                                                                                                                                      • 4.1.4 Linear Transformations of Data
                                                                                                                                                                                                        • 4.1.5 Outliers
                                                                                                                                                                                                          • 4.1.6 Univariate Data
                                                                                                                                                                                                            • 4.1.7 Interpreting Data
                                                                                                                                                                                                            • 4.2 Correlation & Regression
                                                                                                                                                                                                              • 4.2.1 Bivariate Data
                                                                                                                                                                                                                • 4.2.2 Correlation & Regression
                                                                                                                                                                                                                • 4.3 Probability
                                                                                                                                                                                                                  • 4.3.1 Probability & Types of Events
                                                                                                                                                                                                                    • 4.3.2 Conditional Probability
                                                                                                                                                                                                                      • 4.3.3 Bayes' Theorem
                                                                                                                                                                                                                        • 4.3.4 Sample Space Diagrams
                                                                                                                                                                                                                        • 4.4 Probability Distributions
                                                                                                                                                                                                                          • 4.4.1 Discrete Probability Distributions
                                                                                                                                                                                                                            • 4.4.2 Mean & Variance
                                                                                                                                                                                                                            • 4.5 Binomial Distribution
                                                                                                                                                                                                                              • 4.5.1 The Binomial Distribution
                                                                                                                                                                                                                                • 4.5.2 Calculating Binomial Probabilities
                                                                                                                                                                                                                                • 4.6 Normal Distribution
                                                                                                                                                                                                                                  • 4.6.1 The Normal Distribution
                                                                                                                                                                                                                                    • 4.6.2 Calculations with Normal Distribution
                                                                                                                                                                                                                                      • 4.6.3 Standardisation of Normal Variables
                                                                                                                                                                                                                                      • 4.7 Further Probability Distributions
                                                                                                                                                                                                                                        • 4.7.1 Probability Density Function
                                                                                                                                                                                                                                      • 5. Calculus
                                                                                                                                                                                                                                        • 5.1 Differentiation
                                                                                                                                                                                                                                          • 5.1.1 Introduction to Differentiation
                                                                                                                                                                                                                                            • 5.1.2 Applications of Differentiation
                                                                                                                                                                                                                                            • 5.2 Further Differentiation
                                                                                                                                                                                                                                              • 5.2.1 Differentiating Special Functions
                                                                                                                                                                                                                                                • 5.2.2 Techniques of Differentiation
                                                                                                                                                                                                                                                  • 5.2.3 Higher Order Derivatives
                                                                                                                                                                                                                                                    • 5.2.4 Further Applications of Differentiation
                                                                                                                                                                                                                                                      • 5.2.5 Concavity & Points of Inflection
                                                                                                                                                                                                                                                        • 5.2.6 Derivatives & Graphs
                                                                                                                                                                                                                                                        • 5.3 Integration
                                                                                                                                                                                                                                                          • 5.3.1 Introduction to Integration
                                                                                                                                                                                                                                                            • 5.3.2 Applications of Integration
                                                                                                                                                                                                                                                            • 5.4 Further Integration
                                                                                                                                                                                                                                                              • 5.4.1 Integrating Special Functions
                                                                                                                                                                                                                                                                • 5.4.2 Techniques of Integration
                                                                                                                                                                                                                                                                  • 5.4.3 Definite Integrals
                                                                                                                                                                                                                                                                    • 5.4.4 Further Applications of Integration
                                                                                                                                                                                                                                                                    • 5.5 Optimisation
                                                                                                                                                                                                                                                                      • 5.5.1 Modelling with Differentiation
                                                                                                                                                                                                                                                                      • 5.6 Kinematics
                                                                                                                                                                                                                                                                        • 5.6.1 Kinematics Toolkit
                                                                                                                                                                                                                                                                          • 5.6.2 Calculus for Kinematics
                                                                                                                                                                                                                                                                          • 5.7 Basic Limits & Continuity
                                                                                                                                                                                                                                                                            • 5.7.1 Basic Limits & Continuity
                                                                                                                                                                                                                                                                            • 5.8 Advanced Differentiation
                                                                                                                                                                                                                                                                              • 5.8.1 First Principles Differentiation
                                                                                                                                                                                                                                                                                • 5.8.2 Applications of Chain Rule
                                                                                                                                                                                                                                                                                  • 5.8.3 Implicit Differentiation
                                                                                                                                                                                                                                                                                    • 5.8.4 Differentiating Further Functions
                                                                                                                                                                                                                                                                                    • 5.9 Advanced Integration
                                                                                                                                                                                                                                                                                      • 5.9.1 Integrating Further Functions
                                                                                                                                                                                                                                                                                        • 5.9.2 Further Techniques of Integration
                                                                                                                                                                                                                                                                                          • 5.9.3 Integrating with Partial Fractions
                                                                                                                                                                                                                                                                                            • 5.9.4 Advanced Applications of Integration
                                                                                                                                                                                                                                                                                              • 5.9.5 Modelling with Volumes of Revolution
                                                                                                                                                                                                                                                                                              • 5.10 Differential Equations
                                                                                                                                                                                                                                                                                                • 5.10.1 Numerical Solutions to Differential Equations
                                                                                                                                                                                                                                                                                                  • 5.10.2 Analytical Solutions to Differential Equations
                                                                                                                                                                                                                                                                                                    • 5.10.3 Modelling with Differential Equations
                                                                                                                                                                                                                                                                                                    • 5.11 MacLaurin Series
                                                                                                                                                                                                                                                                                                      • 5.11.1 Maclaurin Series
                                                                                                                                                                                                                                                                                                        • 5.11.2 Maclaurin Series from Differential Equations
                                                                                                                                                                                                                                                                                                        • 5.12 Further Limits (inc l'Hôpital's Rule)
                                                                                                                                                                                                                                                                                                          • 5.12.1 Further Limits
                                                                                                                                                                                                                                                                                                        Paul Freeman

                                                                                                                                                                                                                                                                                                        Author: Paul

                                                                                                                                                                                                                                                                                                        Paul has taught mathematics for 20 years and has been an examiner for Edexcel for over a decade. GCSE, A level, pure, mechanics, statistics, discrete – if it’s in a Maths exam, Paul will know about it. Paul is a passionate fan of clear and colourful notes with fascinating diagrams – one of the many reasons he is excited to be a member of the SME team.


                                                                                                                                                                                                                                                                                                        Save My Exams Logo
                                                                                                                                                                                                                                                                                                        Resources
                                                                                                                                                                                                                                                                                                        Home Join Support

                                                                                                                                                                                                                                                                                                        Members
                                                                                                                                                                                                                                                                                                        Members Home Account Logout

                                                                                                                                                                                                                                                                                                        Company
                                                                                                                                                                                                                                                                                                        About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                        Quick Links
                                                                                                                                                                                                                                                                                                        GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                        © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                        IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
