DP IB Biology: HL

Revision Notes

Home / IB / Biology: HL / DP / Revision Notes / 1. Cell Biology / 1.3 Cells: Membrane Structure & Transport / 1.3.6 Skills: Membrane Structure & Transport


1.3.6 Skills: Membrane Structure & Transport


Drawing the Fluid Mosaic Model

Membranes

  • Membranes are vital structures found in all cells
  • The cell surface membrane creates an enclosed space separating the internal cell environment from the external environment
  • Intracellular membranes (internal membranes) form compartments within the cell, such as organelles (including the nucleus, mitochondria and RER) and vacuoles
  • Membranes not only separate different areas but also control the exchange of materials passing through them; they are partially permeable
  • Membranes form partially permeable barriers between the cell and its environment, between cytoplasm and organelles and also within organelles
  • Substances can cross membranes by diffusion, facilitated diffusion, osmosis and active transport
  • Membranes play a role in cell signaling by acting as an interface for communication between cells

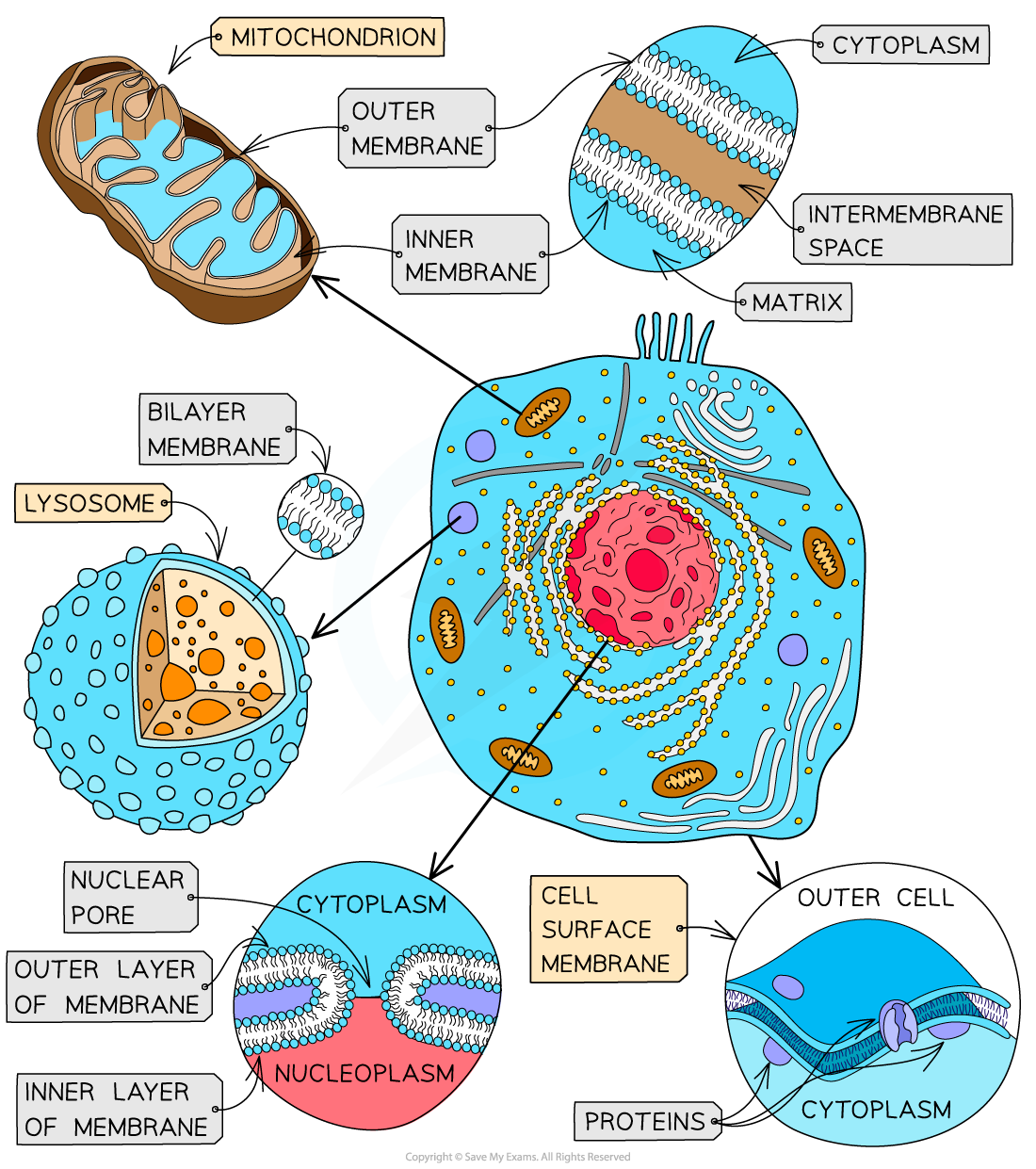

Membranes in the cell, downloadable AS & A Level Biology revision notes

Membranes formed from phospholipid bilayers help to compartmentalise different regions within the cell, as well as forming the cell surface membrane

Fluid Mosaic Model

  • The fluid mosaic model of membranes was first outlined in 1972 by Singer and Nicolson and it explains how biological molecules are arranged to form cell membranes
  • The fluid mosaic model also helps to explain:
    • Passive and active movement between cells and their surroundings
    • Cell-to-cell interactions
    • Cell signalling

  • The fluid mosaic model describes cell membranes as ‘fluid’ because:
    • The phospholipids and proteins can move around via diffusion
    • The phospholipids mainly move sideways, within their own layers
    • The many different types of proteins interspersed throughout the bilayer move about within it (a bit like icebergs in the sea) although some may be fixed in position
  • The fluid mosaic model describes cell membranes as ‘mosaics’ because:
    • The scattered pattern produced by the proteins within the phospholipid bilayer looks somewhat like a mosaic when viewed from above

  • The fluid mosaic model of membranes includes four main components:
    • Phospholipids
    • Cholesterol
    • Glycoproteins and glycolipids
    • Transport proteins

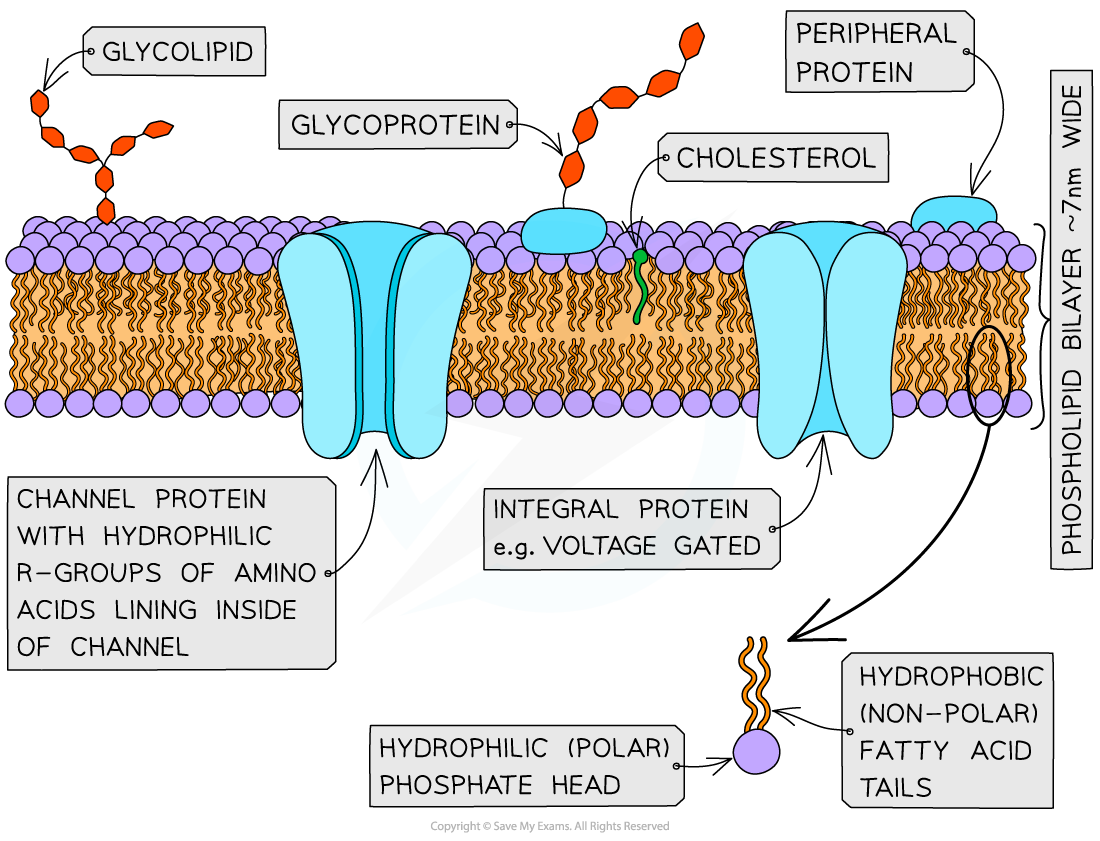

Fluid mosaic model exam example, downloadable AS & A Level Biology revision notes

The main components of cell membranes. The distribution of the proteins within the membrane gives a mosaic appearance and the structure of the proteins determines their position in the membrane.

Exam Tip

When drawing the fluid mosaic model remember to include (and label) the phospholipid bilayer (making it clear which part is the phosphate head and which parts are the hydrocarbon tails), the thickness of the membrane (7 - 10 nm), integral proteins (show then embedded in the phospholipid bilayer and include a couple of different types e.g. channel/carrier), peripheral proteins (do not extend the protein into the hydrophobic region), glycoprotein (with a carbohydrate attached) and finally cholesterol (ensure the orientation is correct, OH group next to the phosphate heads and the rest positioned next to the tails).

Analysis of Evidence: Davson-Danielli Model

  • Analysis of evidence from electron microscopy led to the proposal of the Davson-Danielli model
  • Other methods were then used to further investigate the model and suggested evidence against the model
    • Freeze-etchings

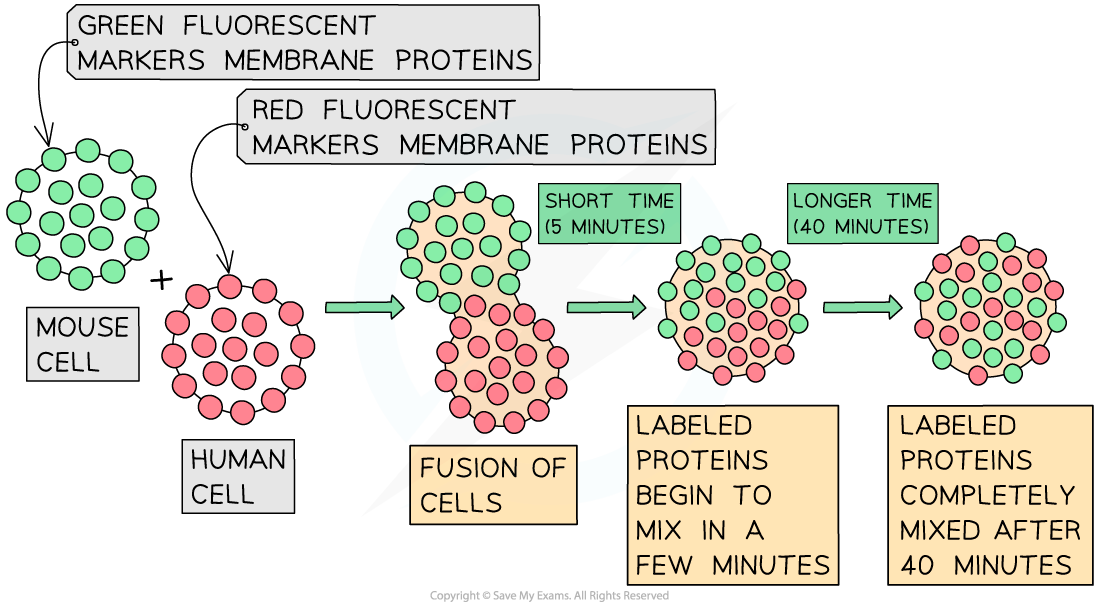

    • Fluorescent markers of membrane proteins

Transmission electron micrograph (TEM) of the plasma membrane

  • When analysing transmission electron micrographs comment on:
    • How the membrane has two darker layers surrounding a lighter line
    • Proteins were known to appear darker in electron micrographs
  • These were the observations that supported Davson-Danielli's model

1.3.6 TEM of a plasma membrane suggests evidence for Davson-Danielli's model, downloadable IB Biology revision notes

TEM of a plasma membrane suggests evidence for Davson-Danielli's model

Freeze-etched electron micrographs

  • When asked to analyse freeze-etched electron micrographs note that the very small bumps seen on the membranes are the integral proteins
  • This provided evidence against Davson-Danielli’s model as it showed proteins extending into the centre of the membrane
  • Be careful if the image is of a nuclear membrane as the larger circles represent the nuclear pores

1.3.6 Freeze-etching of a nucleus suggests evidence against Davson-Danielli's model, downloadable AS & A Level Biology revision notes

Freeze-etching of a nucleus suggests evidence against Davson-Danielli's model

Fluorescent markers on membrane proteins

  • When analysing data on the use of red and green fluorescent markers attached to membrane proteins, the key evidence to note, is that as time progresses after the fusion of the different cells with the different markers has occurred, more mixing of the markers is observed
  • This evidence did not support Davson-Danielli’s model that the proteins were a uniform layer above and below the phospholipids
  • It supported the ‘fluid’ part of Singer & Nicolson’s fluid mosaic model as it suggested that membrane proteins can move

Fluorescent markers on membrane proteins suggests evidence against Davson-Danielli's model, downloadable IB Biology revision notes

Fluorescent markers on membrane proteins suggest evidence against Davson-Danielli's model

Falsification of Davson-Danielli Model

NOS: Falsification of theories with one theory being superseded by another; evidence falsified the Davson-Danielli model

  • For about 30 years the technology available to scientists supported the Davson-Danielli model of membrane structure
  • From the 1950's an advancement in technology led to the accumulation of evidence which resulted in the Davson-Danielli model being superseded by the Singer-Nicolson 'fluid mosaic model'

  • Analysis of freeze-etched electron micrographs showed proteins extending into the centre of membranes
  • Biochemical analysis of membranes suggested that it was unlikely proteins formed continuous layers because it showed:
    • Proteins were globular
    • Varied in sizes
    • They had parts that were hydrophobic
  • The use of coloured fluorescent markers of antibodies showed that within forty minutes of fusing cells with different coloured fluorescent markers the markers had mixed
    • This suggested that membrane proteins were free to move within the layer

Exam Tip

It is important to be able to provide the reasons why the evidence collected falsified the Davson-Danielli model.



  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and Biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            • 7. Nucleic Acids (HL Only)
                                                                                                                                                                                                                                                                                              • 7.1 DNA Structure & Replication
                                                                                                                                                                                                                                                                                                • 7.1.1 DNA Structure
                                                                                                                                                                                                                                                                                                  • 7.1.2 Mechanism of DNA Replication
                                                                                                                                                                                                                                                                                                    • 7.1.3 Non-coding DNA
                                                                                                                                                                                                                                                                                                      • 7.1.4 DNA Sequencing
                                                                                                                                                                                                                                                                                                        • 7.1.5 Skills: The Hershey & Chase Experiment
                                                                                                                                                                                                                                                                                                          • 7.1.6 Skills: Nucleosomes & Molecular Visualisation Software
                                                                                                                                                                                                                                                                                                          • 7.2 Transcription & Gene Expression
                                                                                                                                                                                                                                                                                                            • 7.2.1 Regulation of Gene Expression by Proteins
                                                                                                                                                                                                                                                                                                              • 7.2.2 Environment & Gene Expression
                                                                                                                                                                                                                                                                                                                • 7.2.3 Transcription
                                                                                                                                                                                                                                                                                                                  • 7.2.4 Post-transcriptional Modification
                                                                                                                                                                                                                                                                                                                    • 7.2.5 Skills: Analysing DNA Methylation Patterns
                                                                                                                                                                                                                                                                                                                    • 7.3 Translation
                                                                                                                                                                                                                                                                                                                      • 7.3.1 Translation
                                                                                                                                                                                                                                                                                                                        • 7.3.2 Ribosomes
                                                                                                                                                                                                                                                                                                                          • 7.3.3 Translation in Prokaryotes
                                                                                                                                                                                                                                                                                                                            • 7.3.4 Bioinformatics
                                                                                                                                                                                                                                                                                                                              • 7.3.5 Levels of Protein Structure
                                                                                                                                                                                                                                                                                                                                • 7.3.6 Skills: Polysomes & Ribosomes
                                                                                                                                                                                                                                                                                                                              • 8. Metabolism, Cell Respiration & Photosynthesis (HL Only)
                                                                                                                                                                                                                                                                                                                                • 8.1 Metabolism
                                                                                                                                                                                                                                                                                                                                  • 8.1.1 Metabolic Pathways
                                                                                                                                                                                                                                                                                                                                    • 8.1.2 Inhibition
                                                                                                                                                                                                                                                                                                                                      • 8.1.3 Bioinformatics & Metabolism
                                                                                                                                                                                                                                                                                                                                        • 8.1.4 Skills: Rates of Reaction & Types of Inhibition
                                                                                                                                                                                                                                                                                                                                        • 8.2 Cell Respiration
                                                                                                                                                                                                                                                                                                                                          • 8.2.1 Oxidation, Reduction & Phosphorylation
                                                                                                                                                                                                                                                                                                                                            • 8.2.2 Overview of the Stages of Respiration
                                                                                                                                                                                                                                                                                                                                              • 8.2.3 Glycolysis
                                                                                                                                                                                                                                                                                                                                                • 8.2.4 The Link Reaction & The Krebs Cycle
                                                                                                                                                                                                                                                                                                                                                  • 8.2.5 Oxidative Phosphorylation
                                                                                                                                                                                                                                                                                                                                                    • 8.2.6 Mitochondria
                                                                                                                                                                                                                                                                                                                                                      • 8.2.7 Skills: Cell Respiration
                                                                                                                                                                                                                                                                                                                                                      • 8.3 Photosynthesis
                                                                                                                                                                                                                                                                                                                                                        • 8.3.1 Light-dependent Reactions
                                                                                                                                                                                                                                                                                                                                                          • 8.3.2 Photophosphorylation
                                                                                                                                                                                                                                                                                                                                                            • 8.3.3 Light-independent Reactions
                                                                                                                                                                                                                                                                                                                                                              • 8.3.4 Investigating Carbon Fixation in Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 8.3.5 Chloroplast
                                                                                                                                                                                                                                                                                                                                                                  • 8.3.6 Skills: Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 9. Plant Biology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                  • 9.1 Transport in the Xylem of Plants
                                                                                                                                                                                                                                                                                                                                                                    • 9.1.1 Transpiration in Plants
                                                                                                                                                                                                                                                                                                                                                                      • 9.1.2 The Transpiration Stream
                                                                                                                                                                                                                                                                                                                                                                        • 9.1.3 The Roots & Water Transport
                                                                                                                                                                                                                                                                                                                                                                          • 9.1.4 Adaptations of Xerophytes
                                                                                                                                                                                                                                                                                                                                                                            • 9.1.5 Skills: Drawing Xylem Vessels
                                                                                                                                                                                                                                                                                                                                                                              • 9.1.6 Skills: Experiments Investigating the Rate of Transpiration
                                                                                                                                                                                                                                                                                                                                                                              • 9.2 Transport in the Phloem of Plants
                                                                                                                                                                                                                                                                                                                                                                                • 9.2.1 Translocation in Plants
                                                                                                                                                                                                                                                                                                                                                                                  • 9.2.2 Sucrose Loading
                                                                                                                                                                                                                                                                                                                                                                                    • 9.2.3 Hydrostatic Pressure Gradients
                                                                                                                                                                                                                                                                                                                                                                                      • 9.2.4 Skills: Identifying Xylem & Phloem
                                                                                                                                                                                                                                                                                                                                                                                        • 9.2.5 Skills: Measuring Phloem Transport Rates
                                                                                                                                                                                                                                                                                                                                                                                        • 9.3 Growth in Plants
                                                                                                                                                                                                                                                                                                                                                                                          • 9.3.1 Plant Growth
                                                                                                                                                                                                                                                                                                                                                                                            • 9.3.2 Plant Hormones
                                                                                                                                                                                                                                                                                                                                                                                              • 9.3.3 Micropropagation
                                                                                                                                                                                                                                                                                                                                                                                              • 9.4 Reproduction in Plants
                                                                                                                                                                                                                                                                                                                                                                                                • 9.4.1 Flowering
                                                                                                                                                                                                                                                                                                                                                                                                  • 9.4.2 Plant Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                    • 9.4.3 Skills: Drawing Plant Structures
                                                                                                                                                                                                                                                                                                                                                                                                      • 9.4.4 Skills: Investigating Factors Affecting Germination
                                                                                                                                                                                                                                                                                                                                                                                                    • 10. Genetics & Evolution (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                      • 10.1 Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                        • 10.1.1 The Process of Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                          • 10.1.2 Crossing Over
                                                                                                                                                                                                                                                                                                                                                                                                            • 10.1.3 Meiosis I
                                                                                                                                                                                                                                                                                                                                                                                                              • 10.1.4 Meiosis II
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.1.5 Skills: Drawing Chiasmata
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.2 Inheritance
                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.2.1 Unlinked Genes
                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.2.2 Skills: Analysing Dihybrid Crosses
                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.2.3 Gene Linkage
                                                                                                                                                                                                                                                                                                                                                                                                                        • 10.2.4 Skills: Identifying Recombinants
                                                                                                                                                                                                                                                                                                                                                                                                                          • 10.2.5 Skills: Chi-squared Test
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.2.6 Variation
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.3 Gene Pools & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                              • 10.3.1 Gene Pools
                                                                                                                                                                                                                                                                                                                                                                                                                                • 10.3.2 Evolution
                                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.3.3 Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.3.4 Polyploidy & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.3.5 Skills: Comparing Allele Frequencies Between Populations
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11. Animal Physiology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1 Antibody Production & Vaccination
                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.1.1 Antigens
                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.1.2 Specific Immune Response
                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.1.3 Antibodies, Vaccines & Immunity
                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.1.4 Smallpox Vaccine & Eradication
                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.1.5 Zoonosis
                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.1.6 Histamines
                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.1.7 Monoclonal Antibodies
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1.8 Skills: Analysing Epidemiological Data
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.2 Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.2.1 Requirements for Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.2.2 Skeletal Muscle
                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.2.3 Mechanism of Muscle Contraction
                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.2.4 Skills: The Human Elbow & Sarcomeres
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.2.5 Skills: Analysing Muscle Contractions in Electron Micrographs
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.3 The Kidney & Osmoregulation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.3.1 Osmoregulation in Organisms
                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.3.2 Kidney: Structure & Function
                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.3.3 Conserving Water
                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.3.4 The Role of ADH
                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.3.5 Types of Nitrogenous Waste
                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.3.6 Kidney Failure & Urinalysis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.3.7 Skills: Drawing & Annotating the Kidney
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.4 Sexual Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.4.1 Oogenesis & Spermatogenesis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.4.2 Fertilisation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.4.3 Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.4.4 Hormones in Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.4.5 The Placenta
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.4.6 Oestrogen Pollution
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.4.7 Skills: Annotating Sexual Reproduction Diagrams

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Author: Catherine

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Cate has over 20 years’ experience teaching Biology to IGCSE, IB and A-level students in seven different countries across Asia, Europe, North America and the Middle East. This has given her a fine appreciation of different cultures, places and teaching methods. Cate has a keen interest in producing Biology revision resources that will help students engage with the subject.


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
