DP IB Biology: HL

Revision Notes

Home / IB / Biology: HL / DP / Revision Notes / 2. Molecular Biology / 2.8 Photosynthesis / 2.8.3 Skills: Photosynthesis


2.8.3 Skills: Photosynthesis


Absorption & Action Spectrums

  • An absorption spectrum (for a particular pigment) shows how much light of different wavelengths is absorbed by the pigment
  • An action spectrum shows how each wavelength of light affects the rate of photosynthesis that it can power
  • These are two graphs that use the wavelength of light on the x-axis
    • Violet light is the lowest wavelength of the visible spectrum, at 400 nanometres (nm)
    • Red light is the highest wavelength of the visible spectrum, at 700 nanometres (nm)

Drawing an absorption spectrum for chlorophyll

Step 1: Draw and label the axes

  • Draw an x-axis
  • Label the axis wavelength
  • Add the units / nm
  • Make 400 the smallest value and 700 the largest value
    • Label 500 and 600 nm on the x-axis
  • Draw a y-axis
  • Label it % absorption
  • Make 0 the lowest value and 100 the highest value
    • No units are required because the y-axis is showing a percentage scale

Step-1, downloadable IB Biology revision notes

Step 1 : Draw and label the axes

Step 2: Draw the Plot

  • There should be two absorbance peaks
    • One peak at either end, in the blue and red areas of the spectrum
    • And a trough in the middle, which represents green light
    • As below, with a smooth curve

Step-2, downloadable IB Biology revision notes

Step 2: Sketch the Curve

An absorbance spectrum for photosynthesis (colour range labels are not required)

Drawing an action spectrum for photosynthesis

Step 1: Draw and label the axes

  • Draw an x-axis
  • Label the axis wavelength
  • Add the units / nm
  • Make 400 the smallest value and 700 the largest value
    • Label 500 and 600 nm on the x-axis
  • Draw a y-axis
  • Label it Rate of photosynthesis / % of maximum rate
  • Make 0 the lowest value and 100 the highest value
    • No units are required because the y-axis is showing a percentage scale

Step-1-(2), downloadable IB Biology revision notes

Step 1 : Draw and label the axes

Step 2: Draw the plot

  • There should be two peaks of rate of photosynthesis
    • One peak at either end, in the blue and red areas of the spectrum
    • And a trough in the middle, which represents green light
    • As below, with a smooth curve

Step-2-(2), downloadable IB Biology revision notes

Step 2: Sketch the Curve. An absorbance spectrum for photosynthesis (colour range labels are not required)

Exam Tip

Remember – the pigments themselves have a distinctive colour. This is different from the colours of light that they absorb.Key points to remember:

  1. Label 400 - 700nm on the x-axis, in 100nm increments
  2. Use a % scale on the y-axis
  3. Smooth curve
  4. Peaks at either end
  5. Trough in the middle for green light

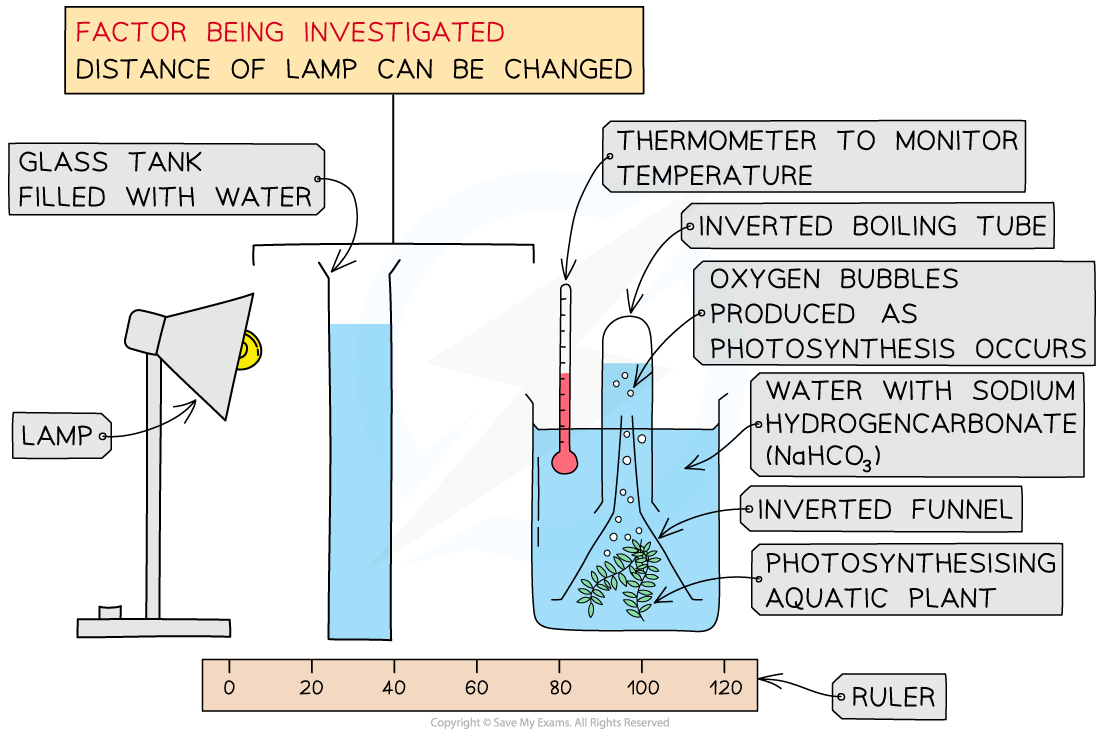

Investigating Photosynthesis

  • An aquatic plant such as Elodea or Camboba is a good choice for investigating photosynthesis in plants, because the rate of photosynthesis can be measured by counting oxygen bubbles that come off a cutting of this plant
    • Oxygen output from terrestrial plants (that grow on land) would not be observable

NOS: Experimental design - controlling relevant variables in photosynthesis experiments is essential

  • When designing an experiment it is crucial that all variables (apart from the independent and dependent variables being investigated) are controlled
    • The independent variable is the factor that is deliberately manipulated between a specific range throughout the experiment
    • The dependent variable is the factor that is measured during the experiment (to see if it is affected by the changes to the independent variable)
  • Other variables must be controlled so that it can be said the independent variable is the only factor affecting the dependent variable during the experiment
  • Changes in light intensity, carbon dioxide concentration and temperature are all limiting factors that affect the rate of photosynthesis and can be altered experimentally to measure the effect on the rate of photosynthesis

Effect of light intensity - experimental design

  • Basic Experimental Setup
    • Aquatic plant cutting in water
    • Powdered sodium hydrogencarbonate (NaHCO3)
    • Glass funnel
    • Boiling tube
    • Lamp for illumination
    • Glass tank filled with water

2.8.3 Skills_ Investigating Photosynthesis, downloadable IB Biology revision notes

Measuring the Effect of Light Intensity on the Rate of Photosynthesis in Pondweed

Research Question

Does the rate of photosynthesis (number of bubbles released per min) of Elodea increase as the light intensity increases?

Method

  • Place a piece of aquatic plant (Elodea or Cabomba are often used), into a beaker of water
  • Use a light a set distance from the plant
  • Record the number of bubbles observed in three minutes
  • Repeat steps for different distances

Improvements

  • Use a gas syringe to collect and measure the volume of gas produced
  • For reliability of data, repeat the experiment at least twice for each distance and calculate the mean number of bubbles
  • Use of a data logger to measure results continuously

Variables to Be Controlled

  • Temperature
    • The glass tank filled with water absorbs any heat that is emitted from the lamp
    • Modern LED bulbs can be used as they give off less heat than filament bulbs
  • CO2 concentration
    • The water used around the plant is first boiled and re-cooled to remove any dissolved carbon dioxide
    • A set mass of sodium hydrogencarbonate is added to the water that surrounds the plant
    • To make the concentration approx. 0.1 mol dm-3, which is not a limiting concentration

Results

  • A graph of the number of bubbles produced per minute against the distance between the lamp and the plant used can be drawn to see the pattern or trend
    • Distance between the lamp and the plant is linked to the light intensity

Graph RP6, downloadable IGCSE & GCSE Biology revision notes

A graph of distance from the lamp against number of bubbles per minute

The effect of light intensity on the rate of photosynthesis, IGCSE & GCSE Biology revision notes

The effect of light intensity on the rate of photosynthesis

Carbon dioxide concentration

  • The same basic experimental setup can be used, but with varying use of the following variables
  • Start with boiled and re-cooled water as before
  • Add successive masses of sodium hydrogencarbonate to increase the concentration in increments of 0.01 mol dm-3, and record the rate of photosynthesis in bubbles minute-1
  • Keep the temperature constant at 25°C using a water bath, monitoring with a thermometer in the water surrounding the aquatic plant
  • Keep the light intensity constant by keeping the lamp a fixed distance from the plant

The effect of carbon dioxide concentration on the rate of photosynthesis, IGCSE & GCSE Biology revision notes

The effect of carbon dioxide concentration on the rate of photosynthesis

Temperature

  • The same basic experimental setup can be used, but with varying use of the following variables
  • Start with boiled and re-cooled water as before, with sodium hydrogencarbonate at a fixed concentration of 0.1 mol dm-3, and record the rate of photosynthesis in bubbles minute-1
  • Vary the temperature from 5°C to 50°C using water baths, monitoring with a thermometer in the water surrounding the plant
  • Keep the light intensity constant by keeping the lamp a fixed distance from the plant
  • The rate will tail off after around 40°C due to the denaturation of important proteins involved in photosynthesis

The effect of temperature on the rate of photosynthesis, IGCSE & GCSE Biology revision notes

The effect of temperature on the rate of photosynthesis

Exam Tip

The key to this part of the spec is to appreciate how an experimental investigation can be controlled so that any effects we observe are directly due to the one variable that we are deliberately changing.



  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and Biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            • 7. Nucleic Acids (HL Only)
                                                                                                                                                                                                                                                                                              • 7.1 DNA Structure & Replication
                                                                                                                                                                                                                                                                                                • 7.1.1 DNA Structure
                                                                                                                                                                                                                                                                                                  • 7.1.2 Mechanism of DNA Replication
                                                                                                                                                                                                                                                                                                    • 7.1.3 Non-coding DNA
                                                                                                                                                                                                                                                                                                      • 7.1.4 DNA Sequencing
                                                                                                                                                                                                                                                                                                        • 7.1.5 Skills: The Hershey & Chase Experiment
                                                                                                                                                                                                                                                                                                          • 7.1.6 Skills: Nucleosomes & Molecular Visualisation Software
                                                                                                                                                                                                                                                                                                          • 7.2 Transcription & Gene Expression
                                                                                                                                                                                                                                                                                                            • 7.2.1 Regulation of Gene Expression by Proteins
                                                                                                                                                                                                                                                                                                              • 7.2.2 Environment & Gene Expression
                                                                                                                                                                                                                                                                                                                • 7.2.3 Transcription
                                                                                                                                                                                                                                                                                                                  • 7.2.4 Post-transcriptional Modification
                                                                                                                                                                                                                                                                                                                    • 7.2.5 Skills: Analysing DNA Methylation Patterns
                                                                                                                                                                                                                                                                                                                    • 7.3 Translation
                                                                                                                                                                                                                                                                                                                      • 7.3.1 Translation
                                                                                                                                                                                                                                                                                                                        • 7.3.2 Ribosomes
                                                                                                                                                                                                                                                                                                                          • 7.3.3 Translation in Prokaryotes
                                                                                                                                                                                                                                                                                                                            • 7.3.4 Bioinformatics
                                                                                                                                                                                                                                                                                                                              • 7.3.5 Levels of Protein Structure
                                                                                                                                                                                                                                                                                                                                • 7.3.6 Skills: Polysomes & Ribosomes
                                                                                                                                                                                                                                                                                                                              • 8. Metabolism, Cell Respiration & Photosynthesis (HL Only)
                                                                                                                                                                                                                                                                                                                                • 8.1 Metabolism
                                                                                                                                                                                                                                                                                                                                  • 8.1.1 Metabolic Pathways
                                                                                                                                                                                                                                                                                                                                    • 8.1.2 Inhibition
                                                                                                                                                                                                                                                                                                                                      • 8.1.3 Bioinformatics & Metabolism
                                                                                                                                                                                                                                                                                                                                        • 8.1.4 Skills: Rates of Reaction & Types of Inhibition
                                                                                                                                                                                                                                                                                                                                        • 8.2 Cell Respiration
                                                                                                                                                                                                                                                                                                                                          • 8.2.1 Oxidation, Reduction & Phosphorylation
                                                                                                                                                                                                                                                                                                                                            • 8.2.2 Overview of the Stages of Respiration
                                                                                                                                                                                                                                                                                                                                              • 8.2.3 Glycolysis
                                                                                                                                                                                                                                                                                                                                                • 8.2.4 The Link Reaction & The Krebs Cycle
                                                                                                                                                                                                                                                                                                                                                  • 8.2.5 Oxidative Phosphorylation
                                                                                                                                                                                                                                                                                                                                                    • 8.2.6 Mitochondria
                                                                                                                                                                                                                                                                                                                                                      • 8.2.7 Skills: Cell Respiration
                                                                                                                                                                                                                                                                                                                                                      • 8.3 Photosynthesis
                                                                                                                                                                                                                                                                                                                                                        • 8.3.1 Light-dependent Reactions
                                                                                                                                                                                                                                                                                                                                                          • 8.3.2 Photophosphorylation
                                                                                                                                                                                                                                                                                                                                                            • 8.3.3 Light-independent Reactions
                                                                                                                                                                                                                                                                                                                                                              • 8.3.4 Investigating Carbon Fixation in Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 8.3.5 Chloroplast
                                                                                                                                                                                                                                                                                                                                                                  • 8.3.6 Skills: Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 9. Plant Biology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                  • 9.1 Transport in the Xylem of Plants
                                                                                                                                                                                                                                                                                                                                                                    • 9.1.1 Transpiration in Plants
                                                                                                                                                                                                                                                                                                                                                                      • 9.1.2 The Transpiration Stream
                                                                                                                                                                                                                                                                                                                                                                        • 9.1.3 The Roots & Water Transport
                                                                                                                                                                                                                                                                                                                                                                          • 9.1.4 Adaptations of Xerophytes
                                                                                                                                                                                                                                                                                                                                                                            • 9.1.5 Skills: Drawing Xylem Vessels
                                                                                                                                                                                                                                                                                                                                                                              • 9.1.6 Skills: Experiments Investigating the Rate of Transpiration
                                                                                                                                                                                                                                                                                                                                                                              • 9.2 Transport in the Phloem of Plants
                                                                                                                                                                                                                                                                                                                                                                                • 9.2.1 Translocation in Plants
                                                                                                                                                                                                                                                                                                                                                                                  • 9.2.2 Sucrose Loading
                                                                                                                                                                                                                                                                                                                                                                                    • 9.2.3 Hydrostatic Pressure Gradients
                                                                                                                                                                                                                                                                                                                                                                                      • 9.2.4 Skills: Identifying Xylem & Phloem
                                                                                                                                                                                                                                                                                                                                                                                        • 9.2.5 Skills: Measuring Phloem Transport Rates
                                                                                                                                                                                                                                                                                                                                                                                        • 9.3 Growth in Plants
                                                                                                                                                                                                                                                                                                                                                                                          • 9.3.1 Plant Growth
                                                                                                                                                                                                                                                                                                                                                                                            • 9.3.2 Plant Hormones
                                                                                                                                                                                                                                                                                                                                                                                              • 9.3.3 Micropropagation
                                                                                                                                                                                                                                                                                                                                                                                              • 9.4 Reproduction in Plants
                                                                                                                                                                                                                                                                                                                                                                                                • 9.4.1 Flowering
                                                                                                                                                                                                                                                                                                                                                                                                  • 9.4.2 Plant Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                    • 9.4.3 Skills: Drawing Plant Structures
                                                                                                                                                                                                                                                                                                                                                                                                      • 9.4.4 Skills: Investigating Factors Affecting Germination
                                                                                                                                                                                                                                                                                                                                                                                                    • 10. Genetics & Evolution (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                      • 10.1 Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                        • 10.1.1 The Process of Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                          • 10.1.2 Crossing Over
                                                                                                                                                                                                                                                                                                                                                                                                            • 10.1.3 Meiosis I
                                                                                                                                                                                                                                                                                                                                                                                                              • 10.1.4 Meiosis II
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.1.5 Skills: Drawing Chiasmata
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.2 Inheritance
                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.2.1 Unlinked Genes
                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.2.2 Skills: Analysing Dihybrid Crosses
                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.2.3 Gene Linkage
                                                                                                                                                                                                                                                                                                                                                                                                                        • 10.2.4 Skills: Identifying Recombinants
                                                                                                                                                                                                                                                                                                                                                                                                                          • 10.2.5 Skills: Chi-squared Test
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.2.6 Variation
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.3 Gene Pools & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                              • 10.3.1 Gene Pools
                                                                                                                                                                                                                                                                                                                                                                                                                                • 10.3.2 Evolution
                                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.3.3 Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.3.4 Polyploidy & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.3.5 Skills: Comparing Allele Frequencies Between Populations
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11. Animal Physiology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1 Antibody Production & Vaccination
                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.1.1 Antigens
                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.1.2 Specific Immune Response
                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.1.3 Antibodies, Vaccines & Immunity
                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.1.4 Smallpox Vaccine & Eradication
                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.1.5 Zoonosis
                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.1.6 Histamines
                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.1.7 Monoclonal Antibodies
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1.8 Skills: Analysing Epidemiological Data
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.2 Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.2.1 Requirements for Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.2.2 Skeletal Muscle
                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.2.3 Mechanism of Muscle Contraction
                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.2.4 Skills: The Human Elbow & Sarcomeres
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.2.5 Skills: Analysing Muscle Contractions in Electron Micrographs
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.3 The Kidney & Osmoregulation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.3.1 Osmoregulation in Organisms
                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.3.2 Kidney: Structure & Function
                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.3.3 Conserving Water
                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.3.4 The Role of ADH
                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.3.5 Types of Nitrogenous Waste
                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.3.6 Kidney Failure & Urinalysis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.3.7 Skills: Drawing & Annotating the Kidney
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.4 Sexual Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.4.1 Oogenesis & Spermatogenesis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.4.2 Fertilisation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.4.3 Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.4.4 Hormones in Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.4.5 The Placenta
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.4.6 Oestrogen Pollution
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.4.7 Skills: Annotating Sexual Reproduction Diagrams
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Phil Chatterton

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Author: Phil

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Phil graduated in Biochemistry from Birmingham University and spent seventeen years in the drinks and chemicals industries. He holds an MBA from Manchester Business School. More recently, Phil has taught in secondary schools, examined GCSE Biology and has also co-directed a tuition agency. He is a passionate believer in promoting numeracy in his teaching and loves to create innovative resources.


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
