DP IB Biology: HL

Revision Notes

Home / IB / Biology: HL / DP / Revision Notes / 2. Molecular Biology / 2.8 Photosynthesis / 2.8.4 Skills: Separating Photosynthetic Pigments


2.8.4 Skills: Separating Photosynthetic Pigments


Practical 4: Separation of Photosynthetic Pigments

Separation of photosynthetic pigments by chromatography

  • Plants contain several different photosynthetic pigments, which absorb different wavelengths of light
  • There are two groups of pigments: chlorophylls and carotenoids
  • Carotenoids surround the chlorophyll and absorb both similar and different wavelengths of light to chlorophyll
    • This expands the range of wavelengths that can be absorbed from light for use in photosynthesis

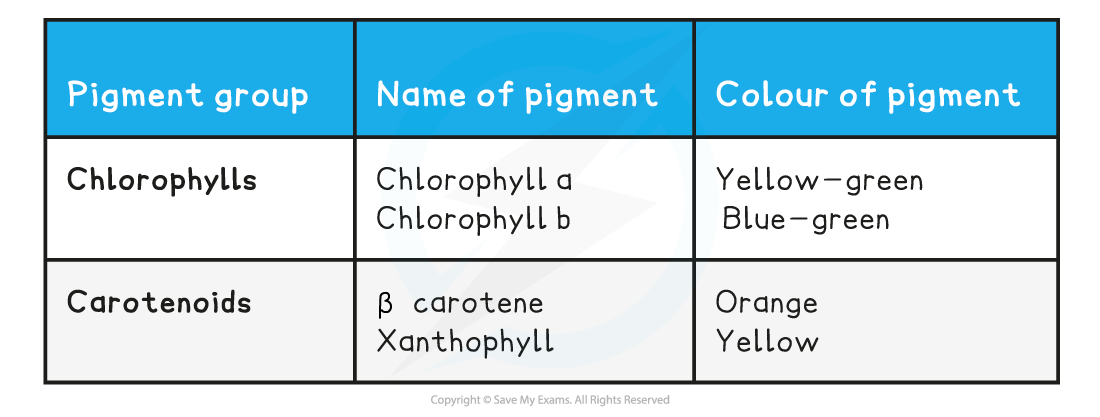

Chloroplast Pigments Table

Chloroplast Pigments Table, downloadable AS & A Level Biology revision notes

  • Chlorophylls absorb wavelengths in the blue-violet and red regions of the light spectrum
    • They reflect green light, causing plants to appear green

  • Carotenoids absorb wavelengths of light mainly in the blue-violet region of the spectrum

Absorption spectra of chlorophylls and carotenoids_1, downloadable AS & A Level Biology revision notes

Chlorophyll and carotenoids absorb light across the visible light spectrum to use in the light-dependent reaction of photosynthesis

Chromatography

  • Chromatography is an experimental technique that is used to separate mixtures
    • Different components within the mixture travel through the material at different speeds
    • This causes the different components to separate
    • A retardation factor (Rf value) can be calculated for each component of the mixture
  • Two of the most common techniques for separating these photosynthetic pigments are:
    • Paper chromatography – the mixture of pigments is passed through paper (cellulose)
    • Thin-layer chromatography (TLC)– the mixture of pigments is passed through a thin layer of adsorbent (eg. silica gel), through which the mixture travels faster and separates more distinctly

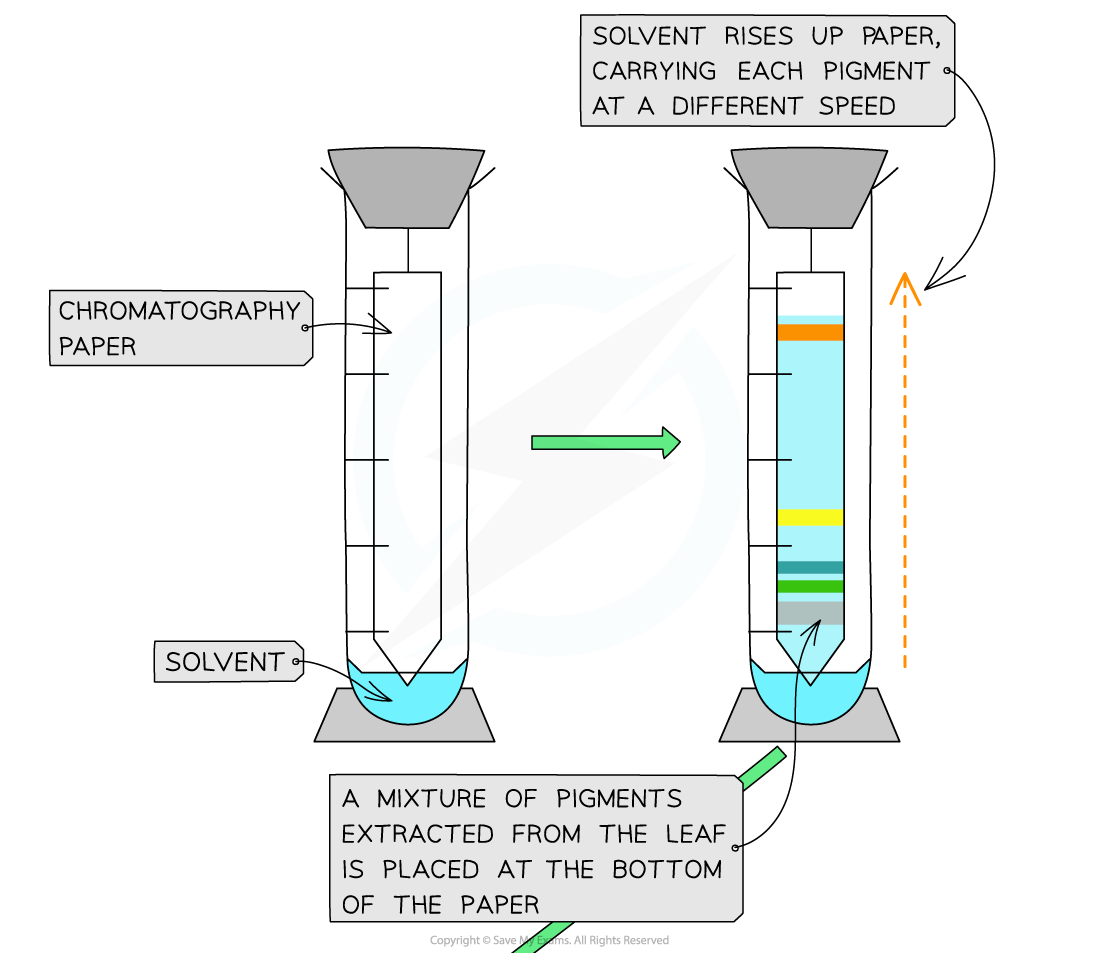

  • Paper chromatography can be used to separate photosynthetic pigments although TLC gives better results

Apparatus

  • Leaf sample
  • Distilled water
  • Pestle and mortar
  • Filter paper
  • Capillary tube
  • Chromatography solvent
  • Propanone
  • Pencil
  • Ruler

Method

  • Draw a straight line in pencil approximately 1cm above the bottom of the filter paper being used
    • Do not use a pen as the ink will separate into pigments within the experiment and obscure the results
  • Cut a section of leaf and place it in a mortar
    • It is important to choose a healthy leaf that has been in direct sunlight so you can be sure it contains many active photosynthetic cells

  • Add 20 drops of propanone and use the pestle to grind up the leaf sample and release the pigments
    • Propanone is an organic solvent and therefore fats, such as the lipid membrane, dissolve in it
    • The combination of propanone and mechanical pressure breaks down the cell and chloroplasts to release the pigments

  • Extract some of the pigment using a capillary tube and spot it onto the centre of the pencil line you have drawn
  • Suspend the paper in the chromatography solvent so that the level of the solvent is below the pencil line and leave the paper until the solvent has reached the top of the paper
    • The mixture is dissolved in the solvent (called the mobile phase) and the dissolved mixture then passes through a static material (called the stationary phase)

  • Remove the paper from the solvent and draw a pencil line marking where the solvent moved up to
    • The pigment should have separated out and there should be different spots on the paper at different heights above the pencil line, these are the separate pigments
  • Calculate the Rf value for each spot

    • Always measure to the centre of each spot

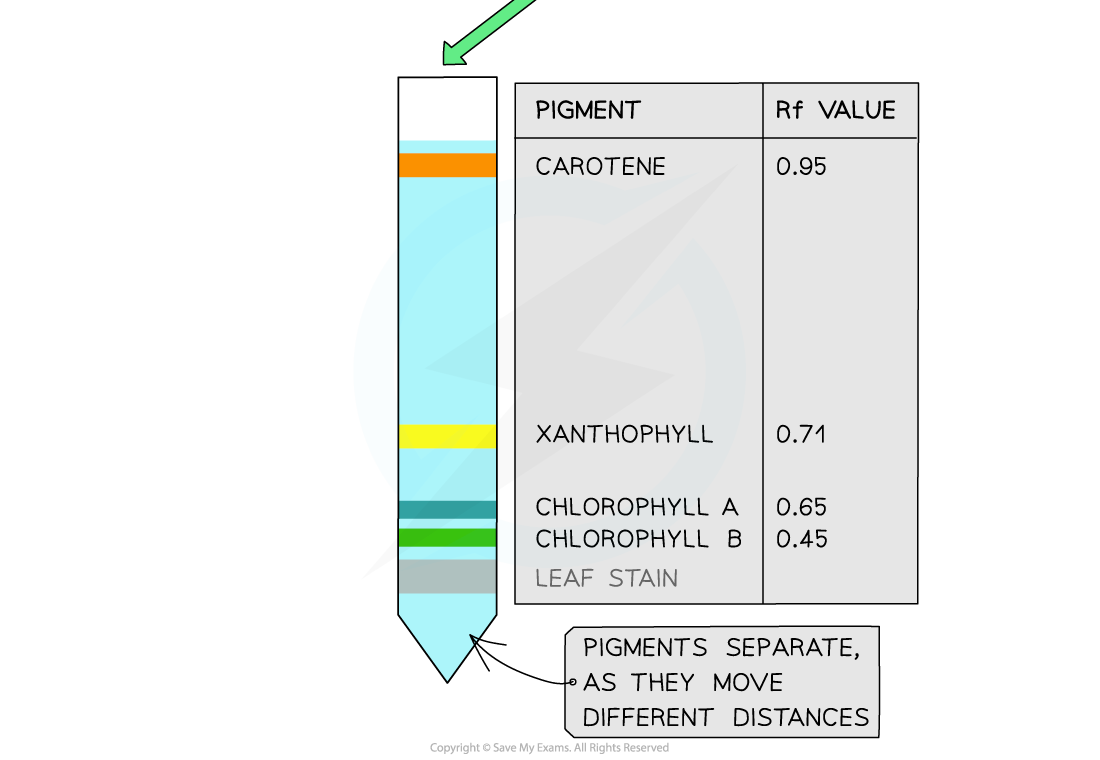

Results

  • Chromatography can be used to separate and identify chloroplast pigments that have been extracted from a leaf as each pigment will have a unique Rf value
  • The Rf value demonstrates how far a dissolved pigment travels through the stationary phase
    • Molecules with a higher affinity to the stationary phase, such as large molecules, will travel slower and therefore have a smaller Rf value
    • Molecules that are more soluble in the mobile phase will travel faster and therefore have a larger Rf value
  • Although specific Rf values depend on the solvent that is being used, in general:
    • Carotenoids have the highest Rf values (usually close to 1)
    • Chlorophyll b has a much lower Rf value
    • Chlorophyll a has an Rf value somewhere between those of carotenoids and chlorophyll b
    • Small Rf values indicate the pigment is less soluble and/or larger in size

Paper chromatography is used to separate photosynthetic pigments. These pigments can be identified by their Rf values. In this example, a line of the mixture (rather than a spot) is added to the paper.

Limitations

  • Paper chromatography is not as specific as other chromatography techniques
    • It is sufficient to separate and distinguish different pigments and to calculate their Rf value
  • Chromatography does not give data on the amount of each pigment present or the wavelengths that they absorb
    • Colorimetry can be used to calculate these values

Exam Tip

Remember – the pigments themselves have colour (as described in the table). This is different from the colours of light that they absorb. You don't have to remember specific Rf values, just know that they differ between each type of pigment.



  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and Biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            • 7. Nucleic Acids (HL Only)
                                                                                                                                                                                                                                                                                              • 7.1 DNA Structure & Replication
                                                                                                                                                                                                                                                                                                • 7.1.1 DNA Structure
                                                                                                                                                                                                                                                                                                  • 7.1.2 Mechanism of DNA Replication
                                                                                                                                                                                                                                                                                                    • 7.1.3 Non-coding DNA
                                                                                                                                                                                                                                                                                                      • 7.1.4 DNA Sequencing
                                                                                                                                                                                                                                                                                                        • 7.1.5 Skills: The Hershey & Chase Experiment
                                                                                                                                                                                                                                                                                                          • 7.1.6 Skills: Nucleosomes & Molecular Visualisation Software
                                                                                                                                                                                                                                                                                                          • 7.2 Transcription & Gene Expression
                                                                                                                                                                                                                                                                                                            • 7.2.1 Regulation of Gene Expression by Proteins
                                                                                                                                                                                                                                                                                                              • 7.2.2 Environment & Gene Expression
                                                                                                                                                                                                                                                                                                                • 7.2.3 Transcription
                                                                                                                                                                                                                                                                                                                  • 7.2.4 Post-transcriptional Modification
                                                                                                                                                                                                                                                                                                                    • 7.2.5 Skills: Analysing DNA Methylation Patterns
                                                                                                                                                                                                                                                                                                                    • 7.3 Translation
                                                                                                                                                                                                                                                                                                                      • 7.3.1 Translation
                                                                                                                                                                                                                                                                                                                        • 7.3.2 Ribosomes
                                                                                                                                                                                                                                                                                                                          • 7.3.3 Translation in Prokaryotes
                                                                                                                                                                                                                                                                                                                            • 7.3.4 Bioinformatics
                                                                                                                                                                                                                                                                                                                              • 7.3.5 Levels of Protein Structure
                                                                                                                                                                                                                                                                                                                                • 7.3.6 Skills: Polysomes & Ribosomes
                                                                                                                                                                                                                                                                                                                              • 8. Metabolism, Cell Respiration & Photosynthesis (HL Only)
                                                                                                                                                                                                                                                                                                                                • 8.1 Metabolism
                                                                                                                                                                                                                                                                                                                                  • 8.1.1 Metabolic Pathways
                                                                                                                                                                                                                                                                                                                                    • 8.1.2 Inhibition
                                                                                                                                                                                                                                                                                                                                      • 8.1.3 Bioinformatics & Metabolism
                                                                                                                                                                                                                                                                                                                                        • 8.1.4 Skills: Rates of Reaction & Types of Inhibition
                                                                                                                                                                                                                                                                                                                                        • 8.2 Cell Respiration
                                                                                                                                                                                                                                                                                                                                          • 8.2.1 Oxidation, Reduction & Phosphorylation
                                                                                                                                                                                                                                                                                                                                            • 8.2.2 Overview of the Stages of Respiration
                                                                                                                                                                                                                                                                                                                                              • 8.2.3 Glycolysis
                                                                                                                                                                                                                                                                                                                                                • 8.2.4 The Link Reaction & The Krebs Cycle
                                                                                                                                                                                                                                                                                                                                                  • 8.2.5 Oxidative Phosphorylation
                                                                                                                                                                                                                                                                                                                                                    • 8.2.6 Mitochondria
                                                                                                                                                                                                                                                                                                                                                      • 8.2.7 Skills: Cell Respiration
                                                                                                                                                                                                                                                                                                                                                      • 8.3 Photosynthesis
                                                                                                                                                                                                                                                                                                                                                        • 8.3.1 Light-dependent Reactions
                                                                                                                                                                                                                                                                                                                                                          • 8.3.2 Photophosphorylation
                                                                                                                                                                                                                                                                                                                                                            • 8.3.3 Light-independent Reactions
                                                                                                                                                                                                                                                                                                                                                              • 8.3.4 Investigating Carbon Fixation in Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 8.3.5 Chloroplast
                                                                                                                                                                                                                                                                                                                                                                  • 8.3.6 Skills: Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 9. Plant Biology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                  • 9.1 Transport in the Xylem of Plants
                                                                                                                                                                                                                                                                                                                                                                    • 9.1.1 Transpiration in Plants
                                                                                                                                                                                                                                                                                                                                                                      • 9.1.2 The Transpiration Stream
                                                                                                                                                                                                                                                                                                                                                                        • 9.1.3 The Roots & Water Transport
                                                                                                                                                                                                                                                                                                                                                                          • 9.1.4 Adaptations of Xerophytes
                                                                                                                                                                                                                                                                                                                                                                            • 9.1.5 Skills: Drawing Xylem Vessels
                                                                                                                                                                                                                                                                                                                                                                              • 9.1.6 Skills: Experiments Investigating the Rate of Transpiration
                                                                                                                                                                                                                                                                                                                                                                              • 9.2 Transport in the Phloem of Plants
                                                                                                                                                                                                                                                                                                                                                                                • 9.2.1 Translocation in Plants
                                                                                                                                                                                                                                                                                                                                                                                  • 9.2.2 Sucrose Loading
                                                                                                                                                                                                                                                                                                                                                                                    • 9.2.3 Hydrostatic Pressure Gradients
                                                                                                                                                                                                                                                                                                                                                                                      • 9.2.4 Skills: Identifying Xylem & Phloem
                                                                                                                                                                                                                                                                                                                                                                                        • 9.2.5 Skills: Measuring Phloem Transport Rates
                                                                                                                                                                                                                                                                                                                                                                                        • 9.3 Growth in Plants
                                                                                                                                                                                                                                                                                                                                                                                          • 9.3.1 Plant Growth
                                                                                                                                                                                                                                                                                                                                                                                            • 9.3.2 Plant Hormones
                                                                                                                                                                                                                                                                                                                                                                                              • 9.3.3 Micropropagation
                                                                                                                                                                                                                                                                                                                                                                                              • 9.4 Reproduction in Plants
                                                                                                                                                                                                                                                                                                                                                                                                • 9.4.1 Flowering
                                                                                                                                                                                                                                                                                                                                                                                                  • 9.4.2 Plant Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                    • 9.4.3 Skills: Drawing Plant Structures
                                                                                                                                                                                                                                                                                                                                                                                                      • 9.4.4 Skills: Investigating Factors Affecting Germination
                                                                                                                                                                                                                                                                                                                                                                                                    • 10. Genetics & Evolution (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                      • 10.1 Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                        • 10.1.1 The Process of Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                          • 10.1.2 Crossing Over
                                                                                                                                                                                                                                                                                                                                                                                                            • 10.1.3 Meiosis I
                                                                                                                                                                                                                                                                                                                                                                                                              • 10.1.4 Meiosis II
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.1.5 Skills: Drawing Chiasmata
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.2 Inheritance
                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.2.1 Unlinked Genes
                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.2.2 Skills: Analysing Dihybrid Crosses
                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.2.3 Gene Linkage
                                                                                                                                                                                                                                                                                                                                                                                                                        • 10.2.4 Skills: Identifying Recombinants
                                                                                                                                                                                                                                                                                                                                                                                                                          • 10.2.5 Skills: Chi-squared Test
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.2.6 Variation
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.3 Gene Pools & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                              • 10.3.1 Gene Pools
                                                                                                                                                                                                                                                                                                                                                                                                                                • 10.3.2 Evolution
                                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.3.3 Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.3.4 Polyploidy & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.3.5 Skills: Comparing Allele Frequencies Between Populations
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11. Animal Physiology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1 Antibody Production & Vaccination
                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.1.1 Antigens
                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.1.2 Specific Immune Response
                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.1.3 Antibodies, Vaccines & Immunity
                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.1.4 Smallpox Vaccine & Eradication
                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.1.5 Zoonosis
                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.1.6 Histamines
                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.1.7 Monoclonal Antibodies
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1.8 Skills: Analysing Epidemiological Data
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.2 Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.2.1 Requirements for Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.2.2 Skeletal Muscle
                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.2.3 Mechanism of Muscle Contraction
                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.2.4 Skills: The Human Elbow & Sarcomeres
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.2.5 Skills: Analysing Muscle Contractions in Electron Micrographs
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.3 The Kidney & Osmoregulation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.3.1 Osmoregulation in Organisms
                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.3.2 Kidney: Structure & Function
                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.3.3 Conserving Water
                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.3.4 The Role of ADH
                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.3.5 Types of Nitrogenous Waste
                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.3.6 Kidney Failure & Urinalysis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.3.7 Skills: Drawing & Annotating the Kidney
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.4 Sexual Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.4.1 Oogenesis & Spermatogenesis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.4.2 Fertilisation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.4.3 Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.4.4 Hormones in Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.4.5 The Placenta
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.4.6 Oestrogen Pollution
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.4.7 Skills: Annotating Sexual Reproduction Diagrams
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Phil Chatterton

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Author: Phil

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Phil graduated in Biochemistry from Birmingham University and spent seventeen years in the drinks and chemicals industries. He holds an MBA from Manchester Business School. More recently, Phil has taught in secondary schools, examined GCSE Biology and has also co-directed a tuition agency. He is a passionate believer in promoting numeracy in his teaching and loves to create innovative resources.


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
