DP IB Biology: HL

Revision Notes

Home / IB / Biology: HL / DP / Revision Notes / 7. Nucleic Acids (HL Only) / 7.3 Translation / 7.3.1 Translation


7.3.1 Translation


Initiation of Translation

Initiation of translation involves assembly of the components that carry out the process.

  • During translation, the specific sequence of messenger RNA (mRNA) is translated to produce a polypeptide chain consisting of amino acids
    • mRNA is a single stranded, linear, RNA molecule that transfers the information in DNA from the nucleus into the cytoplasm
  • Translation is categorised into three stages: initiation, elongation and termination
  • Translation occurs in the cytoplasm at complex molecules made of protein and RNA called ribosomes
    • Ribosomes have a two-subunit (large and small) structure that helps bind mRNA
    • Ribosomes have three tRNA binding sites termed “E” (exit), “P” (peptidyl) and “A” (aminoacyl)
      • At the A site the mRNA codon joins with the tRNA anticodon
      • At the P site the amino acids attached to the tRNA are joined by peptide bonds
      • At the E site the tRNA exits the ribosome
  • Another key molecule in translation is transfer RNA (tRNA) that decodes mRNA
    • tRNA molecules are single stranded RNA molecules that fold to form a clover-shaped structure
      • The folded structure is held together by hydrogen bonds between bases at different points on the strand
      • tRNA molecules are the shortest of the RNA molecules, being only around 80 nucleotides in length
      • There are 20 different types of tRNA molecule, one for each of the amino acids involved in protein synthesis
    • tRNA molecules have a region that binds to a specific amino acid as well as a three-nucleotide region called an anticodon that is complementary to the codon on mRNA
    • The role of tRNA molecule is to carry a specific amino acid to the ribosome
tRNA structure
Structure of tRNA
  • In eukaryotic cells, the mRNA molecule leaves the nucleus through the nuclear pores

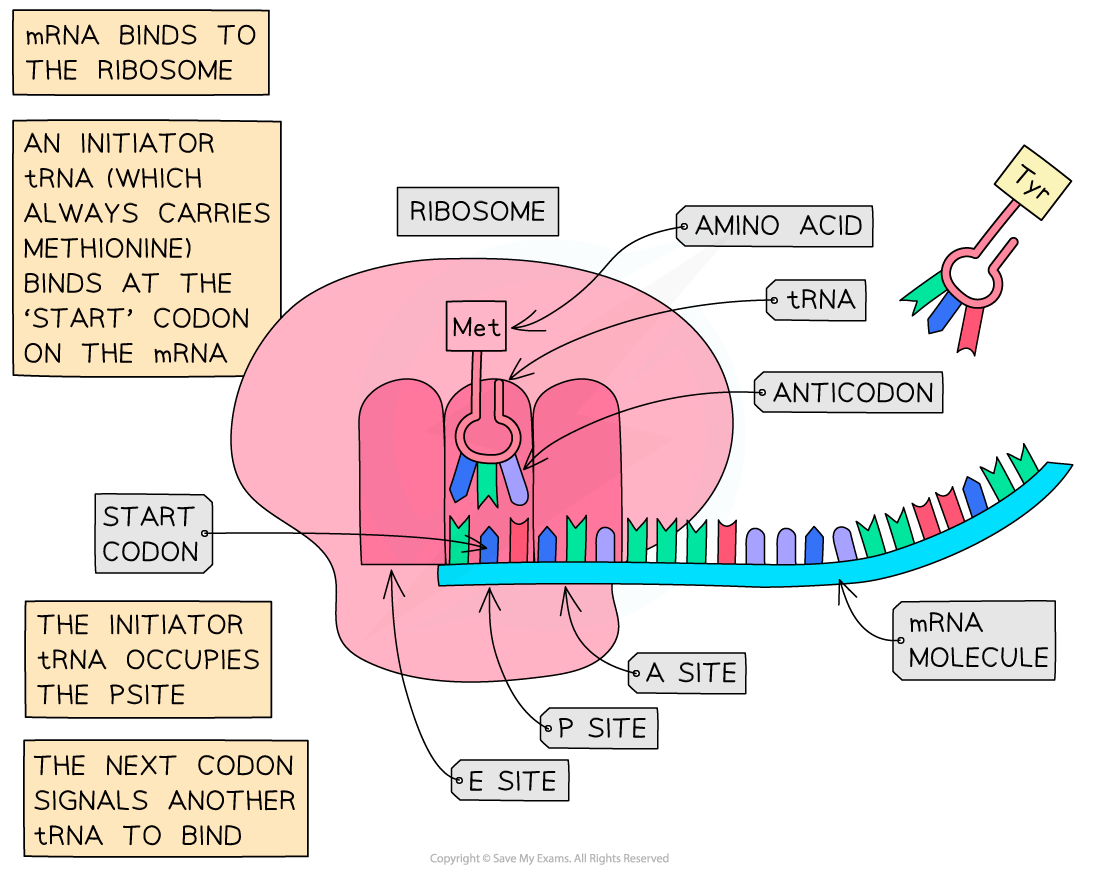

  • Translation is initiated by the following process
    • A small ribosomal subunit attaches to the 5’ end of mRNA
    • An initiator tRNA molecule carrying the amino acid methionine binds to the small ribosomal subunit
      • The initiator tRNA occupies the “P” site on the ribosome
    • The ribosome moves along the mRNA until it locates a start codon (AUG)
    • The large ribosomal subunit binds to the small subunit
      • Elongation of the polypeptide can begin

Elongation of the Polypeptide

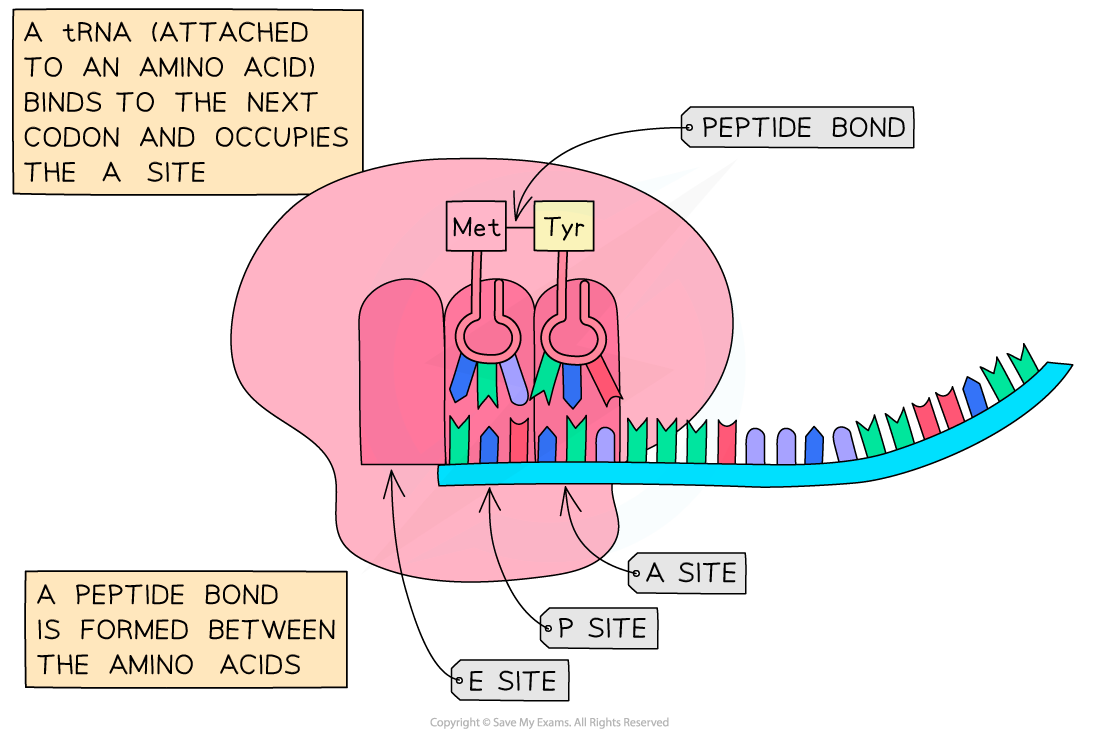

  • The initiator tRNA currently occupies the “P” site, the next codon on the mRNA signals for the corresponding tRNA to bind at the “A” site
    • The two amino acids (attached to the tRNAs) are linked with a peptide bond, forming a dipeptide
  • Synthesis of the peptide chain now involves a repeated cycle of events
    • In the cytoplasm, free tRNA molecules bind to their corresponding amino acids and transport them to the ribosome

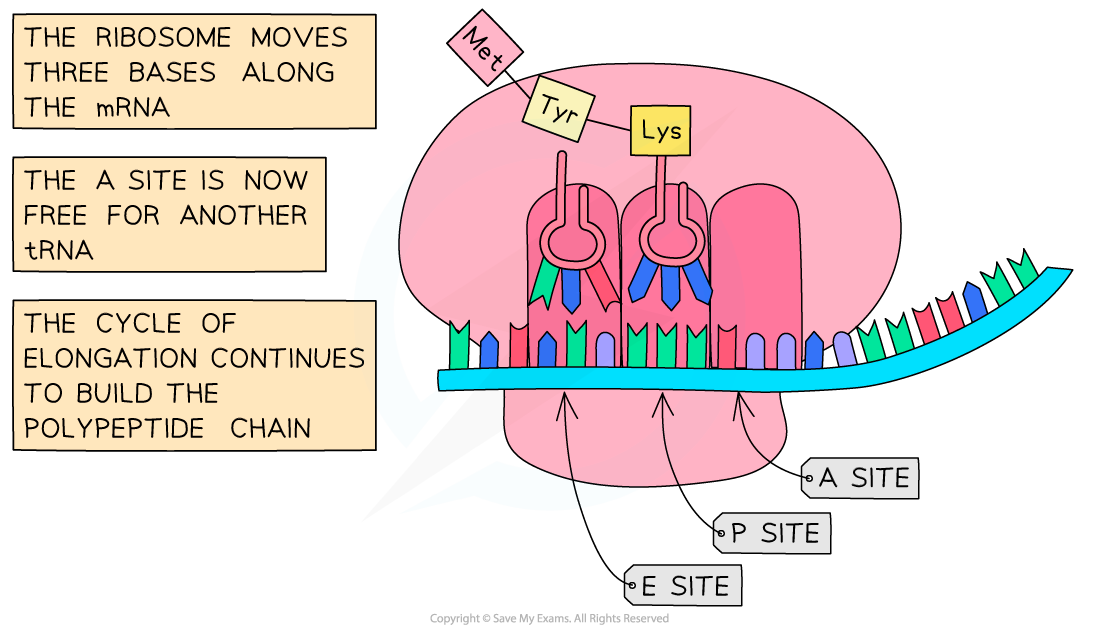

    • The ribosome shifts along the mRNA one codon (three bases) at a time

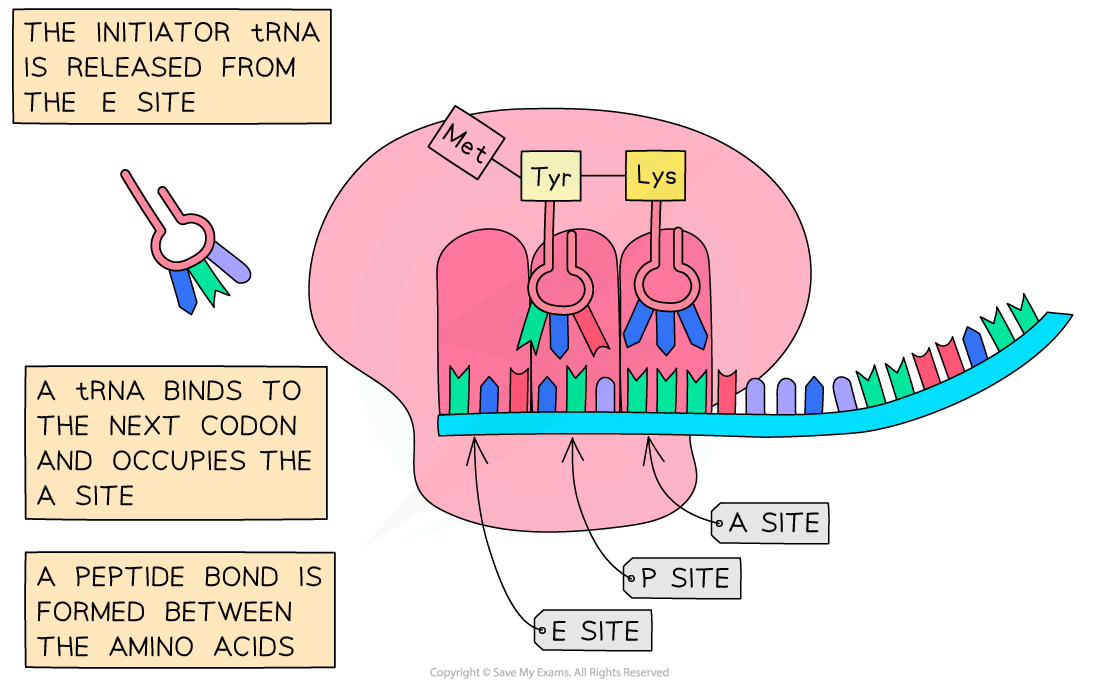

      • The initiator tRNA in the “P” site moves to the “E” site which releases it
      • The tRNA carrying the peptide chain moves from the “A” site to the “P” site
      • The next mRNA codon is exposed and a tRNA with the complementary anticodon binds to the unoccupied “A” site whilst its amino acid is linked to the polypeptide chain
  • The cyclical process is repeated as new amino acids are added to the growing chain

Termination of Translation

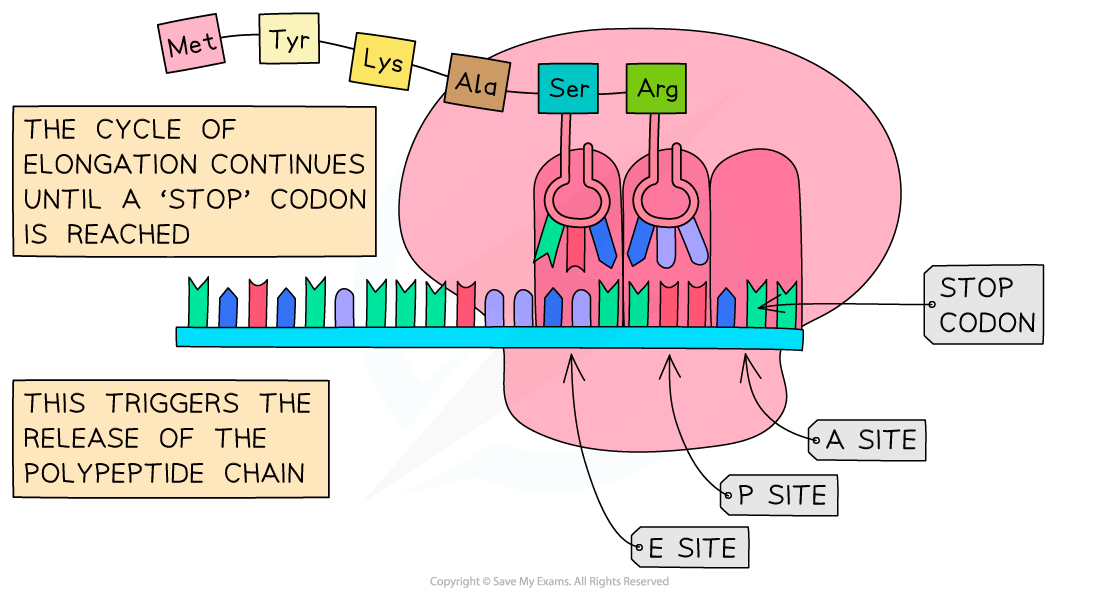

  • The process of elongation continues until one of three ‘stop’ codons (UAA, UAG and UGA) on the mRNA molecule is reached
    • Stop codons do not code for a tRNA molecule but act as a signal for translation to stop
  • The polypeptide chain and mRNA are released from the ribosome
  • The ribosome disassembles back into two separate subunits
    • And can await the arrival of the next mRNA molecule

elongation-of-polypeptide-ib-1

elongation-of-polypeptide-ib-2

elongation-of-polypeptide-ib-3

elongation-of-polypeptide-ib-4

elongation-of-polypeptide-ib-5

elongation-of-polypeptide-ib-6

Following the initiation of protein synthesis, translation involves a repeated cycle of events to build the polypeptide chain, tRNA molecules move into the A, P and E sites as the ribosome reads the mRNA

Exam Tip

You don't need to remember the precise base sequences of start and stop codons for your examination.

tRNA-activating Enzymes

  • Amino acids are paired to specific tRNA molecules through the action of tRNA-activating enzymes
    • Each tRNA activating enzyme recognises a specific tRNA molecule
  • tRNA-activating enzymes, in common with most enzymes, are substrate-specific and recognise the correct tRNA molecules by their shape
    • Nucleotide sequence variability between tRNA molecules results in variation in their three-dimensional structure
    • Active sites of tRNA-activating enzymes are optimised to bind a specific tRNA
  • Initially, a tRNA-activating enzyme binds to ATP and a specific amino acid
  • The active site of the enzyme attracts a conformationally-specific tRNA molecule
  • The tRNA molecule is bound to the amino acid using ATP (phosphorylation) to create a high energy bond
    • The stored energy in this bond will be used later in peptide bond formation to link the amino acid to the growing polypeptide chain
    • This is an example of how an anabolic reaction like protein synthesis utilises the energy stored in ATP
  • A tRNA molecule with an amino acid attached is called a charged tRNA

specific-trna-activating

Specific tRNA-activating enzymes are involved in charging an amino acid to a specific tRNA molecule



  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and Biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            • 7. Nucleic Acids (HL Only)
                                                                                                                                                                                                                                                                                              • 7.1 DNA Structure & Replication
                                                                                                                                                                                                                                                                                                • 7.1.1 DNA Structure
                                                                                                                                                                                                                                                                                                  • 7.1.2 Mechanism of DNA Replication
                                                                                                                                                                                                                                                                                                    • 7.1.3 Non-coding DNA
                                                                                                                                                                                                                                                                                                      • 7.1.4 DNA Sequencing
                                                                                                                                                                                                                                                                                                        • 7.1.5 Skills: The Hershey & Chase Experiment
                                                                                                                                                                                                                                                                                                          • 7.1.6 Skills: Nucleosomes & Molecular Visualisation Software
                                                                                                                                                                                                                                                                                                          • 7.2 Transcription & Gene Expression
                                                                                                                                                                                                                                                                                                            • 7.2.1 Regulation of Gene Expression by Proteins
                                                                                                                                                                                                                                                                                                              • 7.2.2 Environment & Gene Expression
                                                                                                                                                                                                                                                                                                                • 7.2.3 Transcription
                                                                                                                                                                                                                                                                                                                  • 7.2.4 Post-transcriptional Modification
                                                                                                                                                                                                                                                                                                                    • 7.2.5 Skills: Analysing DNA Methylation Patterns
                                                                                                                                                                                                                                                                                                                    • 7.3 Translation
                                                                                                                                                                                                                                                                                                                      • 7.3.1 Translation
                                                                                                                                                                                                                                                                                                                        • 7.3.2 Ribosomes
                                                                                                                                                                                                                                                                                                                          • 7.3.3 Translation in Prokaryotes
                                                                                                                                                                                                                                                                                                                            • 7.3.4 Bioinformatics
                                                                                                                                                                                                                                                                                                                              • 7.3.5 Levels of Protein Structure
                                                                                                                                                                                                                                                                                                                                • 7.3.6 Skills: Polysomes & Ribosomes
                                                                                                                                                                                                                                                                                                                              • 8. Metabolism, Cell Respiration & Photosynthesis (HL Only)
                                                                                                                                                                                                                                                                                                                                • 8.1 Metabolism
                                                                                                                                                                                                                                                                                                                                  • 8.1.1 Metabolic Pathways
                                                                                                                                                                                                                                                                                                                                    • 8.1.2 Inhibition
                                                                                                                                                                                                                                                                                                                                      • 8.1.3 Bioinformatics & Metabolism
                                                                                                                                                                                                                                                                                                                                        • 8.1.4 Skills: Rates of Reaction & Types of Inhibition
                                                                                                                                                                                                                                                                                                                                        • 8.2 Cell Respiration
                                                                                                                                                                                                                                                                                                                                          • 8.2.1 Oxidation, Reduction & Phosphorylation
                                                                                                                                                                                                                                                                                                                                            • 8.2.2 Overview of the Stages of Respiration
                                                                                                                                                                                                                                                                                                                                              • 8.2.3 Glycolysis
                                                                                                                                                                                                                                                                                                                                                • 8.2.4 The Link Reaction & The Krebs Cycle
                                                                                                                                                                                                                                                                                                                                                  • 8.2.5 Oxidative Phosphorylation
                                                                                                                                                                                                                                                                                                                                                    • 8.2.6 Mitochondria
                                                                                                                                                                                                                                                                                                                                                      • 8.2.7 Skills: Cell Respiration
                                                                                                                                                                                                                                                                                                                                                      • 8.3 Photosynthesis
                                                                                                                                                                                                                                                                                                                                                        • 8.3.1 Light-dependent Reactions
                                                                                                                                                                                                                                                                                                                                                          • 8.3.2 Photophosphorylation
                                                                                                                                                                                                                                                                                                                                                            • 8.3.3 Light-independent Reactions
                                                                                                                                                                                                                                                                                                                                                              • 8.3.4 Investigating Carbon Fixation in Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 8.3.5 Chloroplast
                                                                                                                                                                                                                                                                                                                                                                  • 8.3.6 Skills: Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 9. Plant Biology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                  • 9.1 Transport in the Xylem of Plants
                                                                                                                                                                                                                                                                                                                                                                    • 9.1.1 Transpiration in Plants
                                                                                                                                                                                                                                                                                                                                                                      • 9.1.2 The Transpiration Stream
                                                                                                                                                                                                                                                                                                                                                                        • 9.1.3 The Roots & Water Transport
                                                                                                                                                                                                                                                                                                                                                                          • 9.1.4 Adaptations of Xerophytes
                                                                                                                                                                                                                                                                                                                                                                            • 9.1.5 Skills: Drawing Xylem Vessels
                                                                                                                                                                                                                                                                                                                                                                              • 9.1.6 Skills: Experiments Investigating the Rate of Transpiration
                                                                                                                                                                                                                                                                                                                                                                              • 9.2 Transport in the Phloem of Plants
                                                                                                                                                                                                                                                                                                                                                                                • 9.2.1 Translocation in Plants
                                                                                                                                                                                                                                                                                                                                                                                  • 9.2.2 Sucrose Loading
                                                                                                                                                                                                                                                                                                                                                                                    • 9.2.3 Hydrostatic Pressure Gradients
                                                                                                                                                                                                                                                                                                                                                                                      • 9.2.4 Skills: Identifying Xylem & Phloem
                                                                                                                                                                                                                                                                                                                                                                                        • 9.2.5 Skills: Measuring Phloem Transport Rates
                                                                                                                                                                                                                                                                                                                                                                                        • 9.3 Growth in Plants
                                                                                                                                                                                                                                                                                                                                                                                          • 9.3.1 Plant Growth
                                                                                                                                                                                                                                                                                                                                                                                            • 9.3.2 Plant Hormones
                                                                                                                                                                                                                                                                                                                                                                                              • 9.3.3 Micropropagation
                                                                                                                                                                                                                                                                                                                                                                                              • 9.4 Reproduction in Plants
                                                                                                                                                                                                                                                                                                                                                                                                • 9.4.1 Flowering
                                                                                                                                                                                                                                                                                                                                                                                                  • 9.4.2 Plant Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                    • 9.4.3 Skills: Drawing Plant Structures
                                                                                                                                                                                                                                                                                                                                                                                                      • 9.4.4 Skills: Investigating Factors Affecting Germination
                                                                                                                                                                                                                                                                                                                                                                                                    • 10. Genetics & Evolution (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                      • 10.1 Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                        • 10.1.1 The Process of Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                          • 10.1.2 Crossing Over
                                                                                                                                                                                                                                                                                                                                                                                                            • 10.1.3 Meiosis I
                                                                                                                                                                                                                                                                                                                                                                                                              • 10.1.4 Meiosis II
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.1.5 Skills: Drawing Chiasmata
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.2 Inheritance
                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.2.1 Unlinked Genes
                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.2.2 Skills: Analysing Dihybrid Crosses
                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.2.3 Gene Linkage
                                                                                                                                                                                                                                                                                                                                                                                                                        • 10.2.4 Skills: Identifying Recombinants
                                                                                                                                                                                                                                                                                                                                                                                                                          • 10.2.5 Skills: Chi-squared Test
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.2.6 Variation
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.3 Gene Pools & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                              • 10.3.1 Gene Pools
                                                                                                                                                                                                                                                                                                                                                                                                                                • 10.3.2 Evolution
                                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.3.3 Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.3.4 Polyploidy & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.3.5 Skills: Comparing Allele Frequencies Between Populations
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11. Animal Physiology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1 Antibody Production & Vaccination
                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.1.1 Antigens
                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.1.2 Specific Immune Response
                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.1.3 Antibodies, Vaccines & Immunity
                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.1.4 Smallpox Vaccine & Eradication
                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.1.5 Zoonosis
                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.1.6 Histamines
                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.1.7 Monoclonal Antibodies
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1.8 Skills: Analysing Epidemiological Data
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.2 Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.2.1 Requirements for Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.2.2 Skeletal Muscle
                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.2.3 Mechanism of Muscle Contraction
                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.2.4 Skills: The Human Elbow & Sarcomeres
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.2.5 Skills: Analysing Muscle Contractions in Electron Micrographs
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.3 The Kidney & Osmoregulation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.3.1 Osmoregulation in Organisms
                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.3.2 Kidney: Structure & Function
                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.3.3 Conserving Water
                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.3.4 The Role of ADH
                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.3.5 Types of Nitrogenous Waste
                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.3.6 Kidney Failure & Urinalysis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.3.7 Skills: Drawing & Annotating the Kidney
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.4 Sexual Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.4.1 Oogenesis & Spermatogenesis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.4.2 Fertilisation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.4.3 Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.4.4 Hormones in Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.4.5 The Placenta
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.4.6 Oestrogen Pollution
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.4.7 Skills: Annotating Sexual Reproduction Diagrams
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Phil Chatterton

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Author: Phil

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Phil graduated in Biochemistry from Birmingham University and spent seventeen years in the drinks and chemicals industries. He holds an MBA from Manchester Business School. More recently, Phil has taught in secondary schools, examined GCSE Biology and has also co-directed a tuition agency. He is a passionate believer in promoting numeracy in his teaching and loves to create innovative resources.


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
