11.2.3 Mechanism of Muscle Contraction


Sliding Filament Model

  • The thick filaments within a myofibril are made up of myosin molecules
    • These are fibrous protein molecules with a globular head
    • The fibrous part of the myosin molecule anchors the molecule into the thick filament
    • In the thick filament, many myosin molecules lie next to each other with their globular heads all pointing away from the M line
  • The thin filaments within a myofibril are made up of actin molecules
    • These are globular protein molecules
    • Many actin molecules link together to form a chain
    • Two actin chains twist together to form one thin filament
    • A fibrous protein known as tropomyosin is twisted around the two actin chains
    • Another protein known as troponin is attached to the actin chains at regular intervals
  • Muscles cause movement by contracting
    • During muscle contraction, myosin heads form cross-bridges by binding with sites on the actin filaments
    • The myosin heads then change orientation which pulls the actin filaments so that they slide next to the myosin.
    • This is called a power stroke
  • Sarcomeres within myofibrils shorten as the Z lines are pulled closer together

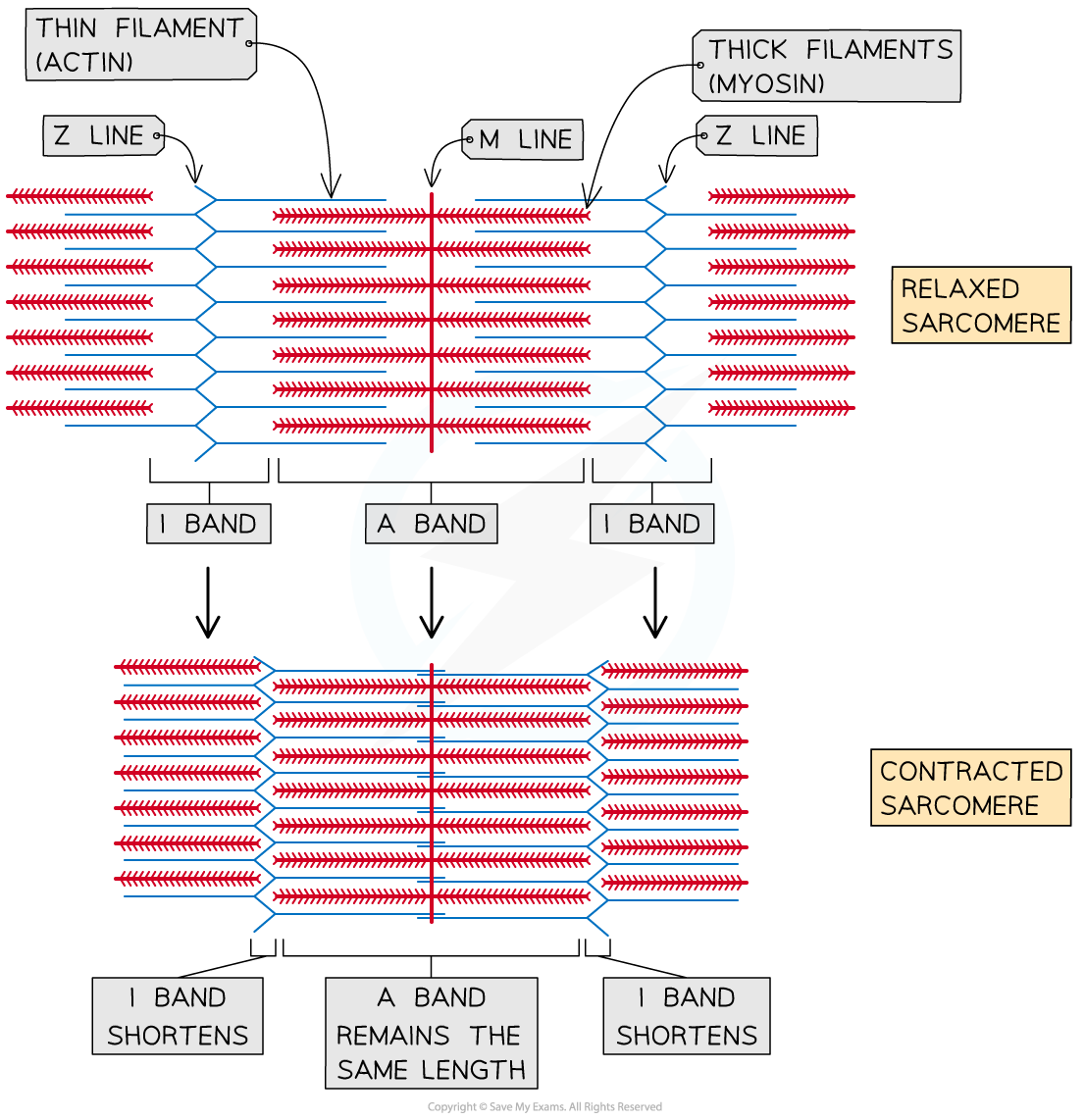

sarcomeres-shorten-during-muscle-contraction

When the muscle contracts, the sarcomere shortens due to the sliding of the actin and myosin filaments.

Role of ATP and Calcium Ions in Muscle Contraction

  • The sliding of the filaments, which facilitate muscle contraction, is dependent on a series of protein molecules as well as calcium and ATP
  • Calcium drives the process in the following way:
    • An action potential arrives at the neuromuscular junction
    • Calcium ions are released from the sarcoplasmic reticulum (SR)
    • Calcium ions bind to troponin molecules (found on the actin filaments), stimulating them to change shape
    • This causes tropomyosin proteins to change position on the actin (thin) filaments
    • Myosin binding sites are exposed on the actin molecules
    • The globular heads of the myosin molecules bind with these sites, forming cross-bridges between the two types of filament
    • The formation of the cross-bridges causes the myosin heads to spontaneously bend (releasing ADP and inorganic phosphate), pulling the actin filaments towards the centre of the sarcomere
      • This is the power stroke
    • This causes the muscle to contract a very small distance

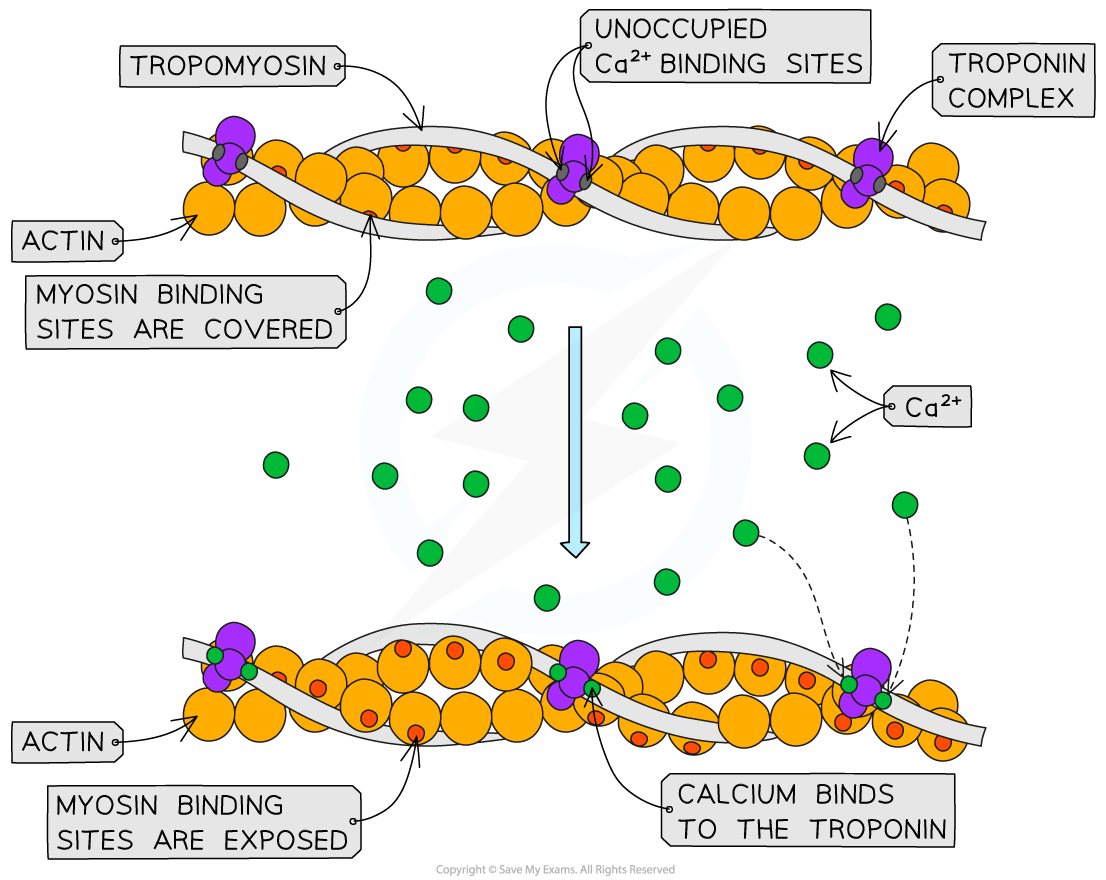

calcium-binds-to-troponin

Calcium binds to the troponin resulting in a change in shape of tropomyosin

  • Effective muscle contraction occurs when many power strokes occur in quick succession; for this to take place, ATP is required
    • ATP binds to the myosin heads producing a change in shape that causes the myosin heads to release from the actin filaments
    • The enzyme ATP hydrolase hydrolyses ATP into ADP and inorganic phosphate which causes the myosin heads to move back to their original positions
      • This is known as cocking of the myosin head or the recovery stroke
    • The myosin heads are then able to bind to new binding sites on the actin filaments, closer to the Z disc
    • The myosin heads move again, pulling the actin filaments even closer the centre of the sarcomere, causing the sarcomere to shorten once more and pulling the Z discs closer together
    • ATP binds to the myosin heads once more in order for them to detach again
    • As long as troponin and tropomyosin are not blocking the myosin-binding sites and the muscle has a supply of ATP, this process repeats until the muscle is fully contracted
  • When the motor neurone stops sending impulses to the muscle fibre, calcium ions are actively pumped back into the sarcoplasmic reticulum and the tropomyosin moves back to cover the binding sites on the actin
  • The muscle is now relaxed
Sliding filament model of muscle contraction (1)_Sliding filament model of muscle contraction (2)_1The sliding filament model of muscle contraction

Exam Tip

The sliding filament model can be difficult to visualise fully with diagrams. To help you more clearly understand the steps involved, try to find some animations or videos of the sliding filament model online to see the movement of the myosin heads and thin (actin) filaments during muscle contraction!

Be sure to use the term calcium ions, rather than just calcium.

Using Fluorescence to Study Muscle Contractions

NOS: Developments in scientific research follow improvements in apparatus - Fluorescence was used to study the cyclic interactions in muscle contraction

  • Fluorescence is the emission of electromagnetic radiation after the substance has been exposed to a different wavelength of radiation
  • Fluorescence has been used historically to study muscle contraction in organisms under the microscope by injecting them with fluorescent proteins, called aequorins, extracted from a jellyfish species, Aequorea victoria
  • Aequorins are calcium sensitive and so react with Ca2+ ions released during the muscle contraction
    • The interaction can be viewed under a microscope
  • Autoradiography can also be used to show the presence of calcium isotope, calcium-45 during muscle contraction
    • Calcium is present in the overlapping regions of the actin and myosin
    • Here it binds to the troponin causing a change in the shape of tropomyosin, allowing the myosin to bind to the actin
  • In a study of Nitella axillaris (a species of algae) cells, the mechanism of the sliding filament theory has been demonstrated by attaching a fluorescent dye to the end of myosin fibres
    • Under microscope, the myosin was shown to 'walk' along the actin fibres during contraction
  • This same method was also used to demonstrate the effect of ATP levels on the speed of the contraction and therefore show the dependence of the sliding filament theory on the availability of ATP
    • When more ATP was present, the fibres moved at a faster speed than when there was less ATP present


  • 1. Cell Biology
    • 1.1 Cells: Theory
      • 1.1.1 Cell Theory
        • 1.1.2 Functions of Life
          • 1.1.3 Surface Area to Volume Ratio
            • 1.1.4 Cell Specialisation
              • 1.1.5 Stem Cells
                • 1.1.6 Skills: Cell Theory
                • 1.2 Cells: Origin & Ultrastructure
                  • 1.2.1 Origin of Cells
                    • 1.2.2 Endosymbiotic Theory
                      • 1.2.3 Prokaryotic Cell Structure
                        • 1.2.4 Eukaryotic Cell Structure
                          • 1.2.5 Exocrine Pancreatic & Palisade Mesophyll Cells
                            • 1.2.6 Comparison of Prokaryotic & Eukaryotic Cells
                              • 1.2.7 Microscopes
                                • 1.2.8 Skills: Drawing Cells
                                  • 1.2.9 Skills: Cell Origin & Ultrastructure
                                  • 1.3 Cells: Membrane Structure & Transport
                                    • 1.3.1 Phospholipid Bilayer Properties
                                      • 1.3.2 Membrane Proteins
                                        • 1.3.3 History of Fluid Mosaic Model
                                          • 1.3.4 Membrane Transport
                                            • 1.3.5 Active Transport & Bulk Transport
                                              • 1.3.6 Skills: Membrane Structure & Transport
                                                • 1.3.7 Skills: Estimation of Osmolarity
                                                • 1.4 Cells: Division
                                                  • 1.4.1 Cell Cycle
                                                    • 1.4.2 Phases of Mitosis
                                                      • 1.4.3 Cancer
                                                        • 1.4.4 Skills: Cell Division
                                                      • 2. Molecular Biology
                                                        • 2.1 Metabolism & Water
                                                          • 2.1.1 Molecules
                                                            • 2.1.2 Metabolism
                                                              • 2.1.3 Hydrogen Bonds
                                                                • 2.1.4 Water
                                                                • 2.2 Carbohydrates & Lipids
                                                                  • 2.2.1 Carbohydrates
                                                                    • 2.2.2 Fatty Acids
                                                                      • 2.2.3 Lipids
                                                                        • 2.2.4 Skills: Visualising Carbohydrates
                                                                          • 2.2.5 Skills: Calculating BMI
                                                                          • 2.3 Proteins
                                                                            • 2.3.1 Proteins
                                                                              • 2.3.2 Protein Structure & Function
                                                                                • 2.3.3 The Variety of Proteins
                                                                                  • 2.3.4 Skills: Molecules
                                                                                  • 2.4 Enzymes
                                                                                    • 2.4.1 Enzymes
                                                                                      • 2.4.2 Immobilised Enzymes
                                                                                        • 2.4.3 Skills: Enzyme Experiments
                                                                                        • 2.5 Nucleic Acids: Structure & DNA Replication
                                                                                          • 2.5.1 DNA & RNA Structure
                                                                                            • 2.5.2 DNA Replication
                                                                                              • 2.5.3 Skills: DNA Replication
                                                                                              • 2.6 Transcription & Translation
                                                                                                • 2.6.1 Transcription
                                                                                                  • 2.6.2 Translation
                                                                                                    • 2.6.3 Biotechnology
                                                                                                      • 2.6.4 Skills: DNA, RNA & Protein Synthesis
                                                                                                        • 2.6.5 Skills: Interpreting Sequences
                                                                                                        • 2.7 Cellular Respiration
                                                                                                          • 2.7.1 Cellular Respiration
                                                                                                            • 2.7.2 Anaerobic Respiration
                                                                                                              • 2.7.3 Aerobic Respiration
                                                                                                                • 2.7.4 Skills: Respiration
                                                                                                                • 2.8 Photosynthesis
                                                                                                                  • 2.8.1 Photosynthesis
                                                                                                                    • 2.8.2 Photosynthesis Continued
                                                                                                                      • 2.8.3 Skills: Photosynthesis
                                                                                                                        • 2.8.4 Skills: Separating Photosynthetic Pigments
                                                                                                                      • 3. Genetics
                                                                                                                        • 3.1 Genes & Chromosomes
                                                                                                                          • 3.1.1 Genes
                                                                                                                            • 3.1.2 Alleles
                                                                                                                              • 3.1.3 Mutation
                                                                                                                                • 3.1.4 Genome
                                                                                                                                  • 3.1.5 Prokaryotic Chromosomes
                                                                                                                                    • 3.1.6 Eukaryotic Chromosomes
                                                                                                                                      • 3.1.7 Chromosome Number
                                                                                                                                        • 3.1.8 Sex Determination
                                                                                                                                          • 3.1.9 Karyograms
                                                                                                                                            • 3.1.10 Skills: Using Databases
                                                                                                                                            • 3.2 Meiosis
                                                                                                                                              • 3.2.1 Meiosis
                                                                                                                                                • 3.2.2 Stages of Meiosis
                                                                                                                                                  • 3.2.3 Genetic Variation
                                                                                                                                                    • 3.2.4 Non-disjunction
                                                                                                                                                      • 3.2.5 Skills: Meiosis
                                                                                                                                                      • 3.3 Inheritance
                                                                                                                                                        • 3.3.1 Inheritance
                                                                                                                                                          • 3.3.2 Inheriting Alleles
                                                                                                                                                            • 3.3.3 Skills: Inheritance
                                                                                                                                                              • 3.3.4 Inheritance of Genetic Diseases
                                                                                                                                                                • 3.3.5 Mutations & Disease
                                                                                                                                                                • 3.4 Genetic Modification & Biotechnology
                                                                                                                                                                  • 3.4.1 Electrophoresis & PCR
                                                                                                                                                                    • 3.4.2 DNA Profiling
                                                                                                                                                                      • 3.4.3 Genetic Modification
                                                                                                                                                                        • 3.4.4 Cloning
                                                                                                                                                                          • 3.4.5 Skills: Genetic Modification & Biotechnology
                                                                                                                                                                        • 4. Ecology
                                                                                                                                                                          • 4.1 Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                            • 4.1.1 Species & Population
                                                                                                                                                                              • 4.1.2 Methods of Nutrition
                                                                                                                                                                                • 4.1.3 Community
                                                                                                                                                                                  • 4.1.4 Nutrient Cycling
                                                                                                                                                                                    • 4.1.5 Energy Flow
                                                                                                                                                                                      • 4.1.6 Energy Losses
                                                                                                                                                                                        • 4.1.7 Skills: Species, Communities, Ecosystems & Energy Flow
                                                                                                                                                                                          • 4.1.8 Skills: Chi-squared test & Statistical Significance
                                                                                                                                                                                            • 4.1.9 Skills: Pyramids of Energy
                                                                                                                                                                                            • 4.2 Carbon Cycling & Climate Change
                                                                                                                                                                                              • 4.2.1 Carbon Cycle: Carbon Dioxide
                                                                                                                                                                                                • 4.2.2 Carbon Cycle: Carbon Dioxide in the Atmosphere
                                                                                                                                                                                                  • 4.2.3 Carbon Cycle: Methane
                                                                                                                                                                                                    • 4.2.4 Carbon Cycle: Organic Matter
                                                                                                                                                                                                      • 4.2.5 Climate Change: Greenhouse Effect
                                                                                                                                                                                                        • 4.2.6 Climate Change: Impact
                                                                                                                                                                                                          • 4.2.7 Climate Change: Causes
                                                                                                                                                                                                            • 4.2.8 Skills: Carbon Cycling & Climate Change
                                                                                                                                                                                                          • 5. Evolution and Biodiversity
                                                                                                                                                                                                            • 5.1 Evolution & Natural Selection
                                                                                                                                                                                                              • 5.1.1 Evolution
                                                                                                                                                                                                                • 5.1.2 Evolution: Evidence
                                                                                                                                                                                                                  • 5.1.3 Variation
                                                                                                                                                                                                                    • 5.1.4 Natural Selection
                                                                                                                                                                                                                      • 5.1.5 Natural Selection Examples
                                                                                                                                                                                                                      • 5.2 Classification & Cladistics
                                                                                                                                                                                                                        • 5.2.1 Classification System
                                                                                                                                                                                                                          • 5.2.2 Classifying Organisms
                                                                                                                                                                                                                            • 5.2.3 Plant Phyla Features
                                                                                                                                                                                                                              • 5.2.4 Animal Phyla Features
                                                                                                                                                                                                                                • 5.2.5 Cladistics
                                                                                                                                                                                                                                  • 5.2.6 Reclassification
                                                                                                                                                                                                                                    • 5.2.7 Skills: Classification & Cladistics
                                                                                                                                                                                                                                  • 6. Human Physiology
                                                                                                                                                                                                                                    • 6.1 Digestion & Absorption
                                                                                                                                                                                                                                      • 6.1.1 Digestion
                                                                                                                                                                                                                                        • 6.1.2 Villi & Absorption
                                                                                                                                                                                                                                          • 6.1.3 Absorption
                                                                                                                                                                                                                                            • 6.1.4 Skills: Digestion & Absorption
                                                                                                                                                                                                                                            • 6.2 The Blood System
                                                                                                                                                                                                                                              • 6.2.1 The Blood System: History
                                                                                                                                                                                                                                                • 6.2.2 The Blood System: Vessels
                                                                                                                                                                                                                                                  • 6.2.3 The Blood System: Double Circulation
                                                                                                                                                                                                                                                    • 6.2.4 The Blood System: Cardiac Cycle
                                                                                                                                                                                                                                                      • 6.2.5 The Heart Rate
                                                                                                                                                                                                                                                        • 6.2.6 Skills: The Blood System
                                                                                                                                                                                                                                                        • 6.3 Defence Against Infectious Disease
                                                                                                                                                                                                                                                          • 6.3.1 Skin
                                                                                                                                                                                                                                                            • 6.3.2 Blood Clotting
                                                                                                                                                                                                                                                              • 6.3.3 White Blood Cells
                                                                                                                                                                                                                                                                • 6.3.4 Antibiotics
                                                                                                                                                                                                                                                                  • 6.3.5 Antibiotic Resistance
                                                                                                                                                                                                                                                                  • 6.4 Gas Exchange
                                                                                                                                                                                                                                                                    • 6.4.1 Ventilation: Function & Structures
                                                                                                                                                                                                                                                                      • 6.4.2 Ventilation: Mechanism
                                                                                                                                                                                                                                                                        • 6.4.3 Lung Diseases
                                                                                                                                                                                                                                                                          • 6.4.4 Skills: Monitoring Ventilation
                                                                                                                                                                                                                                                                          • 6.5 Neurones & Synapses
                                                                                                                                                                                                                                                                            • 6.5.1 Neurones: Function & Structure
                                                                                                                                                                                                                                                                              • 6.5.2 Nerve Impulses
                                                                                                                                                                                                                                                                                • 6.5.3 Synapses
                                                                                                                                                                                                                                                                                  • 6.5.4 Skill: Neurones & Synapses
                                                                                                                                                                                                                                                                                  • 6.6 Hormones, Homeostasis & Reproduction
                                                                                                                                                                                                                                                                                    • 6.6.1 Hormones
                                                                                                                                                                                                                                                                                      • 6.6.2 Hormones Continued
                                                                                                                                                                                                                                                                                        • 6.6.3 Reproduction: Background
                                                                                                                                                                                                                                                                                          • 6.6.4 Reproduction: Sex Determination in Males
                                                                                                                                                                                                                                                                                            • 6.6.5 Reproduction: Sex Determination in Females
                                                                                                                                                                                                                                                                                              • 6.6.6 Skills: Reproduction Diagrams
                                                                                                                                                                                                                                                                                            • 7. Nucleic Acids (HL Only)
                                                                                                                                                                                                                                                                                              • 7.1 DNA Structure & Replication
                                                                                                                                                                                                                                                                                                • 7.1.1 DNA Structure
                                                                                                                                                                                                                                                                                                  • 7.1.2 Mechanism of DNA Replication
                                                                                                                                                                                                                                                                                                    • 7.1.3 Non-coding DNA
                                                                                                                                                                                                                                                                                                      • 7.1.4 DNA Sequencing
                                                                                                                                                                                                                                                                                                        • 7.1.5 Skills: The Hershey & Chase Experiment
                                                                                                                                                                                                                                                                                                          • 7.1.6 Skills: Nucleosomes & Molecular Visualisation Software
                                                                                                                                                                                                                                                                                                          • 7.2 Transcription & Gene Expression
                                                                                                                                                                                                                                                                                                            • 7.2.1 Regulation of Gene Expression by Proteins
                                                                                                                                                                                                                                                                                                              • 7.2.2 Environment & Gene Expression
                                                                                                                                                                                                                                                                                                                • 7.2.3 Transcription
                                                                                                                                                                                                                                                                                                                  • 7.2.4 Post-transcriptional Modification
                                                                                                                                                                                                                                                                                                                    • 7.2.5 Skills: Analysing DNA Methylation Patterns
                                                                                                                                                                                                                                                                                                                    • 7.3 Translation
                                                                                                                                                                                                                                                                                                                      • 7.3.1 Translation
                                                                                                                                                                                                                                                                                                                        • 7.3.2 Ribosomes
                                                                                                                                                                                                                                                                                                                          • 7.3.3 Translation in Prokaryotes
                                                                                                                                                                                                                                                                                                                            • 7.3.4 Bioinformatics
                                                                                                                                                                                                                                                                                                                              • 7.3.5 Levels of Protein Structure
                                                                                                                                                                                                                                                                                                                                • 7.3.6 Skills: Polysomes & Ribosomes
                                                                                                                                                                                                                                                                                                                              • 8. Metabolism, Cell Respiration & Photosynthesis (HL Only)
                                                                                                                                                                                                                                                                                                                                • 8.1 Metabolism
                                                                                                                                                                                                                                                                                                                                  • 8.1.1 Metabolic Pathways
                                                                                                                                                                                                                                                                                                                                    • 8.1.2 Inhibition
                                                                                                                                                                                                                                                                                                                                      • 8.1.3 Bioinformatics & Metabolism
                                                                                                                                                                                                                                                                                                                                        • 8.1.4 Skills: Rates of Reaction & Types of Inhibition
                                                                                                                                                                                                                                                                                                                                        • 8.2 Cell Respiration
                                                                                                                                                                                                                                                                                                                                          • 8.2.1 Oxidation, Reduction & Phosphorylation
                                                                                                                                                                                                                                                                                                                                            • 8.2.2 Overview of the Stages of Respiration
                                                                                                                                                                                                                                                                                                                                              • 8.2.3 Glycolysis
                                                                                                                                                                                                                                                                                                                                                • 8.2.4 The Link Reaction & The Krebs Cycle
                                                                                                                                                                                                                                                                                                                                                  • 8.2.5 Oxidative Phosphorylation
                                                                                                                                                                                                                                                                                                                                                    • 8.2.6 Mitochondria
                                                                                                                                                                                                                                                                                                                                                      • 8.2.7 Skills: Cell Respiration
                                                                                                                                                                                                                                                                                                                                                      • 8.3 Photosynthesis
                                                                                                                                                                                                                                                                                                                                                        • 8.3.1 Light-dependent Reactions
                                                                                                                                                                                                                                                                                                                                                          • 8.3.2 Photophosphorylation
                                                                                                                                                                                                                                                                                                                                                            • 8.3.3 Light-independent Reactions
                                                                                                                                                                                                                                                                                                                                                              • 8.3.4 Investigating Carbon Fixation in Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 8.3.5 Chloroplast
                                                                                                                                                                                                                                                                                                                                                                  • 8.3.6 Skills: Photosynthesis
                                                                                                                                                                                                                                                                                                                                                                • 9. Plant Biology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                  • 9.1 Transport in the Xylem of Plants
                                                                                                                                                                                                                                                                                                                                                                    • 9.1.1 Transpiration in Plants
                                                                                                                                                                                                                                                                                                                                                                      • 9.1.2 The Transpiration Stream
                                                                                                                                                                                                                                                                                                                                                                        • 9.1.3 The Roots & Water Transport
                                                                                                                                                                                                                                                                                                                                                                          • 9.1.4 Adaptations of Xerophytes
                                                                                                                                                                                                                                                                                                                                                                            • 9.1.5 Skills: Drawing Xylem Vessels
                                                                                                                                                                                                                                                                                                                                                                              • 9.1.6 Skills: Experiments Investigating the Rate of Transpiration
                                                                                                                                                                                                                                                                                                                                                                              • 9.2 Transport in the Phloem of Plants
                                                                                                                                                                                                                                                                                                                                                                                • 9.2.1 Translocation in Plants
                                                                                                                                                                                                                                                                                                                                                                                  • 9.2.2 Sucrose Loading
                                                                                                                                                                                                                                                                                                                                                                                    • 9.2.3 Hydrostatic Pressure Gradients
                                                                                                                                                                                                                                                                                                                                                                                      • 9.2.4 Skills: Identifying Xylem & Phloem
                                                                                                                                                                                                                                                                                                                                                                                        • 9.2.5 Skills: Measuring Phloem Transport Rates
                                                                                                                                                                                                                                                                                                                                                                                        • 9.3 Growth in Plants
                                                                                                                                                                                                                                                                                                                                                                                          • 9.3.1 Plant Growth
                                                                                                                                                                                                                                                                                                                                                                                            • 9.3.2 Plant Hormones
                                                                                                                                                                                                                                                                                                                                                                                              • 9.3.3 Micropropagation
                                                                                                                                                                                                                                                                                                                                                                                              • 9.4 Reproduction in Plants
                                                                                                                                                                                                                                                                                                                                                                                                • 9.4.1 Flowering
                                                                                                                                                                                                                                                                                                                                                                                                  • 9.4.2 Plant Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                    • 9.4.3 Skills: Drawing Plant Structures
                                                                                                                                                                                                                                                                                                                                                                                                      • 9.4.4 Skills: Investigating Factors Affecting Germination
                                                                                                                                                                                                                                                                                                                                                                                                    • 10. Genetics & Evolution (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                      • 10.1 Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                        • 10.1.1 The Process of Meiosis
                                                                                                                                                                                                                                                                                                                                                                                                          • 10.1.2 Crossing Over
                                                                                                                                                                                                                                                                                                                                                                                                            • 10.1.3 Meiosis I
                                                                                                                                                                                                                                                                                                                                                                                                              • 10.1.4 Meiosis II
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.1.5 Skills: Drawing Chiasmata
                                                                                                                                                                                                                                                                                                                                                                                                                • 10.2 Inheritance
                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.2.1 Unlinked Genes
                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.2.2 Skills: Analysing Dihybrid Crosses
                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.2.3 Gene Linkage
                                                                                                                                                                                                                                                                                                                                                                                                                        • 10.2.4 Skills: Identifying Recombinants
                                                                                                                                                                                                                                                                                                                                                                                                                          • 10.2.5 Skills: Chi-squared Test
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.2.6 Variation
                                                                                                                                                                                                                                                                                                                                                                                                                            • 10.3 Gene Pools & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                              • 10.3.1 Gene Pools
                                                                                                                                                                                                                                                                                                                                                                                                                                • 10.3.2 Evolution
                                                                                                                                                                                                                                                                                                                                                                                                                                  • 10.3.3 Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 10.3.4 Polyploidy & Speciation
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 10.3.5 Skills: Comparing Allele Frequencies Between Populations
                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11. Animal Physiology (HL Only)
                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1 Antibody Production & Vaccination
                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.1.1 Antigens
                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.1.2 Specific Immune Response
                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.1.3 Antibodies, Vaccines & Immunity
                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.1.4 Smallpox Vaccine & Eradication
                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.1.5 Zoonosis
                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.1.6 Histamines
                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.1.7 Monoclonal Antibodies
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.1.8 Skills: Analysing Epidemiological Data
                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.2 Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.2.1 Requirements for Movement
                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.2.2 Skeletal Muscle
                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.2.3 Mechanism of Muscle Contraction
                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.2.4 Skills: The Human Elbow & Sarcomeres
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.2.5 Skills: Analysing Muscle Contractions in Electron Micrographs
                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.3 The Kidney & Osmoregulation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.3.1 Osmoregulation in Organisms
                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.3.2 Kidney: Structure & Function
                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.3.3 Conserving Water
                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.3.4 The Role of ADH
                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.3.5 Types of Nitrogenous Waste
                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.3.6 Kidney Failure & Urinalysis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.3.7 Skills: Drawing & Annotating the Kidney
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              • 11.4 Sexual Reproduction
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                • 11.4.1 Oogenesis & Spermatogenesis
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  • 11.4.2 Fertilisation
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    • 11.4.3 Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      • 11.4.4 Hormones in Pregnancy
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        • 11.4.5 The Placenta
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          • 11.4.6 Oestrogen Pollution
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            • 11.4.7 Skills: Annotating Sexual Reproduction Diagrams
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Ruth Brindle

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Author: Ruth

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Ruth graduated from Sheffield University with a degree in Biology and went on to teach Science in London whilst also completing an MA in innovation in Education. With 10 years of teaching experience across the 3 key science disciplines, Ruth decided to set up a tutoring business to support students in her local area. Ruth has worked with several exam boards and loves to use her experience to produce educational materials which make the mark schemes accessible to all students.


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
