DP IB Maths: AI HL

Revision Notes

Home / IB / Maths: AI HL / DP / Revision Notes / 5. Calculus / 5.5 Kinematics / 5.5.2 Calculus for Kinematics


5.5.2 Calculus for Kinematics


Differentiation for Kinematics

How is differentiation used in kinematics?

  • Displacement, velocity and acceleration are related by calculus
  • In terms of differentiation and derivatives
    • velocity is the rate of change of displacement
      • v equals fraction numerator straight d s over denominator straight d t end fraction  or  v left parenthesis t right parenthesis equals s apostrophe left parenthesis t right parenthesis
    • acceleration is the rate of change of velocity
      • a equals fraction numerator straight d v over denominator straight d t end fraction  or  a left parenthesis t right parenthesis equals v apostrophe left parenthesis t right parenthesis
    • so acceleration is also the second derivative of displacement
      • a equals fraction numerator straight d squared s over denominator straight d t squared end fraction  or  a left parenthesis t right parenthesis equals s apostrophe apostrophe left parenthesis t right parenthesis
    • Sometimes velocity may be a function of displacement rather than time
      • v left parenthesis s right parenthesis rather thanspace v left parenthesis t right parenthesis
      • in such circumstances, acceleration isspace a equals s fraction numerator straight d v over denominator straight d s end fraction
      • this result is derived from the chain rule
    • All acceleration formulae are given in the formula booklet
  • Even if a motion graph is given, if possible, use your GDC to draw one
    • you can then use your GDC’s graphing features to find gradients
      • velocity is the gradient on a displacement (-time) graph
      • acceleration is the gradient on a velocity (-time) graph
  • Dot notation is often used to indicate time derivatives
    • x is sometimes used as displacement (rather thanspace s) in such circumstances
    • x with dot on top equals fraction numerator straight d x over denominator straight d t end fraction, so x with dot on top is velocity
    • x with ¨ on top equals fraction numerator straight d squared x over denominator straight d t squared end fraction, so x with ¨ on top is acceleration

Worked Example

a)
The displacement, x m, of a particle at t seconds, is modelled by the function x left parenthesis t right parenthesis equals 2 t cubed minus 27 t squared plus 84 t.
Find expressions for x with dot on top and x with ¨ on top.
5-5-2-ib-hl-ai-aa-extraaa-ai-we1a-soltn

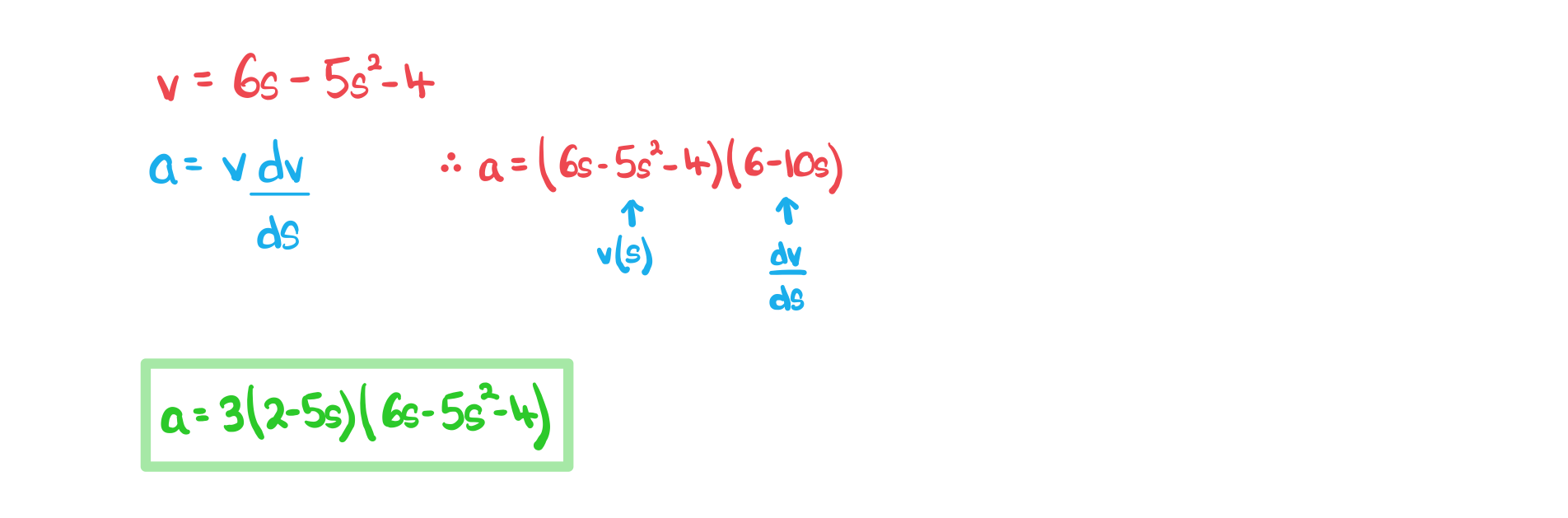

b)
The velocity, v m s-1, of a particle is given asspace v left parenthesis s right parenthesis equals 6 s minus 5 s squared minus 4, where s m is the displacement of the particle.
Find an expression, in terms of s, for the acceleration of the particle.
5-5-2-ib-hl-ai-aa-extraaa-ai-we1b-soltn

Integration for Kinematics

 How is integration used in kinematics?

  • Since velocity is the derivative of displacement (v equals fraction numerator straight d s over denominator straight d t end fraction) it follows that

space s equals integral v space straight d t

  • Similarly, velocity will be an antiderivative of acceleration

space v equals integral a space straight d t

  • You might be given the acceleration in terms of the velocity and/or the displacement
    • In this case you can solve a differential equation to find an expression for the velocity in terms of the displacement

a equals v fraction numerator d v over denominator d s end fraction

How would I find the constant of integration in kinematics problems?

  • A boundary or initial condition would need to be known
    • phrases involving the word “initial”, or “initially” are referring to time being zero, i.e. space t equals 0
    • you might also be given information about the object at some other time (this is called a boundary condition)
    • substituting the values in from the initial or boundary condition would allow the constant of integration to be found

How are definite integrals used in kinematics?

  • Definite integrals can be used to find the displacement of a particle between two points in time
    • space integral subscript t subscript 1 end subscript superscript t subscript 2 end superscript space v left parenthesis t right parenthesis space straight d t would give the displacement of the particle between the timesspace t equals t subscript 1 andspace t equals t subscript 2
      • This can be found using a velocity-time graph by subtracting the total area below the horizontal axis from the total area above
    • space integral subscript t subscript 1 end subscript superscript t subscript 2 end superscript open vertical bar v left parenthesis t right parenthesis close vertical bar space straight d t gives the distance a particle has travelled between the timesspace t equals t subscript 1 andspace t equals t subscript 2
      • This can be found using a velocity velocity-time graph by adding the total area below the horizontal axis to the total area above
      • Use a GDC to plot the modulus graphspace y equals open vertical bar v left parenthesis t right parenthesis close vertical bar

Exam Tip

  • Sketching the velocity-time graph can help you visualise the distances travelled using areas between the graph and the horizontal axis

Worked Example

A particle moving in a straight horizontal line has velocity (v space straight m space straight s to the power of negative 2 end exponent) at timespace t seconds modelled byspace v left parenthesis t right parenthesis equals 8 t cubed minus 12 t squared minus 2 t.

  1. Given that the initial position of the particle is at the origin, find an expression for its displacement from the origin at timespace t seconds.
  2. Find the displacement of the particle from the origin in the first five seconds of its motion.
  3. Find the distance travelled by the particle in the first five seconds of its motion.

5-6-2-ib-sl-aa-only-int-kin-we-soltn



  • 1. Number & Algebra
    • 1.1 Number Toolkit
      • 1.1.1 Standard Form
        • 1.1.2 Approximation & Estimation
          • 1.1.3 GDC: Solving Equations
          • 1.2 Exponentials & Logs
            • 1.2.1 Exponents
              • 1.2.2 Logarithms
              • 1.3 Sequences & Series
                • 1.3.1 Language of Sequences & Series
                  • 1.3.2 Arithmetic Sequences & Series
                    • 1.3.3 Geometric Sequences & Series
                      • 1.3.4 Applications of Sequences & Series
                      • 1.4 Financial Applications
                        • 1.4.1 Compound Interest & Depreciation
                          • 1.4.2 Amortisation & Annuities
                          • 1.5 Complex Numbers
                            • 1.5.1 Intro to Complex Numbers
                              • 1.5.2 Modulus & Argument
                                • 1.5.3 Introduction to Argand Diagrams
                                • 1.6 Further Complex Numbers
                                  • 1.6.1 Geometry of Complex Numbers
                                    • 1.6.2 Forms of Complex Numbers
                                      • 1.6.3 Applications of Complex Numbers
                                      • 1.7 Matrices
                                        • 1.7.1 Introduction to Matrices
                                          • 1.7.2 Operations with Matrices
                                            • 1.7.3 Determinants & Inverses
                                              • 1.7.4 Solving Systems of Linear Equations with Matrices
                                              • 1.8 Eigenvalues & Eigenvectors
                                                • 1.8.1 Eigenvalues & Eigenvectors
                                                  • 1.8.2 Applications of Matrices
                                                • 2. Functions
                                                  • 2.1 Linear Functions & Graphs
                                                    • 2.1.1 Equations of a Straight Line
                                                    • 2.2 Further Functions & Graphs
                                                      • 2.2.1 Functions
                                                        • 2.2.2 Graphing Functions
                                                          • 2.2.3 Properties of Graphs
                                                          • 2.3 Modelling with Functions
                                                            • 2.3.1 Linear Models
                                                              • 2.3.2 Quadratic & Cubic Models
                                                                • 2.3.3 Exponential Models
                                                                  • 2.3.4 Direct & Inverse Variation
                                                                    • 2.3.5 Sinusoidal Models
                                                                      • 2.3.6 Strategy for Modelling Functions
                                                                      • 2.4 Functions Toolkit
                                                                        • 2.4.1 Composite & Inverse Functions
                                                                        • 2.5 Transformations of Graphs
                                                                          • 2.5.1 Translations of Graphs
                                                                            • 2.5.2 Reflections of Graphs
                                                                              • 2.5.3 Stretches of Graphs
                                                                                • 2.5.4 Composite Transformations of Graphs
                                                                                • 2.6 Further Modelling with Functions
                                                                                  • 2.6.1 Properties of Further Graphs
                                                                                    • 2.6.2 Natural Logarithmic Models
                                                                                      • 2.6.3 Logistic Models
                                                                                        • 2.6.4 Piecewise Models
                                                                                      • 3. Geometry & Trigonometry
                                                                                        • 3.1 Geometry Toolkit
                                                                                          • 3.1.1 Coordinate Geometry
                                                                                            • 3.1.2 Radian Measure
                                                                                              • 3.1.3 Arcs & Sectors
                                                                                              • 3.2 Geometry of 3D Shapes
                                                                                                • 3.2.1 3D Coordinate Geometry
                                                                                                  • 3.2.2 Volume & Surface Area
                                                                                                  • 3.3 Trigonometry
                                                                                                    • 3.3.1 Pythagoras & Right-Angled Triganometry
                                                                                                      • 3.3.2 Non Right-Angled Trigonometry
                                                                                                        • 3.3.3 Applications of Trigonometry & Pythagoras
                                                                                                        • 3.4 Further Trigonometry
                                                                                                          • 3.4.1 The Unit Circle
                                                                                                            • 3.4.2 Simple Identities
                                                                                                              • 3.4.3 Solving Trigonometric Equations
                                                                                                              • 3.5 Voronoi Diagrams
                                                                                                                • 3.5.1 Voronoi Diagrams
                                                                                                                  • 3.5.2 Toxic Waste Dump Problem
                                                                                                                  • 3.6 Matrix Transformations
                                                                                                                    • 3.6.1 Matrix Transformations
                                                                                                                      • 3.6.2 Determinant of a Transformation Matrix
                                                                                                                      • 3.7 Vector Properties
                                                                                                                        • 3.7.1 Introduction to Vectors
                                                                                                                          • 3.7.2 Position & Displacement Vectors
                                                                                                                            • 3.7.3 Magnitude of a Vector
                                                                                                                              • 3.7.4 The Scalar Product
                                                                                                                                • 3.7.5 The Vector Product
                                                                                                                                  • 3.7.6 Components of Vectors
                                                                                                                                    • 3.7.7 Geometric Proof with Vectors
                                                                                                                                    • 3.8 Vector Equations of Lines
                                                                                                                                      • 3.8.1 Vector Equations of Lines
                                                                                                                                        • 3.8.2 Shortest Distances with Lines
                                                                                                                                        • 3.9 Modelling with Vectors
                                                                                                                                          • 3.9.1 Kinematics with Vectors
                                                                                                                                            • 3.9.2 Constant & Variable Velocity
                                                                                                                                            • 3.10 Graph Theory
                                                                                                                                              • 3.10.1 Introduction to Graph Theory
                                                                                                                                                • 3.10.2 Walks & Adjacency Matrices
                                                                                                                                                  • 3.10.3 Minimum Spanning Trees
                                                                                                                                                    • 3.10.4 Chinese Postman Problem
                                                                                                                                                      • 3.10.5 Travelling Salesman Problem
                                                                                                                                                        • 3.10.6 Bounds for Travelling Salesman Problem
                                                                                                                                                      • 4. Statistics & Probability
                                                                                                                                                        • 4.1 Statistics Toolkit
                                                                                                                                                          • 4.1.1 Sampling
                                                                                                                                                            • 4.1.2 Data Collection
                                                                                                                                                              • 4.1.3 Statistical Measures
                                                                                                                                                                • 4.1.4 Frequency Tables
                                                                                                                                                                  • 4.1.5 Linear Transformations of Data
                                                                                                                                                                    • 4.1.6 Outliers
                                                                                                                                                                      • 4.1.7 Univariate Data
                                                                                                                                                                        • 4.1.8 Interpreting Data
                                                                                                                                                                        • 4.2 Correlation & Regression
                                                                                                                                                                          • 4.2.1 Bivariate Data
                                                                                                                                                                            • 4.2.2 Correlation Coefficients
                                                                                                                                                                              • 4.2.3 Linear Regression
                                                                                                                                                                              • 4.3 Further Correlation & Regression
                                                                                                                                                                                • 4.3.1 Non-linear Regression
                                                                                                                                                                                  • 4.3.2 Logarithmic Scales
                                                                                                                                                                                    • 4.3.3 Linearising using Logarithms
                                                                                                                                                                                    • 4.4 Probability
                                                                                                                                                                                      • 4.4.1 Probability & Types of Events
                                                                                                                                                                                        • 4.4.2 Conditional Probability
                                                                                                                                                                                          • 4.4.3 Sample Space Diagrams
                                                                                                                                                                                          • 4.5 Probability Distributions
                                                                                                                                                                                            • 4.5.1 Discrete Probability Distributions
                                                                                                                                                                                              • 4.5.2 Expected Values
                                                                                                                                                                                              • 4.6 Random Variables
                                                                                                                                                                                                • 4.6.1 Linear Combinations of Random Variables
                                                                                                                                                                                                  • 4.6.2 Unbiased Estimates
                                                                                                                                                                                                  • 4.7 Binomial Distribution
                                                                                                                                                                                                    • 4.7.1 The Binomial Distribution
                                                                                                                                                                                                      • 4.7.2 Calculating Binomial Probabilities
                                                                                                                                                                                                      • 4.8 Normal Distribution
                                                                                                                                                                                                        • 4.8.1 The Normal Distribution
                                                                                                                                                                                                          • 4.8.2 Calculations with Normal Distribution
                                                                                                                                                                                                          • 4.9 Further Normal Distribution (inc Central Limit Theorem)
                                                                                                                                                                                                            • 4.9.1 Sample Mean Distribution
                                                                                                                                                                                                              • 4.9.2 Confidence Interval for the Mean
                                                                                                                                                                                                              • 4.10 Poisson Distribution
                                                                                                                                                                                                                • 4.10.1 Poisson Distribution
                                                                                                                                                                                                                  • 4.10.2 Calculating Poisson Probabilities
                                                                                                                                                                                                                  • 4.11 Hypothesis Testing
                                                                                                                                                                                                                    • 4.11.1 Hypothesis Testing
                                                                                                                                                                                                                      • 4.11.2 Chi-squared Test for Independence
                                                                                                                                                                                                                        • 4.11.3 Goodness of Fit Test
                                                                                                                                                                                                                        • 4.12 Further Hypothesis Testing
                                                                                                                                                                                                                          • 4.12.1 Hypothesis Testing for Mean (One Sample)
                                                                                                                                                                                                                            • 4.12.2 Hypothesis Testing for Mean (Two Sample)
                                                                                                                                                                                                                              • 4.12.3 Binomial Hypothesis Testing
                                                                                                                                                                                                                                • 4.12.4 Poisson Hypothesis Testing
                                                                                                                                                                                                                                  • 4.12.5 Hypothesis Testing for Correlation
                                                                                                                                                                                                                                    • 4.12.6 Type I & Type II Errors
                                                                                                                                                                                                                                    • 4.13 Transition Matrices & Markov Chains
                                                                                                                                                                                                                                      • 4.13.1 Markov Chains
                                                                                                                                                                                                                                        • 4.13.2 Transition Matrices
                                                                                                                                                                                                                                      • 5. Calculus
                                                                                                                                                                                                                                        • 5.1 Differentiation
                                                                                                                                                                                                                                          • 5.1.1 Introduction to Differentiation
                                                                                                                                                                                                                                            • 5.1.2 Applications of Differentiation
                                                                                                                                                                                                                                              • 5.1.3 Modelling with Differentiation
                                                                                                                                                                                                                                              • 5.2 Further Differentiation
                                                                                                                                                                                                                                                • 5.2.1 Differentiating Special Functions
                                                                                                                                                                                                                                                  • 5.2.2 Techniques of Differentiation
                                                                                                                                                                                                                                                    • 5.2.3 Related Rates of Change
                                                                                                                                                                                                                                                      • 5.2.4 Second Order Derivatives
                                                                                                                                                                                                                                                        • 5.2.5 Further Applications of Differentiation
                                                                                                                                                                                                                                                          • 5.2.6 Concavity & Points of Inflection
                                                                                                                                                                                                                                                          • 5.3 Integration
                                                                                                                                                                                                                                                            • 5.3.1 Trapezoid Rule: Numerical Integration
                                                                                                                                                                                                                                                              • 5.3.2 Introduction to Integration
                                                                                                                                                                                                                                                                • 5.3.3 Applications of Integration
                                                                                                                                                                                                                                                                • 5.4 Further Integration
                                                                                                                                                                                                                                                                  • 5.4.1 Integrating Special Functions
                                                                                                                                                                                                                                                                    • 5.4.2 Techniques of Integration
                                                                                                                                                                                                                                                                      • 5.4.3 Further Applications of Integration
                                                                                                                                                                                                                                                                        • 5.4.4 Volumes of Revolution
                                                                                                                                                                                                                                                                        • 5.5 Kinematics
                                                                                                                                                                                                                                                                          • 5.5.1 Kinematics Toolkit
                                                                                                                                                                                                                                                                            • 5.5.2 Calculus for Kinematics
                                                                                                                                                                                                                                                                            • 5.6 Differential Equations
                                                                                                                                                                                                                                                                              • 5.6.1 Modelling with Differential Equations
                                                                                                                                                                                                                                                                                • 5.6.2 Separation of Variables
                                                                                                                                                                                                                                                                                  • 5.6.3 Slope Fields
                                                                                                                                                                                                                                                                                    • 5.6.4 Approximate Solutions to Differential Equations
                                                                                                                                                                                                                                                                                    • 5.7 Further Differential Equations
                                                                                                                                                                                                                                                                                      • 5.7.1 Coupled Differential Equations
                                                                                                                                                                                                                                                                                        • 5.7.2 Second Order Differential Equations
                                                                                                                                                                                                                                                                                      Paul Freeman

                                                                                                                                                                                                                                                                                      Author: Paul

                                                                                                                                                                                                                                                                                      Paul has taught mathematics for 20 years and has been an examiner for Edexcel for over a decade. GCSE, A level, pure, mechanics, statistics, discrete – if it’s in a Maths exam, Paul will know about it. Paul is a passionate fan of clear and colourful notes with fascinating diagrams – one of the many reasons he is excited to be a member of the SME team.


                                                                                                                                                                                                                                                                                      Save My Exams Logo
                                                                                                                                                                                                                                                                                      Resources
                                                                                                                                                                                                                                                                                      Home Join Support

                                                                                                                                                                                                                                                                                      Members
                                                                                                                                                                                                                                                                                      Members Home Account Logout

                                                                                                                                                                                                                                                                                      Company
                                                                                                                                                                                                                                                                                      About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                      Quick Links
                                                                                                                                                                                                                                                                                      GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                      © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                      IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
