5.6.3 Slope Fields


Slope Fields

What are slope fields?

  • We are considering here a differential equation involving two variables of the form fraction numerator d y over denominator d x end fraction equals g left parenthesis x comma space y right parenthesis
    • I.e., the derivative fraction numerator d y over denominator d x end fraction is equal to some function of x and y
  • In some cases it may be possible to solve the differential equation analytically, while in other cases this is not possible
  • Whether or not the equation can be analytically solved, however, it is always possible to calculate the derivative fraction numerator d y over denominator d x end fraction at any point (x, y) by putting the x and y values into g left parenthesis x comma space y right parenthesis
    • This means that we can calculate the gradient of the solution curve at any point that the solution might go through
  • A slope field for a differential equation is a diagram with short tangent lines drawn at a number of points
    • The gradient of the tangent line drawn at any given point will be equal to the value of fraction numerator d y over denominator d x end fraction at that point
    • Normally the tangent lines will be drawn for points that form a regularly-spaced grid of x and y values

5-6-3-ib-ai-hl-slope-fields_example

How can I use slope fields to study the solutions of a differential equation?

  • Looking at the tangent lines in a slope field diagram will give you a general sense for what the solution curves to the differential equation will look like
    • Remember that the solution to a given differential equation is actually a family of solutions
    • We need appropriate boundary conditions or initial conditions to determine which of that family of solutions is the precise solution in a particular situation
  • You can think of the tangent lines in a slope diagram as ‘flow lines’
    • From a given point the solution curve through that point will ‘flow’ away from the point in the direction of the tangent line
  • For a given point, you can use a slope field to sketch the general shape of the solution curve that goes through that point
    • The given point here serves as a boundary condition, letting you know which of all the possible solution curves is the one you want to sketch
    • The sketch should go through the given point, and follow the general ‘flow’ of the tangent lines through the rest of the slope field diagram
    • In general, the sketched solution curve should not attempt to connect together a number of different tangent lines in the diagram
      • There is no guarantee that the solution curve will go through any exact point in the ‘grid’ of points at which tangent lines have been drawn
      • The only tangent line that your solution curve should definitely go through is one at the given ‘boundary condition’ point
    • The sketched solution curve may go along some of the tangent lines, but it should not should not cut across any of them

5-6-3-ib-ai-hl-slope-fields_curve-00-1

  • Look out for places where the tangent lines are horizontal
    • At such points fraction numerator d y over denominator d x end fraction equals 0
    • Therefore such points may indicate local minimum or maximum points for a solution curve
      • Be careful – not every point where fraction numerator d y over denominator d x end fraction equals 0 is a local minimum or maximum
      • But every local minimum or maximum will be at a point where fraction numerator d y over denominator d x end fraction equals 0
    • Don’t forget that you can also solve the equation fraction numerator d y over denominator d x end fraction equals g left parenthesis x comma space y right parenthesis equals 0 directly to identify points where the gradient is zero
      • For example if fraction numerator d y over denominator d x end fraction equals sin left parenthesis x minus y right parenthesis, then the gradient will be zero anywhere where x minus y equals 0 comma plus-or-minus pi comma space plus-or-minus 2 pi comma space plus-or-minus 3 pi comma space... space
      • This is another way to identify possible local minimum and maximum points for the solution curves
      • If such a point falls between the ‘grid points’ at which the tangent lines have been drawn, this may be the only way to identify such a point exactly

Worked Example

Consider the differential equation

fraction numerator straight d y over denominator straight d x end fraction equals negative 0.4 open parentheses y minus 2 close parentheses to the power of 1 third end exponent open parentheses x minus 1 close parentheses straight e to the power of negative open parentheses x minus 1 close parentheses squared over 25 end exponent.

a)
Using the equation, determine the set of points for which the solutions to the differential equation will have horizontal tangents.

5-6-3-ib-ai-hl-slope-fields-a-we-solution

The diagram below shows the slope field for the differential equation, for negative 10 less or equal than x less or equal than 10 and negative 10 less or equal than y less or equal than 10.

5-6-3-ib-ai-hl-slope-fields_we-diagram

b)

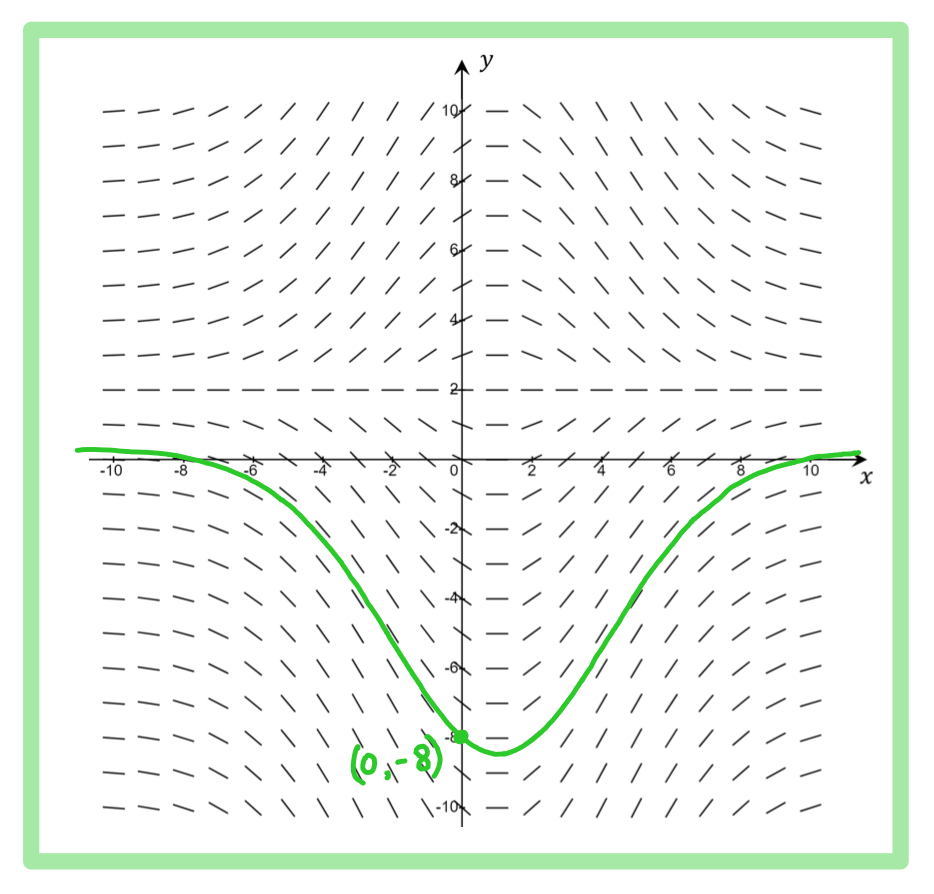

Sketch the solution curve for the solution to the differential equation that passes through the point left parenthesis 0 comma negative 8 right parenthesis.
5-6-3-ib-ai-hl-slope-fields-b-we-solution



  • 1. Number & Algebra
    • 1.1 Number Toolkit
      • 1.1.1 Standard Form
        • 1.1.2 Approximation & Estimation
          • 1.1.3 GDC: Solving Equations
          • 1.2 Exponentials & Logs
            • 1.2.1 Exponents
              • 1.2.2 Logarithms
              • 1.3 Sequences & Series
                • 1.3.1 Language of Sequences & Series
                  • 1.3.2 Arithmetic Sequences & Series
                    • 1.3.3 Geometric Sequences & Series
                      • 1.3.4 Applications of Sequences & Series
                      • 1.4 Financial Applications
                        • 1.4.1 Compound Interest & Depreciation
                          • 1.4.2 Amortisation & Annuities
                          • 1.5 Complex Numbers
                            • 1.5.1 Intro to Complex Numbers
                              • 1.5.2 Modulus & Argument
                                • 1.5.3 Introduction to Argand Diagrams
                                • 1.6 Further Complex Numbers
                                  • 1.6.1 Geometry of Complex Numbers
                                    • 1.6.2 Forms of Complex Numbers
                                      • 1.6.3 Applications of Complex Numbers
                                      • 1.7 Matrices
                                        • 1.7.1 Introduction to Matrices
                                          • 1.7.2 Operations with Matrices
                                            • 1.7.3 Determinants & Inverses
                                              • 1.7.4 Solving Systems of Linear Equations with Matrices
                                              • 1.8 Eigenvalues & Eigenvectors
                                                • 1.8.1 Eigenvalues & Eigenvectors
                                                  • 1.8.2 Applications of Matrices
                                                • 2. Functions
                                                  • 2.1 Linear Functions & Graphs
                                                    • 2.1.1 Equations of a Straight Line
                                                    • 2.2 Further Functions & Graphs
                                                      • 2.2.1 Functions
                                                        • 2.2.2 Graphing Functions
                                                          • 2.2.3 Properties of Graphs
                                                          • 2.3 Modelling with Functions
                                                            • 2.3.1 Linear Models
                                                              • 2.3.2 Quadratic & Cubic Models
                                                                • 2.3.3 Exponential Models
                                                                  • 2.3.4 Direct & Inverse Variation
                                                                    • 2.3.5 Sinusoidal Models
                                                                      • 2.3.6 Strategy for Modelling Functions
                                                                      • 2.4 Functions Toolkit
                                                                        • 2.4.1 Composite & Inverse Functions
                                                                        • 2.5 Transformations of Graphs
                                                                          • 2.5.1 Translations of Graphs
                                                                            • 2.5.2 Reflections of Graphs
                                                                              • 2.5.3 Stretches of Graphs
                                                                                • 2.5.4 Composite Transformations of Graphs
                                                                                • 2.6 Further Modelling with Functions
                                                                                  • 2.6.1 Properties of Further Graphs
                                                                                    • 2.6.2 Natural Logarithmic Models
                                                                                      • 2.6.3 Logistic Models
                                                                                        • 2.6.4 Piecewise Models
                                                                                      • 3. Geometry & Trigonometry
                                                                                        • 3.1 Geometry Toolkit
                                                                                          • 3.1.1 Coordinate Geometry
                                                                                            • 3.1.2 Radian Measure
                                                                                              • 3.1.3 Arcs & Sectors
                                                                                              • 3.2 Geometry of 3D Shapes
                                                                                                • 3.2.1 3D Coordinate Geometry
                                                                                                  • 3.2.2 Volume & Surface Area
                                                                                                  • 3.3 Trigonometry
                                                                                                    • 3.3.1 Pythagoras & Right-Angled Triganometry
                                                                                                      • 3.3.2 Non Right-Angled Trigonometry
                                                                                                        • 3.3.3 Applications of Trigonometry & Pythagoras
                                                                                                        • 3.4 Further Trigonometry
                                                                                                          • 3.4.1 The Unit Circle
                                                                                                            • 3.4.2 Simple Identities
                                                                                                              • 3.4.3 Solving Trigonometric Equations
                                                                                                              • 3.5 Voronoi Diagrams
                                                                                                                • 3.5.1 Voronoi Diagrams
                                                                                                                  • 3.5.2 Toxic Waste Dump Problem
                                                                                                                  • 3.6 Matrix Transformations
                                                                                                                    • 3.6.1 Matrix Transformations
                                                                                                                      • 3.6.2 Determinant of a Transformation Matrix
                                                                                                                      • 3.7 Vector Properties
                                                                                                                        • 3.7.1 Introduction to Vectors
                                                                                                                          • 3.7.2 Position & Displacement Vectors
                                                                                                                            • 3.7.3 Magnitude of a Vector
                                                                                                                              • 3.7.4 The Scalar Product
                                                                                                                                • 3.7.5 The Vector Product
                                                                                                                                  • 3.7.6 Components of Vectors
                                                                                                                                    • 3.7.7 Geometric Proof with Vectors
                                                                                                                                    • 3.8 Vector Equations of Lines
                                                                                                                                      • 3.8.1 Vector Equations of Lines
                                                                                                                                        • 3.8.2 Shortest Distances with Lines
                                                                                                                                        • 3.9 Modelling with Vectors
                                                                                                                                          • 3.9.1 Kinematics with Vectors
                                                                                                                                            • 3.9.2 Constant & Variable Velocity
                                                                                                                                            • 3.10 Graph Theory
                                                                                                                                              • 3.10.1 Introduction to Graph Theory
                                                                                                                                                • 3.10.2 Walks & Adjacency Matrices
                                                                                                                                                  • 3.10.3 Minimum Spanning Trees
                                                                                                                                                    • 3.10.4 Chinese Postman Problem
                                                                                                                                                      • 3.10.5 Travelling Salesman Problem
                                                                                                                                                        • 3.10.6 Bounds for Travelling Salesman Problem
                                                                                                                                                      • 4. Statistics & Probability
                                                                                                                                                        • 4.1 Statistics Toolkit
                                                                                                                                                          • 4.1.1 Sampling
                                                                                                                                                            • 4.1.2 Data Collection
                                                                                                                                                              • 4.1.3 Statistical Measures
                                                                                                                                                                • 4.1.4 Frequency Tables
                                                                                                                                                                  • 4.1.5 Linear Transformations of Data
                                                                                                                                                                    • 4.1.6 Outliers
                                                                                                                                                                      • 4.1.7 Univariate Data
                                                                                                                                                                        • 4.1.8 Interpreting Data
                                                                                                                                                                        • 4.2 Correlation & Regression
                                                                                                                                                                          • 4.2.1 Bivariate Data
                                                                                                                                                                            • 4.2.2 Correlation Coefficients
                                                                                                                                                                              • 4.2.3 Linear Regression
                                                                                                                                                                              • 4.3 Further Correlation & Regression
                                                                                                                                                                                • 4.3.1 Non-linear Regression
                                                                                                                                                                                  • 4.3.2 Logarithmic Scales
                                                                                                                                                                                    • 4.3.3 Linearising using Logarithms
                                                                                                                                                                                    • 4.4 Probability
                                                                                                                                                                                      • 4.4.1 Probability & Types of Events
                                                                                                                                                                                        • 4.4.2 Conditional Probability
                                                                                                                                                                                          • 4.4.3 Sample Space Diagrams
                                                                                                                                                                                          • 4.5 Probability Distributions
                                                                                                                                                                                            • 4.5.1 Discrete Probability Distributions
                                                                                                                                                                                              • 4.5.2 Expected Values
                                                                                                                                                                                              • 4.6 Random Variables
                                                                                                                                                                                                • 4.6.1 Linear Combinations of Random Variables
                                                                                                                                                                                                  • 4.6.2 Unbiased Estimates
                                                                                                                                                                                                  • 4.7 Binomial Distribution
                                                                                                                                                                                                    • 4.7.1 The Binomial Distribution
                                                                                                                                                                                                      • 4.7.2 Calculating Binomial Probabilities
                                                                                                                                                                                                      • 4.8 Normal Distribution
                                                                                                                                                                                                        • 4.8.1 The Normal Distribution
                                                                                                                                                                                                          • 4.8.2 Calculations with Normal Distribution
                                                                                                                                                                                                          • 4.9 Further Normal Distribution (inc Central Limit Theorem)
                                                                                                                                                                                                            • 4.9.1 Sample Mean Distribution
                                                                                                                                                                                                              • 4.9.2 Confidence Interval for the Mean
                                                                                                                                                                                                              • 4.10 Poisson Distribution
                                                                                                                                                                                                                • 4.10.1 Poisson Distribution
                                                                                                                                                                                                                  • 4.10.2 Calculating Poisson Probabilities
                                                                                                                                                                                                                  • 4.11 Hypothesis Testing
                                                                                                                                                                                                                    • 4.11.1 Hypothesis Testing
                                                                                                                                                                                                                      • 4.11.2 Chi-squared Test for Independence
                                                                                                                                                                                                                        • 4.11.3 Goodness of Fit Test
                                                                                                                                                                                                                        • 4.12 Further Hypothesis Testing
                                                                                                                                                                                                                          • 4.12.1 Hypothesis Testing for Mean (One Sample)
                                                                                                                                                                                                                            • 4.12.2 Hypothesis Testing for Mean (Two Sample)
                                                                                                                                                                                                                              • 4.12.3 Binomial Hypothesis Testing
                                                                                                                                                                                                                                • 4.12.4 Poisson Hypothesis Testing
                                                                                                                                                                                                                                  • 4.12.5 Hypothesis Testing for Correlation
                                                                                                                                                                                                                                    • 4.12.6 Type I & Type II Errors
                                                                                                                                                                                                                                    • 4.13 Transition Matrices & Markov Chains
                                                                                                                                                                                                                                      • 4.13.1 Markov Chains
                                                                                                                                                                                                                                        • 4.13.2 Transition Matrices
                                                                                                                                                                                                                                      • 5. Calculus
                                                                                                                                                                                                                                        • 5.1 Differentiation
                                                                                                                                                                                                                                          • 5.1.1 Introduction to Differentiation
                                                                                                                                                                                                                                            • 5.1.2 Applications of Differentiation
                                                                                                                                                                                                                                              • 5.1.3 Modelling with Differentiation
                                                                                                                                                                                                                                              • 5.2 Further Differentiation
                                                                                                                                                                                                                                                • 5.2.1 Differentiating Special Functions
                                                                                                                                                                                                                                                  • 5.2.2 Techniques of Differentiation
                                                                                                                                                                                                                                                    • 5.2.3 Related Rates of Change
                                                                                                                                                                                                                                                      • 5.2.4 Second Order Derivatives
                                                                                                                                                                                                                                                        • 5.2.5 Further Applications of Differentiation
                                                                                                                                                                                                                                                          • 5.2.6 Concavity & Points of Inflection
                                                                                                                                                                                                                                                          • 5.3 Integration
                                                                                                                                                                                                                                                            • 5.3.1 Trapezoid Rule: Numerical Integration
                                                                                                                                                                                                                                                              • 5.3.2 Introduction to Integration
                                                                                                                                                                                                                                                                • 5.3.3 Applications of Integration
                                                                                                                                                                                                                                                                • 5.4 Further Integration
                                                                                                                                                                                                                                                                  • 5.4.1 Integrating Special Functions
                                                                                                                                                                                                                                                                    • 5.4.2 Techniques of Integration
                                                                                                                                                                                                                                                                      • 5.4.3 Further Applications of Integration
                                                                                                                                                                                                                                                                        • 5.4.4 Volumes of Revolution
                                                                                                                                                                                                                                                                        • 5.5 Kinematics
                                                                                                                                                                                                                                                                          • 5.5.1 Kinematics Toolkit
                                                                                                                                                                                                                                                                            • 5.5.2 Calculus for Kinematics
                                                                                                                                                                                                                                                                            • 5.6 Differential Equations
                                                                                                                                                                                                                                                                              • 5.6.1 Modelling with Differential Equations
                                                                                                                                                                                                                                                                                • 5.6.2 Separation of Variables
                                                                                                                                                                                                                                                                                  • 5.6.3 Slope Fields
                                                                                                                                                                                                                                                                                    • 5.6.4 Approximate Solutions to Differential Equations
                                                                                                                                                                                                                                                                                    • 5.7 Further Differential Equations
                                                                                                                                                                                                                                                                                      • 5.7.1 Coupled Differential Equations
                                                                                                                                                                                                                                                                                        • 5.7.2 Second Order Differential Equations
                                                                                                                                                                                                                                                                                      Roger Bliss

                                                                                                                                                                                                                                                                                      Author: Roger

                                                                                                                                                                                                                                                                                      Roger's teaching experience stretches all the way back to 1992, and in that time he has taught students at all levels between Year 7 and university undergraduate. Having conducted and published postgraduate research into the mathematical theory behind quantum computing, he is more than confident in dealing with mathematics at any level the exam boards might throw at you.


                                                                                                                                                                                                                                                                                      Save My Exams Logo
                                                                                                                                                                                                                                                                                      Resources
                                                                                                                                                                                                                                                                                      Home Join Support

                                                                                                                                                                                                                                                                                      Members
                                                                                                                                                                                                                                                                                      Members Home Account Logout

                                                                                                                                                                                                                                                                                      Company
                                                                                                                                                                                                                                                                                      About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                      Quick Links
                                                                                                                                                                                                                                                                                      GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                      © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                      IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
