1.2.3 Determining Uncertainties from Graphs


Error Bars

  • The uncertainty in a measurement can be shown on a graph as an error bar
  • This bar is drawn above and below the point (or from side to side) and shows the uncertainty in that measurement
  • Error bars are plotted on graphs to show the absolute uncertainty of values plotted

Error Bars, downloadable AS & A Level Physics revision notes

Representing error bars on a graph

Exam Tip

A common misconception is that error bars need to all be the same size. In physics, this is not the case and each data point can have different error bar sizes as they have different uncertainties.

Determining Uncertainties from Graphs

  • To calculate the uncertainty in a gradient, two lines of best fit should be drawn on the graph:
    • The ‘best’ line of best fit, which passes as close to the points as possible
    • The ‘worst’ line of best fit, either the steepest possible or the shallowest possible line which fits within all the error bars

Worst and Best Lines of Fit

The line of best fit passes as close as possible to all the points. The steepest and shallowest lines are known as the worst fit

  • The percentage uncertainty in the gradient can be found using the magnitude of the 'best' and 'worst' gradients:

percentage uncertainty = fraction numerator b e s t space g r a d i e n t space minus space w o r s t space g r a d i e n t over denominator b e s t space g r a d i e n t end fraction cross times 100 percent sign

  • Either the steepest or shallowest line of best fit may have the 'worst' gradient on a case-by-case basis.
    • The 'worst' gradient will be the one with the greatest difference in magnitude from the 'best' line of best fit.
    • The equation above is for the case where the 'worst' gradient is the shallowest.
    • If the 'worst' gradient is the steepest, then the 'worst' gradient should be subtracted from the 'best' gradient and then divided by the best gradient and multiplied by 100
  • Alternatively, the average of the two maximum and minimum lines can be used to calculate the percentage uncertainty:

percentage uncertainty = fraction numerator m a x. space g r a d i e n t space minus space m i n. space g r a d i e n t over denominator 2 end fraction cross times 100 percent sign

  • The percentage uncertainty in the y-intercept can be found using:

percentage uncertainty = fraction numerator b e s t space y space i n t e r c e p t space minus space w o r s t space y space i n t e r c e p t over denominator b e s t space y space i n t e r c e p t end fraction cross times 100 percent sign

percentage uncertainty = fraction numerator m a x. space y space i n t e r c e p t space minus space m i n. space y space i n t e r c e p t over denominator 2 end fraction cross times 100 percent sign

Percentage Difference

  • The percentage difference gives an indication of how close the experimental value achieved from an experiment is to the accepted value
    • It is not a percentage uncertainty

  • The percentage difference is defined by the equation:

percentage difference = fraction numerator e x p e r i m e n t a l space v a l u e space minus space a c c e p t e d space v a l u e over denominator a c c e p t e d space v a l u e end fraction cross times 100 percent sign

  • The experimental value is sometimes referred to as the 'measured' value
  • The accepted value is sometimes referred to as the 'true' value
    • This may be labelled on a component such as the capacitance of a capacitor or the resistance of a resistor
    • Or, from a reputable source such as a peer-reviewed data booklet

  • For example, the acceleration due to gravity g is known to be 9.81 m s–2. This is its accepted value
    • From an experiment, the value of g may be found to be 10.35 m s–2
    • Its percentage difference would therefore be 5.5 %

  • The smaller the percentage difference, the more accurate the results of the experiment

Worked Example

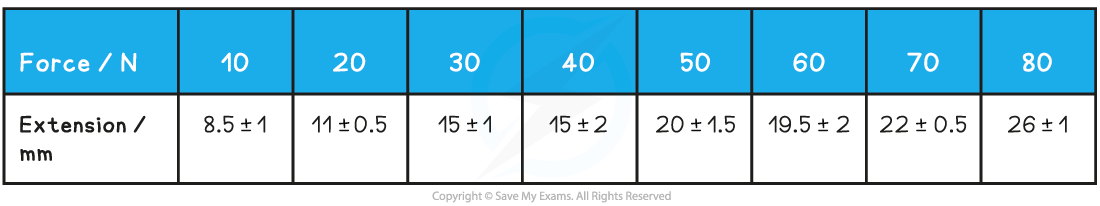

On the axes provided, plot the graph for the following data and draw error bars and lines of best and worst fit.Worked Example: Using Error Bars, downloadable AS & A Level Physics revision notesFind the percentage uncertainty in the gradient from your graph.

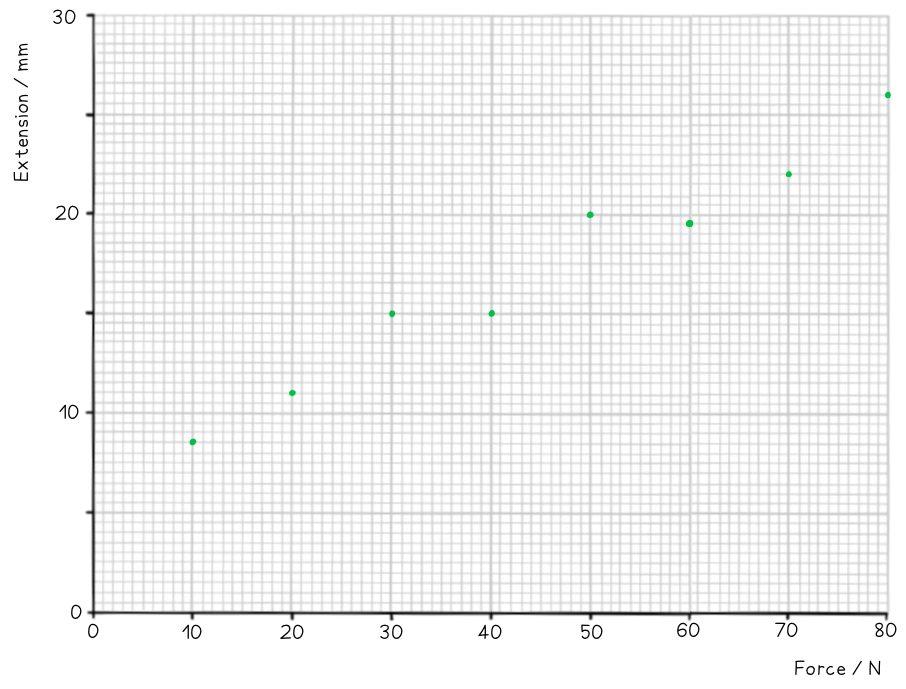

Step 1: Draw sensible scales on the axes and plot the data

Points Plotted, downloadable AS & A Level Physics revision notes

Step 2: Draw the errors bars for each point

Error Bars Drawn, downloadable AS & A Level Physics revision notes

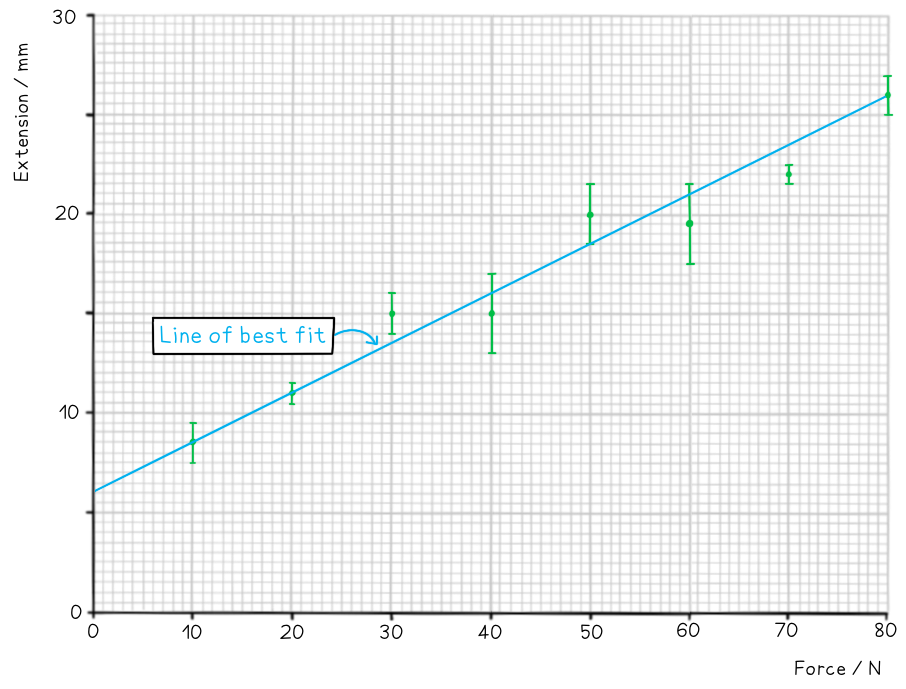

Step 3: Draw the line of best fit

Line Of Best Fit, downloadable AS & A Level Physics revision notes

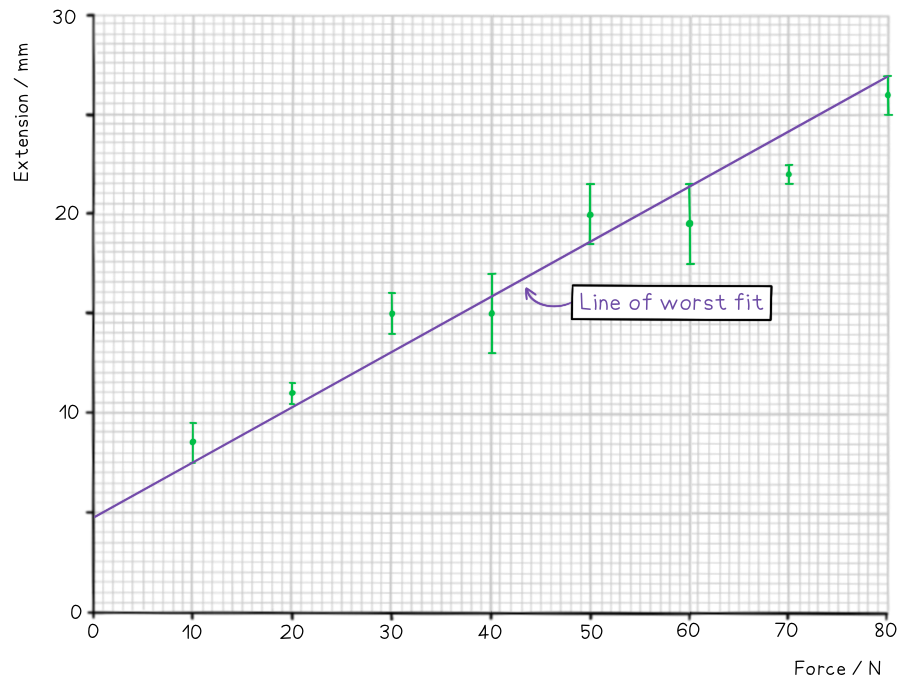

Step 4: Draw the line of worst fit

Line Of Worst Fit, downloadable AS & A Level Physics revision notes

Step 5: Work out the gradient of each line and calculate the percentage uncertainty

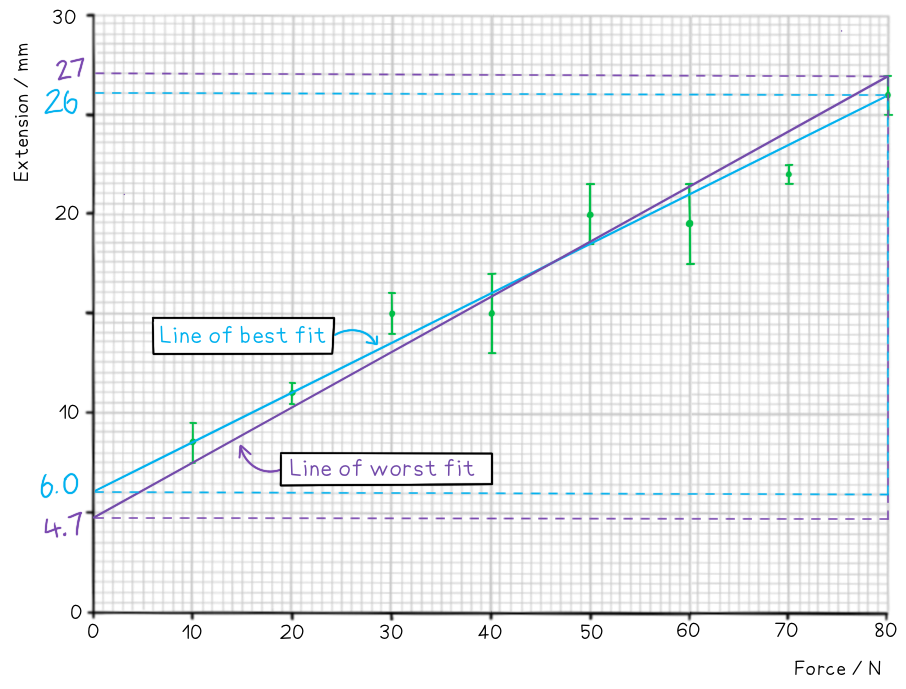

Best & Worst Gradients, downloadable AS & A Level Physics revision notes



  • 1. Measurement & Uncertainties
    • 1.1 Measurements in Physics
      • 1.1.1 SI Units
        • 1.1.2 Using Scientific Notation
          • 1.1.3 Estimating Physical Quantities
          • 1.2 Uncertainties & Errors
            • 1.2.1 Random & Systematic Errors
              • 1.2.2 Calculating Uncertainties
                • 1.2.3 Determining Uncertainties from Graphs
                • 1.3 Vectors & Scalars
                  • 1.3.1 Vector & Scalar Quantities
                    • 1.3.2 Combining & Resolving Vectors
                      • 1.3.3 Solving Vector Problems
                    • 2. Mechanics
                      • 2.1 Motion
                        • 2.1.1 Distance & Displacement
                          • 2.1.2 Speed & Velocity
                            • 2.1.3 Acceleration
                              • 2.1.4 Graphs Describing Motion
                                • 2.1.5 Uniform Acceleration
                                  • 2.1.6 Acceleration of Free Fall Experiment
                                    • 2.1.7 Projectile Motion
                                      • 2.1.8 Terminal Speed
                                      • 2.2 Forces
                                        • 2.2.1 Free-Body Diagrams
                                          • 2.2.2 Newton’s First Law
                                            • 2.2.3 Newton’s Second Law
                                              • 2.2.4 Newton’s Third Law
                                                • 2.2.5 Applying Newton’s Laws of Motion
                                                  • 2.2.6 Friction
                                                  • 2.3 Work, Energy & Power
                                                    • 2.3.1 Kinetic Energy
                                                      • 2.3.2 Gravitational Potential Energy
                                                        • 2.3.3 Elastic Potential Energy
                                                          • 2.3.4 Work Done
                                                            • 2.3.5 Power
                                                              • 2.3.6 Principle of Conservation of Energy
                                                                • 2.3.7 Efficiency
                                                                • 2.4 Momentum & Impulse
                                                                  • 2.4.1 Force & Momentum
                                                                    • 2.4.2 Impulse
                                                                      • 2.4.3 Conservation of Linear Momentum
                                                                        • 2.4.4 Collisions & Explosions
                                                                      • 3. Thermal Physics
                                                                        • 3.1 Thermal Concepts
                                                                          • 3.1.1 Solids, Liquids & Gases
                                                                            • 3.1.2 Temperature
                                                                              • 3.1.3 Internal Energy
                                                                                • 3.1.4 Specific Heat Capacity
                                                                                  • 3.1.5 Specific Latent Heat
                                                                                    • 3.1.6 Phase Change
                                                                                      • 3.1.7 Investigating Thermal Energy
                                                                                      • 3.2 Modelling a Gas
                                                                                        • 3.2.1 Ideal Gas Laws
                                                                                          • 3.2.2 Ideal Gas Equation
                                                                                            • 3.2.3 Kinetic Model of an Ideal Gas
                                                                                              • 3.2.4 Mole Calculations
                                                                                                • 3.2.5 Investigating Gas Laws
                                                                                              • 4. Waves
                                                                                                • 4.1 Oscillations
                                                                                                  • 4.1.1 Properties of Oscillations
                                                                                                    • 4.1.2 Simple Harmonic Oscillations
                                                                                                      • 4.1.3 SHM Graphs
                                                                                                        • 4.1.4 Energy in SHM
                                                                                                        • 4.2 Travelling Waves
                                                                                                          • 4.2.1 Properties of Waves
                                                                                                            • 4.2.2 Transverse & Longitudinal Waves
                                                                                                              • 4.2.3 Electromagnetic Waves
                                                                                                                • 4.2.4 Sound Waves
                                                                                                                • 4.3 Wave Characteristics
                                                                                                                  • 4.3.1 Wavefronts
                                                                                                                    • 4.3.2 Amplitude & Intensity
                                                                                                                      • 4.3.3 Superposition
                                                                                                                        • 4.3.4 Polarisation
                                                                                                                          • 4.3.5 Malus’s Law
                                                                                                                          • 4.4 Wave Behaviour
                                                                                                                            • 4.4.1 Reflection, Refraction & Transmission
                                                                                                                              • 4.4.2 Reflection
                                                                                                                                • 4.4.3 Refraction
                                                                                                                                  • 4.4.4 Determining Refractive Index
                                                                                                                                    • 4.4.5 Single-Slit Diffraction
                                                                                                                                      • 4.4.6 Interference & Path Difference
                                                                                                                                        • 4.4.7 Double-Slit Equation
                                                                                                                                        • 4.5 Standing Waves
                                                                                                                                          • 4.5.1 The Nature of Standing Waves
                                                                                                                                            • 4.5.2 Nodes & Antinodes
                                                                                                                                              • 4.5.3 Boundary Conditions for Standing Waves
                                                                                                                                                • 4.5.4 Harmonics
                                                                                                                                              • 5. Electricity & Magnetism
                                                                                                                                                • 5.1 Electric Fields
                                                                                                                                                  • 5.1.1 Charge & Current
                                                                                                                                                    • 5.1.2 Drift Speed
                                                                                                                                                      • 5.1.3 Potential Difference & DC
                                                                                                                                                        • 5.1.4 Electric Fields
                                                                                                                                                          • 5.1.5 Coulomb’s Law
                                                                                                                                                          • 5.2 Heating Effect of Electric Currents
                                                                                                                                                            • 5.2.1 Circuits
                                                                                                                                                              • 5.2.2 Resistance & Resistors
                                                                                                                                                                • 5.2.3 Kirchhoff’s Circuit Laws
                                                                                                                                                                  • 5.2.4 I-V Characteristics
                                                                                                                                                                    • 5.2.5 Resistivity
                                                                                                                                                                      • 5.2.6 Investigating Resistivity
                                                                                                                                                                        • 5.2.7 Series & Parallel Circuits
                                                                                                                                                                          • 5.2.8 Heating Effect of Current
                                                                                                                                                                            • 5.2.9 Potential Divider Circuits
                                                                                                                                                                            • 5.3 Electric Cells
                                                                                                                                                                              • 5.3.1 Primary & Secondary Cells
                                                                                                                                                                                • 5.3.2 Investigating Electric Cells
                                                                                                                                                                                  • 5.3.3 Terminal Potential Difference
                                                                                                                                                                                    • 5.3.4 Electromotive Force & Internal Resistance
                                                                                                                                                                                    • 5.4 Magnetic Effects of Electric Currents
                                                                                                                                                                                      • 5.4.1 Magnetic Fields
                                                                                                                                                                                        • 5.4.2 Magnetic Force on a Charge
                                                                                                                                                                                          • 5.4.3 Magnetic Force on a Current-Carrying Conductor
                                                                                                                                                                                            • 5.4.4 Solving Problems Involving Magnetic Forces
                                                                                                                                                                                          • 6. Circular Motion & Gravitation
                                                                                                                                                                                            • 6.1 Circular Motion
                                                                                                                                                                                              • 6.1.1 Circular Motion
                                                                                                                                                                                                • 6.1.2 Centripetal Force
                                                                                                                                                                                                  • 6.1.3 Centripetal Acceleration
                                                                                                                                                                                                    • 6.1.4 Applications of Circular Motion
                                                                                                                                                                                                    • 6.2 Newton’s Law of Gravitation
                                                                                                                                                                                                      • 6.2.1 Newton’s Law of Gravitation
                                                                                                                                                                                                        • 6.2.2 Circular Orbits
                                                                                                                                                                                                          • 6.2.3 Gravitational Field Strength
                                                                                                                                                                                                        • 7. Atomic, Nuclear & Particle Physics
                                                                                                                                                                                                          • 7.1 Discrete Energy & Radioactivity
                                                                                                                                                                                                            • 7.1.1 Discrete Energy Levels
                                                                                                                                                                                                              • 7.1.2 Calculating Discrete Energies
                                                                                                                                                                                                                • 7.1.3 Emission & Absorption Spectrum
                                                                                                                                                                                                                  • 7.1.4 Isotopes & Radioactive Decay
                                                                                                                                                                                                                    • 7.1.5 Background Radiation
                                                                                                                                                                                                                      • 7.1.6 Alpha, Beta & Gamma Particles
                                                                                                                                                                                                                        • 7.1.7 Decay Equations
                                                                                                                                                                                                                          • 7.1.8 Half-Life
                                                                                                                                                                                                                            • 7.1.9 Investigating Half-Life
                                                                                                                                                                                                                            • 7.2 Nuclear Reactions
                                                                                                                                                                                                                              • 7.2.1 Atomic Mass Unit
                                                                                                                                                                                                                                • 7.2.2 Mass Defect & Nuclear Binding Energy
                                                                                                                                                                                                                                  • 7.2.3 Nuclear Fission & Fusion
                                                                                                                                                                                                                                    • 7.2.4 Binding Energy per Nucleon Curve
                                                                                                                                                                                                                                    • 7.3 The Structure of Matter
                                                                                                                                                                                                                                      • 7.3.1 Discovery of the Nucleus
                                                                                                                                                                                                                                        • 7.3.2 Quarks & Leptons
                                                                                                                                                                                                                                          • 7.3.3 Hadrons, Baryons & Mesons
                                                                                                                                                                                                                                            • 7.3.4 Particle Conservation Laws
                                                                                                                                                                                                                                              • 7.3.5 Fundamental Forces
                                                                                                                                                                                                                                                • 7.3.6 Feynman Diagrams & Confinement
                                                                                                                                                                                                                                                  • 7.3.7 The Standard Model of Particle Physics
                                                                                                                                                                                                                                                • 8. Energy Production
                                                                                                                                                                                                                                                  • 8.1 Energy Sources
                                                                                                                                                                                                                                                    • 8.1.1 Specific Energy
                                                                                                                                                                                                                                                      • 8.1.2 Sankey Diagrams
                                                                                                                                                                                                                                                        • 8.1.3 Primary & Secondary Energy Sources
                                                                                                                                                                                                                                                          • 8.1.4 Energy Resources
                                                                                                                                                                                                                                                            • 8.1.5 Energy Generation
                                                                                                                                                                                                                                                              • 8.1.6 Safety Issues in Nuclear Power
                                                                                                                                                                                                                                                              • 8.2 Thermal Energy Transfer
                                                                                                                                                                                                                                                                • 8.2.1 Conduction, Convection & Thermal Radiation
                                                                                                                                                                                                                                                                  • 8.2.2 Black-Body Radiation
                                                                                                                                                                                                                                                                    • 8.2.3 The Solar Constant, Albedo & Emissivity
                                                                                                                                                                                                                                                                      • 8.2.4 The Greenhouse Effect
                                                                                                                                                                                                                                                                        • 8.2.5 Earth's Surface–Atmosphere System
                                                                                                                                                                                                                                                                      • 9. Wave Phenomena (HL only)
                                                                                                                                                                                                                                                                        • 9.1 Simple Harmonic Motion
                                                                                                                                                                                                                                                                          • 9.1.1 The Defining Equation of SHM
                                                                                                                                                                                                                                                                            • 9.1.2 Energy Changes in SHM
                                                                                                                                                                                                                                                                              • 9.1.3 Calculating Energy Changes in SHM
                                                                                                                                                                                                                                                                                • 9.1.4 Examples of SHM
                                                                                                                                                                                                                                                                                • 9.2 Single-Slit Diffraction
                                                                                                                                                                                                                                                                                  • 9.2.1 The Nature of Single-Slit Diffraction
                                                                                                                                                                                                                                                                                    • 9.2.2 Intensity of Interference Maxima & Minima
                                                                                                                                                                                                                                                                                    • 9.3 Interference
                                                                                                                                                                                                                                                                                      • 9.3.1 Young’s Double-Slit Experiment
                                                                                                                                                                                                                                                                                        • 9.3.2 Two-Slit Interference Patterns
                                                                                                                                                                                                                                                                                          • 9.3.3 Diffraction Grating Patterns
                                                                                                                                                                                                                                                                                            • 9.3.4 The Diffraction Grating Equation
                                                                                                                                                                                                                                                                                              • 9.3.5 Thin Film Interference
                                                                                                                                                                                                                                                                                              • 9.4 Resolution
                                                                                                                                                                                                                                                                                                • 9.4.1 The Rayleigh Criterion
                                                                                                                                                                                                                                                                                                  • 9.4.2 Rayleigh Criterion Calculations
                                                                                                                                                                                                                                                                                                    • 9.4.3 Resolvance of Diffraction Gratings
                                                                                                                                                                                                                                                                                                    • 9.5 Doppler Effect
                                                                                                                                                                                                                                                                                                      • 9.5.1 The Doppler Effect
                                                                                                                                                                                                                                                                                                        • 9.5.2 Uses of The Doppler Effect
                                                                                                                                                                                                                                                                                                          • 9.5.3 The Doppler Equation
                                                                                                                                                                                                                                                                                                        • 10. Fields (HL only)
                                                                                                                                                                                                                                                                                                          • 10.1 Describing Fields
                                                                                                                                                                                                                                                                                                            • 10.1.1 Gravitational & Electrostatic Fields
                                                                                                                                                                                                                                                                                                              • 10.1.2 Gravitational & Electrostatic Field Lines
                                                                                                                                                                                                                                                                                                                • 10.1.3 Gravitational & Electrostatic Potential
                                                                                                                                                                                                                                                                                                                  • 10.1.4 Equipotential Surfaces
                                                                                                                                                                                                                                                                                                                  • 10.2 Fields at Work
                                                                                                                                                                                                                                                                                                                    • 10.2.1 Potential & Potential Energy
                                                                                                                                                                                                                                                                                                                      • 10.2.2 Potential Energy Calculations
                                                                                                                                                                                                                                                                                                                        • 10.2.3 Potential Gradient & Difference
                                                                                                                                                                                                                                                                                                                          • 10.2.4 Potential in a Charged Sphere
                                                                                                                                                                                                                                                                                                                            • 10.2.5 Escape Speed
                                                                                                                                                                                                                                                                                                                              • 10.2.6 Orbital Motion, Speed & Energy
                                                                                                                                                                                                                                                                                                                                • 10.2.7 Forces & Inverse-Square Law Behaviour
                                                                                                                                                                                                                                                                                                                                  • 10.2.8 Forces on Charges & Masses
                                                                                                                                                                                                                                                                                                                                • 11. Electromagnetic Induction (HL only)
                                                                                                                                                                                                                                                                                                                                  • 11.1 Electromagnetic Induction
                                                                                                                                                                                                                                                                                                                                    • 11.1.1 Emf, Magnetic Flux & Magnetic Flux Linkage
                                                                                                                                                                                                                                                                                                                                      • 11.1.2 Induced Emf
                                                                                                                                                                                                                                                                                                                                        • 11.1.3 Faraday’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.1.4 Lenz’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.2 Power Generation & Transmission
                                                                                                                                                                                                                                                                                                                                            • 11.2.1 AC Generators
                                                                                                                                                                                                                                                                                                                                              • 11.2.2 Root-Mean-Square Current & Voltage
                                                                                                                                                                                                                                                                                                                                                • 11.2.3 Step-Up & Step-Down Transformers
                                                                                                                                                                                                                                                                                                                                                  • 11.2.4 Transformer Calculations
                                                                                                                                                                                                                                                                                                                                                    • 11.2.5 AC Electrical Power Distribution
                                                                                                                                                                                                                                                                                                                                                      • 11.2.6 Diode Bridges
                                                                                                                                                                                                                                                                                                                                                        • 11.2.7 Investigating Diode Bridges
                                                                                                                                                                                                                                                                                                                                                          • 11.2.8 Rectification
                                                                                                                                                                                                                                                                                                                                                            • 11.2.9 Capacitors & Diode Bridges
                                                                                                                                                                                                                                                                                                                                                            • 11.3 Capacitance
                                                                                                                                                                                                                                                                                                                                                              • 11.3.1 Capacitance
                                                                                                                                                                                                                                                                                                                                                                • 11.3.2 Dielectric Materials
                                                                                                                                                                                                                                                                                                                                                                  • 11.3.3 Capacitors in Series & Parallel
                                                                                                                                                                                                                                                                                                                                                                    • 11.3.4 The Time Constant
                                                                                                                                                                                                                                                                                                                                                                      • 11.3.5 Energy Stored in a Capacitor
                                                                                                                                                                                                                                                                                                                                                                        • 11.3.6 Capacitor Charge & Discharge
                                                                                                                                                                                                                                                                                                                                                                          • 11.3.7 Discharge Calculations
                                                                                                                                                                                                                                                                                                                                                                        • 12. Quantum & Nuclear Physics (HL only)
                                                                                                                                                                                                                                                                                                                                                                          • 12.1 The Interaction of Matter with Radiation
                                                                                                                                                                                                                                                                                                                                                                            • 12.1.1 Photons
                                                                                                                                                                                                                                                                                                                                                                              • 12.1.2 The Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                • 12.1.3 Observing the Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                  • 12.1.4 Solving Photoelectric Problems
                                                                                                                                                                                                                                                                                                                                                                                    • 12.1.5 Matter Waves
                                                                                                                                                                                                                                                                                                                                                                                      • 12.1.6 Pair Production & Annihilation
                                                                                                                                                                                                                                                                                                                                                                                        • 12.1.7 Quantization of Angular Momentum
                                                                                                                                                                                                                                                                                                                                                                                          • 12.1.8 The Wave Function
                                                                                                                                                                                                                                                                                                                                                                                            • 12.1.9 The Uncertainty Principle
                                                                                                                                                                                                                                                                                                                                                                                              • 12.1.10 Tunnelling
                                                                                                                                                                                                                                                                                                                                                                                              • 12.2 Nuclear Physics
                                                                                                                                                                                                                                                                                                                                                                                                • 12.2.1 Rutherford Scattering & Nuclear Radius
                                                                                                                                                                                                                                                                                                                                                                                                  • 12.2.2 Nuclear Scattering
                                                                                                                                                                                                                                                                                                                                                                                                    • 12.2.3 Deviations from Rutherford Scattering
                                                                                                                                                                                                                                                                                                                                                                                                      • 12.2.4 Nuclear Energy Levels
                                                                                                                                                                                                                                                                                                                                                                                                        • 12.2.5 The Neutrino
                                                                                                                                                                                                                                                                                                                                                                                                          • 12.2.6 The Law of Radioactive Decay
                                                                                                                                                                                                                                                                                                                                                                                                            • 12.2.7 Measuring Half-Life
                                                                                                                                                                                                                                                                                                                                                                                                          Katie Moon

                                                                                                                                                                                                                                                                                                                                                                                                          Author: Katie

                                                                                                                                                                                                                                                                                                                                                                                                          Katie has always been passionate about the sciences, and completed a degree in Astrophysics at Sheffield University. She decided that she wanted to inspire other young people, so moved to Bristol to complete a PGCE in Secondary Science. She particularly loves creating fun and absorbing materials to help students achieve their exam potential.


                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
