Home / IB / Physics: HL / DP / Revision Notes / 12. Quantum & Nuclear Physics (HL only) / 12.1 The Interaction of Matter with Radiation / 12.1.7 Quantization of Angular Momentum


12.1.7 Quantization of Angular Momentum


Quantization of Angular Momentum

  • Angular momentum is a property of any spinning or rotating body, very similar to linear momentum
    • In linear motion, momentum is the product of mass and velocity
  • In rotational motion the momentum is the product of moment of inertia and angular speed

  • Angular momentum is a vector, this means:
    • The magnitude is equal to the momentum of the particle times its radial distance from the centre of its circular orbit
    • The direction of the angular momentum vector is normal to the plane of its orbit with the direction being given by the corkscrew rule

12-1-7-quantization-ib-hl

Angular momentum acts at right angles to the direction of rotation

  • Niels Bohr proposed that the angular momentum, L, of an electron in an energy level is quantised in integer multiples of fraction numerator h over denominator 2 straight pi end fraction
  • Where:
    • n = an integer (n = 1, 2, 3...)
    • h = Planck’s constant
  • Sometimes h may be written as the reduced Planck's constant, ħ, which is equal to
ħ equals fraction numerator h over denominator 2 straight pi end fraction

  • Hence the angular momentum for an electron in a circular orbit is constant
  • De Broglie proposed that an electron with momentum p = mv has a wavelength λ given by

lambda equals h over p

  • For an electron moving in a straight line, the matter wave takes a familiar wave shape consisting of peaks and troughs
    • Although the electron itself isn't oscillating up and down, only the matter wave

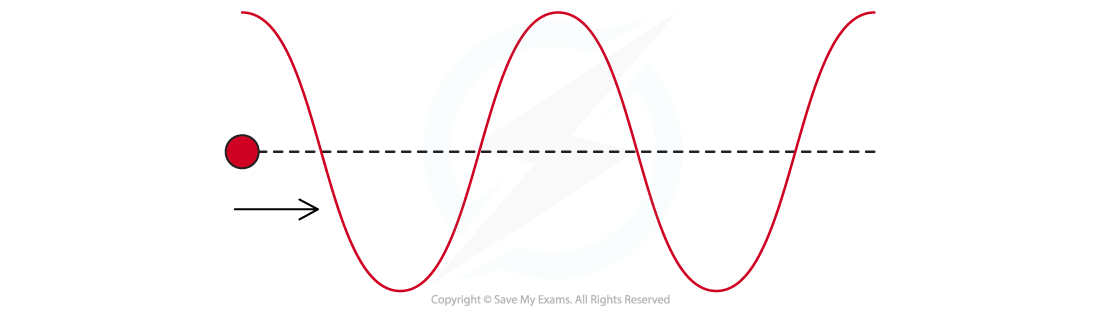

12-1-7-de-broglie-matter-wave-for-an-electron-1-ib-hl

de Broglie matter wave for an electron moving in a straight line at constant speed

  • For the same electron moving in a circle, the matter wave still has a sinusoidal shape but is wrapped into a circle

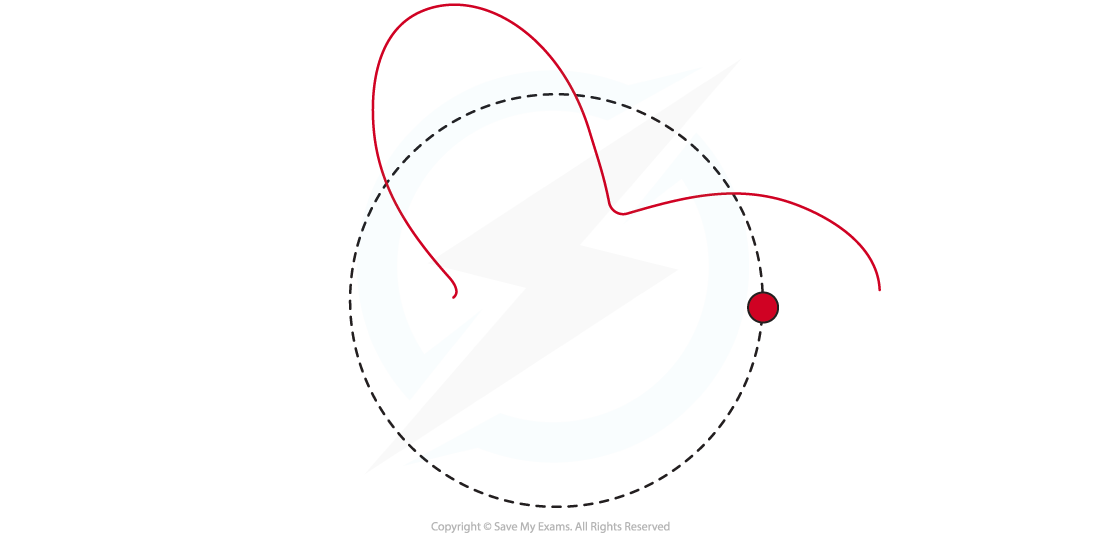

12-1-7-de-broglie-matter-wave-for-an-electron-2-ib-hl

de Broglie matter wave for an electron moving in a circular orbit at constant speed

  • As the electron continues to orbit in a circle two possibilities may occur:

 1. On completing one oscillation, the waves overlap in phase

    • The waves will continue in phase over many orbits giving rise to constructive interference and a standing wave

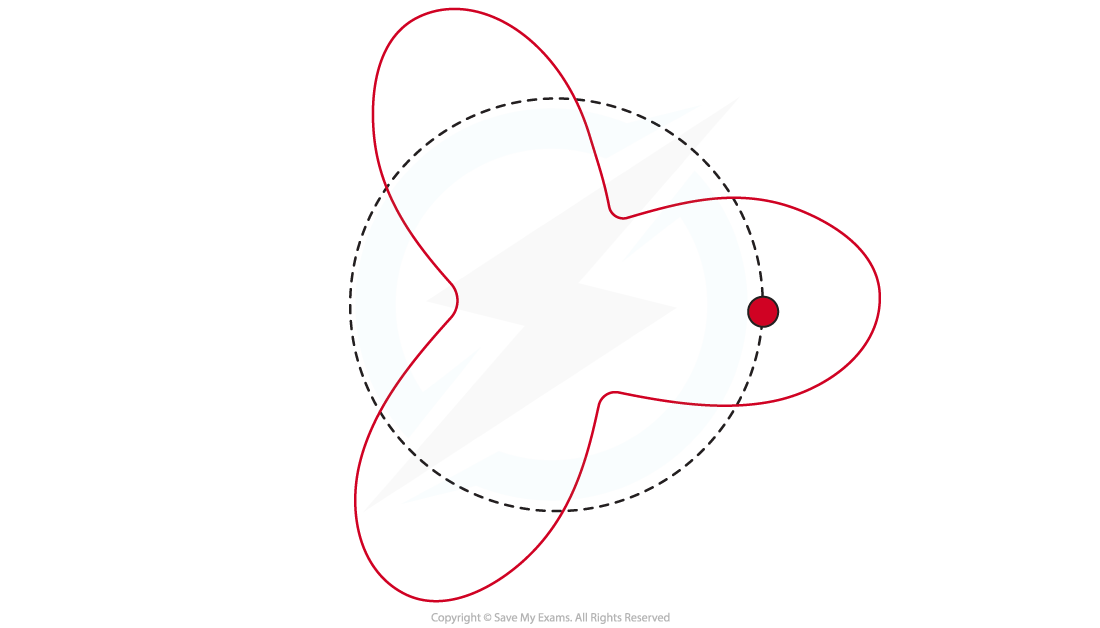

12-1-7-de-broglie-matter-wave-for-an-electron-4-ib-hl

de Broglie matter wave where 3λ is less than the orbits circumference

2. On completing one oscillation, the waves overlap but they are not in phase

    • In other words, peak overlaps with peak, trough with trough
    • This means that where the waves overlap, destructive interference occurs and as a result, no such electron orbit is allowed

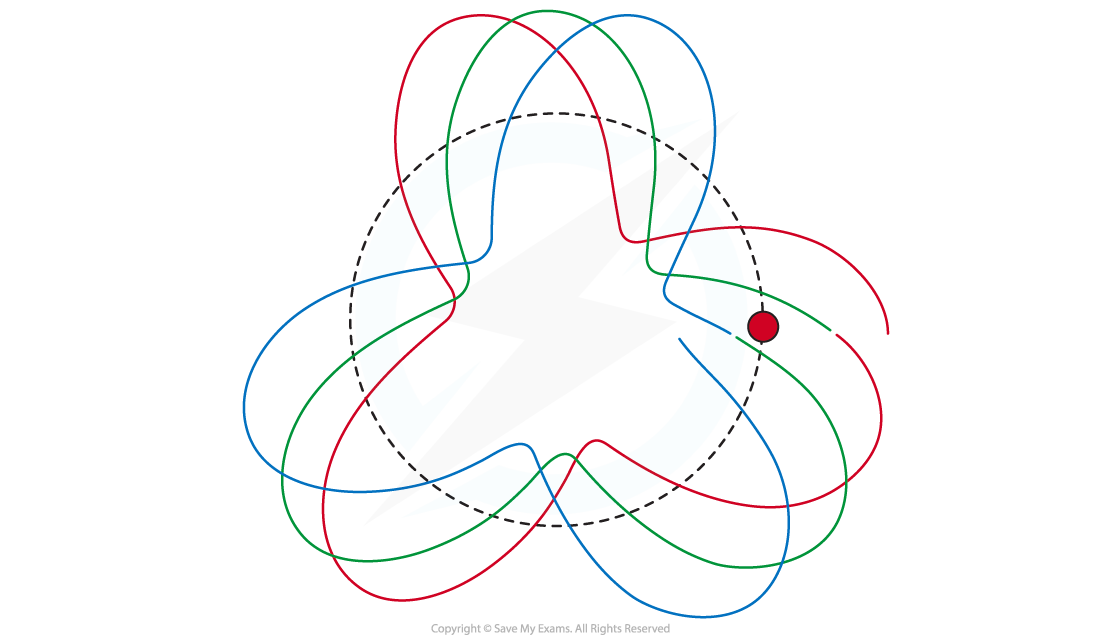

12-1-7-de-broglie-matter-wave-for-an-electron-3-ib-hl

de Broglie matter wave where n = 3. Here the circumference of the circular orbit is 3λ

  • Hence, the circumference of the orbit open parentheses 2 pi r close parentheses must equal an integer number of wavelengths open parentheses n lambda close parentheses for a standing wave to form:

n lambda equals 2 pi r

  • Using the de Broglie relation, lambda equals h over straight p:

n h over straight p equals 2 pi r

  • Since momentum is equal to p equals m v:

n fraction numerator h over denominator m v end fraction equals 2 pi r

  • Rearranging for angular momentum, m v r:

n fraction numerator straight h over denominator 2 straight pi end fraction equals m v r

Bohr Condition

  • The Bohr Condition is given by the relation:

n fraction numerator straight h over denominator 2 straight pi end fraction space equals space m v r

  • Where:
    • n = energy level
    • h = Planck's constant (J s)
    • m = mass (kg)
    • v = velocity (m s–1)
    • r = radius (m)
  • The condition essentially states that an electron can only move in fixed orbits
  • Neils Bohr and Ernest Rutherford found that atomic orbits are only allowed when:
    • The angular momentum of the electron is an integer multiple of fraction numerator h over denominator 2 straight pi end fraction
  • The Bohr condition also leads to the restriction of the electron radius to certain values
  • Another implication is that the discrete or quantised energy of the electron follows this rule:

begin mathsize 14px style E equals negative fraction numerator 13.6 over denominator n squared end fraction end styleeV

Worked Example

Determine the velocity of the electron in the first Bohr orbit of the hydrogen atom (n = 1).

You may use the following values:

  • Mass of an electron = 9.1 × 10−31 kg
  • Radius of the orbit = 0.529 × 10−10 m
  • Planck's constant = 6.63 × 10−34 kg m2 s-1

Step 1: List the known quantities

    • Mass of an electron, m = 9.1 × 10−31 kg
    • Radius of the orbit, r = 0.529 × 10−10 m
    • Planck's constant, h = 6.63 × 10−34 kg m2 s-1

Step 2: Write the Bohr Condition equation and rearrange for velocity, v

size 14px v size 14px space size 14px equals size 14px space fraction numerator size 14px n size 14px h over denominator size 14px 2 size 14px pi size 14px space size 14px space size 14px cross times size 14px space size 14px m size 14px r end fraction

Step 3: Substitute in the values and calculate, v

size 14px v size 14px space size 14px equals size 14px space fraction numerator size 14px 1 size 14px space size 14px cross times size 14px space size 14px left parenthesis size 14px 6 size 14px. size 14px 63 size 14px cross times size 14px space size 14px 10 to the power of size 14px minus size 14px 34 end exponent size 14px right parenthesis over denominator size 14px 2 size 14px pi size 14px space size 14px space size 14px cross times size 14px space size 14px left parenthesis size 14px 9 size 14px. size 14px 1 size 14px space size 14px cross times size 14px space size 14px 10 to the power of size 14px minus size 14px 31 end exponent size 14px right parenthesis size 14px space size 14px cross times size 14px space size 14px left parenthesis size 14px 0 size 14px. size 14px 529 size 14px space size 14px cross times size 14px space size 14px 10 to the power of size 14px minus size 14px 10 end exponent size 14px right parenthesis end fraction size 14px space size 14px equals size 14px space size 14px 2 size 14px. size 14px 2 size 14px space size 14px cross times size 14px space size 14px 10 to the power of size 14px 6 size 14px space size 14px m size 14px space size 14px s to the power of size 14px minus size 14px 1 end exponent

Step 4: Write the final answer

The velocity of the electron = 2.2 × 106 m s-1



  • 1. Measurement & Uncertainties
    • 1.1 Measurements in Physics
      • 1.1.1 SI Units
        • 1.1.2 Using Scientific Notation
          • 1.1.3 Estimating Physical Quantities
          • 1.2 Uncertainties & Errors
            • 1.2.1 Random & Systematic Errors
              • 1.2.2 Calculating Uncertainties
                • 1.2.3 Determining Uncertainties from Graphs
                • 1.3 Vectors & Scalars
                  • 1.3.1 Vector & Scalar Quantities
                    • 1.3.2 Combining & Resolving Vectors
                      • 1.3.3 Solving Vector Problems
                    • 2. Mechanics
                      • 2.1 Motion
                        • 2.1.1 Distance & Displacement
                          • 2.1.2 Speed & Velocity
                            • 2.1.3 Acceleration
                              • 2.1.4 Graphs Describing Motion
                                • 2.1.5 Uniform Acceleration
                                  • 2.1.6 Acceleration of Free Fall Experiment
                                    • 2.1.7 Projectile Motion
                                      • 2.1.8 Terminal Speed
                                      • 2.2 Forces
                                        • 2.2.1 Free-Body Diagrams
                                          • 2.2.2 Newton’s First Law
                                            • 2.2.3 Newton’s Second Law
                                              • 2.2.4 Newton’s Third Law
                                                • 2.2.5 Applying Newton’s Laws of Motion
                                                  • 2.2.6 Friction
                                                  • 2.3 Work, Energy & Power
                                                    • 2.3.1 Kinetic Energy
                                                      • 2.3.2 Gravitational Potential Energy
                                                        • 2.3.3 Elastic Potential Energy
                                                          • 2.3.4 Work Done
                                                            • 2.3.5 Power
                                                              • 2.3.6 Principle of Conservation of Energy
                                                                • 2.3.7 Efficiency
                                                                • 2.4 Momentum & Impulse
                                                                  • 2.4.1 Force & Momentum
                                                                    • 2.4.2 Impulse
                                                                      • 2.4.3 Conservation of Linear Momentum
                                                                        • 2.4.4 Collisions & Explosions
                                                                      • 3. Thermal Physics
                                                                        • 3.1 Thermal Concepts
                                                                          • 3.1.1 Solids, Liquids & Gases
                                                                            • 3.1.2 Temperature
                                                                              • 3.1.3 Internal Energy
                                                                                • 3.1.4 Specific Heat Capacity
                                                                                  • 3.1.5 Specific Latent Heat
                                                                                    • 3.1.6 Phase Change
                                                                                      • 3.1.7 Investigating Thermal Energy
                                                                                      • 3.2 Modelling a Gas
                                                                                        • 3.2.1 Ideal Gas Laws
                                                                                          • 3.2.2 Ideal Gas Equation
                                                                                            • 3.2.3 Kinetic Model of an Ideal Gas
                                                                                              • 3.2.4 Mole Calculations
                                                                                                • 3.2.5 Investigating Gas Laws
                                                                                              • 4. Waves
                                                                                                • 4.1 Oscillations
                                                                                                  • 4.1.1 Properties of Oscillations
                                                                                                    • 4.1.2 Simple Harmonic Oscillations
                                                                                                      • 4.1.3 SHM Graphs
                                                                                                        • 4.1.4 Energy in SHM
                                                                                                        • 4.2 Travelling Waves
                                                                                                          • 4.2.1 Properties of Waves
                                                                                                            • 4.2.2 Transverse & Longitudinal Waves
                                                                                                              • 4.2.3 Electromagnetic Waves
                                                                                                                • 4.2.4 Sound Waves
                                                                                                                • 4.3 Wave Characteristics
                                                                                                                  • 4.3.1 Wavefronts
                                                                                                                    • 4.3.2 Amplitude & Intensity
                                                                                                                      • 4.3.3 Superposition
                                                                                                                        • 4.3.4 Polarisation
                                                                                                                          • 4.3.5 Malus’s Law
                                                                                                                          • 4.4 Wave Behaviour
                                                                                                                            • 4.4.1 Reflection, Refraction & Transmission
                                                                                                                              • 4.4.2 Reflection
                                                                                                                                • 4.4.3 Refraction
                                                                                                                                  • 4.4.4 Determining Refractive Index
                                                                                                                                    • 4.4.5 Single-Slit Diffraction
                                                                                                                                      • 4.4.6 Interference & Path Difference
                                                                                                                                        • 4.4.7 Double-Slit Equation
                                                                                                                                        • 4.5 Standing Waves
                                                                                                                                          • 4.5.1 The Nature of Standing Waves
                                                                                                                                            • 4.5.2 Nodes & Antinodes
                                                                                                                                              • 4.5.3 Boundary Conditions for Standing Waves
                                                                                                                                                • 4.5.4 Harmonics
                                                                                                                                              • 5. Electricity & Magnetism
                                                                                                                                                • 5.1 Electric Fields
                                                                                                                                                  • 5.1.1 Charge & Current
                                                                                                                                                    • 5.1.2 Drift Speed
                                                                                                                                                      • 5.1.3 Potential Difference & DC
                                                                                                                                                        • 5.1.4 Electric Fields
                                                                                                                                                          • 5.1.5 Coulomb’s Law
                                                                                                                                                          • 5.2 Heating Effect of Electric Currents
                                                                                                                                                            • 5.2.1 Circuits
                                                                                                                                                              • 5.2.2 Resistance & Resistors
                                                                                                                                                                • 5.2.3 Kirchhoff’s Circuit Laws
                                                                                                                                                                  • 5.2.4 I-V Characteristics
                                                                                                                                                                    • 5.2.5 Resistivity
                                                                                                                                                                      • 5.2.6 Investigating Resistivity
                                                                                                                                                                        • 5.2.7 Series & Parallel Circuits
                                                                                                                                                                          • 5.2.8 Heating Effect of Current
                                                                                                                                                                            • 5.2.9 Potential Divider Circuits
                                                                                                                                                                            • 5.3 Electric Cells
                                                                                                                                                                              • 5.3.1 Primary & Secondary Cells
                                                                                                                                                                                • 5.3.2 Investigating Electric Cells
                                                                                                                                                                                  • 5.3.3 Terminal Potential Difference
                                                                                                                                                                                    • 5.3.4 Electromotive Force & Internal Resistance
                                                                                                                                                                                    • 5.4 Magnetic Effects of Electric Currents
                                                                                                                                                                                      • 5.4.1 Magnetic Fields
                                                                                                                                                                                        • 5.4.2 Magnetic Force on a Charge
                                                                                                                                                                                          • 5.4.3 Magnetic Force on a Current-Carrying Conductor
                                                                                                                                                                                            • 5.4.4 Solving Problems Involving Magnetic Forces
                                                                                                                                                                                          • 6. Circular Motion & Gravitation
                                                                                                                                                                                            • 6.1 Circular Motion
                                                                                                                                                                                              • 6.1.1 Circular Motion
                                                                                                                                                                                                • 6.1.2 Centripetal Force
                                                                                                                                                                                                  • 6.1.3 Centripetal Acceleration
                                                                                                                                                                                                    • 6.1.4 Applications of Circular Motion
                                                                                                                                                                                                    • 6.2 Newton’s Law of Gravitation
                                                                                                                                                                                                      • 6.2.1 Newton’s Law of Gravitation
                                                                                                                                                                                                        • 6.2.2 Circular Orbits
                                                                                                                                                                                                          • 6.2.3 Gravitational Field Strength
                                                                                                                                                                                                        • 7. Atomic, Nuclear & Particle Physics
                                                                                                                                                                                                          • 7.1 Discrete Energy & Radioactivity
                                                                                                                                                                                                            • 7.1.1 Discrete Energy Levels
                                                                                                                                                                                                              • 7.1.2 Calculating Discrete Energies
                                                                                                                                                                                                                • 7.1.3 Emission & Absorption Spectrum
                                                                                                                                                                                                                  • 7.1.4 Isotopes & Radioactive Decay
                                                                                                                                                                                                                    • 7.1.5 Background Radiation
                                                                                                                                                                                                                      • 7.1.6 Alpha, Beta & Gamma Particles
                                                                                                                                                                                                                        • 7.1.7 Decay Equations
                                                                                                                                                                                                                          • 7.1.8 Half-Life
                                                                                                                                                                                                                            • 7.1.9 Investigating Half-Life
                                                                                                                                                                                                                            • 7.2 Nuclear Reactions
                                                                                                                                                                                                                              • 7.2.1 Atomic Mass Unit
                                                                                                                                                                                                                                • 7.2.2 Mass Defect & Nuclear Binding Energy
                                                                                                                                                                                                                                  • 7.2.3 Nuclear Fission & Fusion
                                                                                                                                                                                                                                    • 7.2.4 Binding Energy per Nucleon Curve
                                                                                                                                                                                                                                    • 7.3 The Structure of Matter
                                                                                                                                                                                                                                      • 7.3.1 Discovery of the Nucleus
                                                                                                                                                                                                                                        • 7.3.2 Quarks & Leptons
                                                                                                                                                                                                                                          • 7.3.3 Hadrons, Baryons & Mesons
                                                                                                                                                                                                                                            • 7.3.4 Particle Conservation Laws
                                                                                                                                                                                                                                              • 7.3.5 Fundamental Forces
                                                                                                                                                                                                                                                • 7.3.6 Feynman Diagrams & Confinement
                                                                                                                                                                                                                                                  • 7.3.7 The Standard Model of Particle Physics
                                                                                                                                                                                                                                                • 8. Energy Production
                                                                                                                                                                                                                                                  • 8.1 Energy Sources
                                                                                                                                                                                                                                                    • 8.1.1 Specific Energy
                                                                                                                                                                                                                                                      • 8.1.2 Sankey Diagrams
                                                                                                                                                                                                                                                        • 8.1.3 Primary & Secondary Energy Sources
                                                                                                                                                                                                                                                          • 8.1.4 Energy Resources
                                                                                                                                                                                                                                                            • 8.1.5 Energy Generation
                                                                                                                                                                                                                                                              • 8.1.6 Safety Issues in Nuclear Power
                                                                                                                                                                                                                                                              • 8.2 Thermal Energy Transfer
                                                                                                                                                                                                                                                                • 8.2.1 Conduction, Convection & Thermal Radiation
                                                                                                                                                                                                                                                                  • 8.2.2 Black-Body Radiation
                                                                                                                                                                                                                                                                    • 8.2.3 The Solar Constant, Albedo & Emissivity
                                                                                                                                                                                                                                                                      • 8.2.4 The Greenhouse Effect
                                                                                                                                                                                                                                                                        • 8.2.5 Earth's Surface–Atmosphere System
                                                                                                                                                                                                                                                                      • 9. Wave Phenomena (HL only)
                                                                                                                                                                                                                                                                        • 9.1 Simple Harmonic Motion
                                                                                                                                                                                                                                                                          • 9.1.1 The Defining Equation of SHM
                                                                                                                                                                                                                                                                            • 9.1.2 Energy Changes in SHM
                                                                                                                                                                                                                                                                              • 9.1.3 Calculating Energy Changes in SHM
                                                                                                                                                                                                                                                                                • 9.1.4 Examples of SHM
                                                                                                                                                                                                                                                                                • 9.2 Single-Slit Diffraction
                                                                                                                                                                                                                                                                                  • 9.2.1 The Nature of Single-Slit Diffraction
                                                                                                                                                                                                                                                                                    • 9.2.2 Intensity of Interference Maxima & Minima
                                                                                                                                                                                                                                                                                    • 9.3 Interference
                                                                                                                                                                                                                                                                                      • 9.3.1 Young’s Double-Slit Experiment
                                                                                                                                                                                                                                                                                        • 9.3.2 Two-Slit Interference Patterns
                                                                                                                                                                                                                                                                                          • 9.3.3 Diffraction Grating Patterns
                                                                                                                                                                                                                                                                                            • 9.3.4 The Diffraction Grating Equation
                                                                                                                                                                                                                                                                                              • 9.3.5 Thin Film Interference
                                                                                                                                                                                                                                                                                              • 9.4 Resolution
                                                                                                                                                                                                                                                                                                • 9.4.1 The Rayleigh Criterion
                                                                                                                                                                                                                                                                                                  • 9.4.2 Rayleigh Criterion Calculations
                                                                                                                                                                                                                                                                                                    • 9.4.3 Resolvance of Diffraction Gratings
                                                                                                                                                                                                                                                                                                    • 9.5 Doppler Effect
                                                                                                                                                                                                                                                                                                      • 9.5.1 The Doppler Effect
                                                                                                                                                                                                                                                                                                        • 9.5.2 Uses of The Doppler Effect
                                                                                                                                                                                                                                                                                                          • 9.5.3 The Doppler Equation
                                                                                                                                                                                                                                                                                                        • 10. Fields (HL only)
                                                                                                                                                                                                                                                                                                          • 10.1 Describing Fields
                                                                                                                                                                                                                                                                                                            • 10.1.1 Gravitational & Electrostatic Fields
                                                                                                                                                                                                                                                                                                              • 10.1.2 Gravitational & Electrostatic Field Lines
                                                                                                                                                                                                                                                                                                                • 10.1.3 Gravitational & Electrostatic Potential
                                                                                                                                                                                                                                                                                                                  • 10.1.4 Equipotential Surfaces
                                                                                                                                                                                                                                                                                                                  • 10.2 Fields at Work
                                                                                                                                                                                                                                                                                                                    • 10.2.1 Potential & Potential Energy
                                                                                                                                                                                                                                                                                                                      • 10.2.2 Potential Energy Calculations
                                                                                                                                                                                                                                                                                                                        • 10.2.3 Potential Gradient & Difference
                                                                                                                                                                                                                                                                                                                          • 10.2.4 Potential in a Charged Sphere
                                                                                                                                                                                                                                                                                                                            • 10.2.5 Escape Speed
                                                                                                                                                                                                                                                                                                                              • 10.2.6 Orbital Motion, Speed & Energy
                                                                                                                                                                                                                                                                                                                                • 10.2.7 Forces & Inverse-Square Law Behaviour
                                                                                                                                                                                                                                                                                                                                  • 10.2.8 Forces on Charges & Masses
                                                                                                                                                                                                                                                                                                                                • 11. Electromagnetic Induction (HL only)
                                                                                                                                                                                                                                                                                                                                  • 11.1 Electromagnetic Induction
                                                                                                                                                                                                                                                                                                                                    • 11.1.1 Emf, Magnetic Flux & Magnetic Flux Linkage
                                                                                                                                                                                                                                                                                                                                      • 11.1.2 Induced Emf
                                                                                                                                                                                                                                                                                                                                        • 11.1.3 Faraday’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.1.4 Lenz’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.2 Power Generation & Transmission
                                                                                                                                                                                                                                                                                                                                            • 11.2.1 AC Generators
                                                                                                                                                                                                                                                                                                                                              • 11.2.2 Root-Mean-Square Current & Voltage
                                                                                                                                                                                                                                                                                                                                                • 11.2.3 Step-Up & Step-Down Transformers
                                                                                                                                                                                                                                                                                                                                                  • 11.2.4 Transformer Calculations
                                                                                                                                                                                                                                                                                                                                                    • 11.2.5 AC Electrical Power Distribution
                                                                                                                                                                                                                                                                                                                                                      • 11.2.6 Diode Bridges
                                                                                                                                                                                                                                                                                                                                                        • 11.2.7 Investigating Diode Bridges
                                                                                                                                                                                                                                                                                                                                                          • 11.2.8 Rectification
                                                                                                                                                                                                                                                                                                                                                            • 11.2.9 Capacitors & Diode Bridges
                                                                                                                                                                                                                                                                                                                                                            • 11.3 Capacitance
                                                                                                                                                                                                                                                                                                                                                              • 11.3.1 Capacitance
                                                                                                                                                                                                                                                                                                                                                                • 11.3.2 Dielectric Materials
                                                                                                                                                                                                                                                                                                                                                                  • 11.3.3 Capacitors in Series & Parallel
                                                                                                                                                                                                                                                                                                                                                                    • 11.3.4 The Time Constant
                                                                                                                                                                                                                                                                                                                                                                      • 11.3.5 Energy Stored in a Capacitor
                                                                                                                                                                                                                                                                                                                                                                        • 11.3.6 Capacitor Charge & Discharge
                                                                                                                                                                                                                                                                                                                                                                          • 11.3.7 Discharge Calculations
                                                                                                                                                                                                                                                                                                                                                                        • 12. Quantum & Nuclear Physics (HL only)
                                                                                                                                                                                                                                                                                                                                                                          • 12.1 The Interaction of Matter with Radiation
                                                                                                                                                                                                                                                                                                                                                                            • 12.1.1 Photons
                                                                                                                                                                                                                                                                                                                                                                              • 12.1.2 The Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                • 12.1.3 Observing the Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                  • 12.1.4 Solving Photoelectric Problems
                                                                                                                                                                                                                                                                                                                                                                                    • 12.1.5 Matter Waves
                                                                                                                                                                                                                                                                                                                                                                                      • 12.1.6 Pair Production & Annihilation
                                                                                                                                                                                                                                                                                                                                                                                        • 12.1.7 Quantization of Angular Momentum
                                                                                                                                                                                                                                                                                                                                                                                          • 12.1.8 The Wave Function
                                                                                                                                                                                                                                                                                                                                                                                            • 12.1.9 The Uncertainty Principle
                                                                                                                                                                                                                                                                                                                                                                                              • 12.1.10 Tunnelling
                                                                                                                                                                                                                                                                                                                                                                                              • 12.2 Nuclear Physics
                                                                                                                                                                                                                                                                                                                                                                                                • 12.2.1 Rutherford Scattering & Nuclear Radius
                                                                                                                                                                                                                                                                                                                                                                                                  • 12.2.2 Nuclear Scattering
                                                                                                                                                                                                                                                                                                                                                                                                    • 12.2.3 Deviations from Rutherford Scattering
                                                                                                                                                                                                                                                                                                                                                                                                      • 12.2.4 Nuclear Energy Levels
                                                                                                                                                                                                                                                                                                                                                                                                        • 12.2.5 The Neutrino
                                                                                                                                                                                                                                                                                                                                                                                                          • 12.2.6 The Law of Radioactive Decay
                                                                                                                                                                                                                                                                                                                                                                                                            • 12.2.7 Measuring Half-Life
                                                                                                                                                                                                                                                                                                                                                                                                          Katie Moon

                                                                                                                                                                                                                                                                                                                                                                                                          Author: Katie

                                                                                                                                                                                                                                                                                                                                                                                                          Katie has always been passionate about the sciences, and completed a degree in Astrophysics at Sheffield University. She decided that she wanted to inspire other young people, so moved to Bristol to complete a PGCE in Secondary Science. She particularly loves creating fun and absorbing materials to help students achieve their exam potential.


                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
