11.1.1 Emf, Magnetic Flux & Magnetic Flux Linkage


Emf, Magnetic Flux & Magnetic Flux Linkage

Electromagnetic Induction

  • When a conducting wire moves through a magnetic field, a potential difference is created along the wire
    • If the wire is part of a closed circuit then an e.m.f is induced
  • We can produce a current in a wire simply by moving a magnet near to it
    • Electrical energy is produced by the system since work is done on the wire by moving the magnet relative to the free electrons within it
  • Therefore, electromagnetic induction is the term applied when an e.m.f. is induced in a closed circuit conductor due to it moving through a magnetic field
    • Examples are a flat coil or a solenoid

  • Electromagnetic induction happens when a conductor cuts through magnetic field lines
    • The amount of e.m.f induced is determined by the magnetic flux and the area on which the magnetic field acts

Magnetic Flux

  • Magnetic flux is defined as:

The product of the magnetic flux density and the cross-sectional area perpendicular to the direction of the magnetic flux density

  • Magnetic flux when the field and motion are at 90o can be calculated using the simple equation:
Φ = BA
    • Where:
      • Φ = magnetic flux (Wb)
      • B = magnetic flux density(T)
      • A = cross-sectional area (m2)

Changing Angle

  • The flux is the total magnetic field that passes through a given area
    • It is a maximum when the magnetic field lines are perpendicular to the plane of the area
    • It is zero when the magnetic field lines are parallel to the plane of the area

  • For a coil, the amount of magnetic flux varies as the coil rotates within the field

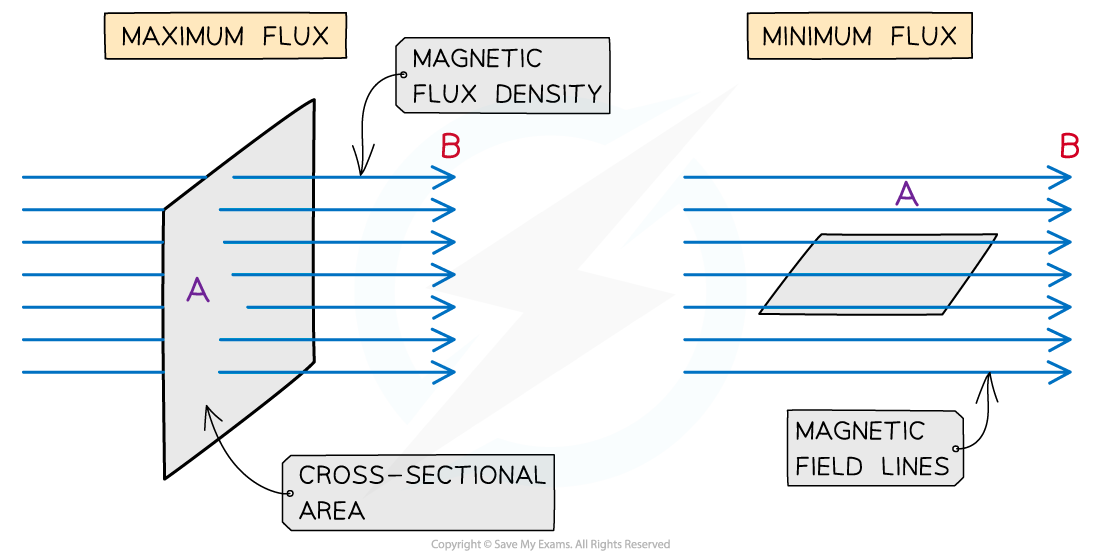

Magnetic flux diagram, downloadable AS & A Level Physics revision notes

The magnetic flux is maximum when the magnetic field lines and the area they are travelling through are perpendicular



  • In other words, magnetic flux is the number of magnetic field lines through a given area
  • When the magnetic field lines are not completely perpendicular to the area A, then the component of magnetic flux density B is perpendicular to the area is taken
  • The equation then becomes:

Φ = BA cos(θ)

  • Where:
    • Φ = magnetic flux (Wb)
    • B = magnetic flux density (T)
    • A = cross-sectional area (m2)
    • θ = angle between magnetic field lines and the line perpendicular to the plane of the area (often called the normal line) (degrees)

  • This means the magnetic flux is:
    • Maximum = BA when cos(θ) =1 therefore θ = 0o. The magnetic field lines are perpendicular to the plane of the area
    • Minimum = 0 when cos(θ) = 0 therefore θ = 90o. The magnetic fields lines are parallel to the plane of the area

Worked Example

An aluminium window frame has width of 40 cm and length of 73 cm.

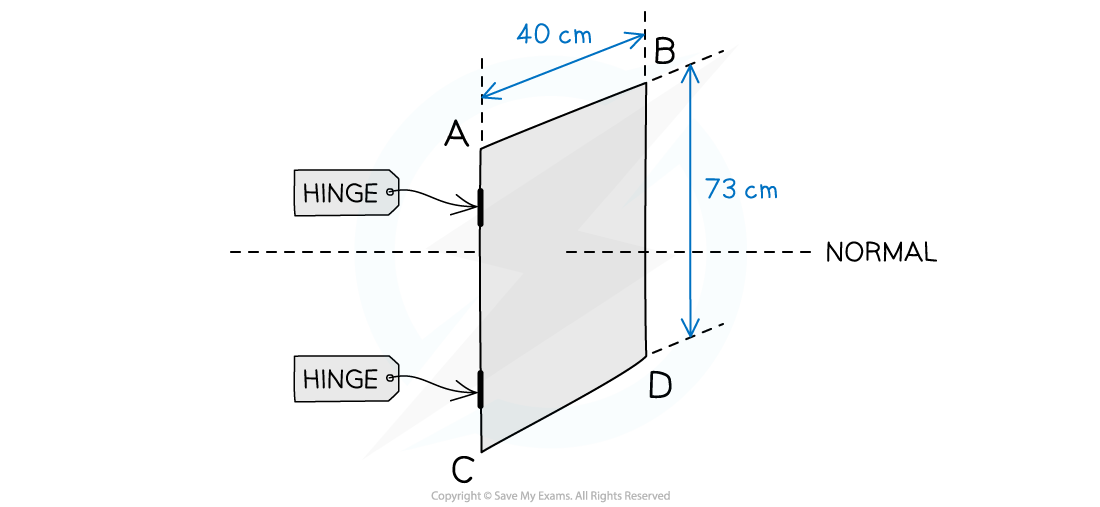

WE Calculating Magnetic Flux question image, downloadable AS & A Level Physics revision notes

The frame is hinged along the vertical edge AC. When the window is closed, the frame is normal to the Earth's magnetic field with magnetic flux density 1.8 × 10-5 T.

a) Calculate the magnetic flux through the window when it is closed.

b) Sketch the graph of the magnetic flux against angle between the field lines and the normal when the window is opened and rotated by 180°

Part (a)

Step 1: Write out the known quantities
    • Cross-sectional area, A = 40 cm × 73 cm = (40 × 10-2) × (73 × 10−2) = 0.292 m2
    • Magnetic flux density, B = 1.8 × 10−5 T

Step 2: Write down the equation for magnetic flux

Φ = BA

Step 3: Substitute in values

Φ = (1.8 × 10−5) × 0.292 = 5.256 × 10−6 = 5.3 × 10−6 Wb

Part (b)

  • The magnetic flux will be at a minimum when the window is opened by 90° and a maximum when fully closed or opened to 180°
  • This is shown by the graph:

WE Calculating Magnetic Flux graph solution, downloadable AS & A Level Physics revision notes

Magnetic Flux Linkage

  • More coils in a wire mean a larger e.m.f is induced
  • The magnetic flux linkage is a quantity commonly used for solenoids which are made of N turns of wire
  • The flux linkage is defined as:

The product of the magnetic flux and the number of turns of the coil

  • It is calculated using the equation:

Magnetic flux linkage = ΦN = BAN

  • Where:
    • Φ = magnetic flux (Wb)
    • N = number of turns of the coil
    • B = magnetic flux density (T)
    • A = cross-sectional area (m2)



  • The flux linkage ΦN has the units of Weber turns (Wb turns)
  • An e.m.f is induced in a circuit when the magnetic flux linkage changes with respect to time
  • This means an e.m.f is induced when there is:
    • A changing magnetic flux density B
    • A changing cross-sectional area A
    • A change in angle θ

Flux Linkage, downloadable AS & A Level Physics revision notes

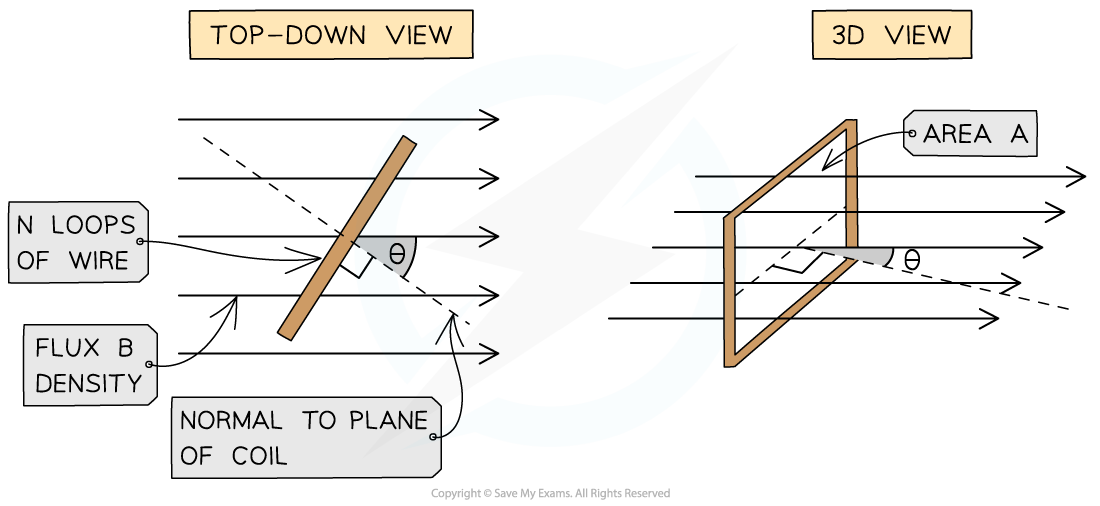

The magnetic flux through a rectangular coil decreases as the angle between the field lines and plane decrease

  • Magnetic flux linkage also changes with the rotation of the coil
    • It is at a maximum when the field lines are perpendicular to the plane of the area they are passing through
  • Therefore, the component of the flux density which is perpendicular is equal to:

ΦN = BAN cos(θ)

  • Where:
    • N = number of turns of the coil

Exam Tip

The vocabulary in this topic; induced emf, induced current, magnetic flux, magnetic flux density, can be confusing. Until you are absolutely clear which is which, you will struggle to answer questions using the correct equation. Spend some time with your revision notes making sure you are secure with using and understanding the terms.



  • 1. Measurement & Uncertainties
    • 1.1 Measurements in Physics
      • 1.1.1 SI Units
        • 1.1.2 Using Scientific Notation
          • 1.1.3 Estimating Physical Quantities
          • 1.2 Uncertainties & Errors
            • 1.2.1 Random & Systematic Errors
              • 1.2.2 Calculating Uncertainties
                • 1.2.3 Determining Uncertainties from Graphs
                • 1.3 Vectors & Scalars
                  • 1.3.1 Vector & Scalar Quantities
                    • 1.3.2 Combining & Resolving Vectors
                      • 1.3.3 Solving Vector Problems
                    • 2. Mechanics
                      • 2.1 Motion
                        • 2.1.1 Distance & Displacement
                          • 2.1.2 Speed & Velocity
                            • 2.1.3 Acceleration
                              • 2.1.4 Graphs Describing Motion
                                • 2.1.5 Uniform Acceleration
                                  • 2.1.6 Acceleration of Free Fall Experiment
                                    • 2.1.7 Projectile Motion
                                      • 2.1.8 Terminal Speed
                                      • 2.2 Forces
                                        • 2.2.1 Free-Body Diagrams
                                          • 2.2.2 Newton’s First Law
                                            • 2.2.3 Newton’s Second Law
                                              • 2.2.4 Newton’s Third Law
                                                • 2.2.5 Applying Newton’s Laws of Motion
                                                  • 2.2.6 Friction
                                                  • 2.3 Work, Energy & Power
                                                    • 2.3.1 Kinetic Energy
                                                      • 2.3.2 Gravitational Potential Energy
                                                        • 2.3.3 Elastic Potential Energy
                                                          • 2.3.4 Work Done
                                                            • 2.3.5 Power
                                                              • 2.3.6 Principle of Conservation of Energy
                                                                • 2.3.7 Efficiency
                                                                • 2.4 Momentum & Impulse
                                                                  • 2.4.1 Force & Momentum
                                                                    • 2.4.2 Impulse
                                                                      • 2.4.3 Conservation of Linear Momentum
                                                                        • 2.4.4 Collisions & Explosions
                                                                      • 3. Thermal Physics
                                                                        • 3.1 Thermal Concepts
                                                                          • 3.1.1 Solids, Liquids & Gases
                                                                            • 3.1.2 Temperature
                                                                              • 3.1.3 Internal Energy
                                                                                • 3.1.4 Specific Heat Capacity
                                                                                  • 3.1.5 Specific Latent Heat
                                                                                    • 3.1.6 Phase Change
                                                                                      • 3.1.7 Investigating Thermal Energy
                                                                                      • 3.2 Modelling a Gas
                                                                                        • 3.2.1 Ideal Gas Laws
                                                                                          • 3.2.2 Ideal Gas Equation
                                                                                            • 3.2.3 Kinetic Model of an Ideal Gas
                                                                                              • 3.2.4 Mole Calculations
                                                                                                • 3.2.5 Investigating Gas Laws
                                                                                              • 4. Waves
                                                                                                • 4.1 Oscillations
                                                                                                  • 4.1.1 Properties of Oscillations
                                                                                                    • 4.1.2 Simple Harmonic Oscillations
                                                                                                      • 4.1.3 SHM Graphs
                                                                                                        • 4.1.4 Energy in SHM
                                                                                                        • 4.2 Travelling Waves
                                                                                                          • 4.2.1 Properties of Waves
                                                                                                            • 4.2.2 Transverse & Longitudinal Waves
                                                                                                              • 4.2.3 Electromagnetic Waves
                                                                                                                • 4.2.4 Sound Waves
                                                                                                                • 4.3 Wave Characteristics
                                                                                                                  • 4.3.1 Wavefronts
                                                                                                                    • 4.3.2 Amplitude & Intensity
                                                                                                                      • 4.3.3 Superposition
                                                                                                                        • 4.3.4 Polarisation
                                                                                                                          • 4.3.5 Malus’s Law
                                                                                                                          • 4.4 Wave Behaviour
                                                                                                                            • 4.4.1 Reflection, Refraction & Transmission
                                                                                                                              • 4.4.2 Reflection
                                                                                                                                • 4.4.3 Refraction
                                                                                                                                  • 4.4.4 Determining Refractive Index
                                                                                                                                    • 4.4.5 Single-Slit Diffraction
                                                                                                                                      • 4.4.6 Interference & Path Difference
                                                                                                                                        • 4.4.7 Double-Slit Equation
                                                                                                                                        • 4.5 Standing Waves
                                                                                                                                          • 4.5.1 The Nature of Standing Waves
                                                                                                                                            • 4.5.2 Nodes & Antinodes
                                                                                                                                              • 4.5.3 Boundary Conditions for Standing Waves
                                                                                                                                                • 4.5.4 Harmonics
                                                                                                                                              • 5. Electricity & Magnetism
                                                                                                                                                • 5.1 Electric Fields
                                                                                                                                                  • 5.1.1 Charge & Current
                                                                                                                                                    • 5.1.2 Drift Speed
                                                                                                                                                      • 5.1.3 Potential Difference & DC
                                                                                                                                                        • 5.1.4 Electric Fields
                                                                                                                                                          • 5.1.5 Coulomb’s Law
                                                                                                                                                          • 5.2 Heating Effect of Electric Currents
                                                                                                                                                            • 5.2.1 Circuits
                                                                                                                                                              • 5.2.2 Resistance & Resistors
                                                                                                                                                                • 5.2.3 Kirchhoff’s Circuit Laws
                                                                                                                                                                  • 5.2.4 I-V Characteristics
                                                                                                                                                                    • 5.2.5 Resistivity
                                                                                                                                                                      • 5.2.6 Investigating Resistivity
                                                                                                                                                                        • 5.2.7 Series & Parallel Circuits
                                                                                                                                                                          • 5.2.8 Heating Effect of Current
                                                                                                                                                                            • 5.2.9 Potential Divider Circuits
                                                                                                                                                                            • 5.3 Electric Cells
                                                                                                                                                                              • 5.3.1 Primary & Secondary Cells
                                                                                                                                                                                • 5.3.2 Investigating Electric Cells
                                                                                                                                                                                  • 5.3.3 Terminal Potential Difference
                                                                                                                                                                                    • 5.3.4 Electromotive Force & Internal Resistance
                                                                                                                                                                                    • 5.4 Magnetic Effects of Electric Currents
                                                                                                                                                                                      • 5.4.1 Magnetic Fields
                                                                                                                                                                                        • 5.4.2 Magnetic Force on a Charge
                                                                                                                                                                                          • 5.4.3 Magnetic Force on a Current-Carrying Conductor
                                                                                                                                                                                            • 5.4.4 Solving Problems Involving Magnetic Forces
                                                                                                                                                                                          • 6. Circular Motion & Gravitation
                                                                                                                                                                                            • 6.1 Circular Motion
                                                                                                                                                                                              • 6.1.1 Circular Motion
                                                                                                                                                                                                • 6.1.2 Centripetal Force
                                                                                                                                                                                                  • 6.1.3 Centripetal Acceleration
                                                                                                                                                                                                    • 6.1.4 Applications of Circular Motion
                                                                                                                                                                                                    • 6.2 Newton’s Law of Gravitation
                                                                                                                                                                                                      • 6.2.1 Newton’s Law of Gravitation
                                                                                                                                                                                                        • 6.2.2 Circular Orbits
                                                                                                                                                                                                          • 6.2.3 Gravitational Field Strength
                                                                                                                                                                                                        • 7. Atomic, Nuclear & Particle Physics
                                                                                                                                                                                                          • 7.1 Discrete Energy & Radioactivity
                                                                                                                                                                                                            • 7.1.1 Discrete Energy Levels
                                                                                                                                                                                                              • 7.1.2 Calculating Discrete Energies
                                                                                                                                                                                                                • 7.1.3 Emission & Absorption Spectrum
                                                                                                                                                                                                                  • 7.1.4 Isotopes & Radioactive Decay
                                                                                                                                                                                                                    • 7.1.5 Background Radiation
                                                                                                                                                                                                                      • 7.1.6 Alpha, Beta & Gamma Particles
                                                                                                                                                                                                                        • 7.1.7 Decay Equations
                                                                                                                                                                                                                          • 7.1.8 Half-Life
                                                                                                                                                                                                                            • 7.1.9 Investigating Half-Life
                                                                                                                                                                                                                            • 7.2 Nuclear Reactions
                                                                                                                                                                                                                              • 7.2.1 Atomic Mass Unit
                                                                                                                                                                                                                                • 7.2.2 Mass Defect & Nuclear Binding Energy
                                                                                                                                                                                                                                  • 7.2.3 Nuclear Fission & Fusion
                                                                                                                                                                                                                                    • 7.2.4 Binding Energy per Nucleon Curve
                                                                                                                                                                                                                                    • 7.3 The Structure of Matter
                                                                                                                                                                                                                                      • 7.3.1 Discovery of the Nucleus
                                                                                                                                                                                                                                        • 7.3.2 Quarks & Leptons
                                                                                                                                                                                                                                          • 7.3.3 Hadrons, Baryons & Mesons
                                                                                                                                                                                                                                            • 7.3.4 Particle Conservation Laws
                                                                                                                                                                                                                                              • 7.3.5 Fundamental Forces
                                                                                                                                                                                                                                                • 7.3.6 Feynman Diagrams & Confinement
                                                                                                                                                                                                                                                  • 7.3.7 The Standard Model of Particle Physics
                                                                                                                                                                                                                                                • 8. Energy Production
                                                                                                                                                                                                                                                  • 8.1 Energy Sources
                                                                                                                                                                                                                                                    • 8.1.1 Specific Energy
                                                                                                                                                                                                                                                      • 8.1.2 Sankey Diagrams
                                                                                                                                                                                                                                                        • 8.1.3 Primary & Secondary Energy Sources
                                                                                                                                                                                                                                                          • 8.1.4 Energy Resources
                                                                                                                                                                                                                                                            • 8.1.5 Energy Generation
                                                                                                                                                                                                                                                              • 8.1.6 Safety Issues in Nuclear Power
                                                                                                                                                                                                                                                              • 8.2 Thermal Energy Transfer
                                                                                                                                                                                                                                                                • 8.2.1 Conduction, Convection & Thermal Radiation
                                                                                                                                                                                                                                                                  • 8.2.2 Black-Body Radiation
                                                                                                                                                                                                                                                                    • 8.2.3 The Solar Constant, Albedo & Emissivity
                                                                                                                                                                                                                                                                      • 8.2.4 The Greenhouse Effect
                                                                                                                                                                                                                                                                        • 8.2.5 Earth's Surface–Atmosphere System
                                                                                                                                                                                                                                                                      • 9. Wave Phenomena (HL only)
                                                                                                                                                                                                                                                                        • 9.1 Simple Harmonic Motion
                                                                                                                                                                                                                                                                          • 9.1.1 The Defining Equation of SHM
                                                                                                                                                                                                                                                                            • 9.1.2 Energy Changes in SHM
                                                                                                                                                                                                                                                                              • 9.1.3 Calculating Energy Changes in SHM
                                                                                                                                                                                                                                                                                • 9.1.4 Examples of SHM
                                                                                                                                                                                                                                                                                • 9.2 Single-Slit Diffraction
                                                                                                                                                                                                                                                                                  • 9.2.1 The Nature of Single-Slit Diffraction
                                                                                                                                                                                                                                                                                    • 9.2.2 Intensity of Interference Maxima & Minima
                                                                                                                                                                                                                                                                                    • 9.3 Interference
                                                                                                                                                                                                                                                                                      • 9.3.1 Young’s Double-Slit Experiment
                                                                                                                                                                                                                                                                                        • 9.3.2 Two-Slit Interference Patterns
                                                                                                                                                                                                                                                                                          • 9.3.3 Diffraction Grating Patterns
                                                                                                                                                                                                                                                                                            • 9.3.4 The Diffraction Grating Equation
                                                                                                                                                                                                                                                                                              • 9.3.5 Thin Film Interference
                                                                                                                                                                                                                                                                                              • 9.4 Resolution
                                                                                                                                                                                                                                                                                                • 9.4.1 The Rayleigh Criterion
                                                                                                                                                                                                                                                                                                  • 9.4.2 Rayleigh Criterion Calculations
                                                                                                                                                                                                                                                                                                    • 9.4.3 Resolvance of Diffraction Gratings
                                                                                                                                                                                                                                                                                                    • 9.5 Doppler Effect
                                                                                                                                                                                                                                                                                                      • 9.5.1 The Doppler Effect
                                                                                                                                                                                                                                                                                                        • 9.5.2 Uses of The Doppler Effect
                                                                                                                                                                                                                                                                                                          • 9.5.3 The Doppler Equation
                                                                                                                                                                                                                                                                                                        • 10. Fields (HL only)
                                                                                                                                                                                                                                                                                                          • 10.1 Describing Fields
                                                                                                                                                                                                                                                                                                            • 10.1.1 Gravitational & Electrostatic Fields
                                                                                                                                                                                                                                                                                                              • 10.1.2 Gravitational & Electrostatic Field Lines
                                                                                                                                                                                                                                                                                                                • 10.1.3 Gravitational & Electrostatic Potential
                                                                                                                                                                                                                                                                                                                  • 10.1.4 Equipotential Surfaces
                                                                                                                                                                                                                                                                                                                  • 10.2 Fields at Work
                                                                                                                                                                                                                                                                                                                    • 10.2.1 Potential & Potential Energy
                                                                                                                                                                                                                                                                                                                      • 10.2.2 Potential Energy Calculations
                                                                                                                                                                                                                                                                                                                        • 10.2.3 Potential Gradient & Difference
                                                                                                                                                                                                                                                                                                                          • 10.2.4 Potential in a Charged Sphere
                                                                                                                                                                                                                                                                                                                            • 10.2.5 Escape Speed
                                                                                                                                                                                                                                                                                                                              • 10.2.6 Orbital Motion, Speed & Energy
                                                                                                                                                                                                                                                                                                                                • 10.2.7 Forces & Inverse-Square Law Behaviour
                                                                                                                                                                                                                                                                                                                                  • 10.2.8 Forces on Charges & Masses
                                                                                                                                                                                                                                                                                                                                • 11. Electromagnetic Induction (HL only)
                                                                                                                                                                                                                                                                                                                                  • 11.1 Electromagnetic Induction
                                                                                                                                                                                                                                                                                                                                    • 11.1.1 Emf, Magnetic Flux & Magnetic Flux Linkage
                                                                                                                                                                                                                                                                                                                                      • 11.1.2 Induced Emf
                                                                                                                                                                                                                                                                                                                                        • 11.1.3 Faraday’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.1.4 Lenz’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.2 Power Generation & Transmission
                                                                                                                                                                                                                                                                                                                                            • 11.2.1 AC Generators
                                                                                                                                                                                                                                                                                                                                              • 11.2.2 Root-Mean-Square Current & Voltage
                                                                                                                                                                                                                                                                                                                                                • 11.2.3 Step-Up & Step-Down Transformers
                                                                                                                                                                                                                                                                                                                                                  • 11.2.4 Transformer Calculations
                                                                                                                                                                                                                                                                                                                                                    • 11.2.5 AC Electrical Power Distribution
                                                                                                                                                                                                                                                                                                                                                      • 11.2.6 Diode Bridges
                                                                                                                                                                                                                                                                                                                                                        • 11.2.7 Investigating Diode Bridges
                                                                                                                                                                                                                                                                                                                                                          • 11.2.8 Rectification
                                                                                                                                                                                                                                                                                                                                                            • 11.2.9 Capacitors & Diode Bridges
                                                                                                                                                                                                                                                                                                                                                            • 11.3 Capacitance
                                                                                                                                                                                                                                                                                                                                                              • 11.3.1 Capacitance
                                                                                                                                                                                                                                                                                                                                                                • 11.3.2 Dielectric Materials
                                                                                                                                                                                                                                                                                                                                                                  • 11.3.3 Capacitors in Series & Parallel
                                                                                                                                                                                                                                                                                                                                                                    • 11.3.4 The Time Constant
                                                                                                                                                                                                                                                                                                                                                                      • 11.3.5 Energy Stored in a Capacitor
                                                                                                                                                                                                                                                                                                                                                                        • 11.3.6 Capacitor Charge & Discharge
                                                                                                                                                                                                                                                                                                                                                                          • 11.3.7 Discharge Calculations
                                                                                                                                                                                                                                                                                                                                                                        • 12. Quantum & Nuclear Physics (HL only)
                                                                                                                                                                                                                                                                                                                                                                          • 12.1 The Interaction of Matter with Radiation
                                                                                                                                                                                                                                                                                                                                                                            • 12.1.1 Photons
                                                                                                                                                                                                                                                                                                                                                                              • 12.1.2 The Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                • 12.1.3 Observing the Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                  • 12.1.4 Solving Photoelectric Problems
                                                                                                                                                                                                                                                                                                                                                                                    • 12.1.5 Matter Waves
                                                                                                                                                                                                                                                                                                                                                                                      • 12.1.6 Pair Production & Annihilation
                                                                                                                                                                                                                                                                                                                                                                                        • 12.1.7 Quantization of Angular Momentum
                                                                                                                                                                                                                                                                                                                                                                                          • 12.1.8 The Wave Function
                                                                                                                                                                                                                                                                                                                                                                                            • 12.1.9 The Uncertainty Principle
                                                                                                                                                                                                                                                                                                                                                                                              • 12.1.10 Tunnelling
                                                                                                                                                                                                                                                                                                                                                                                              • 12.2 Nuclear Physics
                                                                                                                                                                                                                                                                                                                                                                                                • 12.2.1 Rutherford Scattering & Nuclear Radius
                                                                                                                                                                                                                                                                                                                                                                                                  • 12.2.2 Nuclear Scattering
                                                                                                                                                                                                                                                                                                                                                                                                    • 12.2.3 Deviations from Rutherford Scattering
                                                                                                                                                                                                                                                                                                                                                                                                      • 12.2.4 Nuclear Energy Levels
                                                                                                                                                                                                                                                                                                                                                                                                        • 12.2.5 The Neutrino
                                                                                                                                                                                                                                                                                                                                                                                                          • 12.2.6 The Law of Radioactive Decay
                                                                                                                                                                                                                                                                                                                                                                                                            • 12.2.7 Measuring Half-Life
                                                                                                                                                                                                                                                                                                                                                                                                          Lindsay

                                                                                                                                                                                                                                                                                                                                                                                                          Author: Lindsay

                                                                                                                                                                                                                                                                                                                                                                                                          Lindsay graduated with First Class Honours from the University of Greenwich and earned her Science Communication MSc at Imperial College London. Now with many years’ experience as a Head of Physics and Examiner for A Level and IGCSE Physics (and Biology!), her love of communicating, educating and Physics has brought her to Save My Exams where she hopes to help as many students as possible on their next steps.


                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
