10.2.6 Orbital Motion, Speed & Energy

Orbital Motion, Speed & Energy

Since most planets and satellites have a near circular orbit, the gravitational force F_G between the sun or another planet provides the centripetal force needed to stay in an orbit
- Both the gravitational force and centripetal force are perpendicular to the direction of travel of the planet
Consider a satellite with mass m orbiting Earth with mass M at a distance r from the centre travelling with linear speed v

F_G = F_circ

Equating the gravitational force to the centripetal force for a planet or satellite in orbit gives:

\frac{G \times M \times m}{r^{2}} = \frac{m \times v^{2}}{r}

The mass of the satellite m will cancel out on both sides to give:

v^{2} = \frac{G \times M}{r}

Where:
- v = linear speed of the mass in orbit (m s^-1)
- G = Newton's Gravitational Constant
- M = mass of the object being orbited (kg)
- r = orbital radius (m)

This means that all satellites, whatever their mass, will travel at the same speed v in a particular orbit radius r
- Since the direction of a planet orbiting in circular motion is constantly changing, the centripetal acceleration acts towards the planet

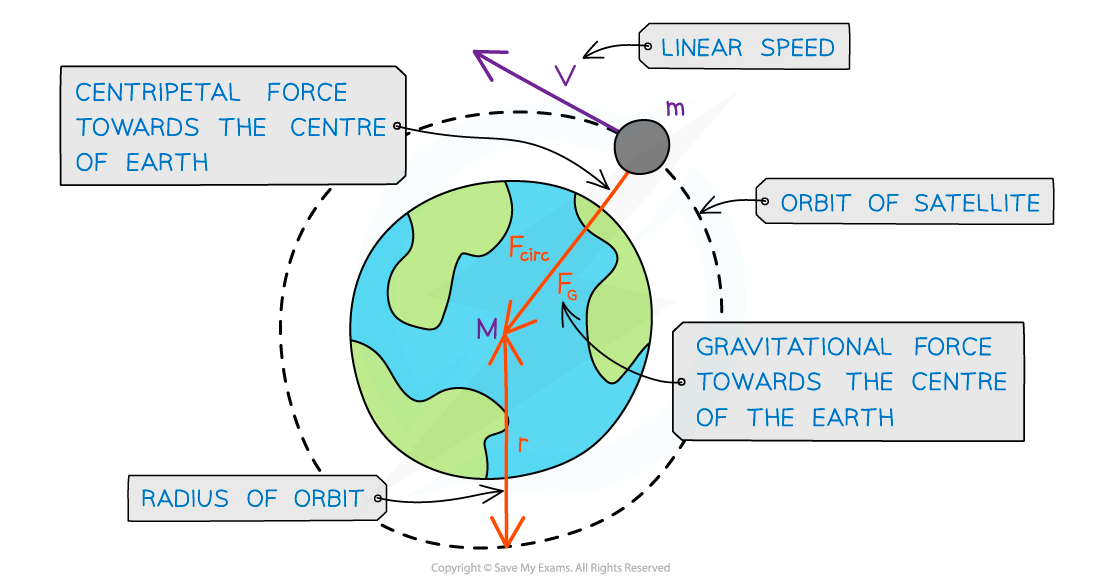

Circular motion satellite, downloadable AS & A Level Physics revision notes

A satellite in orbit around the Earth travels in circular motion

Time Period & Orbital Radius Relation

Since a planet or a satellite is travelling in circular motion when in order, its orbital time period T to travel the circumference of the orbit 2πr, the linear speed v is:

v = \frac{2 \times π \times r}{T}

This is a result of the well-known equation, speed = distance / time and first introduced in the circular motion topic
Substituting the value of the linear speed v from equating the gravitational and centripetal force into the above equation gives:

v^{2} = {(\frac{2 \times π \times r}{T})}^{2} = \frac{G \times M}{r}

Squaring out the brackets and rearranging for T² gives the equation relating the time period T and orbital radius r:

T^{2} = \frac{4 \times π^{2} \times r^{3}}{G \times M}

Where:
- T = time period of the orbit (s)
- r = orbital radius (m)
- G = Newton's Gravitational Constant
- M = mass of the object being orbited (kg)

The equation shows that the orbital period T is related to the radius r of the orbit. This is also known as Kepler’s third law:

For planets or satellites in a circular orbit about the same central body, the square of the time period is proportional to the cube of the radius of the orbit

Kepler’s third law can be summarised as:

T^{2} α r^{3}

Graphical Representation of T² ∝ r³

The relationship between T and r can be shown using a logarithmic plot
- T² ∝ r³
- 2 × log(T) ∝ 3 × log(r)
The graph of log(T) in years against log(r) in AU (astronomical units) for the planets in our solar system is a straight line graph:

Keplers Third Law Graph, downloadable AS & A Level Physics revision notes

The graph does not go through the origin since it has a negative y-intercept
Only the log of both T and r will produce a straight line graph

Worked Example

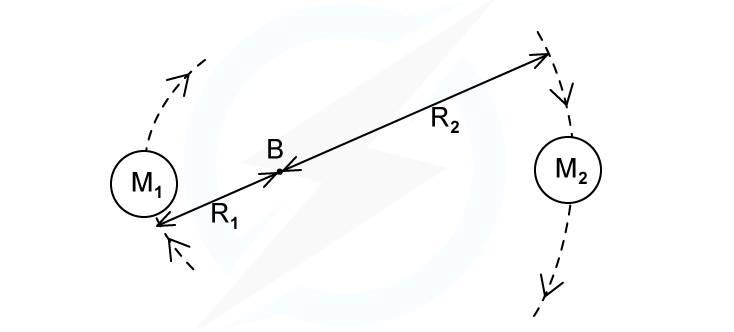

A binary star system constant of two stars orbiting about a fixed point B. The star of mass M₁ has a circular orbit of radius R₁ and mass M₂ has a radius of R₂. Both have linear speed v and an angular speed ⍵ about B.

Worked example - circular orbits in g fields, downloadable AS & A Level Physics revision notes

State the following formula, in terms of G, M₂, R₁ and R₂

(i) The angular speed ⍵ of M₁

(ii) The time period T for each star in terms of angular speed ⍵

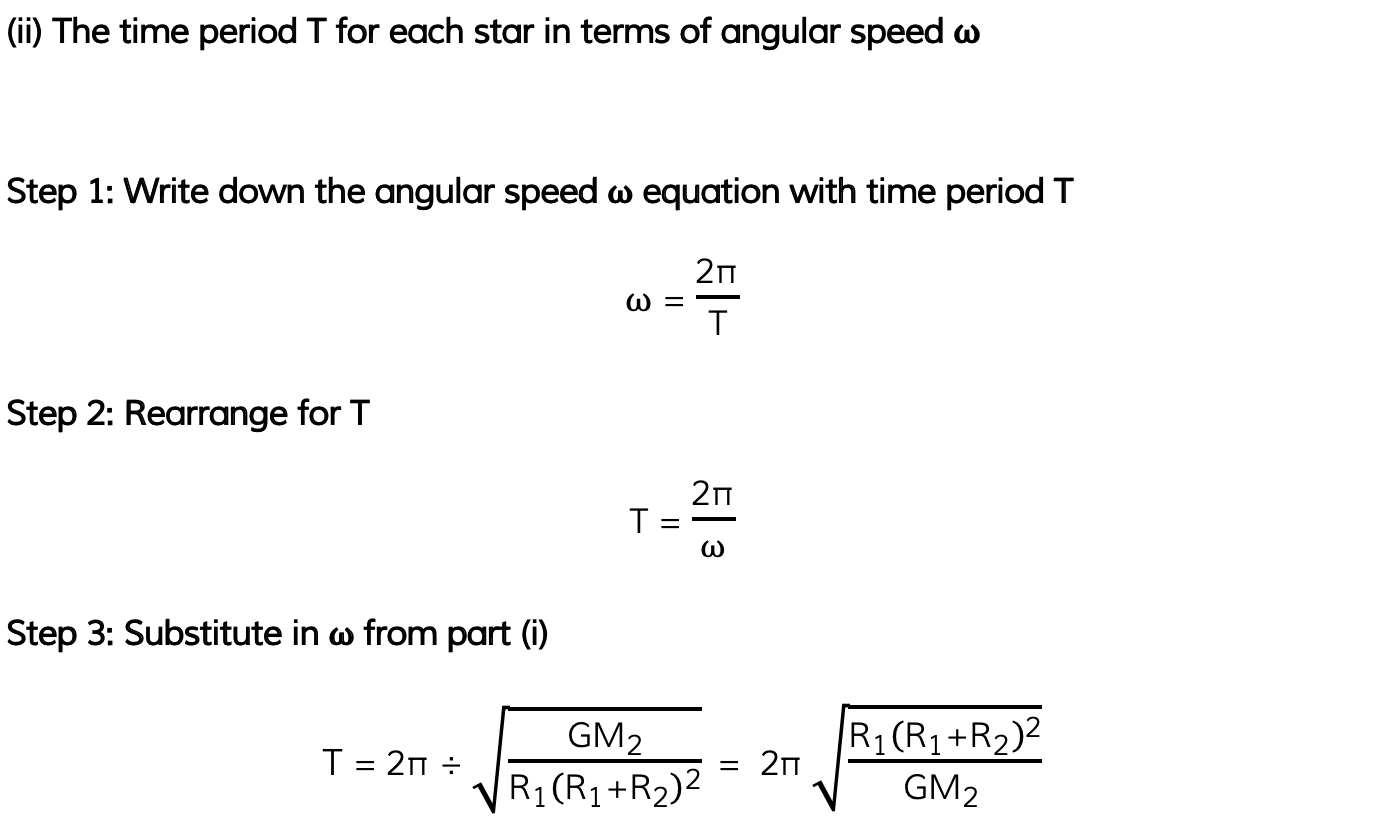

Circular Orbits Worked Example Part 2

Energy of an Orbiting Satellite

An orbiting satellite follows a circular path around a planet
Just like an object moving in circular motion, it has both kinetic energy (KE) and gravitational potential energy (GPE) and its total energy is always constant
An orbiting satellite's total energy is calculated by:

10-2-6-energy-diagram-ib-hl

A graph showing the kinetic, potential and total energy for a mass at varying orbital distances from a massive body

Total energy = Kinetic energy + Gravitational potential energy

This means that the satellite's KE and GPE are also both constant in a particular orbit
- If the orbital radius of a satellite decreases its KE increases and its GPE decreases
- If the orbital radius of a satellite increases its KE decreases and its GPE increases

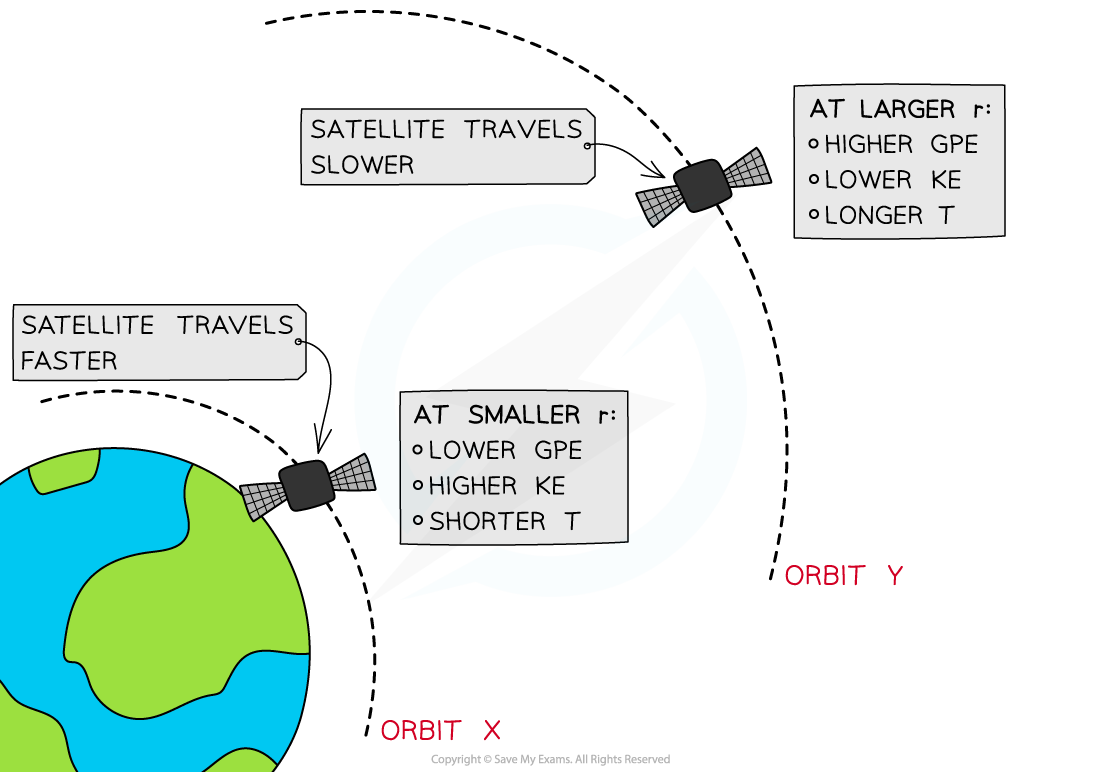

Energy of Orbiting Satellite, downloadable AS & A Level Physics revision notes

At orbit Y, the satellite has greater GPE and less KE than at at orbit X

A satellite is placed in two orbits, X and Y, around Earth
At orbit X, where the radius of orbit r is smaller, the satellite has a:
- Larger gravitational force on it
- Higher speed
- Higher KE
- Lower GPE
- Shorter orbital time period, T
At orbit Y, where the radius of orbit r is larger, the satellite has a:
- Smaller gravitational force on it
- Smaller speed
- Lower KE
- Higher GPE
- Longer orbital time period, T

Worked Example

Two satellites A and B, of equal mass, orbit a planet at radii R and 3R respectively. Which one of the following statements is incorrect?

A A has more kinetic energy and less potential energy than B

B A has a shorter time period and travels faster than B

C B has less kinetic energy and more potential energy than A

D B has a longer time period and travels faster than A

ANSWER: D

- Since B is at a larger orbital radius (3R instead of R) it has a longer time period since T² ∝ R³ for an orbiting satellite
- However, satellite B will travel much slower than A
- Its larger orbital radius means the force of gravity will be much lower for B than for A

Exam Tip

If you can't remember which way around the kinetic and potential energy increases and decreases, think about the velocity of a satellite at different orbits. When it is orbiting close to a planet, it experiences a larger gravitational pull and therefore orbits faster. Since the kinetic energy is proportional to v², it, therefore, has higher kinetic energy closer to the planet. To keep the total energy constant, the potential energy must decrease too.

Orbital Energy Calculations

A synchronous orbit is:

When an orbiting body has a time period equal to that of the body being orbited and in the same direction of rotation as that body

These usually refer to satellites (the orbiting body) around planets (the body being orbited)
The orbit of a synchronous satellite can be above any point on the planet's surface and in any plane
- When the plane of the orbit is directly above the equator, it is known as a geosynchronous orbit

Geostationary Orbit

Many communication satellites around Earth follow a geostationary orbit
- This is sometimes referred to as a geosynchronous orbit
This is a specific type of orbit in which the satellite:
- Remains directly above the equator
- Is in the plane of the equator
- Always orbits at the same point above the Earth’s surface
- Moves from west to east (same direction as the Earth spins)
- Has an orbital time period equal to Earth’s rotational period of 24 hours

Geostationary satellites are used for telecommunication transmissions (e.g. radio) and television broadcast
A base station on Earth sends the TV signal up to the satellite where it is amplified and broadcast back to the ground to the desired locations
The satellite receiver dishes on the surface must point towards the same point in the sky
- Since the geostationary orbits of the satellites are fixed, the receiver dishes can be fixed too

Low Orbits

Some satellites are in low orbits, which means their altitude is closer to the Earth's surface
One example of this is a polar orbit, where the satellite orbits around the north and south pole of the Earth
Low orbits are useful for taking high-quality photographs of the Earth's surface. This could be used for:
- Weather
- Military applications

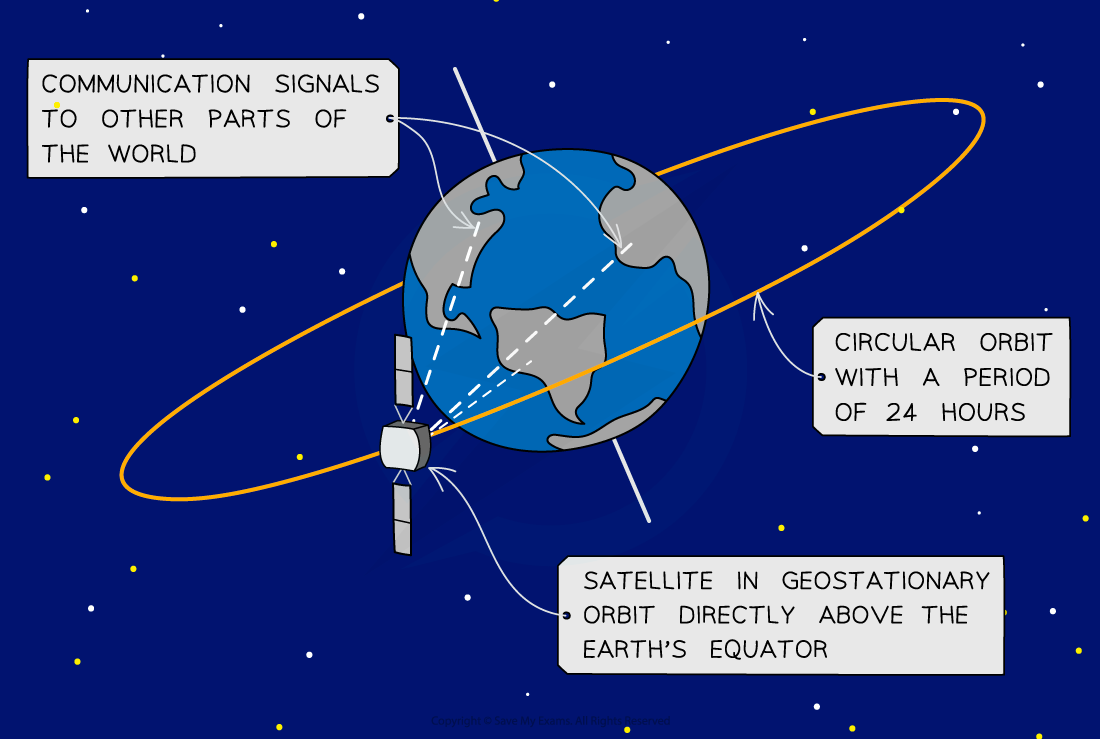

Geostationary orbit satellite, downloadable AS & A Level Physics revision notes

Geostationary satellite in orbit

Worked Example

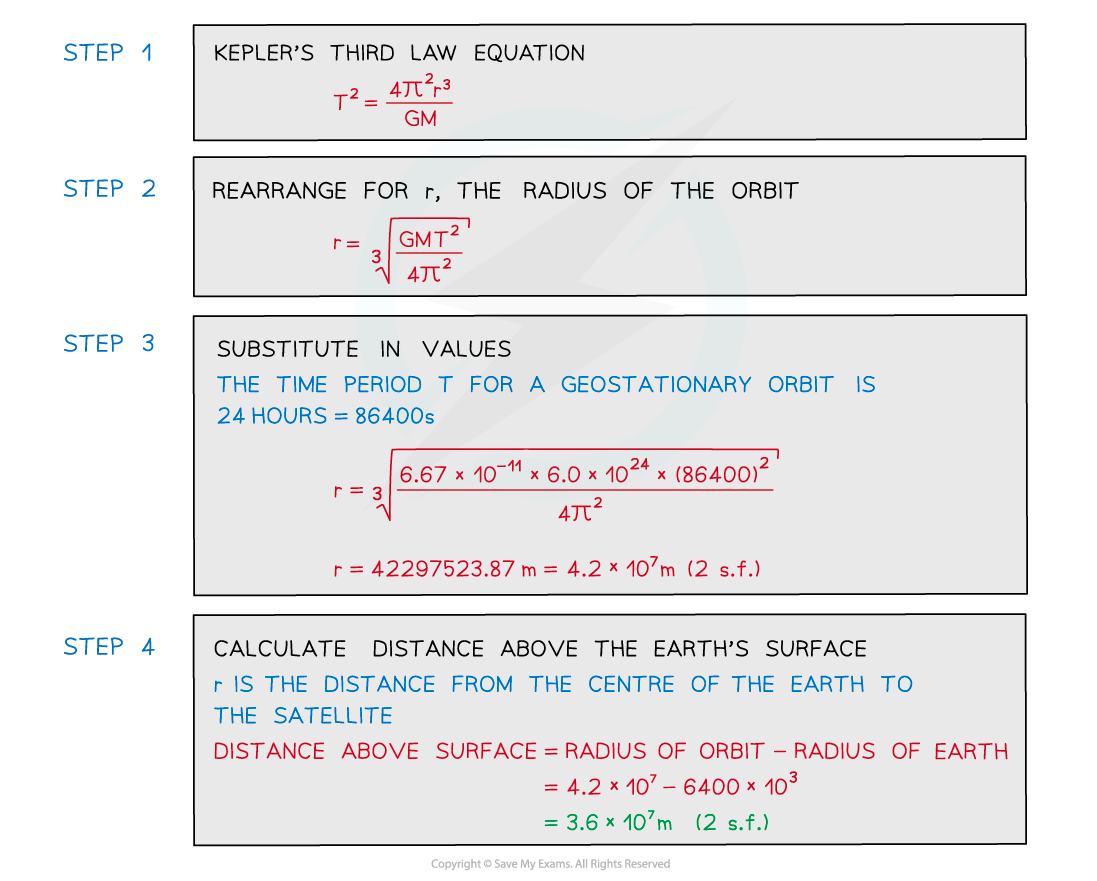

Calculate the distance above the Earth's surface that a geostationary satellite will orbit. Mass of the Earth = 6.0 × 10²⁴ kg, Radius of the Earth = 6400 km

Orbital Motion

When a satellite is moving in orbital motion, the velocity of the satellite will be given by:

$v_{s a t e l l i t e} = \sqrt{\frac{G M}{r}}$

Where
- v_satellite = velocity of the satellite (m s^-1)
- M = mass of the Earth (or large body being orbited) (kg)
- G = The gravitational constant = 6.67 x 10^-11 Nm²kg^-2
- r = the orbital radius of the satellite (m)
Therefore the kinetic energy of the satellite will be:

$E_{K} = \frac{1}{2} m v^{2} = \frac{1}{2} m {(\sqrt{\frac{G M}{r}})}^{2} = \frac{G M m}{2 r}$

Where
- E_K = kinetic energy (J)
- v = velocity (m s^-1)
- M = mass of the Earth (or large body being orbited) (kg)
- m = mass of satellite or orbiting object (kg)
- G = The gravitational constant = 6.67 x 10^-11 Nm²kg^-2
- r = the orbital radius of the satellite (m)
The gravitational potential energy of an orbiting object is:

$E_{P} = - \frac{G M m}{r}$

Where
- E_P = potential energy (J)
- M = mass of the Earth (or large body being orbited) (kg)
- m = mass of satellite or orbiting object (kg)
- G = The gravitational constant = 6.67 x 10^-11 Nm²kg^-2
- r = the orbital radius of the satellite (m)

The total energy for any satelite orbiting a massive body is found from the combination of potential energy and kinetic energy
- The result is show in the equation below:

E_{T} = E_{K} + E_{P} = \frac{G M m}{2 r} - \frac{G M m}{r} = - \frac{G M m}{2 r} = - \frac{1}{2} \times m \times v^{2}

Where
- E_T = The total energy of the satellite (J)
- E_P = The potential energy of the satellite (J)
- E_K = The kinetic energy of the satellite (J)
- v = the velocity of the satellite (m s^-1)
- M = mass of the Earth (or large body being orbited) (kg)
- m = mass of satellite or orbiting object (kg)
- G = The gravitational constant = 6.67 x 10^-11 Nm²kg^-2
- r = the orbital radius of the satellite (m)
