DP IB Physics: HL

Revision Notes

Home / IB / Physics: HL / DP / Revision Notes / 3. Thermal Physics / 3.1 Thermal Concepts / 3.1.4 Specific Heat Capacity


3.1.4 Specific Heat Capacity


Specific Heat Capacity

  • The amount of thermal energy needed to change the temperature of an object depends on:
    • The change in temperature required ΔT - i.e. the larger the change in temperature the more energy is needed
    • The mass of the object m - i.e. the greater the mass the more energy is needed
    • The specific heat capacity c of the given substance - i.e. the higher the specific heat capacity the more energy is needed

Specific Heat Capacity Table, downloadable IB Physics revision notes

  • The equation for the thermal energy transferred, Q, is then given by:

Q = mcΔT

  • Where:
    • m = mass of the substance in kilograms (kg)
    • ΔT = change in temperature in kelvin (K) or degrees Celsius (°C)
    • c = specific heat capacity of the substance (J kg–1 K–1)

  • The specific heat capacity of a substance is defined as:

The amount of energy required to change the temperature of 1 kg of a substance by 1 K (or 1°C)

  • This definition can be explained when the above equation is rearranged for c:

c equals fraction numerator Q over denominator m increment T end fraction

  • This means that, the higher the specific heat capacity of a substance the longer it takes for the substance to warm up or cool down
    • Note that the specific heat capacity is measured in J kg–1 K–1

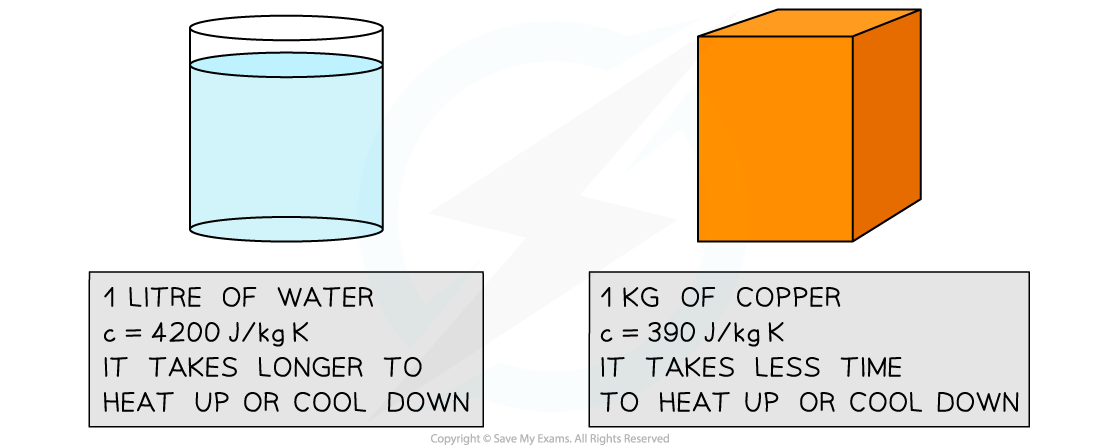

Water vs. Copper, downloadable IB Physics revision notes

Worked Example

A 2 kg piece of copper is kept inside a freezer at a temperature of –10°C. The copper is taken out of the freezer and placed into 5 litres of water at 20°C. A thermometer is placed into the water. After some time, the thermometer indicates that the water has cooled to 18°C.Determine the temperature of the copper at this time. Give your answer in degrees Celsius (°C).

  • The specific heat capacity of water is 4200 J kg–1 K–1
  • The specific heat capacity of copper is 390 J kg–1 K–1

Step 1: Write down the known quantities

    • Mass of copper = 2 kg
    • Mass of water = 5 L = 5 kg
    • Initial temperature of copper = –10°C
    • Initial temperature of water = 20°C
    • Final temperature of water = 18°C
    • Change in temperature of water = 18°C – 20°C = –2°C
    • Specific heat capacity of water = 4200 J kg–1 K–1
    • Specific heat capacity of copper = 390 J kg–1 K–1

Step 2: Write down the equation for thermal energy

Q = mcΔT

Step 3: Determine the energy transferred from the water to the copper

    • The water is at a higher temperature than copper, hence thermal energy will flow from the water to the copper
    • To quantify this energy, substitute numbers into the above equation
    • In this case, the mass m is that of the water
    • The specific heat capacity is that of water
    • Since this is the energy lost by the water, it will be negative

Q = 5 kg × 4200 J kg–1 K–1 × (–2°C) = – 42000 J

Step 3: Determine the change in temperature ΔT of the copper

    • The energy lost by the water is the same as the energy gained by the copper
    • Since this is the energy gained by the copper, it is positive
    • The equation for thermal energy can be rearranged to calculate the change in temperature ΔT of the copper
    • In this case, the mass m is that of the copper
    • The specific heat capacity is that of copper

  • increment T equals fraction numerator Q over denominator m c end fraction equals fraction numerator 42000 over denominator 2 space cross times space 390 end fraction equals 54 degree C

Step 4: Determine the final temperature of the copper

    • Since the copper gains thermal energy, its final temperature will be higher than its initial temperature

final temperature of copper = ΔT + initial temperature of copper = 54°C – 10°C

final temperature of copper = 44°C

Exam Tip

You should notice that changes in temperature ΔT can usually be written in degrees Celsius (although this is not the SI base unit for temperature) and do not need to be converted into kelvin (K). This is because differences in absolute temperatures always correspond to differences in Celsius temperature.If the question asks to determine the initial or final temperature of a substance, make sure you always check the unit of measure (°C or K) in which you are required to give your final answer.



  • 1. Measurement & Uncertainties
    • 1.1 Measurements in Physics
      • 1.1.1 SI Units
        • 1.1.2 Using Scientific Notation
          • 1.1.3 Estimating Physical Quantities
          • 1.2 Uncertainties & Errors
            • 1.2.1 Random & Systematic Errors
              • 1.2.2 Calculating Uncertainties
                • 1.2.3 Determining Uncertainties from Graphs
                • 1.3 Vectors & Scalars
                  • 1.3.1 Vector & Scalar Quantities
                    • 1.3.2 Combining & Resolving Vectors
                      • 1.3.3 Solving Vector Problems
                    • 2. Mechanics
                      • 2.1 Motion
                        • 2.1.1 Distance & Displacement
                          • 2.1.2 Speed & Velocity
                            • 2.1.3 Acceleration
                              • 2.1.4 Graphs Describing Motion
                                • 2.1.5 Uniform Acceleration
                                  • 2.1.6 Acceleration of Free Fall Experiment
                                    • 2.1.7 Projectile Motion
                                      • 2.1.8 Terminal Speed
                                      • 2.2 Forces
                                        • 2.2.1 Free-Body Diagrams
                                          • 2.2.2 Newton’s First Law
                                            • 2.2.3 Newton’s Second Law
                                              • 2.2.4 Newton’s Third Law
                                                • 2.2.5 Applying Newton’s Laws of Motion
                                                  • 2.2.6 Friction
                                                  • 2.3 Work, Energy & Power
                                                    • 2.3.1 Kinetic Energy
                                                      • 2.3.2 Gravitational Potential Energy
                                                        • 2.3.3 Elastic Potential Energy
                                                          • 2.3.4 Work Done
                                                            • 2.3.5 Power
                                                              • 2.3.6 Principle of Conservation of Energy
                                                                • 2.3.7 Efficiency
                                                                • 2.4 Momentum & Impulse
                                                                  • 2.4.1 Force & Momentum
                                                                    • 2.4.2 Impulse
                                                                      • 2.4.3 Conservation of Linear Momentum
                                                                        • 2.4.4 Collisions & Explosions
                                                                      • 3. Thermal Physics
                                                                        • 3.1 Thermal Concepts
                                                                          • 3.1.1 Solids, Liquids & Gases
                                                                            • 3.1.2 Temperature
                                                                              • 3.1.3 Internal Energy
                                                                                • 3.1.4 Specific Heat Capacity
                                                                                  • 3.1.5 Specific Latent Heat
                                                                                    • 3.1.6 Phase Change
                                                                                      • 3.1.7 Investigating Thermal Energy
                                                                                      • 3.2 Modelling a Gas
                                                                                        • 3.2.1 Ideal Gas Laws
                                                                                          • 3.2.2 Ideal Gas Equation
                                                                                            • 3.2.3 Kinetic Model of an Ideal Gas
                                                                                              • 3.2.4 Mole Calculations
                                                                                                • 3.2.5 Investigating Gas Laws
                                                                                              • 4. Waves
                                                                                                • 4.1 Oscillations
                                                                                                  • 4.1.1 Properties of Oscillations
                                                                                                    • 4.1.2 Simple Harmonic Oscillations
                                                                                                      • 4.1.3 SHM Graphs
                                                                                                        • 4.1.4 Energy in SHM
                                                                                                        • 4.2 Travelling Waves
                                                                                                          • 4.2.1 Properties of Waves
                                                                                                            • 4.2.2 Transverse & Longitudinal Waves
                                                                                                              • 4.2.3 Electromagnetic Waves
                                                                                                                • 4.2.4 Sound Waves
                                                                                                                • 4.3 Wave Characteristics
                                                                                                                  • 4.3.1 Wavefronts
                                                                                                                    • 4.3.2 Amplitude & Intensity
                                                                                                                      • 4.3.3 Superposition
                                                                                                                        • 4.3.4 Polarisation
                                                                                                                          • 4.3.5 Malus’s Law
                                                                                                                          • 4.4 Wave Behaviour
                                                                                                                            • 4.4.1 Reflection, Refraction & Transmission
                                                                                                                              • 4.4.2 Reflection
                                                                                                                                • 4.4.3 Refraction
                                                                                                                                  • 4.4.4 Determining Refractive Index
                                                                                                                                    • 4.4.5 Single-Slit Diffraction
                                                                                                                                      • 4.4.6 Interference & Path Difference
                                                                                                                                        • 4.4.7 Double-Slit Equation
                                                                                                                                        • 4.5 Standing Waves
                                                                                                                                          • 4.5.1 The Nature of Standing Waves
                                                                                                                                            • 4.5.2 Nodes & Antinodes
                                                                                                                                              • 4.5.3 Boundary Conditions for Standing Waves
                                                                                                                                                • 4.5.4 Harmonics
                                                                                                                                              • 5. Electricity & Magnetism
                                                                                                                                                • 5.1 Electric Fields
                                                                                                                                                  • 5.1.1 Charge & Current
                                                                                                                                                    • 5.1.2 Drift Speed
                                                                                                                                                      • 5.1.3 Potential Difference & DC
                                                                                                                                                        • 5.1.4 Electric Fields
                                                                                                                                                          • 5.1.5 Coulomb’s Law
                                                                                                                                                          • 5.2 Heating Effect of Electric Currents
                                                                                                                                                            • 5.2.1 Circuits
                                                                                                                                                              • 5.2.2 Resistance & Resistors
                                                                                                                                                                • 5.2.3 Kirchhoff’s Circuit Laws
                                                                                                                                                                  • 5.2.4 I-V Characteristics
                                                                                                                                                                    • 5.2.5 Resistivity
                                                                                                                                                                      • 5.2.6 Investigating Resistivity
                                                                                                                                                                        • 5.2.7 Series & Parallel Circuits
                                                                                                                                                                          • 5.2.8 Heating Effect of Current
                                                                                                                                                                            • 5.2.9 Potential Divider Circuits
                                                                                                                                                                            • 5.3 Electric Cells
                                                                                                                                                                              • 5.3.1 Primary & Secondary Cells
                                                                                                                                                                                • 5.3.2 Investigating Electric Cells
                                                                                                                                                                                  • 5.3.3 Terminal Potential Difference
                                                                                                                                                                                    • 5.3.4 Electromotive Force & Internal Resistance
                                                                                                                                                                                    • 5.4 Magnetic Effects of Electric Currents
                                                                                                                                                                                      • 5.4.1 Magnetic Fields
                                                                                                                                                                                        • 5.4.2 Magnetic Force on a Charge
                                                                                                                                                                                          • 5.4.3 Magnetic Force on a Current-Carrying Conductor
                                                                                                                                                                                            • 5.4.4 Solving Problems Involving Magnetic Forces
                                                                                                                                                                                          • 6. Circular Motion & Gravitation
                                                                                                                                                                                            • 6.1 Circular Motion
                                                                                                                                                                                              • 6.1.1 Circular Motion
                                                                                                                                                                                                • 6.1.2 Centripetal Force
                                                                                                                                                                                                  • 6.1.3 Centripetal Acceleration
                                                                                                                                                                                                    • 6.1.4 Applications of Circular Motion
                                                                                                                                                                                                    • 6.2 Newton’s Law of Gravitation
                                                                                                                                                                                                      • 6.2.1 Newton’s Law of Gravitation
                                                                                                                                                                                                        • 6.2.2 Circular Orbits
                                                                                                                                                                                                          • 6.2.3 Gravitational Field Strength
                                                                                                                                                                                                        • 7. Atomic, Nuclear & Particle Physics
                                                                                                                                                                                                          • 7.1 Discrete Energy & Radioactivity
                                                                                                                                                                                                            • 7.1.1 Discrete Energy Levels
                                                                                                                                                                                                              • 7.1.2 Calculating Discrete Energies
                                                                                                                                                                                                                • 7.1.3 Emission & Absorption Spectrum
                                                                                                                                                                                                                  • 7.1.4 Isotopes & Radioactive Decay
                                                                                                                                                                                                                    • 7.1.5 Background Radiation
                                                                                                                                                                                                                      • 7.1.6 Alpha, Beta & Gamma Particles
                                                                                                                                                                                                                        • 7.1.7 Decay Equations
                                                                                                                                                                                                                          • 7.1.8 Half-Life
                                                                                                                                                                                                                            • 7.1.9 Investigating Half-Life
                                                                                                                                                                                                                            • 7.2 Nuclear Reactions
                                                                                                                                                                                                                              • 7.2.1 Atomic Mass Unit
                                                                                                                                                                                                                                • 7.2.2 Mass Defect & Nuclear Binding Energy
                                                                                                                                                                                                                                  • 7.2.3 Nuclear Fission & Fusion
                                                                                                                                                                                                                                    • 7.2.4 Binding Energy per Nucleon Curve
                                                                                                                                                                                                                                    • 7.3 The Structure of Matter
                                                                                                                                                                                                                                      • 7.3.1 Discovery of the Nucleus
                                                                                                                                                                                                                                        • 7.3.2 Quarks & Leptons
                                                                                                                                                                                                                                          • 7.3.3 Hadrons, Baryons & Mesons
                                                                                                                                                                                                                                            • 7.3.4 Particle Conservation Laws
                                                                                                                                                                                                                                              • 7.3.5 Fundamental Forces
                                                                                                                                                                                                                                                • 7.3.6 Feynman Diagrams & Confinement
                                                                                                                                                                                                                                                  • 7.3.7 The Standard Model of Particle Physics
                                                                                                                                                                                                                                                • 8. Energy Production
                                                                                                                                                                                                                                                  • 8.1 Energy Sources
                                                                                                                                                                                                                                                    • 8.1.1 Specific Energy
                                                                                                                                                                                                                                                      • 8.1.2 Sankey Diagrams
                                                                                                                                                                                                                                                        • 8.1.3 Primary & Secondary Energy Sources
                                                                                                                                                                                                                                                          • 8.1.4 Energy Resources
                                                                                                                                                                                                                                                            • 8.1.5 Energy Generation
                                                                                                                                                                                                                                                              • 8.1.6 Safety Issues in Nuclear Power
                                                                                                                                                                                                                                                              • 8.2 Thermal Energy Transfer
                                                                                                                                                                                                                                                                • 8.2.1 Conduction, Convection & Thermal Radiation
                                                                                                                                                                                                                                                                  • 8.2.2 Black-Body Radiation
                                                                                                                                                                                                                                                                    • 8.2.3 The Solar Constant, Albedo & Emissivity
                                                                                                                                                                                                                                                                      • 8.2.4 The Greenhouse Effect
                                                                                                                                                                                                                                                                        • 8.2.5 Earth's Surface–Atmosphere System
                                                                                                                                                                                                                                                                      • 9. Wave Phenomena (HL only)
                                                                                                                                                                                                                                                                        • 9.1 Simple Harmonic Motion
                                                                                                                                                                                                                                                                          • 9.1.1 The Defining Equation of SHM
                                                                                                                                                                                                                                                                            • 9.1.2 Energy Changes in SHM
                                                                                                                                                                                                                                                                              • 9.1.3 Calculating Energy Changes in SHM
                                                                                                                                                                                                                                                                                • 9.1.4 Examples of SHM
                                                                                                                                                                                                                                                                                • 9.2 Single-Slit Diffraction
                                                                                                                                                                                                                                                                                  • 9.2.1 The Nature of Single-Slit Diffraction
                                                                                                                                                                                                                                                                                    • 9.2.2 Intensity of Interference Maxima & Minima
                                                                                                                                                                                                                                                                                    • 9.3 Interference
                                                                                                                                                                                                                                                                                      • 9.3.1 Young’s Double-Slit Experiment
                                                                                                                                                                                                                                                                                        • 9.3.2 Two-Slit Interference Patterns
                                                                                                                                                                                                                                                                                          • 9.3.3 Diffraction Grating Patterns
                                                                                                                                                                                                                                                                                            • 9.3.4 The Diffraction Grating Equation
                                                                                                                                                                                                                                                                                              • 9.3.5 Thin Film Interference
                                                                                                                                                                                                                                                                                              • 9.4 Resolution
                                                                                                                                                                                                                                                                                                • 9.4.1 The Rayleigh Criterion
                                                                                                                                                                                                                                                                                                  • 9.4.2 Rayleigh Criterion Calculations
                                                                                                                                                                                                                                                                                                    • 9.4.3 Resolvance of Diffraction Gratings
                                                                                                                                                                                                                                                                                                    • 9.5 Doppler Effect
                                                                                                                                                                                                                                                                                                      • 9.5.1 The Doppler Effect
                                                                                                                                                                                                                                                                                                        • 9.5.2 Uses of The Doppler Effect
                                                                                                                                                                                                                                                                                                          • 9.5.3 The Doppler Equation
                                                                                                                                                                                                                                                                                                        • 10. Fields (HL only)
                                                                                                                                                                                                                                                                                                          • 10.1 Describing Fields
                                                                                                                                                                                                                                                                                                            • 10.1.1 Gravitational & Electrostatic Fields
                                                                                                                                                                                                                                                                                                              • 10.1.2 Gravitational & Electrostatic Field Lines
                                                                                                                                                                                                                                                                                                                • 10.1.3 Gravitational & Electrostatic Potential
                                                                                                                                                                                                                                                                                                                  • 10.1.4 Equipotential Surfaces
                                                                                                                                                                                                                                                                                                                  • 10.2 Fields at Work
                                                                                                                                                                                                                                                                                                                    • 10.2.1 Potential & Potential Energy
                                                                                                                                                                                                                                                                                                                      • 10.2.2 Potential Energy Calculations
                                                                                                                                                                                                                                                                                                                        • 10.2.3 Potential Gradient & Difference
                                                                                                                                                                                                                                                                                                                          • 10.2.4 Potential in a Charged Sphere
                                                                                                                                                                                                                                                                                                                            • 10.2.5 Escape Speed
                                                                                                                                                                                                                                                                                                                              • 10.2.6 Orbital Motion, Speed & Energy
                                                                                                                                                                                                                                                                                                                                • 10.2.7 Forces & Inverse-Square Law Behaviour
                                                                                                                                                                                                                                                                                                                                  • 10.2.8 Forces on Charges & Masses
                                                                                                                                                                                                                                                                                                                                • 11. Electromagnetic Induction (HL only)
                                                                                                                                                                                                                                                                                                                                  • 11.1 Electromagnetic Induction
                                                                                                                                                                                                                                                                                                                                    • 11.1.1 Emf, Magnetic Flux & Magnetic Flux Linkage
                                                                                                                                                                                                                                                                                                                                      • 11.1.2 Induced Emf
                                                                                                                                                                                                                                                                                                                                        • 11.1.3 Faraday’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.1.4 Lenz’s Law
                                                                                                                                                                                                                                                                                                                                          • 11.2 Power Generation & Transmission
                                                                                                                                                                                                                                                                                                                                            • 11.2.1 AC Generators
                                                                                                                                                                                                                                                                                                                                              • 11.2.2 Root-Mean-Square Current & Voltage
                                                                                                                                                                                                                                                                                                                                                • 11.2.3 Step-Up & Step-Down Transformers
                                                                                                                                                                                                                                                                                                                                                  • 11.2.4 Transformer Calculations
                                                                                                                                                                                                                                                                                                                                                    • 11.2.5 AC Electrical Power Distribution
                                                                                                                                                                                                                                                                                                                                                      • 11.2.6 Diode Bridges
                                                                                                                                                                                                                                                                                                                                                        • 11.2.7 Investigating Diode Bridges
                                                                                                                                                                                                                                                                                                                                                          • 11.2.8 Rectification
                                                                                                                                                                                                                                                                                                                                                            • 11.2.9 Capacitors & Diode Bridges
                                                                                                                                                                                                                                                                                                                                                            • 11.3 Capacitance
                                                                                                                                                                                                                                                                                                                                                              • 11.3.1 Capacitance
                                                                                                                                                                                                                                                                                                                                                                • 11.3.2 Dielectric Materials
                                                                                                                                                                                                                                                                                                                                                                  • 11.3.3 Capacitors in Series & Parallel
                                                                                                                                                                                                                                                                                                                                                                    • 11.3.4 The Time Constant
                                                                                                                                                                                                                                                                                                                                                                      • 11.3.5 Energy Stored in a Capacitor
                                                                                                                                                                                                                                                                                                                                                                        • 11.3.6 Capacitor Charge & Discharge
                                                                                                                                                                                                                                                                                                                                                                          • 11.3.7 Discharge Calculations
                                                                                                                                                                                                                                                                                                                                                                        • 12. Quantum & Nuclear Physics (HL only)
                                                                                                                                                                                                                                                                                                                                                                          • 12.1 The Interaction of Matter with Radiation
                                                                                                                                                                                                                                                                                                                                                                            • 12.1.1 Photons
                                                                                                                                                                                                                                                                                                                                                                              • 12.1.2 The Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                • 12.1.3 Observing the Photoelectric Effect
                                                                                                                                                                                                                                                                                                                                                                                  • 12.1.4 Solving Photoelectric Problems
                                                                                                                                                                                                                                                                                                                                                                                    • 12.1.5 Matter Waves
                                                                                                                                                                                                                                                                                                                                                                                      • 12.1.6 Pair Production & Annihilation
                                                                                                                                                                                                                                                                                                                                                                                        • 12.1.7 Quantization of Angular Momentum
                                                                                                                                                                                                                                                                                                                                                                                          • 12.1.8 The Wave Function
                                                                                                                                                                                                                                                                                                                                                                                            • 12.1.9 The Uncertainty Principle
                                                                                                                                                                                                                                                                                                                                                                                              • 12.1.10 Tunnelling
                                                                                                                                                                                                                                                                                                                                                                                              • 12.2 Nuclear Physics
                                                                                                                                                                                                                                                                                                                                                                                                • 12.2.1 Rutherford Scattering & Nuclear Radius
                                                                                                                                                                                                                                                                                                                                                                                                  • 12.2.2 Nuclear Scattering
                                                                                                                                                                                                                                                                                                                                                                                                    • 12.2.3 Deviations from Rutherford Scattering
                                                                                                                                                                                                                                                                                                                                                                                                      • 12.2.4 Nuclear Energy Levels
                                                                                                                                                                                                                                                                                                                                                                                                        • 12.2.5 The Neutrino
                                                                                                                                                                                                                                                                                                                                                                                                          • 12.2.6 The Law of Radioactive Decay
                                                                                                                                                                                                                                                                                                                                                                                                            • 12.2.7 Measuring Half-Life
                                                                                                                                                                                                                                                                                                                                                                                                          Ashika Vijay

                                                                                                                                                                                                                                                                                                                                                                                                          Author: Ashika

                                                                                                                                                                                                                                                                                                                                                                                                          Ashika graduated with a first-class Physics degree from Manchester University and, having worked as a software engineer, focused on Physics education, creating engaging content to help students across all levels. Now an experienced GCSE and A Level Physics and Maths tutor, Ashika helps to grow and improve our Physics resources.


                                                                                                                                                                                                                                                                                                                                                                                                          Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                          Resources
                                                                                                                                                                                                                                                                                                                                                                                                          Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                          Members
                                                                                                                                                                                                                                                                                                                                                                                                          Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                          Company
                                                                                                                                                                                                                                                                                                                                                                                                          About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                          Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                          GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                          © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                          IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
