DP IB Chemistry: HL

Revision Notes

Home / IB / Chemistry: HL / DP / Revision Notes / 13. HL The Periodic Table- Transition Metals / 13.1 Transition Metals / 13.1.4 Catalytic & Magnetic Properties


13.1.4 Catalytic & Magnetic Properties


Catalytic Properties

  • Transition metals are often used as catalysts in the elemental form or as compounds
  • The ability of transition metals to form more than one stable oxidation state means that they can accept and lose electrons easily
  • This enables them to catalyse certain redox reactions. They can be readily oxidised and reduced again, or reduced and then oxidised again, as a consequence of having a number of different oxidation states of similar stability
  • There are two types of catalyst:
    • A heterogeneous catalyst is in a different physical state (phase) from the reactants
      • The reaction occurs at active sites on the surface of the catalyst
      • An example is the use of iron, Fe, in the Haber process for making ammonia

N2 (g) + 3H2 (g) ⇌ 2NH3 (g)

    • A homogeneous catalyst is in the same physical state (phase) as the reactants
Further Examples of transition metal catalysts
  • The hydrogenation or reduction of alkenes makes use of a nickel catalyst

CH2=CH2 (g) + H2 (g) → CH3CH3 (g)

  • The same reaction is used in the hydrogenation of vegetable oils to form polyunsaturated fats
  • The decomposition of hydrogen peroxide is a common reaction in the study of chemical kinetics and uses manganese(IV) oxide as the catalyst

2H2O2 (g) →  2H2O (aq) + O2 (g)

Catalytic converters

  • Catalytic converters are used in car exhaust boxes to reduce air pollution. They usually consist of a mixture of finely divided platinum and rhodium supported on a ceramic base

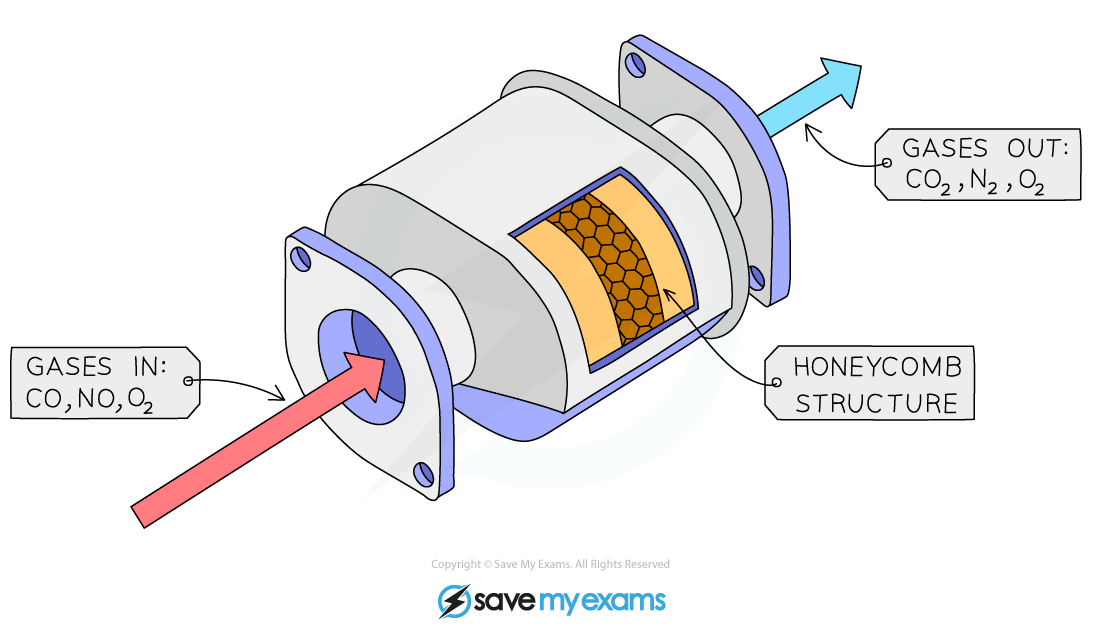

Catalytic-Converters, IGCSE & GCSE Chemistry revision notes

Diagram of a catalyst on an inert support medium in a vehicle catalytic converter

  • Carbon monoxide, nitrogen dioxide and unburnt hydrocarbons are sources of pollution in car exhaust
  • The transition metal catalysts facilitate the conversion of these pollutants into less harmful products

2NO (g) + 2CO (g) → N2 (g) + 2CO2 (g)

CH3CH2CH3 (g) + 5 O2 (g) → 3CO2 (g)  + 4H2O (g)

  • Some of the transition metals are precious metals so they can be very expensive
  • In order to minimise the cost and maximise the efficiency of the catalyst the following measures can be taken:
    • Increasing the surface area of the catalyst
    • Coating an inert surface medium with the catalyst to avoid using large amounts of the catalyst

  • This is achieved by spreading the catalyst over a hollow matrix such as a honeycomb-like structure

Biological catalysts

  • Many of the enzyme catalysed reactions in the body make use of homogeneous transition metal catalysts
  • An example of this is haemoglobin, abbreviated to Hb, which transports oxygen around the bloodHaemoglobin, downloadable AS & A Level Biology revision notes

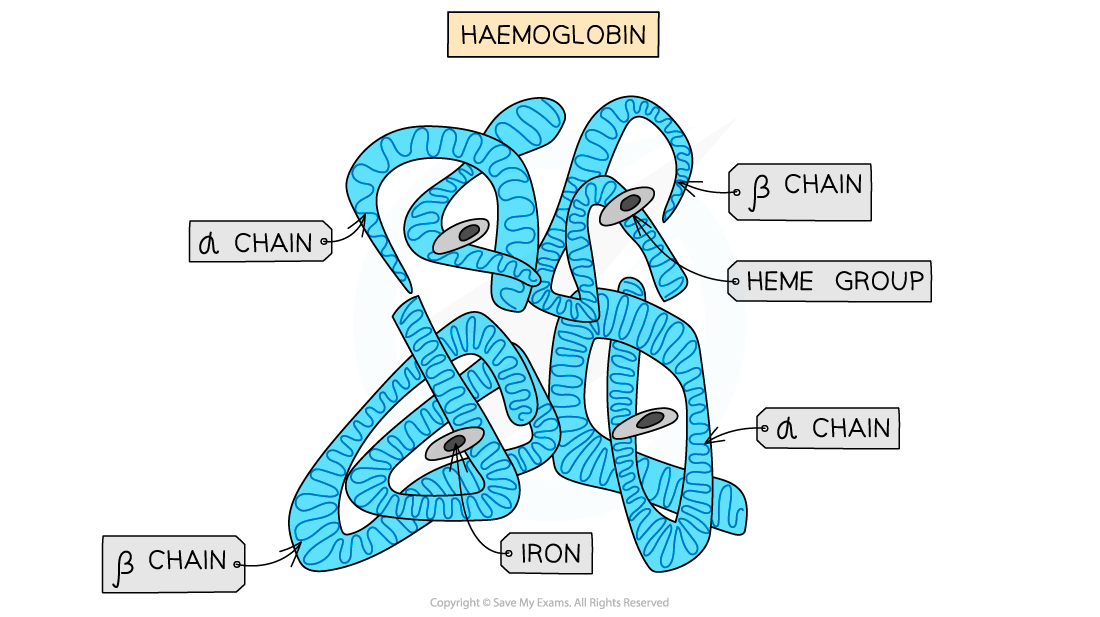

The structure of haemoglobin

 Haemoglobin, downloadable AS & A Level Chemistry revision notes

The structure of haem

  • The iron(II) ion is in the centre of a large heterocyclic ring called a porphyrin
  • The iron has a coordination number of four, is square planar and can bind to one oxygen molecule
  • The Hb molecule contains four porphyrin rings so each Hb can transport four oxygen molecules

Magnetic Properties

  • Materials are classified as diamagnetic, paramagnetic or ferromagnetic according to their behaviour when placed in an external magnetic field
  • Diamagnetism is a property of all materials and produces a very weak opposition to an applied magnetic field
    • It arises from the repulsion of electrons to the applied magnetic field
  • Paramagnetism only occurs in substances which have unpaired electrons
    • It produces magnetisation proportional to the applied field and in the same direction
    • Transition metal complexes show paramagnetism
  • Ferromagnetism has the largest effect and produces magnetisation greater than the applied field

Diamagnetism

  • The atoms of diamagnetic materials have paired electrons
  • Spinning electrons create a tiny magnetic dipole
  • The paired electrons orientate themselves so that the magnetic field they create opposes the external field
  • This result is a very weak repulsion force

Diamagnetism electron configuration example, downloadable IB Chemistry revision notes

Argon is diamagnetic with the electron configuration 1s2 2s2 2p6 3s2 3p6

  • Many molecules are diamagnetic since all the electrons are paired up in bonds
  • It is very hard to demonstrate diamagnetism but it is possible by suspending a sample of the material from a sensitive force meter and lowering it into a strong horseshoe magnet - a slight change in the force should be seen

Paramagnetism

  • Paramagnetic materials are attracted to an external magnetic field
  • The unpaired electrons can be temporarily aligned to the magnetic field causing attraction into the field

Atomic Structure Electron in Box Notation, downloadable AS & A Level Chemistry revision notes

The electrons in titanium are arranged in their orbitals as shown. The unpaired electrons can be temporarily aligned in an external field.

  • Most of the transition metals and their ions are paramagnetic as they have unpaired electrons
  • Paramagnetism increases with the number of unpaired electrons, so it generally increases across the d-block up to a maximum with chromium and then decreases
  • Zinc has no unpaired electrons so is not paramagnetic

Orbital diagram for d block, downloadable IB Chemistry revision notes

Orbital diagrams for the first row d-block showing the number of unpaired electrons increasing up to chromium

Ferromagnetism

  • The metals iron, cobalt and nickel show the unusual property of ferromagnetism
  • The alignment of the unpaired electrons in an external field in ferromagnetic materials can be retained so the material becomes permanently magnetised
  • If ferromagnetic materials are heated and cooled in a magnetic field, the magnetic field of the electrons remains
  • Magnetic regions within the metal that are aligned magnetically are know as domains
  • Banging or heating a permanent magnet will weaken the magnetism

Ferromagnetic materials are used to make permanent magnets which produce characteristic magnetic field lines



  • 1. Stoichiometric Relationships
    • 1.1 Matter, Chemical Change & the Mole Concept
      • 1.1.1 Elements, Compounds & Mixtures
        • 1.1.2 Equations
          • 1.1.3 State Changes
            • 1.1.4 The Mole Concept
              • 1.1.5 Moles-Mass Problems
                • 1.1.6 Empirical Formulae
                • 1.2 Reacting Masses & Volumes
                  • 1.2.1 Reacting Masses
                    • 1.2.2 Reaction Yields
                      • 1.2.3 Avogadro's Law & Molar Gas Volume
                        • 1.2.4 The Ideal Gas Equation
                          • 1.2.5 Gas Law Relationships
                            • 1.2.6 Real Gases
                              • 1.2.7 Standard Solutions
                                • 1.2.8 Concentration Calculations
                                  • 1.2.9 Titrations
                                • 2. Atomic Structure
                                  • 2.1 Atomic & Electronic Structure
                                    • 2.1.1 The Nuclear Atom
                                      • 2.1.2 Deducing Subatomic Particles
                                        • 2.1.3 Relative Atomic Mass Calculations
                                          • 2.1.4 The Electromagnetic Spectrum
                                            • 2.1.5 Emission Spectra
                                              • 2.1.6 Energy Levels & Sublevels
                                                • 2.1.7 Sublevels & Orbitals
                                                  • 2.1.8 Writing Electron Configurations
                                                • 3. Periodicity
                                                  • 3.1 The Periodic Table & Periodic Trends
                                                    • 3.1.1 The Periodic Table
                                                      • 3.1.2 Periodic Trends: Physical - Atomic & Ionic Radius
                                                        • 3.1.3 Periodic Trends: Physical - Ionisation Energy
                                                          • 3.1.4 Periodic Trends: Physical - Electron Affinity
                                                            • 3.1.5 Periodic Trends: Physical - Electronegativity
                                                              • 3.1.6 Periodic Trends: Chemical
                                                              • 3.2 Oxides, Group 1 & Group 17
                                                                • 3.2.1 Periodic Trends: Oxides Across a Period
                                                                  • 3.2.2 Periodic Trends: Group 1 - The Alkali Metals
                                                                    • 3.2.3 Periodic Trends: Group 17 - The Halogens
                                                                  • 4. Chemical Bonding & Structure
                                                                    • 4.1 Ionic & Covalent Bonding
                                                                      • 4.1.1 Forming Ions
                                                                        • 4.1.2 Ionic Compounds
                                                                          • 4.1.3 Formulae & Names of Ionic Compounds
                                                                            • 4.1.4 Covalent Bonds
                                                                              • 4.1.5 Bond Polarity
                                                                                • 4.1.6 Lewis Structures
                                                                                • 4.2 Resonance, Shapes & Giant Structures
                                                                                  • 4.2.1 Resonance Structures
                                                                                    • 4.2.2 Shapes of Molecules
                                                                                      • 4.2.3 Predicting Molecular Shapes
                                                                                        • 4.2.4 Molecular Polarity
                                                                                          • 4.2.5 Giant Covalent Structures
                                                                                          • 4.3 Intermolecular Forces & Metallic Bonding
                                                                                            • 4.3.1 Types of Intermolecular Forces
                                                                                              • 4.3.2 Deducing Intermolecular Forces
                                                                                                • 4.3.3 Properties of Covalent Compounds
                                                                                                  • 4.3.4 Metallic Bonding
                                                                                                    • 4.3.5 Trends in Melting Points of Metals
                                                                                                      • 4.3.6 Alloys & their Properties
                                                                                                    • 5. Energetics/ Thermochemistry
                                                                                                      • 5.1 Energetics
                                                                                                        • 5.1.1 Energy Changes in Reactions
                                                                                                          • 5.1.2 Standard Enthalpy Change
                                                                                                            • 5.1.3 Calorimetry
                                                                                                              • 5.1.4 Calorimetry Experiments
                                                                                                              • 5.2 Hess's Law
                                                                                                                • 5.2.1 Hess's Law
                                                                                                                  • 5.2.2 Using Hess's Law - Cycles
                                                                                                                    • 5.2.3 Using Hess's Law - Equations
                                                                                                                      • 5.2.4 Using ∆Hf° to Find Enthalpy Changes
                                                                                                                      • 5.3 Bond Enthalpy
                                                                                                                        • 5.3.1 Bond Enthalpy
                                                                                                                          • 5.3.2 Bond Enthalpy Calculations
                                                                                                                            • 5.3.3 Energy Profiles
                                                                                                                              • 5.3.4 Case Study: Ozone
                                                                                                                            • 6. Chemical Kinetics
                                                                                                                              • 6.1 Chemical Kinetics
                                                                                                                                • 6.1.1 Collision Theory
                                                                                                                                  • 6.1.2 Rate of Reaction
                                                                                                                                    • 6.1.3 Measuring Rates
                                                                                                                                      • 6.1.4 Activation Energy
                                                                                                                                        • 6.1.5 Rate Experiments
                                                                                                                                          • 6.1.6 Explaining Rates
                                                                                                                                            • 6.1.7 Maxwell-Boltzmann Curves
                                                                                                                                              • 6.1.8 Energy Profiles & Catalysis
                                                                                                                                            • 7. Equilibrium
                                                                                                                                              • 7.1 Equilibrium
                                                                                                                                                • 7.1.1 The State of Equilibrium
                                                                                                                                                  • 7.1.2 The Equilibrium Law
                                                                                                                                                    • 7.1.3 Equilibrium Constant Relationships
                                                                                                                                                      • 7.1.4 The Reaction Quotient
                                                                                                                                                        • 7.1.5 Le Chatelier's Principle
                                                                                                                                                          • 7.1.6 Catalysts & Equilibrium
                                                                                                                                                        • 8. Acids & Bases
                                                                                                                                                          • 8.1 Theories & Reactions of Acids & Bases
                                                                                                                                                            • 8.1.1 Brønsted–Lowry Acids & Bases
                                                                                                                                                              • 8.1.2 Conjugate Acid-Base Pairs
                                                                                                                                                                • 8.1.3 Characteristic Reactions of Acids
                                                                                                                                                                  • 8.1.4 Neutralization
                                                                                                                                                                  • 8.2 More About Acids
                                                                                                                                                                    • 8.2.1 Acid-base Titrations
                                                                                                                                                                      • 8.2.2 pH & [H⁺]
                                                                                                                                                                        • 8.2.3 Interpreting pH
                                                                                                                                                                          • 8.2.4 The Ionic Product of Water
                                                                                                                                                                            • 8.2.5 Acid-Base Calculations
                                                                                                                                                                              • 8.2.6 pH Meters & Universal Indicator
                                                                                                                                                                                • 8.2.7 Strong & Weak Acids & Bases
                                                                                                                                                                                  • 8.2.8 Comparing Strong & Weak Acids
                                                                                                                                                                                  • 8.3 Acid Deposition
                                                                                                                                                                                    • 8.3.1 Acid Deposition
                                                                                                                                                                                      • 8.3.2 Effects of Acid Deposition
                                                                                                                                                                                        • 8.3.3 Reducing Sulfur Oxide Emissions
                                                                                                                                                                                      • 9. Redox Processes
                                                                                                                                                                                        • 9.1 Redox Processes
                                                                                                                                                                                          • 9.1.1 Oxidation & reduction
                                                                                                                                                                                            • 9.1.2 Deducing Oxidation Numbers
                                                                                                                                                                                              • 9.1.3 Oxidizing & Reducing agents
                                                                                                                                                                                                • 9.1.4 Naming Transition Metal Compounds
                                                                                                                                                                                                  • 9.1.5 Half Equations
                                                                                                                                                                                                    • 9.1.6 The Activity Series
                                                                                                                                                                                                      • 9.1.7 Redox Titrations
                                                                                                                                                                                                        • 9.1.8 The Winkler Method
                                                                                                                                                                                                          • 9.1.9 Voltaic Cells
                                                                                                                                                                                                            • 9.1.10 Electrolytic Cells
                                                                                                                                                                                                          • 10. Organic Chemistry
                                                                                                                                                                                                            • 10.1 Fundamentals of Organic Chemistry
                                                                                                                                                                                                              • 10.1.1 Homologous Series
                                                                                                                                                                                                                • 10.1.2 Understanding Organic Molecules
                                                                                                                                                                                                                  • 10.1.3 Nomenclature
                                                                                                                                                                                                                    • 10.1.4 Organic Families - Hydrocarbons
                                                                                                                                                                                                                      • 10.1.5 Organic Families - Halogenoalkanes
                                                                                                                                                                                                                        • 10.1.6 Organic Families - Alcohols & Ethers
                                                                                                                                                                                                                          • 10.1.7 Organic Families - Carbonyls
                                                                                                                                                                                                                            • 10.1.8 Organic Families - Carboxylic Acids & Esters
                                                                                                                                                                                                                              • 10.1.9 Organic Families - Organic Nitrogen Compounds
                                                                                                                                                                                                                                • 10.1.10 3-D modelling
                                                                                                                                                                                                                                  • 10.1.11 Primary, Secondary & Tertiary atoms
                                                                                                                                                                                                                                    • 10.1.12 Benzene
                                                                                                                                                                                                                                    • 10.2 Functional Group Chemistry
                                                                                                                                                                                                                                      • 10.2.1 Alkanes - Combustion
                                                                                                                                                                                                                                        • 10.2.2 Alkanes - Halogenation
                                                                                                                                                                                                                                          • 10.2.3 Alkenes - Reactivity
                                                                                                                                                                                                                                            • 10.2.4 Alkenes - Hydrogenation
                                                                                                                                                                                                                                              • 10.2.5 Alkenes - Halogenation
                                                                                                                                                                                                                                                • 10.2.6 Alkenes - Hydrohalogenation
                                                                                                                                                                                                                                                  • 10.2.7 Alkenes - Hydration
                                                                                                                                                                                                                                                    • 10.2.8 Addition Polymers
                                                                                                                                                                                                                                                      • 10.2.9 Alcohols - Combustion
                                                                                                                                                                                                                                                        • 10.2.10 Alcohols - Oxidation
                                                                                                                                                                                                                                                          • 10.2.11 Alcohols - Esterification
                                                                                                                                                                                                                                                            • 10.2.12 Halogenoalkanes
                                                                                                                                                                                                                                                              • 10.2.13 Reactions of Benzene
                                                                                                                                                                                                                                                            • 11. Measurements & Data Processes
                                                                                                                                                                                                                                                              • 11.1 Spectroscopic Identification
                                                                                                                                                                                                                                                                • 11.1.1 Index of Hydrogen Deficiency
                                                                                                                                                                                                                                                                  • 11.1.2 Mass Spectrometry
                                                                                                                                                                                                                                                                    • 11.1.3 Nuclear Magnetic Resonance Spectroscopy
                                                                                                                                                                                                                                                                      • 11.1.4 Infrared Spectroscopy
                                                                                                                                                                                                                                                                      • 11.2 Synoptic Data Handling & Graphical Skills
                                                                                                                                                                                                                                                                        • 11.2.1 Recording Data
                                                                                                                                                                                                                                                                          • 11.2.2 Processing Errors
                                                                                                                                                                                                                                                                            • 11.2.3 Reducing the Impact of Errors
                                                                                                                                                                                                                                                                              • 11.2.4 Percentage Error
                                                                                                                                                                                                                                                                                • 11.2.5 Drawing Graphs
                                                                                                                                                                                                                                                                                  • 11.2.6 Analysing Graphs
                                                                                                                                                                                                                                                                                • 12. HL Atomic Structure
                                                                                                                                                                                                                                                                                  • 12.1 Electrons in Atoms
                                                                                                                                                                                                                                                                                    • 12.1.1 Emission Spectra & First Ionisation Energy
                                                                                                                                                                                                                                                                                      • 12.1.2 Ionisation Energy Trends
                                                                                                                                                                                                                                                                                    • 13. HL The Periodic Table- Transition Metals
                                                                                                                                                                                                                                                                                      • 13.1 Transition Metals
                                                                                                                                                                                                                                                                                        • 13.1.1 Transition Elements
                                                                                                                                                                                                                                                                                          • 13.1.2 Variable Oxidation States
                                                                                                                                                                                                                                                                                            • 13.1.3 Complex Ions
                                                                                                                                                                                                                                                                                              • 13.1.4 Catalytic & Magnetic Properties
                                                                                                                                                                                                                                                                                                • 13.1.5 Colour in Transition Metals
                                                                                                                                                                                                                                                                                                  • 13.1.6 Factors Affecting Colour
                                                                                                                                                                                                                                                                                                • 14. HL Chemical Bonding & Structure
                                                                                                                                                                                                                                                                                                  • 14.1 More Structures & Shapes
                                                                                                                                                                                                                                                                                                    • 14.1.1 Covalent Bonds
                                                                                                                                                                                                                                                                                                      • 14.1.2 More Lewis Structures
                                                                                                                                                                                                                                                                                                        • 14.1.3 Further VSEPR Theory
                                                                                                                                                                                                                                                                                                          • 14.1.4 Formal Charge
                                                                                                                                                                                                                                                                                                          • 14.2 Further Aspects of Bonding
                                                                                                                                                                                                                                                                                                            • 14.2.1 Delocalisation & Resonance
                                                                                                                                                                                                                                                                                                              • 14.2.2 Ozone Revisited
                                                                                                                                                                                                                                                                                                                • 14.2.3 Hybrid Orbitals
                                                                                                                                                                                                                                                                                                              • 15. HL Energetics / Thermochemistry
                                                                                                                                                                                                                                                                                                                • 15.1 Energy Cycles
                                                                                                                                                                                                                                                                                                                  • 15.1.1 Key Enthalpy Terms
                                                                                                                                                                                                                                                                                                                    • 15.1.2 Born-Haber Cycles
                                                                                                                                                                                                                                                                                                                      • 15.1.3 Born-Haber Cycle Calculations
                                                                                                                                                                                                                                                                                                                        • 15.1.4 Dissolution Energy Cycles
                                                                                                                                                                                                                                                                                                                          • 15.1.5 Energy Changes in Aqueous Solutions
                                                                                                                                                                                                                                                                                                                          • 15.2 Entropy & Spontaneity
                                                                                                                                                                                                                                                                                                                            • 15.2.1 Entropy
                                                                                                                                                                                                                                                                                                                              • 15.2.2 Calculating Entropy Change
                                                                                                                                                                                                                                                                                                                                • 15.2.3 Gibbs Free Energy
                                                                                                                                                                                                                                                                                                                                  • 15.2.4 Spontaneous Reactions
                                                                                                                                                                                                                                                                                                                                    • 15.2.5 Free Energy & Equilibrium
                                                                                                                                                                                                                                                                                                                                  • 16. HL Chemical Kinetics
                                                                                                                                                                                                                                                                                                                                    • 16.1 Rate Expression & Reaction Mechanism
                                                                                                                                                                                                                                                                                                                                      • 16.1.1 Rate Equations
                                                                                                                                                                                                                                                                                                                                        • 16.1.2 Rate Constants
                                                                                                                                                                                                                                                                                                                                          • 16.1.3 Graphical Representations
                                                                                                                                                                                                                                                                                                                                            • 16.1.4 Rate Determining Step
                                                                                                                                                                                                                                                                                                                                              • 16.1.5 Mechanism Problems
                                                                                                                                                                                                                                                                                                                                              • 16.2 Activation Energy
                                                                                                                                                                                                                                                                                                                                                • 16.2.1 The Arrhenius Equation
                                                                                                                                                                                                                                                                                                                                                  • 16.2.2 Graphing the Arrhenius Equation
                                                                                                                                                                                                                                                                                                                                                    • 16.2.3 Activation Energy from Rate Constants
                                                                                                                                                                                                                                                                                                                                                  • 17. HL Equilibrium
                                                                                                                                                                                                                                                                                                                                                    • 17.1 The Equilibrium Law
                                                                                                                                                                                                                                                                                                                                                      • 17.1.1 Applying the Equilibrium Law
                                                                                                                                                                                                                                                                                                                                                        • 17.1.2 Gibbs Free Energy & the Equilibrium Constant
                                                                                                                                                                                                                                                                                                                                                      • 18. HL Acids & Bases
                                                                                                                                                                                                                                                                                                                                                        • 18.1 Further Aspects of Acids & Bases
                                                                                                                                                                                                                                                                                                                                                          • 18.1.1 Lewis Theory
                                                                                                                                                                                                                                                                                                                                                            • 18.1.2 pH Curves
                                                                                                                                                                                                                                                                                                                                                              • 18.1.3 Indicators
                                                                                                                                                                                                                                                                                                                                                                • 18.1.4 Buffers
                                                                                                                                                                                                                                                                                                                                                                  • 18.1.5 Salt Hydrolysis
                                                                                                                                                                                                                                                                                                                                                                  • 18.2 Calculations Involving Acids & Bases
                                                                                                                                                                                                                                                                                                                                                                    • 18.2.1 Acid & Base Dissociation Constants
                                                                                                                                                                                                                                                                                                                                                                      • 18.2.2 Acid & Base Problem Solving
                                                                                                                                                                                                                                                                                                                                                                    • 19. HL Redox Processes
                                                                                                                                                                                                                                                                                                                                                                      • 19.1 Electrochemical Cells
                                                                                                                                                                                                                                                                                                                                                                        • 19.1.1 Electrochemical Cells
                                                                                                                                                                                                                                                                                                                                                                          • 19.1.2 The Standard Hydrogen Electrode
                                                                                                                                                                                                                                                                                                                                                                            • 19.1.3 Electrolysis of Aqueous Solutions
                                                                                                                                                                                                                                                                                                                                                                              • 19.1.4 Quantitative Electrolysis
                                                                                                                                                                                                                                                                                                                                                                                • 19.1.5 Free Energy & Eº
                                                                                                                                                                                                                                                                                                                                                                                  • 19.1.6 Electroplating
                                                                                                                                                                                                                                                                                                                                                                                • 20. HL Organic Chemistry
                                                                                                                                                                                                                                                                                                                                                                                  • 20.1 Types of Organic Reactions
                                                                                                                                                                                                                                                                                                                                                                                    • 20.1.1 Nucleophilic Substitution Reactions
                                                                                                                                                                                                                                                                                                                                                                                      • 20.1.2 Electrophilic Addition Reactions
                                                                                                                                                                                                                                                                                                                                                                                        • 20.1.3 Electrophilic Substitution Reactions
                                                                                                                                                                                                                                                                                                                                                                                          • 20.1.4 Reduction Reactions
                                                                                                                                                                                                                                                                                                                                                                                          • 20.2 Synthetic Routes
                                                                                                                                                                                                                                                                                                                                                                                            • 20.2.1 Synthesis
                                                                                                                                                                                                                                                                                                                                                                                            • 20.3 Stereoisomerism
                                                                                                                                                                                                                                                                                                                                                                                              • 20.3.1 Stereoisomers
                                                                                                                                                                                                                                                                                                                                                                                                • 20.3.2 Cis-Trans & E/Z Isomers
                                                                                                                                                                                                                                                                                                                                                                                                  • 20.3.3 Optical Isomers
                                                                                                                                                                                                                                                                                                                                                                                                • 21. Measurement & Analysis
                                                                                                                                                                                                                                                                                                                                                                                                  • 21.1 Spectroscopic Identification of Organic compounds
                                                                                                                                                                                                                                                                                                                                                                                                    • 21.1.1 High Resolution NMR
                                                                                                                                                                                                                                                                                                                                                                                                      • 21.1.2 X-Ray Crystallography
                                                                                                                                                                                                                                                                                                                                                                                                        • 21.1.3 Structure Identification Problems
                                                                                                                                                                                                                                                                                                                                                                                                      Stewart Hird

                                                                                                                                                                                                                                                                                                                                                                                                      Author: Stewart

                                                                                                                                                                                                                                                                                                                                                                                                      Stewart has been an enthusiastic GCSE, A Level and IB Chemistry teacher for more than 30 years in the UK as well as overseas, and has been an examiner for IB and A Level, also. As a long-standing Head of Department, Stewart brings a wealth of experience to creating Topic Questions and revision materials for Save My Exams.


                                                                                                                                                                                                                                                                                                                                                                                                      Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                      Resources
                                                                                                                                                                                                                                                                                                                                                                                                      Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                      Members
                                                                                                                                                                                                                                                                                                                                                                                                      Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                      Company
                                                                                                                                                                                                                                                                                                                                                                                                      About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                      Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                      GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                      © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                      IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
