14.2.2 Ozone Revisited


Ozone Revisited

  • We have seen previously that ozone is a molecule with two resonance structures leading to a resonance hybrid

Lewis structures for ozone, downloadable IB Chemistry revision notes

The two Lewis resonance structures for ozone

  • The central oxygen atom has three electron domains and a lone pair, so the domain geometry is triangular planar and the molecular geometry is bent linear
  • The presence of the lone pair repels the bonding pairs more strongly so the bond angle is reduced to 117o

Molecular-structure-of-ozone, downloadable IB Chemistry revision notes

The molecular structure of ozone

  • The bond order for each bond in ozone is

bond order in O3 = total number of O3 bonding pairs ÷ total number of positions = 3 ÷ 2 = 1.5

  • This gives a polar molecule with bonds that are weaker than the double bond in oxygen molecules

Oxygen and ozone, downloadable IB Chemistry revision notes

The structure of oxygen and ozone

  • You would expect O-O bonds to be non-polar as the atoms have the same electronegativity; this is correct, but overall the molecule is polar due to the uneven distribution of electron cloud charge
  • The formal charge on the Lewis structures show that the electrons are unevenly distributed

FC= (number of valence electrons) – ½(number of bonding electrons) – (number of non-bonding electrons)

FC (oxygen A) = (6) - ½(2) - (6) = -1

FC (oxygen B) = (6) - ½(6) - (2) = +1

FC (oxygen C) = (6) - ½(4) - (4) = 0

Formal charges of the oxygen in ozone, downloadable IB Chemistry revision notes

Formal charges on the oxygens in ozone

Catalytic Depletion

  • The bonding and structure of ozone is key to understanding how the catalytic depletion of ozone occurs in the stratosphere
  •  High energy UV radiation in the stratosphere breaks the oxygen-oxygen double bond creating oxygen atoms

O2 (g) → O⋅ (g) + O⋅ (g) ∆H +ve, UV light, λ < 242 nm

  • These oxygen atoms have unpaired electrons- they are known as free radicals
  • The free radicals are highly reactive and quickly attack oxygen molecules forming ozone in an exothermic reaction, which raises the temperature of the stratosphere

OZONE FORMATION         O⋅ (g) + O2 (g) → O3 (g) ∆H – ve

  • Ozone requires less energy to break than oxygen
  • It produces an oxygen molecule and an oxygen free radical:

OZONE DEPLETION          O3 (g) → O⋅ (g) + O2 (g) ∆H +ve, UV light, λ< 330 nm

  • The radical reacts with another ozone molecule making two molecules of oxygen in an exothermic reaction

OZONE DEPLETION         O3 (g) + O⋅ (g) → 2O2 (g) ∆H – ve

  • The temperature in the stratosphere is maintained by the balance of ozone formation and ozone depletion in a process known as the Chapman Cycle
  • It is not a closed system as matter and energy flow in and out, but it is what is called a steady state

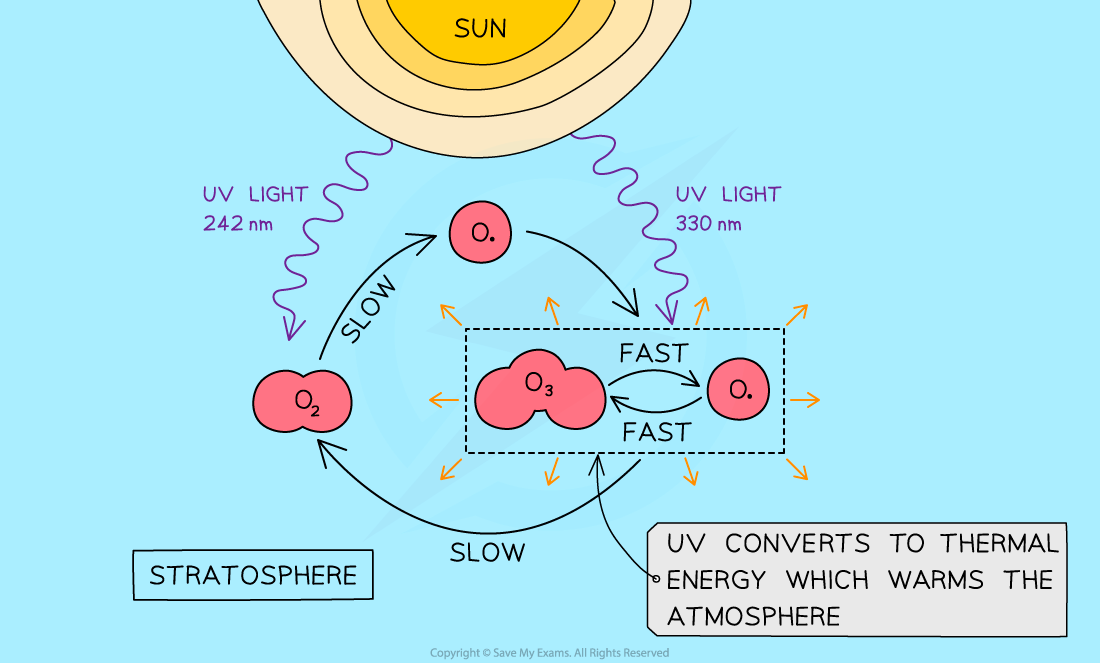

The Chapman cycle, downloadable IB Chemistry revision notes

The Chapman cycle

Catalytic Depletion

  • The two main man made culprits that accelerate the depletion of ozone are nitrogen oxides and CFCs
  • Nitrogen monoxide, NO, is produced from the high temperatures inside internal combustion engines
  • If you count the valence electrons in nitrogen monoxide (5 + 6 =11), the odd number tells you it is a free radical as it has an unpaired electron
  • The nitrogen monoxide reacts with ozone forming oxygen and a nitrogen dioxide radical

NO⋅ (g) + O3 (g) → NO2⋅ (g) + O2 (g)

  • The nitrogen dioxide produced is also a free radical (it has 5 + 6 + 6= 17 electrons)

NO2⋅ (g) + O⋅ (g) → NO⋅ (g) + O2 (g)

  • The nitrogen monoxide is regenerated so it has a catalytic role in the process
  • Combining the two equations and cancelling out the NO⋅ and NO2⋅ and you arrive at the overall depletion of ozone

O3 (g) + O⋅ (g) → 2O2 (g)

  • A similar process happens with CFCs
  • The C-Cl bond in the CFCs is weaker than the C-F bond and breaks more easily in the presence of UV light creating chlorine radicals

CCl2F2 (g) + UV → CClF2⋅ (g) + Cl⋅ (g)

  • The chlorine radicals attack ozone and are regenerated at the end of the cycle

Cl⋅ (g) + O3 (g) → ClO⋅ (g) + O2 (g)

ClO⋅ (g) + O⋅ (g) → Cl⋅ (g) + O2 (g)

  • Once again a molecule of ozone has been destroyed by a catalytic free radical
  • The net effect of these reactions is that these pollutants have created an imbalance in the natural ozone cycle leading to an overall depletion in stratospheric ozone
  • CFCs are greatly damaging to stratospheric ozone and have been largely replaced by safer alternatives following the 1985 Montreal Protocol
  • The depletion of ozone has allowed greater amounts of harmful UV light to reach the surface of the Earth
  • UV light has been linked to greater incidence of skin cancer and cataracts as well as the destruction of phytoplankton and reduced plant growth


  • 1. Stoichiometric Relationships
    • 1.1 Matter, Chemical Change & the Mole Concept
      • 1.1.1 Elements, Compounds & Mixtures
        • 1.1.2 Equations
          • 1.1.3 State Changes
            • 1.1.4 The Mole Concept
              • 1.1.5 Moles-Mass Problems
                • 1.1.6 Empirical Formulae
                • 1.2 Reacting Masses & Volumes
                  • 1.2.1 Reacting Masses
                    • 1.2.2 Reaction Yields
                      • 1.2.3 Avogadro's Law & Molar Gas Volume
                        • 1.2.4 The Ideal Gas Equation
                          • 1.2.5 Gas Law Relationships
                            • 1.2.6 Real Gases
                              • 1.2.7 Standard Solutions
                                • 1.2.8 Concentration Calculations
                                  • 1.2.9 Titrations
                                • 2. Atomic Structure
                                  • 2.1 Atomic & Electronic Structure
                                    • 2.1.1 The Nuclear Atom
                                      • 2.1.2 Deducing Subatomic Particles
                                        • 2.1.3 Relative Atomic Mass Calculations
                                          • 2.1.4 The Electromagnetic Spectrum
                                            • 2.1.5 Emission Spectra
                                              • 2.1.6 Energy Levels & Sublevels
                                                • 2.1.7 Sublevels & Orbitals
                                                  • 2.1.8 Writing Electron Configurations
                                                • 3. Periodicity
                                                  • 3.1 The Periodic Table & Periodic Trends
                                                    • 3.1.1 The Periodic Table
                                                      • 3.1.2 Periodic Trends: Physical - Atomic & Ionic Radius
                                                        • 3.1.3 Periodic Trends: Physical - Ionisation Energy
                                                          • 3.1.4 Periodic Trends: Physical - Electron Affinity
                                                            • 3.1.5 Periodic Trends: Physical - Electronegativity
                                                              • 3.1.6 Periodic Trends: Chemical
                                                              • 3.2 Oxides, Group 1 & Group 17
                                                                • 3.2.1 Periodic Trends: Oxides Across a Period
                                                                  • 3.2.2 Periodic Trends: Group 1 - The Alkali Metals
                                                                    • 3.2.3 Periodic Trends: Group 17 - The Halogens
                                                                  • 4. Chemical Bonding & Structure
                                                                    • 4.1 Ionic & Covalent Bonding
                                                                      • 4.1.1 Forming Ions
                                                                        • 4.1.2 Ionic Compounds
                                                                          • 4.1.3 Formulae & Names of Ionic Compounds
                                                                            • 4.1.4 Covalent Bonds
                                                                              • 4.1.5 Bond Polarity
                                                                                • 4.1.6 Lewis Structures
                                                                                • 4.2 Resonance, Shapes & Giant Structures
                                                                                  • 4.2.1 Resonance Structures
                                                                                    • 4.2.2 Shapes of Molecules
                                                                                      • 4.2.3 Predicting Molecular Shapes
                                                                                        • 4.2.4 Molecular Polarity
                                                                                          • 4.2.5 Giant Covalent Structures
                                                                                          • 4.3 Intermolecular Forces & Metallic Bonding
                                                                                            • 4.3.1 Types of Intermolecular Forces
                                                                                              • 4.3.2 Deducing Intermolecular Forces
                                                                                                • 4.3.3 Properties of Covalent Compounds
                                                                                                  • 4.3.4 Metallic Bonding
                                                                                                    • 4.3.5 Trends in Melting Points of Metals
                                                                                                      • 4.3.6 Alloys & their Properties
                                                                                                    • 5. Energetics/ Thermochemistry
                                                                                                      • 5.1 Energetics
                                                                                                        • 5.1.1 Energy Changes in Reactions
                                                                                                          • 5.1.2 Standard Enthalpy Change
                                                                                                            • 5.1.3 Calorimetry
                                                                                                              • 5.1.4 Calorimetry Experiments
                                                                                                              • 5.2 Hess's Law
                                                                                                                • 5.2.1 Hess's Law
                                                                                                                  • 5.2.2 Using Hess's Law - Cycles
                                                                                                                    • 5.2.3 Using Hess's Law - Equations
                                                                                                                      • 5.2.4 Using ∆Hf° to Find Enthalpy Changes
                                                                                                                      • 5.3 Bond Enthalpy
                                                                                                                        • 5.3.1 Bond Enthalpy
                                                                                                                          • 5.3.2 Bond Enthalpy Calculations
                                                                                                                            • 5.3.3 Energy Profiles
                                                                                                                              • 5.3.4 Case Study: Ozone
                                                                                                                            • 6. Chemical Kinetics
                                                                                                                              • 6.1 Chemical Kinetics
                                                                                                                                • 6.1.1 Collision Theory
                                                                                                                                  • 6.1.2 Rate of Reaction
                                                                                                                                    • 6.1.3 Measuring Rates
                                                                                                                                      • 6.1.4 Activation Energy
                                                                                                                                        • 6.1.5 Rate Experiments
                                                                                                                                          • 6.1.6 Explaining Rates
                                                                                                                                            • 6.1.7 Maxwell-Boltzmann Curves
                                                                                                                                              • 6.1.8 Energy Profiles & Catalysis
                                                                                                                                            • 7. Equilibrium
                                                                                                                                              • 7.1 Equilibrium
                                                                                                                                                • 7.1.1 The State of Equilibrium
                                                                                                                                                  • 7.1.2 The Equilibrium Law
                                                                                                                                                    • 7.1.3 Equilibrium Constant Relationships
                                                                                                                                                      • 7.1.4 The Reaction Quotient
                                                                                                                                                        • 7.1.5 Le Chatelier's Principle
                                                                                                                                                          • 7.1.6 Catalysts & Equilibrium
                                                                                                                                                        • 8. Acids & Bases
                                                                                                                                                          • 8.1 Theories & Reactions of Acids & Bases
                                                                                                                                                            • 8.1.1 Brønsted–Lowry Acids & Bases
                                                                                                                                                              • 8.1.2 Conjugate Acid-Base Pairs
                                                                                                                                                                • 8.1.3 Characteristic Reactions of Acids
                                                                                                                                                                  • 8.1.4 Neutralization
                                                                                                                                                                  • 8.2 More About Acids
                                                                                                                                                                    • 8.2.1 Acid-base Titrations
                                                                                                                                                                      • 8.2.2 pH & [H⁺]
                                                                                                                                                                        • 8.2.3 Interpreting pH
                                                                                                                                                                          • 8.2.4 The Ionic Product of Water
                                                                                                                                                                            • 8.2.5 Acid-Base Calculations
                                                                                                                                                                              • 8.2.6 pH Meters & Universal Indicator
                                                                                                                                                                                • 8.2.7 Strong & Weak Acids & Bases
                                                                                                                                                                                  • 8.2.8 Comparing Strong & Weak Acids
                                                                                                                                                                                  • 8.3 Acid Deposition
                                                                                                                                                                                    • 8.3.1 Acid Deposition
                                                                                                                                                                                      • 8.3.2 Effects of Acid Deposition
                                                                                                                                                                                        • 8.3.3 Reducing Sulfur Oxide Emissions
                                                                                                                                                                                      • 9. Redox Processes
                                                                                                                                                                                        • 9.1 Redox Processes
                                                                                                                                                                                          • 9.1.1 Oxidation & reduction
                                                                                                                                                                                            • 9.1.2 Deducing Oxidation Numbers
                                                                                                                                                                                              • 9.1.3 Oxidizing & Reducing agents
                                                                                                                                                                                                • 9.1.4 Naming Transition Metal Compounds
                                                                                                                                                                                                  • 9.1.5 Half Equations
                                                                                                                                                                                                    • 9.1.6 The Activity Series
                                                                                                                                                                                                      • 9.1.7 Redox Titrations
                                                                                                                                                                                                        • 9.1.8 The Winkler Method
                                                                                                                                                                                                          • 9.1.9 Voltaic Cells
                                                                                                                                                                                                            • 9.1.10 Electrolytic Cells
                                                                                                                                                                                                          • 10. Organic Chemistry
                                                                                                                                                                                                            • 10.1 Fundamentals of Organic Chemistry
                                                                                                                                                                                                              • 10.1.1 Homologous Series
                                                                                                                                                                                                                • 10.1.2 Understanding Organic Molecules
                                                                                                                                                                                                                  • 10.1.3 Nomenclature
                                                                                                                                                                                                                    • 10.1.4 Organic Families - Hydrocarbons
                                                                                                                                                                                                                      • 10.1.5 Organic Families - Halogenoalkanes
                                                                                                                                                                                                                        • 10.1.6 Organic Families - Alcohols & Ethers
                                                                                                                                                                                                                          • 10.1.7 Organic Families - Carbonyls
                                                                                                                                                                                                                            • 10.1.8 Organic Families - Carboxylic Acids & Esters
                                                                                                                                                                                                                              • 10.1.9 Organic Families - Organic Nitrogen Compounds
                                                                                                                                                                                                                                • 10.1.10 3-D modelling
                                                                                                                                                                                                                                  • 10.1.11 Primary, Secondary & Tertiary atoms
                                                                                                                                                                                                                                    • 10.1.12 Benzene
                                                                                                                                                                                                                                    • 10.2 Functional Group Chemistry
                                                                                                                                                                                                                                      • 10.2.1 Alkanes - Combustion
                                                                                                                                                                                                                                        • 10.2.2 Alkanes - Halogenation
                                                                                                                                                                                                                                          • 10.2.3 Alkenes - Reactivity
                                                                                                                                                                                                                                            • 10.2.4 Alkenes - Hydrogenation
                                                                                                                                                                                                                                              • 10.2.5 Alkenes - Halogenation
                                                                                                                                                                                                                                                • 10.2.6 Alkenes - Hydrohalogenation
                                                                                                                                                                                                                                                  • 10.2.7 Alkenes - Hydration
                                                                                                                                                                                                                                                    • 10.2.8 Addition Polymers
                                                                                                                                                                                                                                                      • 10.2.9 Alcohols - Combustion
                                                                                                                                                                                                                                                        • 10.2.10 Alcohols - Oxidation
                                                                                                                                                                                                                                                          • 10.2.11 Alcohols - Esterification
                                                                                                                                                                                                                                                            • 10.2.12 Halogenoalkanes
                                                                                                                                                                                                                                                              • 10.2.13 Reactions of Benzene
                                                                                                                                                                                                                                                            • 11. Measurements & Data Processes
                                                                                                                                                                                                                                                              • 11.1 Spectroscopic Identification
                                                                                                                                                                                                                                                                • 11.1.1 Index of Hydrogen Deficiency
                                                                                                                                                                                                                                                                  • 11.1.2 Mass Spectrometry
                                                                                                                                                                                                                                                                    • 11.1.3 Nuclear Magnetic Resonance Spectroscopy
                                                                                                                                                                                                                                                                      • 11.1.4 Infrared Spectroscopy
                                                                                                                                                                                                                                                                      • 11.2 Synoptic Data Handling & Graphical Skills
                                                                                                                                                                                                                                                                        • 11.2.1 Recording Data
                                                                                                                                                                                                                                                                          • 11.2.2 Processing Errors
                                                                                                                                                                                                                                                                            • 11.2.3 Reducing the Impact of Errors
                                                                                                                                                                                                                                                                              • 11.2.4 Percentage Error
                                                                                                                                                                                                                                                                                • 11.2.5 Drawing Graphs
                                                                                                                                                                                                                                                                                  • 11.2.6 Analysing Graphs
                                                                                                                                                                                                                                                                                • 12. HL Atomic Structure
                                                                                                                                                                                                                                                                                  • 12.1 Electrons in Atoms
                                                                                                                                                                                                                                                                                    • 12.1.1 Emission Spectra & First Ionisation Energy
                                                                                                                                                                                                                                                                                      • 12.1.2 Ionisation Energy Trends
                                                                                                                                                                                                                                                                                    • 13. HL The Periodic Table- Transition Metals
                                                                                                                                                                                                                                                                                      • 13.1 Transition Metals
                                                                                                                                                                                                                                                                                        • 13.1.1 Transition Elements
                                                                                                                                                                                                                                                                                          • 13.1.2 Variable Oxidation States
                                                                                                                                                                                                                                                                                            • 13.1.3 Complex Ions
                                                                                                                                                                                                                                                                                              • 13.1.4 Catalytic & Magnetic Properties
                                                                                                                                                                                                                                                                                                • 13.1.5 Colour in Transition Metals
                                                                                                                                                                                                                                                                                                  • 13.1.6 Factors Affecting Colour
                                                                                                                                                                                                                                                                                                • 14. HL Chemical Bonding & Structure
                                                                                                                                                                                                                                                                                                  • 14.1 More Structures & Shapes
                                                                                                                                                                                                                                                                                                    • 14.1.1 Covalent Bonds
                                                                                                                                                                                                                                                                                                      • 14.1.2 More Lewis Structures
                                                                                                                                                                                                                                                                                                        • 14.1.3 Further VSEPR Theory
                                                                                                                                                                                                                                                                                                          • 14.1.4 Formal Charge
                                                                                                                                                                                                                                                                                                          • 14.2 Further Aspects of Bonding
                                                                                                                                                                                                                                                                                                            • 14.2.1 Delocalisation & Resonance
                                                                                                                                                                                                                                                                                                              • 14.2.2 Ozone Revisited
                                                                                                                                                                                                                                                                                                                • 14.2.3 Hybrid Orbitals
                                                                                                                                                                                                                                                                                                              • 15. HL Energetics / Thermochemistry
                                                                                                                                                                                                                                                                                                                • 15.1 Energy Cycles
                                                                                                                                                                                                                                                                                                                  • 15.1.1 Key Enthalpy Terms
                                                                                                                                                                                                                                                                                                                    • 15.1.2 Born-Haber Cycles
                                                                                                                                                                                                                                                                                                                      • 15.1.3 Born-Haber Cycle Calculations
                                                                                                                                                                                                                                                                                                                        • 15.1.4 Dissolution Energy Cycles
                                                                                                                                                                                                                                                                                                                          • 15.1.5 Energy Changes in Aqueous Solutions
                                                                                                                                                                                                                                                                                                                          • 15.2 Entropy & Spontaneity
                                                                                                                                                                                                                                                                                                                            • 15.2.1 Entropy
                                                                                                                                                                                                                                                                                                                              • 15.2.2 Calculating Entropy Change
                                                                                                                                                                                                                                                                                                                                • 15.2.3 Gibbs Free Energy
                                                                                                                                                                                                                                                                                                                                  • 15.2.4 Spontaneous Reactions
                                                                                                                                                                                                                                                                                                                                    • 15.2.5 Free Energy & Equilibrium
                                                                                                                                                                                                                                                                                                                                  • 16. HL Chemical Kinetics
                                                                                                                                                                                                                                                                                                                                    • 16.1 Rate Expression & Reaction Mechanism
                                                                                                                                                                                                                                                                                                                                      • 16.1.1 Rate Equations
                                                                                                                                                                                                                                                                                                                                        • 16.1.2 Rate Constants
                                                                                                                                                                                                                                                                                                                                          • 16.1.3 Graphical Representations
                                                                                                                                                                                                                                                                                                                                            • 16.1.4 Rate Determining Step
                                                                                                                                                                                                                                                                                                                                              • 16.1.5 Mechanism Problems
                                                                                                                                                                                                                                                                                                                                              • 16.2 Activation Energy
                                                                                                                                                                                                                                                                                                                                                • 16.2.1 The Arrhenius Equation
                                                                                                                                                                                                                                                                                                                                                  • 16.2.2 Graphing the Arrhenius Equation
                                                                                                                                                                                                                                                                                                                                                    • 16.2.3 Activation Energy from Rate Constants
                                                                                                                                                                                                                                                                                                                                                  • 17. HL Equilibrium
                                                                                                                                                                                                                                                                                                                                                    • 17.1 The Equilibrium Law
                                                                                                                                                                                                                                                                                                                                                      • 17.1.1 Applying the Equilibrium Law
                                                                                                                                                                                                                                                                                                                                                        • 17.1.2 Gibbs Free Energy & the Equilibrium Constant
                                                                                                                                                                                                                                                                                                                                                      • 18. HL Acids & Bases
                                                                                                                                                                                                                                                                                                                                                        • 18.1 Further Aspects of Acids & Bases
                                                                                                                                                                                                                                                                                                                                                          • 18.1.1 Lewis Theory
                                                                                                                                                                                                                                                                                                                                                            • 18.1.2 pH Curves
                                                                                                                                                                                                                                                                                                                                                              • 18.1.3 Indicators
                                                                                                                                                                                                                                                                                                                                                                • 18.1.4 Buffers
                                                                                                                                                                                                                                                                                                                                                                  • 18.1.5 Salt Hydrolysis
                                                                                                                                                                                                                                                                                                                                                                  • 18.2 Calculations Involving Acids & Bases
                                                                                                                                                                                                                                                                                                                                                                    • 18.2.1 Acid & Base Dissociation Constants
                                                                                                                                                                                                                                                                                                                                                                      • 18.2.2 Acid & Base Problem Solving
                                                                                                                                                                                                                                                                                                                                                                    • 19. HL Redox Processes
                                                                                                                                                                                                                                                                                                                                                                      • 19.1 Electrochemical Cells
                                                                                                                                                                                                                                                                                                                                                                        • 19.1.1 Electrochemical Cells
                                                                                                                                                                                                                                                                                                                                                                          • 19.1.2 The Standard Hydrogen Electrode
                                                                                                                                                                                                                                                                                                                                                                            • 19.1.3 Electrolysis of Aqueous Solutions
                                                                                                                                                                                                                                                                                                                                                                              • 19.1.4 Quantitative Electrolysis
                                                                                                                                                                                                                                                                                                                                                                                • 19.1.5 Free Energy & Eº
                                                                                                                                                                                                                                                                                                                                                                                  • 19.1.6 Electroplating
                                                                                                                                                                                                                                                                                                                                                                                • 20. HL Organic Chemistry
                                                                                                                                                                                                                                                                                                                                                                                  • 20.1 Types of Organic Reactions
                                                                                                                                                                                                                                                                                                                                                                                    • 20.1.1 Nucleophilic Substitution Reactions
                                                                                                                                                                                                                                                                                                                                                                                      • 20.1.2 Electrophilic Addition Reactions
                                                                                                                                                                                                                                                                                                                                                                                        • 20.1.3 Electrophilic Substitution Reactions
                                                                                                                                                                                                                                                                                                                                                                                          • 20.1.4 Reduction Reactions
                                                                                                                                                                                                                                                                                                                                                                                          • 20.2 Synthetic Routes
                                                                                                                                                                                                                                                                                                                                                                                            • 20.2.1 Synthesis
                                                                                                                                                                                                                                                                                                                                                                                            • 20.3 Stereoisomerism
                                                                                                                                                                                                                                                                                                                                                                                              • 20.3.1 Stereoisomers
                                                                                                                                                                                                                                                                                                                                                                                                • 20.3.2 Cis-Trans & E/Z Isomers
                                                                                                                                                                                                                                                                                                                                                                                                  • 20.3.3 Optical Isomers
                                                                                                                                                                                                                                                                                                                                                                                                • 21. Measurement & Analysis
                                                                                                                                                                                                                                                                                                                                                                                                  • 21.1 Spectroscopic Identification of Organic compounds
                                                                                                                                                                                                                                                                                                                                                                                                    • 21.1.1 High Resolution NMR
                                                                                                                                                                                                                                                                                                                                                                                                      • 21.1.2 X-Ray Crystallography
                                                                                                                                                                                                                                                                                                                                                                                                        • 21.1.3 Structure Identification Problems
                                                                                                                                                                                                                                                                                                                                                                                                      Stewart Hird

                                                                                                                                                                                                                                                                                                                                                                                                      Author: Stewart

                                                                                                                                                                                                                                                                                                                                                                                                      Stewart has been an enthusiastic GCSE, A Level and IB Chemistry teacher for more than 30 years in the UK as well as overseas, and has been an examiner for IB and A Level, also. As a long-standing Head of Department, Stewart brings a wealth of experience to creating Topic Questions and revision materials for Save My Exams.


                                                                                                                                                                                                                                                                                                                                                                                                      Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                      Resources
                                                                                                                                                                                                                                                                                                                                                                                                      Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                      Members
                                                                                                                                                                                                                                                                                                                                                                                                      Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                      Company
                                                                                                                                                                                                                                                                                                                                                                                                      About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                      Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                      GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                      © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                      IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
