DP IB Chemistry: HL

Revision Notes

Home / IB / Chemistry: HL / DP / Revision Notes / 17. HL Equilibrium / 17.1 The Equilibrium Law / 17.1.1 Applying the Equilibrium Law


17.1.1 Applying the Equilibrium Law


Explaining Le Châtelier’s Principle

Le Châtelier's principle

  • Le Châtelier's principle says that if a change is made to a system at dynamic equilibrium, the position of the equilibrium moves to minimise this change
  • The principle can be used to predict changes to the position of equilibrium when there are changes in temperature, pressure or concentration

Explaining Le Châtelier’s Principle

  • The equilibrium law can explain and quantify the effect of changes in concentration at a particular temperature
  • These explanations are based on the idea that Kc is not affected by a change in concentration
    • Remember that the position of equilibrium is affected by a change in concentration:

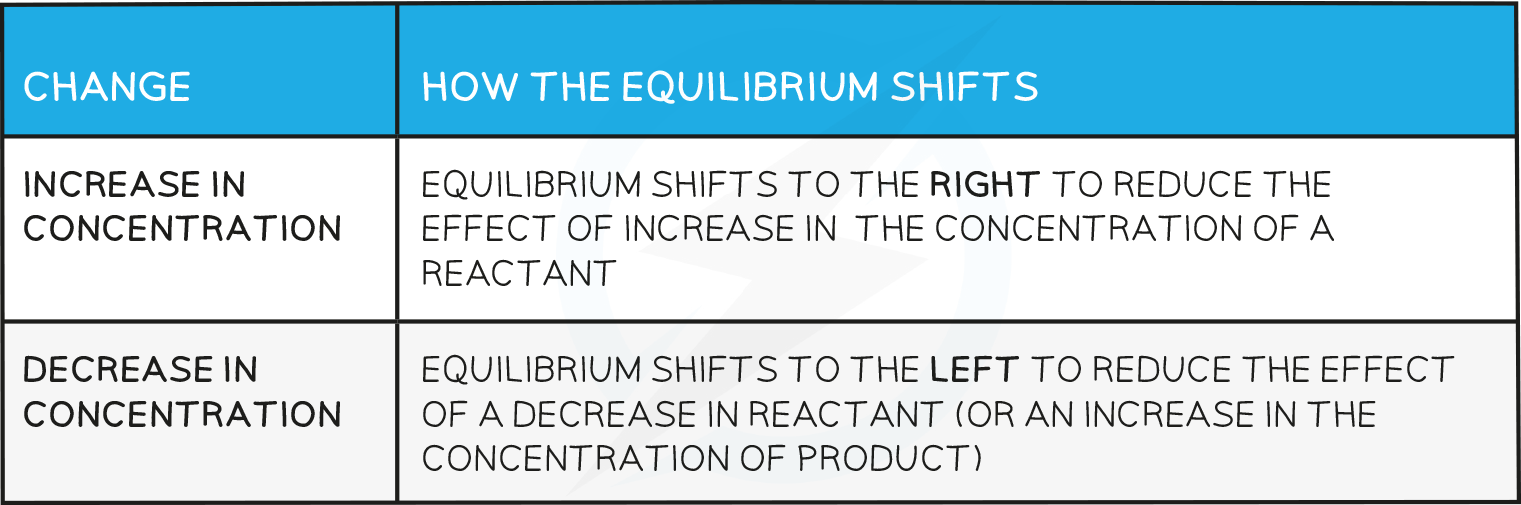

Effects of Concentration Table

  • Kc for a general reaction such aA + bB ⇌ cC + dD is:Equilibria Equilibrium Expression, downloadable AS & A Level Chemistry revision notes
  • Equilibrium expression linking the equilibrium concentration of reactants and products at equilibrium

  • If the concentration of A increases
    • The position of equilibrium shifts to the right as the forward reaction works to remove excess A
    • The concentrations of C and D increase to minimise this change
    • The concentration of B decreases because it is being used up to minimise the change
    • Therefore, the value of Kc remains unchanged

  • If the concentration of A decreases
    • The position of equilibrium shifts to the left as the backward reaction works to replace A
    • The concentrations of C and D decrease to minimise this change
    • The concentration of B increases because it is also being produced when C and D react
    • Therefore, the value of Kc remains unchanged

  • The Haber Process is represented by the following chemical equation:

N2 (g) + 3H2 (g) ⇌ 2NH3 (g)

  • An increase in the amount of nitrogen will cause the following:
    • The equilibrium to shift to the right
    • An increase in the amount of ammonia
    • A decrease in the amount of hydrogen
    • Kc will remain unchanged

Graph showing the effects of adding nitrogen on the concentration of reactants and products in the Haber Process, downloadable IB Chemistry revision notes

Graph showing the effects of adding nitrogen on the concentration of reactants and products in the Haber Process

  • An increase in the amount of nitrogen causes the rate of the forward reaction to increase
  • This means that more ammonia is produced, causing the rate of the backward reaction to increase
  • This process of increasing forward and backward reactions continues until a new equilibrium is established
  • The rate at this newly established equilibrium will be higher than the original rate

Graph showing the effects of adding nitrogen on the rate of reaction in the Haber Process, downloadable IB Chemistry revision notes

Graph showing the effects of adding nitrogen on the rate of reaction in the Haber Process

  • Similar points about concentrations and rates can be made for the addition of hydrogen or the removal of ammonia
    • Regardless, the value of Kc remains unchanged
    • Only changes in temperature affect Kc

Equilibrium Problems

Calculations involving Kc

  • In the equilibrium expression, each term inside a square bracket represents the concentration of that chemical in mol dm-3
  • Therefore, the units of Kc depend on the equilibrium expression
  • Some questions give the number of moles of each of the reactants and products at equilibrium together with the volume of the reaction mixture
  • The concentrations of the reactants and products can then be calculated from the number of moles and total volume

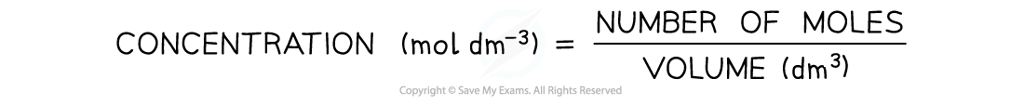

Equation to calculate concentration from number of moles and volume

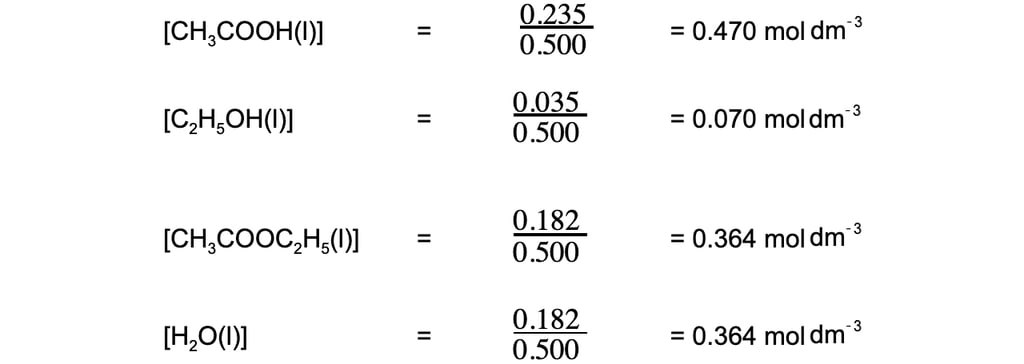

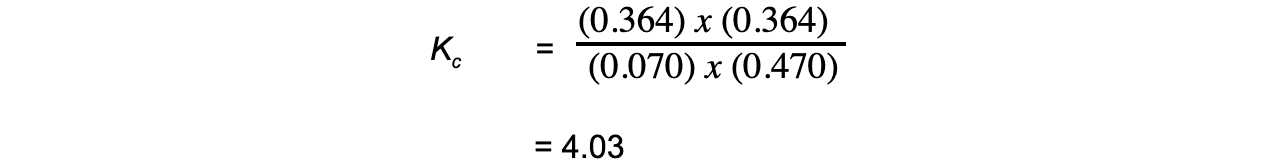

Worked Example

Calculating Kc of ethanoic acid

Ethanoic acid and ethanol react to form the ester ethyl ethanoate and water as follows:

CH3COOH (I) + C2H5OH (I) ⇌ CH3COOC2H5 (I) + H2O (I)

At equilibrium, 500 cm3 of the reaction mixture contained 0.235 mol of ethanoic acid and 0.035 mol of ethanol together with 0.182 mol of ethyl ethanoate and 0.182 mol of water.

Use this data to calculate a value of Kc for this reaction.

Answer:

Step 1: Calculate the concentrations of the reactants and products:

Step 2: Write out the balanced symbol equation with the concentrations of each chemical underneath:

Step 3: Write out the equilibrium constant for the reaction:

Equilibrium Constant Calculations WE Step 1 equation 3

Step 4: Substitute the equilibrium concentrations into the expression and calculate the answer:Equilibrium Constant Calculations WE Step 1 equation 4

Step 5: Deduce the correct units for Kc:

    • All units cancel out
    • Therefore, Kc = 4.03
    • Note that the smallest number of significant figures used in the question is 3, so the final answer should also be given to 3 significant figures



  • Some questions give the initial and equilibrium concentrations of the reactants but not the products
  • An initial, change and equilibrium (ICE) table should be used to determine the equilibrium concentration of the products using the molar ratio of reactants and products in the stoichiometric equation

Worked Example

Calculating Kc of ethyl ethanoate

Ethyl ethanoate is hydrolysed by water:

CH3COOC2H5 (I) + H2O (I) ⇌ CH3COOH (I) + C2H5OH (I)

0.1000 mol of ethyl ethanoate are added to 0.1000 mol of water. A little acid catalyst is added and the mixture made up to 1 dm3. At equilibrium 0.0654 mol of water are present. Use this data to calculate a value of Kc for this reaction.

Answer:

Step 1: Write out the balanced chemical equation with the concentrations of beneath each substance using an initial, change and equilibrium table:

Equilibria Calculating Kc of ethyl ethanoate table

Step 2: Calculate the concentrations of the reactants and products:

Step 3: Write the equilibrium constant for this reaction in terms of concentration:

Equilibrium Constant Calculations WE Step 3 equation

Step 4: Substitute the equilibrium concentrations into the expression:

Equilibrium Constant Calculations WE Step 4 equation

= 0.28

Step 5: Deduce the correct units for Kc:

Equilibrium Constant Calculations WE Step 5 equation

    • All units cancel out
    • Therefore, Kc = 0.28



  • 1. Stoichiometric Relationships
    • 1.1 Matter, Chemical Change & the Mole Concept
      • 1.1.1 Elements, Compounds & Mixtures
        • 1.1.2 Equations
          • 1.1.3 State Changes
            • 1.1.4 The Mole Concept
              • 1.1.5 Moles-Mass Problems
                • 1.1.6 Empirical Formulae
                • 1.2 Reacting Masses & Volumes
                  • 1.2.1 Reacting Masses
                    • 1.2.2 Reaction Yields
                      • 1.2.3 Avogadro's Law & Molar Gas Volume
                        • 1.2.4 The Ideal Gas Equation
                          • 1.2.5 Gas Law Relationships
                            • 1.2.6 Real Gases
                              • 1.2.7 Standard Solutions
                                • 1.2.8 Concentration Calculations
                                  • 1.2.9 Titrations
                                • 2. Atomic Structure
                                  • 2.1 Atomic & Electronic Structure
                                    • 2.1.1 The Nuclear Atom
                                      • 2.1.2 Deducing Subatomic Particles
                                        • 2.1.3 Relative Atomic Mass Calculations
                                          • 2.1.4 The Electromagnetic Spectrum
                                            • 2.1.5 Emission Spectra
                                              • 2.1.6 Energy Levels & Sublevels
                                                • 2.1.7 Sublevels & Orbitals
                                                  • 2.1.8 Writing Electron Configurations
                                                • 3. Periodicity
                                                  • 3.1 The Periodic Table & Periodic Trends
                                                    • 3.1.1 The Periodic Table
                                                      • 3.1.2 Periodic Trends: Physical - Atomic & Ionic Radius
                                                        • 3.1.3 Periodic Trends: Physical - Ionisation Energy
                                                          • 3.1.4 Periodic Trends: Physical - Electron Affinity
                                                            • 3.1.5 Periodic Trends: Physical - Electronegativity
                                                              • 3.1.6 Periodic Trends: Chemical
                                                              • 3.2 Oxides, Group 1 & Group 17
                                                                • 3.2.1 Periodic Trends: Oxides Across a Period
                                                                  • 3.2.2 Periodic Trends: Group 1 - The Alkali Metals
                                                                    • 3.2.3 Periodic Trends: Group 17 - The Halogens
                                                                  • 4. Chemical Bonding & Structure
                                                                    • 4.1 Ionic & Covalent Bonding
                                                                      • 4.1.1 Forming Ions
                                                                        • 4.1.2 Ionic Compounds
                                                                          • 4.1.3 Formulae & Names of Ionic Compounds
                                                                            • 4.1.4 Covalent Bonds
                                                                              • 4.1.5 Bond Polarity
                                                                                • 4.1.6 Lewis Structures
                                                                                • 4.2 Resonance, Shapes & Giant Structures
                                                                                  • 4.2.1 Resonance Structures
                                                                                    • 4.2.2 Shapes of Molecules
                                                                                      • 4.2.3 Predicting Molecular Shapes
                                                                                        • 4.2.4 Molecular Polarity
                                                                                          • 4.2.5 Giant Covalent Structures
                                                                                          • 4.3 Intermolecular Forces & Metallic Bonding
                                                                                            • 4.3.1 Types of Intermolecular Forces
                                                                                              • 4.3.2 Deducing Intermolecular Forces
                                                                                                • 4.3.3 Properties of Covalent Compounds
                                                                                                  • 4.3.4 Metallic Bonding
                                                                                                    • 4.3.5 Trends in Melting Points of Metals
                                                                                                      • 4.3.6 Alloys & their Properties
                                                                                                    • 5. Energetics/ Thermochemistry
                                                                                                      • 5.1 Energetics
                                                                                                        • 5.1.1 Energy Changes in Reactions
                                                                                                          • 5.1.2 Standard Enthalpy Change
                                                                                                            • 5.1.3 Calorimetry
                                                                                                              • 5.1.4 Calorimetry Experiments
                                                                                                              • 5.2 Hess's Law
                                                                                                                • 5.2.1 Hess's Law
                                                                                                                  • 5.2.2 Using Hess's Law - Cycles
                                                                                                                    • 5.2.3 Using Hess's Law - Equations
                                                                                                                      • 5.2.4 Using ∆Hf° to Find Enthalpy Changes
                                                                                                                      • 5.3 Bond Enthalpy
                                                                                                                        • 5.3.1 Bond Enthalpy
                                                                                                                          • 5.3.2 Bond Enthalpy Calculations
                                                                                                                            • 5.3.3 Energy Profiles
                                                                                                                              • 5.3.4 Case Study: Ozone
                                                                                                                            • 6. Chemical Kinetics
                                                                                                                              • 6.1 Chemical Kinetics
                                                                                                                                • 6.1.1 Collision Theory
                                                                                                                                  • 6.1.2 Rate of Reaction
                                                                                                                                    • 6.1.3 Measuring Rates
                                                                                                                                      • 6.1.4 Activation Energy
                                                                                                                                        • 6.1.5 Rate Experiments
                                                                                                                                          • 6.1.6 Explaining Rates
                                                                                                                                            • 6.1.7 Maxwell-Boltzmann Curves
                                                                                                                                              • 6.1.8 Energy Profiles & Catalysis
                                                                                                                                            • 7. Equilibrium
                                                                                                                                              • 7.1 Equilibrium
                                                                                                                                                • 7.1.1 The State of Equilibrium
                                                                                                                                                  • 7.1.2 The Equilibrium Law
                                                                                                                                                    • 7.1.3 Equilibrium Constant Relationships
                                                                                                                                                      • 7.1.4 The Reaction Quotient
                                                                                                                                                        • 7.1.5 Le Chatelier's Principle
                                                                                                                                                          • 7.1.6 Catalysts & Equilibrium
                                                                                                                                                        • 8. Acids & Bases
                                                                                                                                                          • 8.1 Theories & Reactions of Acids & Bases
                                                                                                                                                            • 8.1.1 Brønsted–Lowry Acids & Bases
                                                                                                                                                              • 8.1.2 Conjugate Acid-Base Pairs
                                                                                                                                                                • 8.1.3 Characteristic Reactions of Acids
                                                                                                                                                                  • 8.1.4 Neutralization
                                                                                                                                                                  • 8.2 More About Acids
                                                                                                                                                                    • 8.2.1 Acid-base Titrations
                                                                                                                                                                      • 8.2.2 pH & [H⁺]
                                                                                                                                                                        • 8.2.3 Interpreting pH
                                                                                                                                                                          • 8.2.4 The Ionic Product of Water
                                                                                                                                                                            • 8.2.5 Acid-Base Calculations
                                                                                                                                                                              • 8.2.6 pH Meters & Universal Indicator
                                                                                                                                                                                • 8.2.7 Strong & Weak Acids & Bases
                                                                                                                                                                                  • 8.2.8 Comparing Strong & Weak Acids
                                                                                                                                                                                  • 8.3 Acid Deposition
                                                                                                                                                                                    • 8.3.1 Acid Deposition
                                                                                                                                                                                      • 8.3.2 Effects of Acid Deposition
                                                                                                                                                                                        • 8.3.3 Reducing Sulfur Oxide Emissions
                                                                                                                                                                                      • 9. Redox Processes
                                                                                                                                                                                        • 9.1 Redox Processes
                                                                                                                                                                                          • 9.1.1 Oxidation & reduction
                                                                                                                                                                                            • 9.1.2 Deducing Oxidation Numbers
                                                                                                                                                                                              • 9.1.3 Oxidizing & Reducing agents
                                                                                                                                                                                                • 9.1.4 Naming Transition Metal Compounds
                                                                                                                                                                                                  • 9.1.5 Half Equations
                                                                                                                                                                                                    • 9.1.6 The Activity Series
                                                                                                                                                                                                      • 9.1.7 Redox Titrations
                                                                                                                                                                                                        • 9.1.8 The Winkler Method
                                                                                                                                                                                                          • 9.1.9 Voltaic Cells
                                                                                                                                                                                                            • 9.1.10 Electrolytic Cells
                                                                                                                                                                                                          • 10. Organic Chemistry
                                                                                                                                                                                                            • 10.1 Fundamentals of Organic Chemistry
                                                                                                                                                                                                              • 10.1.1 Homologous Series
                                                                                                                                                                                                                • 10.1.2 Understanding Organic Molecules
                                                                                                                                                                                                                  • 10.1.3 Nomenclature
                                                                                                                                                                                                                    • 10.1.4 Organic Families - Hydrocarbons
                                                                                                                                                                                                                      • 10.1.5 Organic Families - Halogenoalkanes
                                                                                                                                                                                                                        • 10.1.6 Organic Families - Alcohols & Ethers
                                                                                                                                                                                                                          • 10.1.7 Organic Families - Carbonyls
                                                                                                                                                                                                                            • 10.1.8 Organic Families - Carboxylic Acids & Esters
                                                                                                                                                                                                                              • 10.1.9 Organic Families - Organic Nitrogen Compounds
                                                                                                                                                                                                                                • 10.1.10 3-D modelling
                                                                                                                                                                                                                                  • 10.1.11 Primary, Secondary & Tertiary atoms
                                                                                                                                                                                                                                    • 10.1.12 Benzene
                                                                                                                                                                                                                                    • 10.2 Functional Group Chemistry
                                                                                                                                                                                                                                      • 10.2.1 Alkanes - Combustion
                                                                                                                                                                                                                                        • 10.2.2 Alkanes - Halogenation
                                                                                                                                                                                                                                          • 10.2.3 Alkenes - Reactivity
                                                                                                                                                                                                                                            • 10.2.4 Alkenes - Hydrogenation
                                                                                                                                                                                                                                              • 10.2.5 Alkenes - Halogenation
                                                                                                                                                                                                                                                • 10.2.6 Alkenes - Hydrohalogenation
                                                                                                                                                                                                                                                  • 10.2.7 Alkenes - Hydration
                                                                                                                                                                                                                                                    • 10.2.8 Addition Polymers
                                                                                                                                                                                                                                                      • 10.2.9 Alcohols - Combustion
                                                                                                                                                                                                                                                        • 10.2.10 Alcohols - Oxidation
                                                                                                                                                                                                                                                          • 10.2.11 Alcohols - Esterification
                                                                                                                                                                                                                                                            • 10.2.12 Halogenoalkanes
                                                                                                                                                                                                                                                              • 10.2.13 Reactions of Benzene
                                                                                                                                                                                                                                                            • 11. Measurements & Data Processes
                                                                                                                                                                                                                                                              • 11.1 Spectroscopic Identification
                                                                                                                                                                                                                                                                • 11.1.1 Index of Hydrogen Deficiency
                                                                                                                                                                                                                                                                  • 11.1.2 Mass Spectrometry
                                                                                                                                                                                                                                                                    • 11.1.3 Nuclear Magnetic Resonance Spectroscopy
                                                                                                                                                                                                                                                                      • 11.1.4 Infrared Spectroscopy
                                                                                                                                                                                                                                                                      • 11.2 Synoptic Data Handling & Graphical Skills
                                                                                                                                                                                                                                                                        • 11.2.1 Recording Data
                                                                                                                                                                                                                                                                          • 11.2.2 Processing Errors
                                                                                                                                                                                                                                                                            • 11.2.3 Reducing the Impact of Errors
                                                                                                                                                                                                                                                                              • 11.2.4 Percentage Error
                                                                                                                                                                                                                                                                                • 11.2.5 Drawing Graphs
                                                                                                                                                                                                                                                                                  • 11.2.6 Analysing Graphs
                                                                                                                                                                                                                                                                                • 12. HL Atomic Structure
                                                                                                                                                                                                                                                                                  • 12.1 Electrons in Atoms
                                                                                                                                                                                                                                                                                    • 12.1.1 Emission Spectra & First Ionisation Energy
                                                                                                                                                                                                                                                                                      • 12.1.2 Ionisation Energy Trends
                                                                                                                                                                                                                                                                                    • 13. HL The Periodic Table- Transition Metals
                                                                                                                                                                                                                                                                                      • 13.1 Transition Metals
                                                                                                                                                                                                                                                                                        • 13.1.1 Transition Elements
                                                                                                                                                                                                                                                                                          • 13.1.2 Variable Oxidation States
                                                                                                                                                                                                                                                                                            • 13.1.3 Complex Ions
                                                                                                                                                                                                                                                                                              • 13.1.4 Catalytic & Magnetic Properties
                                                                                                                                                                                                                                                                                                • 13.1.5 Colour in Transition Metals
                                                                                                                                                                                                                                                                                                  • 13.1.6 Factors Affecting Colour
                                                                                                                                                                                                                                                                                                • 14. HL Chemical Bonding & Structure
                                                                                                                                                                                                                                                                                                  • 14.1 More Structures & Shapes
                                                                                                                                                                                                                                                                                                    • 14.1.1 Covalent Bonds
                                                                                                                                                                                                                                                                                                      • 14.1.2 More Lewis Structures
                                                                                                                                                                                                                                                                                                        • 14.1.3 Further VSEPR Theory
                                                                                                                                                                                                                                                                                                          • 14.1.4 Formal Charge
                                                                                                                                                                                                                                                                                                          • 14.2 Further Aspects of Bonding
                                                                                                                                                                                                                                                                                                            • 14.2.1 Delocalisation & Resonance
                                                                                                                                                                                                                                                                                                              • 14.2.2 Ozone Revisited
                                                                                                                                                                                                                                                                                                                • 14.2.3 Hybrid Orbitals
                                                                                                                                                                                                                                                                                                              • 15. HL Energetics / Thermochemistry
                                                                                                                                                                                                                                                                                                                • 15.1 Energy Cycles
                                                                                                                                                                                                                                                                                                                  • 15.1.1 Key Enthalpy Terms
                                                                                                                                                                                                                                                                                                                    • 15.1.2 Born-Haber Cycles
                                                                                                                                                                                                                                                                                                                      • 15.1.3 Born-Haber Cycle Calculations
                                                                                                                                                                                                                                                                                                                        • 15.1.4 Dissolution Energy Cycles
                                                                                                                                                                                                                                                                                                                          • 15.1.5 Energy Changes in Aqueous Solutions
                                                                                                                                                                                                                                                                                                                          • 15.2 Entropy & Spontaneity
                                                                                                                                                                                                                                                                                                                            • 15.2.1 Entropy
                                                                                                                                                                                                                                                                                                                              • 15.2.2 Calculating Entropy Change
                                                                                                                                                                                                                                                                                                                                • 15.2.3 Gibbs Free Energy
                                                                                                                                                                                                                                                                                                                                  • 15.2.4 Spontaneous Reactions
                                                                                                                                                                                                                                                                                                                                    • 15.2.5 Free Energy & Equilibrium
                                                                                                                                                                                                                                                                                                                                  • 16. HL Chemical Kinetics
                                                                                                                                                                                                                                                                                                                                    • 16.1 Rate Expression & Reaction Mechanism
                                                                                                                                                                                                                                                                                                                                      • 16.1.1 Rate Equations
                                                                                                                                                                                                                                                                                                                                        • 16.1.2 Rate Constants
                                                                                                                                                                                                                                                                                                                                          • 16.1.3 Graphical Representations
                                                                                                                                                                                                                                                                                                                                            • 16.1.4 Rate Determining Step
                                                                                                                                                                                                                                                                                                                                              • 16.1.5 Mechanism Problems
                                                                                                                                                                                                                                                                                                                                              • 16.2 Activation Energy
                                                                                                                                                                                                                                                                                                                                                • 16.2.1 The Arrhenius Equation
                                                                                                                                                                                                                                                                                                                                                  • 16.2.2 Graphing the Arrhenius Equation
                                                                                                                                                                                                                                                                                                                                                    • 16.2.3 Activation Energy from Rate Constants
                                                                                                                                                                                                                                                                                                                                                  • 17. HL Equilibrium
                                                                                                                                                                                                                                                                                                                                                    • 17.1 The Equilibrium Law
                                                                                                                                                                                                                                                                                                                                                      • 17.1.1 Applying the Equilibrium Law
                                                                                                                                                                                                                                                                                                                                                        • 17.1.2 Gibbs Free Energy & the Equilibrium Constant
                                                                                                                                                                                                                                                                                                                                                      • 18. HL Acids & Bases
                                                                                                                                                                                                                                                                                                                                                        • 18.1 Further Aspects of Acids & Bases
                                                                                                                                                                                                                                                                                                                                                          • 18.1.1 Lewis Theory
                                                                                                                                                                                                                                                                                                                                                            • 18.1.2 pH Curves
                                                                                                                                                                                                                                                                                                                                                              • 18.1.3 Indicators
                                                                                                                                                                                                                                                                                                                                                                • 18.1.4 Buffers
                                                                                                                                                                                                                                                                                                                                                                  • 18.1.5 Salt Hydrolysis
                                                                                                                                                                                                                                                                                                                                                                  • 18.2 Calculations Involving Acids & Bases
                                                                                                                                                                                                                                                                                                                                                                    • 18.2.1 Acid & Base Dissociation Constants
                                                                                                                                                                                                                                                                                                                                                                      • 18.2.2 Acid & Base Problem Solving
                                                                                                                                                                                                                                                                                                                                                                    • 19. HL Redox Processes
                                                                                                                                                                                                                                                                                                                                                                      • 19.1 Electrochemical Cells
                                                                                                                                                                                                                                                                                                                                                                        • 19.1.1 Electrochemical Cells
                                                                                                                                                                                                                                                                                                                                                                          • 19.1.2 The Standard Hydrogen Electrode
                                                                                                                                                                                                                                                                                                                                                                            • 19.1.3 Electrolysis of Aqueous Solutions
                                                                                                                                                                                                                                                                                                                                                                              • 19.1.4 Quantitative Electrolysis
                                                                                                                                                                                                                                                                                                                                                                                • 19.1.5 Free Energy & Eº
                                                                                                                                                                                                                                                                                                                                                                                  • 19.1.6 Electroplating
                                                                                                                                                                                                                                                                                                                                                                                • 20. HL Organic Chemistry
                                                                                                                                                                                                                                                                                                                                                                                  • 20.1 Types of Organic Reactions
                                                                                                                                                                                                                                                                                                                                                                                    • 20.1.1 Nucleophilic Substitution Reactions
                                                                                                                                                                                                                                                                                                                                                                                      • 20.1.2 Electrophilic Addition Reactions
                                                                                                                                                                                                                                                                                                                                                                                        • 20.1.3 Electrophilic Substitution Reactions
                                                                                                                                                                                                                                                                                                                                                                                          • 20.1.4 Reduction Reactions
                                                                                                                                                                                                                                                                                                                                                                                          • 20.2 Synthetic Routes
                                                                                                                                                                                                                                                                                                                                                                                            • 20.2.1 Synthesis
                                                                                                                                                                                                                                                                                                                                                                                            • 20.3 Stereoisomerism
                                                                                                                                                                                                                                                                                                                                                                                              • 20.3.1 Stereoisomers
                                                                                                                                                                                                                                                                                                                                                                                                • 20.3.2 Cis-Trans & E/Z Isomers
                                                                                                                                                                                                                                                                                                                                                                                                  • 20.3.3 Optical Isomers
                                                                                                                                                                                                                                                                                                                                                                                                • 21. Measurement & Analysis
                                                                                                                                                                                                                                                                                                                                                                                                  • 21.1 Spectroscopic Identification of Organic compounds
                                                                                                                                                                                                                                                                                                                                                                                                    • 21.1.1 High Resolution NMR
                                                                                                                                                                                                                                                                                                                                                                                                      • 21.1.2 X-Ray Crystallography
                                                                                                                                                                                                                                                                                                                                                                                                        • 21.1.3 Structure Identification Problems
                                                                                                                                                                                                                                                                                                                                                                                                      Stewart Hird

                                                                                                                                                                                                                                                                                                                                                                                                      Author: Stewart

                                                                                                                                                                                                                                                                                                                                                                                                      Stewart has been an enthusiastic GCSE, A Level and IB Chemistry teacher for more than 30 years in the UK as well as overseas, and has been an examiner for IB and A Level, also. As a long-standing Head of Department, Stewart brings a wealth of experience to creating Topic Questions and revision materials for Save My Exams.


                                                                                                                                                                                                                                                                                                                                                                                                      Save My Exams Logo
                                                                                                                                                                                                                                                                                                                                                                                                      Resources
                                                                                                                                                                                                                                                                                                                                                                                                      Home Join Support

                                                                                                                                                                                                                                                                                                                                                                                                      Members
                                                                                                                                                                                                                                                                                                                                                                                                      Members Home Account Logout

                                                                                                                                                                                                                                                                                                                                                                                                      Company
                                                                                                                                                                                                                                                                                                                                                                                                      About Us Contact Us Jobs Terms Privacy Facebook Twitter

                                                                                                                                                                                                                                                                                                                                                                                                      Quick Links
                                                                                                                                                                                                                                                                                                                                                                                                      GCSE Revision Notes IGCSE Revision Notes A Level Revision Notes Biology Chemistry Physics Maths 2022 Advance Information


                                                                                                                                                                                                                                                                                                                                                                                                      © IB Documents (2) Team & u/aimlesskr
                                                                                                                                                                                                                                                                                                                                                                                                      IBO was not involved in the production of, and does not endorse, the resources created by Save My Exams.
